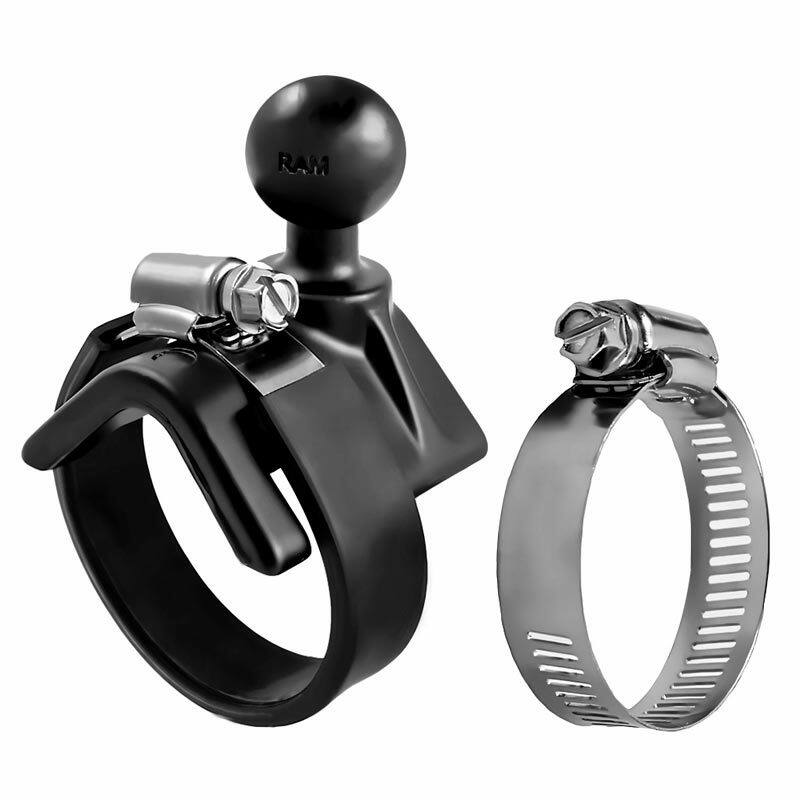

RAM-B-108BU RAM® Strap Hose Clamp Ball Base - 1" Ball for Rails and Yokes
Features
* Saddle-shaped clamp mount ideal for rails ranging from 25-53mm in diameter
* Included B size 1" RAM® rubber ball allows for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

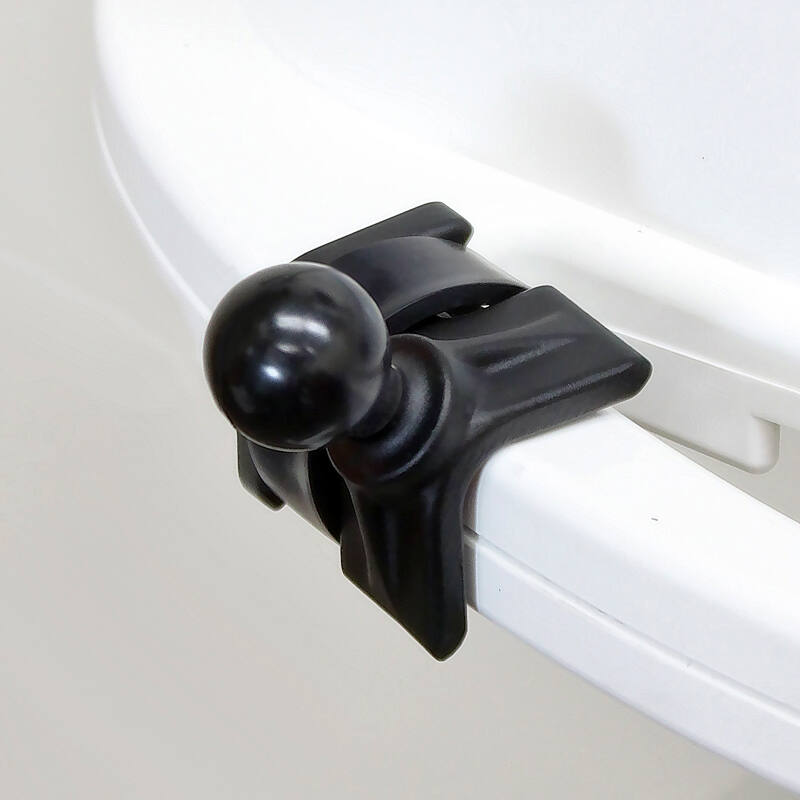

If you need to mount to a round, square or rectangular bar this will prevent the mount from rotation - unlike a "U-Bolt" base that are designed only for round bars.
The RAM-B-108BU consists of a 1" diameter rubber ball connected at a right angle to a V-shaped base. The RAM-B-108BU accommodates rails from 1.0" to a maximum of 2.1" in diameter. To mount the RAM-B-108BU base, place the saddle shaped plate on the rail then wrap the metal clamp strap around the rail and plate. Tighten the screw knob on the metal strap with a screw driver until the strap has a firm hold on the rail.
The RAM-B-108BU is an alternative mounting base for Beechcraft airplanes with a “throw over yoke”.
Specs:

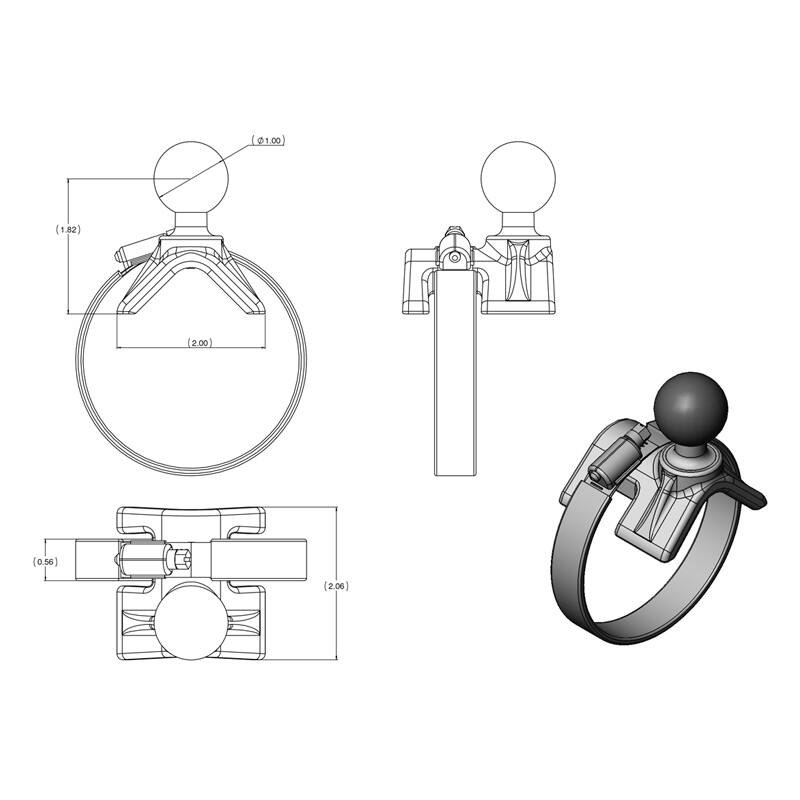

Clamp Dimensions:
25.4mm to 53.3mm (1" to 2.1")
Material:
Powder Coated Marine Grade Aluminium
Ball Size:
1" Rubber Ball "B" Size
Hardware Included
(1) #20 Worm Drive Strap Clamp
(1) #28 Worm Drive Strap Clamp
(1) 6" Rubber Strip
Weight:
127 grams (0.28 lbs.)
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
