RAM Strap / U-Bolt Base for 13-80mm Diameter Bars - 1.5" Ball

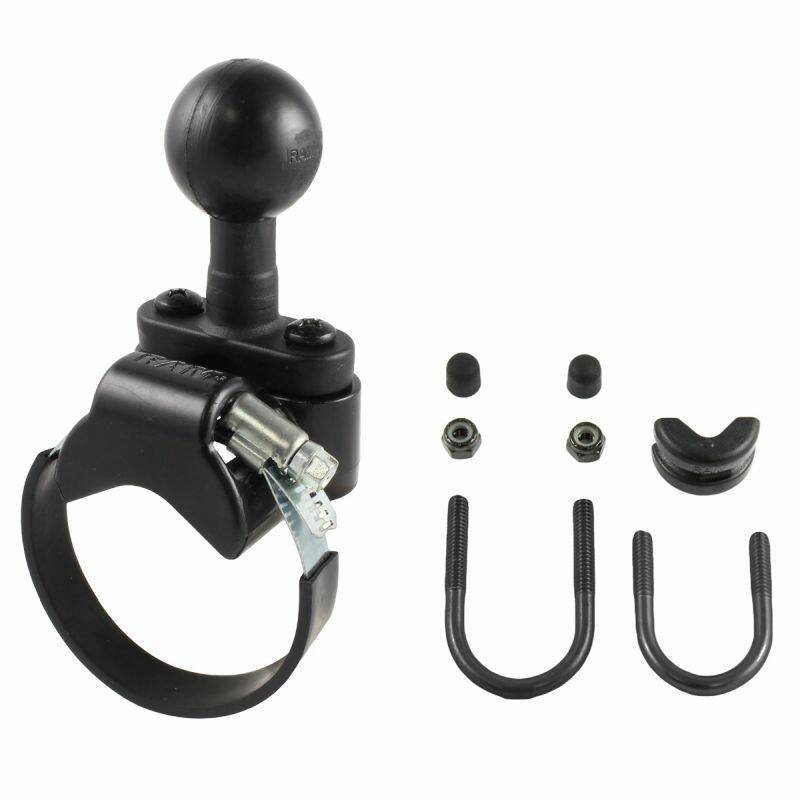

RAM-231Z-2U – RAM® ATV/UTV Rail Ball Base with Strap Clamp & U-Bolt, C Size

The RAM-231Z-2U is a rail and bar base for ATVs and UTVs with a C size 1.5" rubber ball, supplied with both U-bolt and concealed strap clamp fittings to cover bar diameters from 12.7mm right up to 80mm.

Key Features

• Includes both strap clamp and U-bolt components for a clean installation on most common ATV/UTV tubing
• Strap clamp is concealed in a compact housing; no exposed sharp edges or unwanted loosening
• Zinc-coated U-bolt with black cover caps for the exposed ends
• C size 1.5" rubber ball connects to any C size RAM® double socket arm; near-infinite adjustability
• Powder-coated marine-grade aluminium construction
• Backed by a lifetime warranty

Works With

ATV and UTV rails and bars: 12.7–31.75mm (0.5"–1.25") diameter via U-bolt, or 39.88–80mm (1.57"–3.15") diameter via the strap clamp, paired with C size (1.5") RAM® double socket arms.

Dimensions & Specifications

• Clamp range: U-bolt 12.7–31.75mm (0.5"–1.25"); strap clamp 39.88–80mm (1.57"–3.15")
• Ball size: C (1.5")
• Load capacity: 1.814kg (4 lb) standard use; 1.36kg (3 lb) heavy-duty use
• Weight: 226g (0.45 lb)
• Hardware included: (1) strap clamp adapter, (2) 1/4"-20 x 1" machine screws, (2) 1/4"-20 nylock nuts, (1) zinc worm drive strap clamp, (1) 6" rubber strip, (1) 1/4"-20 U-bolt for 0.5"–1" rails, (1) 1/4"-20 U-bolt for 1"–1.25" rails, (2) rubber caps, (1) U-bolt spacer
• Material: powder-coated marine-grade aluminium
• Warranty: lifetime

FAQs

Which fitting should I use?

Use the U-bolt for bars up to 31.75mm (1.25"), and the concealed strap clamp for larger tubing from 39.88mm to 80mm (1.57"–3.15"), such as roll cages.
