RAM Mounts

RAM Strap / U-Bolt Base for 13-80mm Diameter Bars - 1" Ball - Stainless Steel

RAM Strap / U-Bolt Base for 13-80mm Diameter Bars - 1" Ball - Stainless Steel

SKU:RAM-B-231-2

Regular price $62.60 NZD
Regular price Sale price $62.60 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-B-231-2 RAM® ATV/UTV Ball Base for Rails up to 3.15" - Stainless Steel


Features

* Rail and bar base for UTVs and ATVs includes strap clamp and U-bolt components
* Included B size 1" RAM® rubber ball allows for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of powder-coated marine-grade aluminum and stainless steel components for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

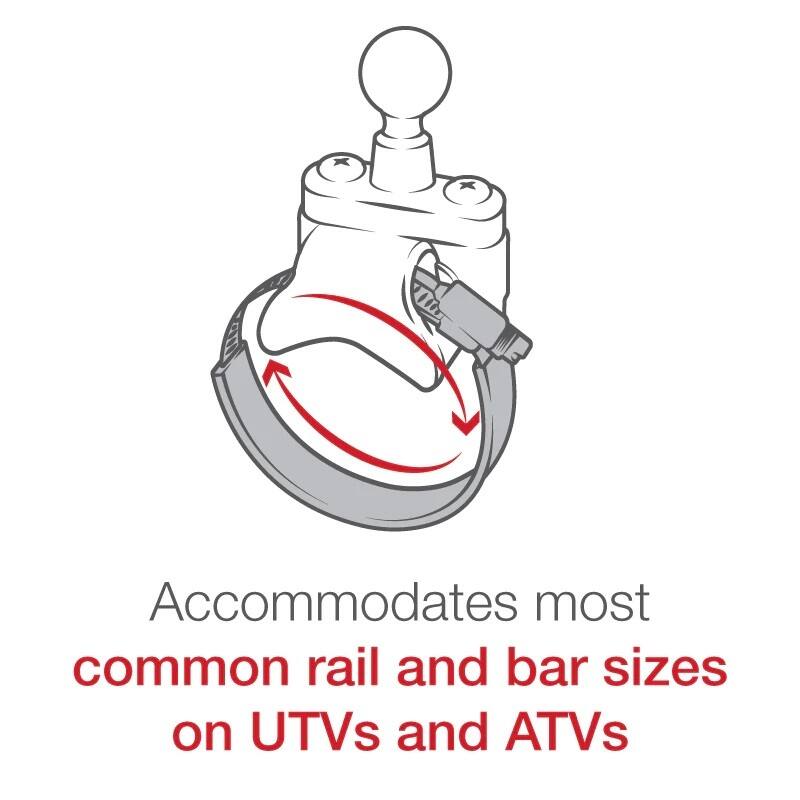

The RAM-B-231-2 consists of a 1" diameter rubber ball connected at right angles to a base that contains a flexible metal strap. The strap base tightening screw is encased in a compact housing for a clean, safe finish. The strap is long enough to wrap around handle bar posts found on most ATV, UTV, Snowmobiles, Motorcycles and any other applications you can think of.


Strap Dimensions:
40 to 80mm (1.57" to 3.15")

U-Bolt Holding Dimensions:
12.7 to 25.2mm (0.50" to 1")

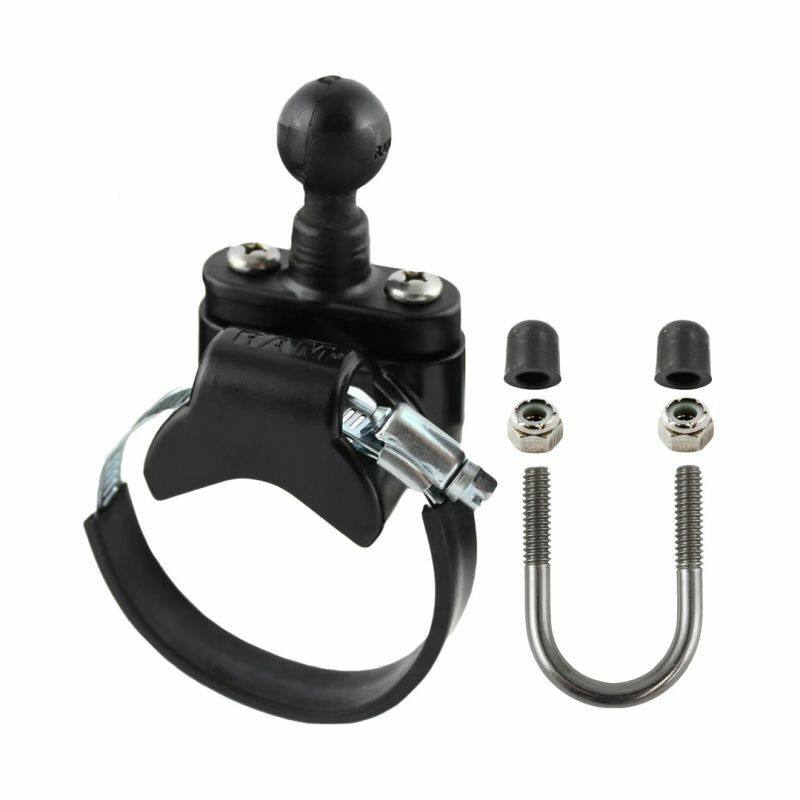

Hardware Included
(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nylock Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(2) Rubber Caps
(1) U-Bolt Space

Material:
Marine-grade aluminum
High strength composite
Stainless Steel Components


Ball Size:
1" Rubber Ball "B" Size

Weight:
190 grams / 0.42 lbs.

Weight Capacity
Standard Use: 907 grams (2 lbs)
Heavy-Duty Use: 454 grams (1 lb)


YouTube:
https://www.youtube.com/watch?v=iO9NEqm9MJk


QUESTIONS & ANSWERS

Q: I have to mount to a 4 inch tube. Will this product work?
A: To make this product fit on a 4" tube, you will need to source a larger hose clamp from a local hardware store. Our mount can connect to any size rail if additional third party hose clamps of any size are sourced and used with the mount.
