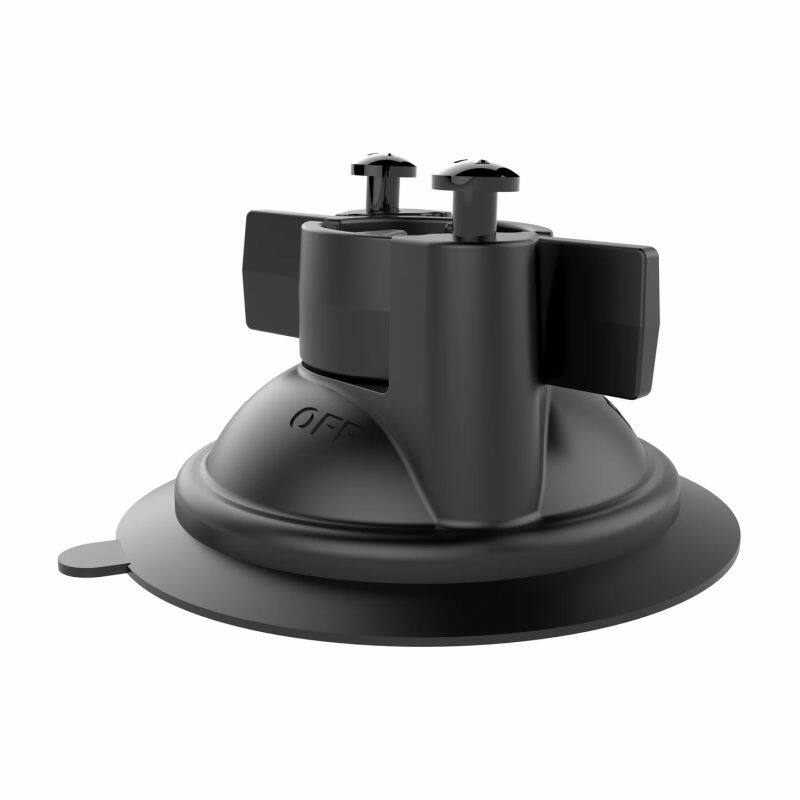

RAP-224-1U RAM® Twist-Lock™ Suction Cup Base
Features
* RAM® Twist-Lock™ suction cup base is ideal for vehicle windshields and other nonporous surfaces

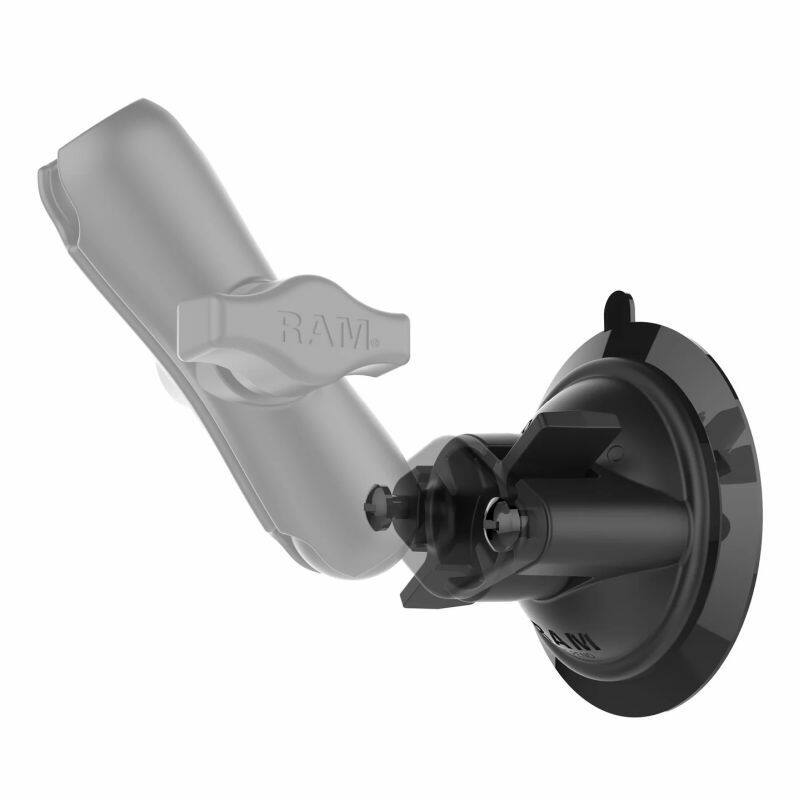

* Compatible with RAM® Mounts diamond ball bases; ball and socket technology allows for near-infinite adjustability
* Made of high-strength composites for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
The 83.82mm (3.25") diameter suction cup is designed to have an extra strong hold on any smooth non-porous surface, but for best results mount the suction cup on a glass surface.
The diamond shaped end has two holes 48.6mm from centre to centre. This will connect to RAM-B-238 or RAM-238U Diamond Plates Series, the universal industry standard AMPS hole pattern or directly to the back of the RAM Composite Cradles.

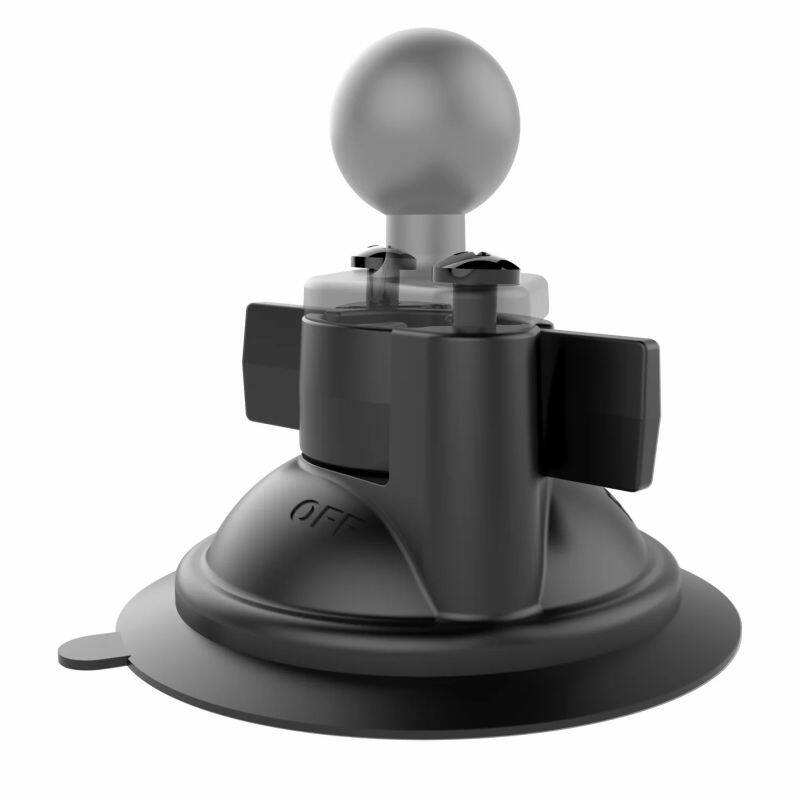

This suction base DOES NOT have a RAM 1" rubber connection ball or screws. It is designed to mate directly to the back of the RAM cradle but if you need a B series ball base (for a connecting arm) that is part RAP-B-238U or you can get them both together in part RAP-B-224-1U
Specs & Features

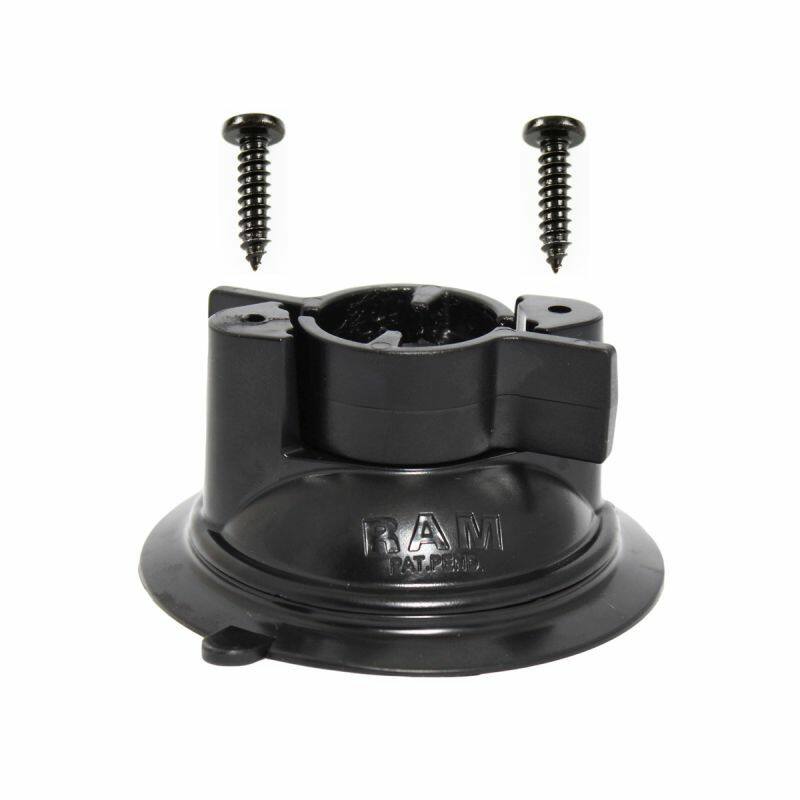

Hardware included
(2) #10 x 3/4" Sheet Metal Screws
Suction size
83.82mm (3.3") Diameter
Hole pattern
2-Hole AMPS: 1.912"
Materials
High strength composite
QUESTIONS & ANSWERS
Q: What surfaces is this suction cup compatible with?
A: Suction cups work by creating a vacuum, so they require an extremely smooth surface. If the surface is textured at all air can get in and the suction cup with loose grip. Suction cup mounts work best against windows and highly polished metal surfaces.
