RAM Suction Cup Base - Dual Cup / Articulating

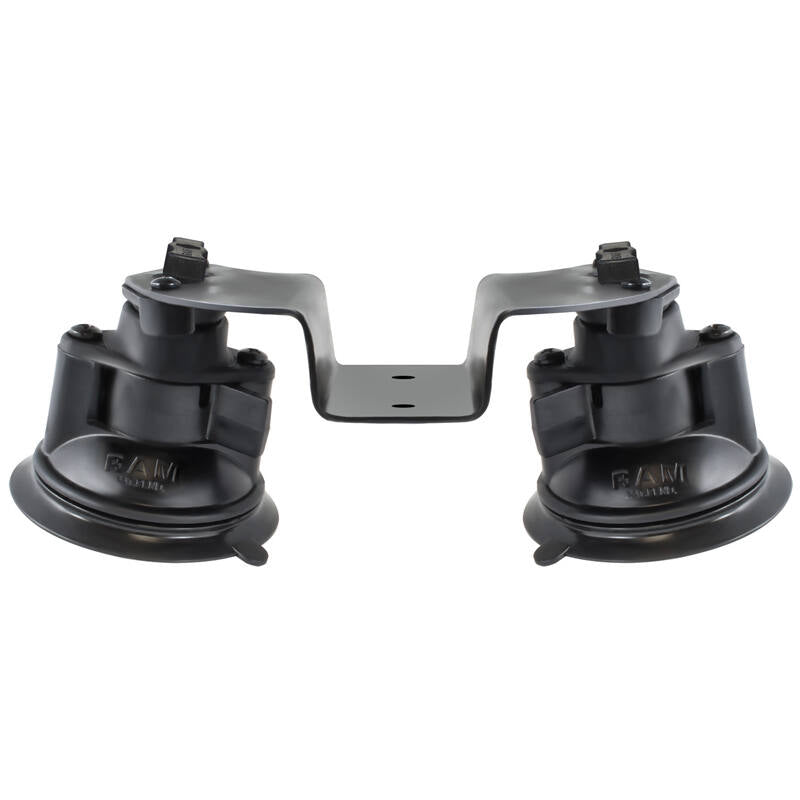

RAM-189B-PIV1U RAM® Dual Articulating Suction Cup Base

The RAM-189B-PIV1U is a RAM® Twist-Lock™ dual suction cup base with each cup articulating independently, built to seal on curved windscreens and other curved, smooth, non-porous surfaces where a rigid dual base can't. It has a 2-hole AMPS pattern for direct connection to a RAM® B or C series diamond base.

Key Features

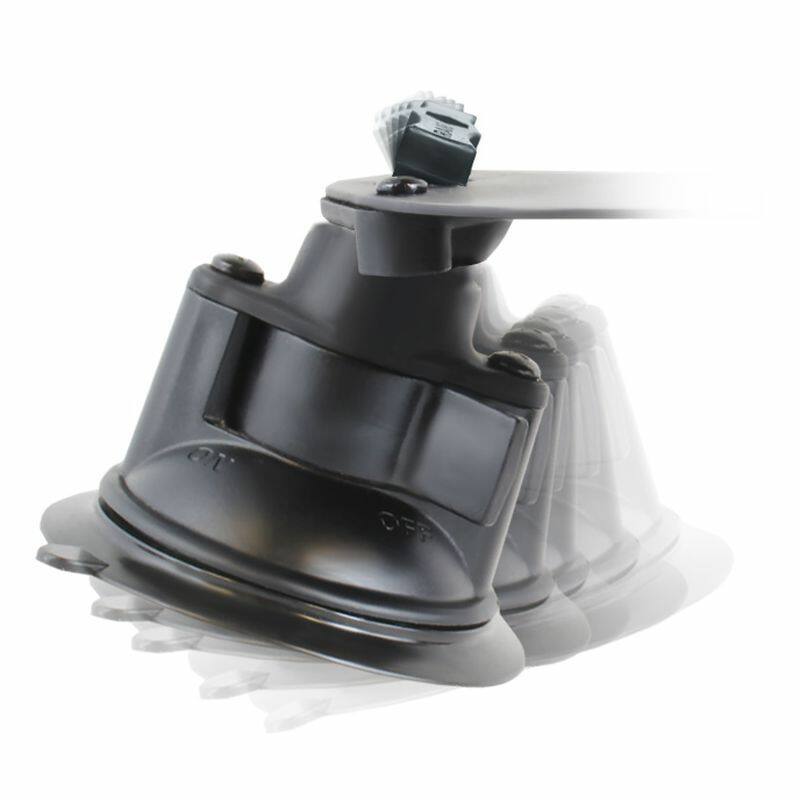

• Independently articulating cups: each of the two suction cups pivots on its own, so the base grips curved glass such as a windscreen, not just flat surfaces.

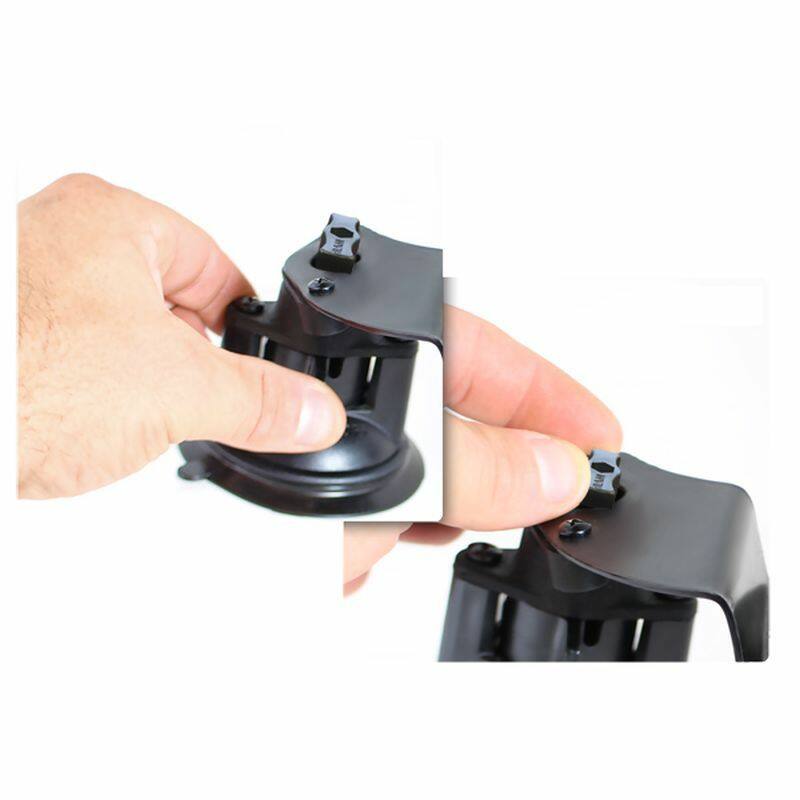

• Twist-Lock™ mechanism: quick, tool-free attachment and release from the mounting surface.
• 2-hole AMPS pattern: connects directly to a RAM® B or C series diamond base, most commonly the RAM-B-238U or RAM-238U.
• Built to last: high-strength composite and powder-coated steel construction.
• Backed by a lifetime warranty.

Works With

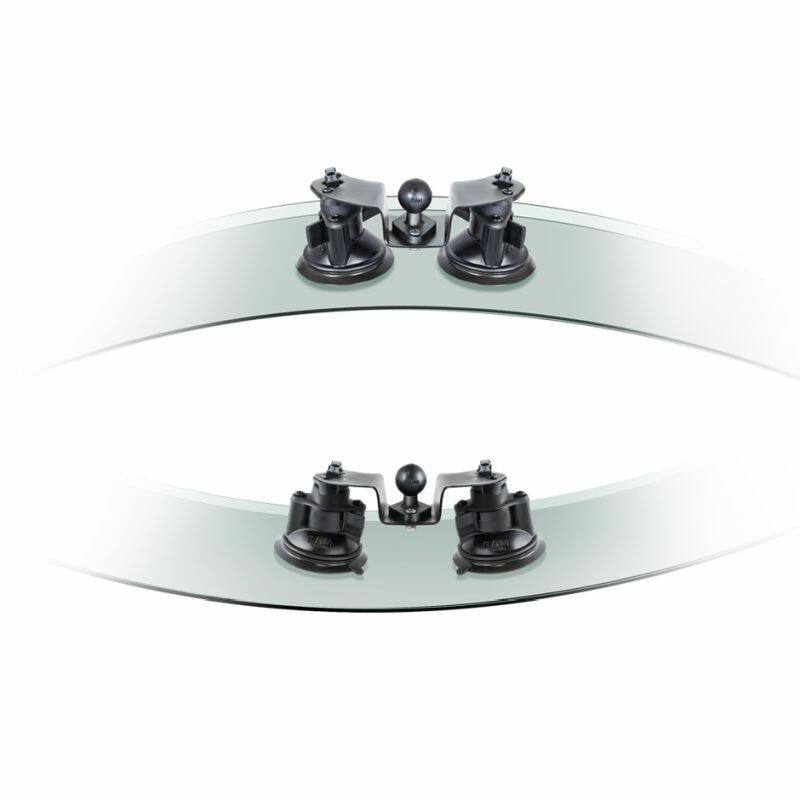

Suits curved or flat vehicle windscreens and other smooth, non-porous surfaces. Pairs with any RAM® B or C series diamond base — most commonly the RAM-B-238U or RAM-238U. If your mounting surface is flat, the RAM-B-189BU fixed dual suction base is a lower-cost alternative.

Dimensions & Specifications

• Suction base: two 83.8mm (3.3") independently articulating cups, 201.9mm (7.95") total width
• Hole pattern: 2-hole AMPS, 48.6mm (1.912") hole-centre spacing
• Material: high-strength composite, powder-coated marine-grade aluminium, powder-coated steel
• Weight: 0.43kg (0.95 lb)

What's Included

• RAM® dual articulating Twist-Lock™ suction cup base with 2-hole AMPS pattern

FAQs

What connects to this base? Any RAM® B or C series diamond base with a matching 2-hole AMPS pattern — most commonly the RAM-B-238U or RAM-238U.

Why an articulating base instead of a fixed dual suction base? Each cup pivots independently, so this base can sit flat against curved glass or bodywork where a rigid dual base wouldn't seal. For flat surfaces only, the RAM-B-189BU fixed base is a cheaper option.

How fast does it ship? If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.

Videos

• RAM® Twist-Lock suction base overview
• RAM® suction cup mounting demonstration
