RAM Suction Cup Base - Dual Cup - Articulating - with 1" Ball Base

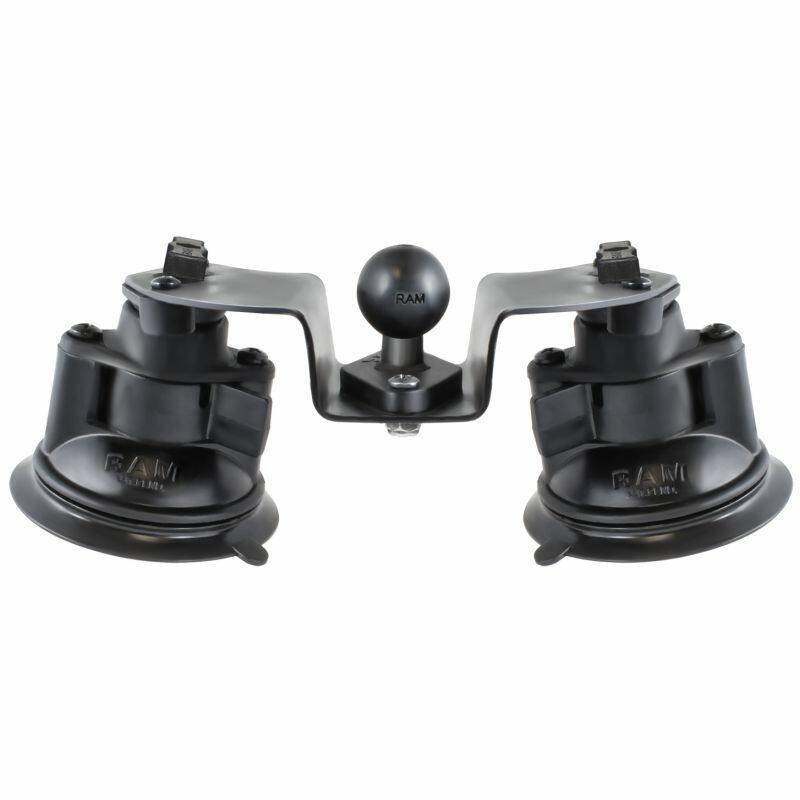

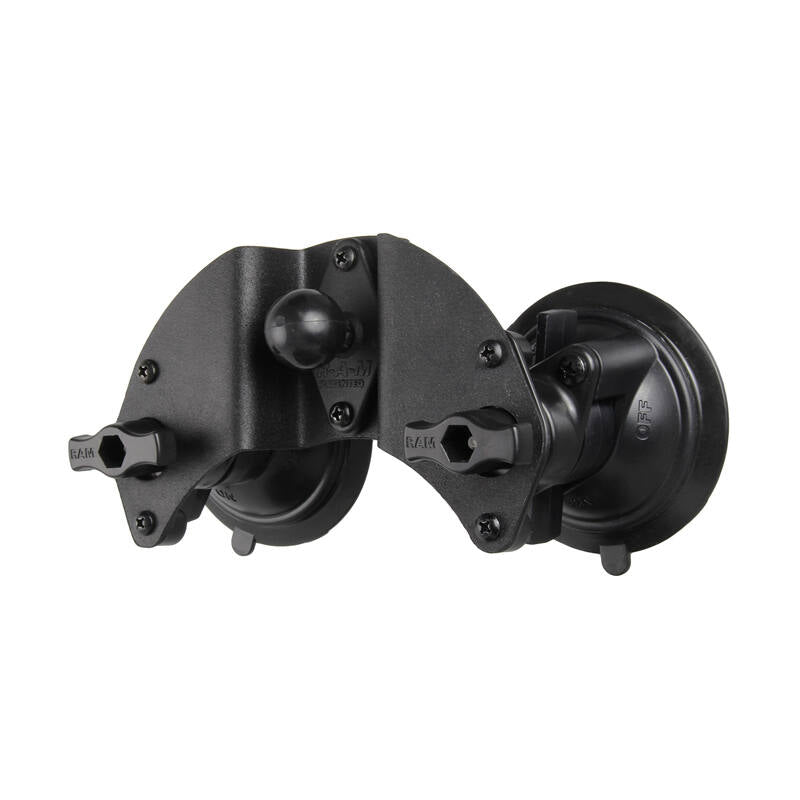

RAM-B-189B-PIV1U RAM® Dual Articulating Suction Cup Base with 1" Ball

The RAM-B-189B-PIV1U is a RAM® Twist-Lock™ dual suction cup base with each cup articulating independently, built to seal on curved windscreens and other curved, smooth, non-porous surfaces where a rigid dual base can't. It includes a diamond ball base with a B-size 1" ball, ready to connect to any B-size RAM® double socket arm.

Key Features

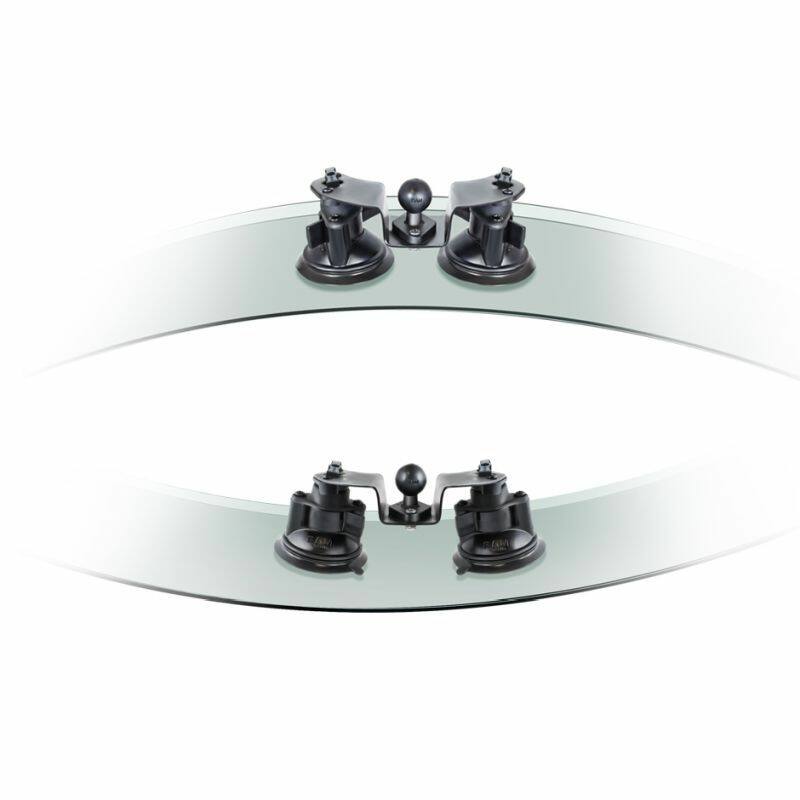

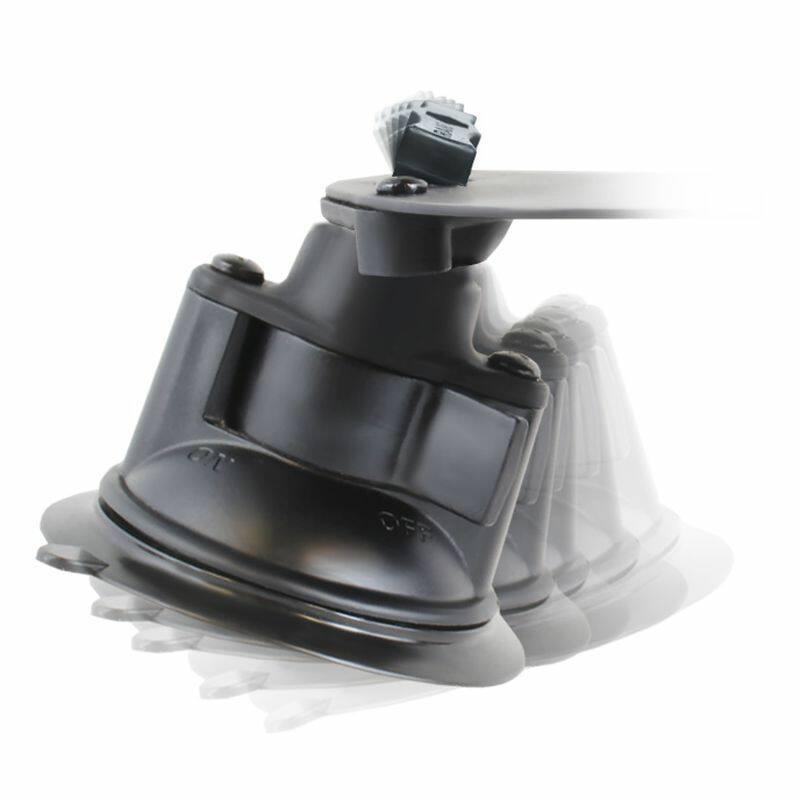

• Independently articulating cups: each of the two suction cups pivots on its own, so the base grips curved glass such as a windscreen, not just flat surfaces.

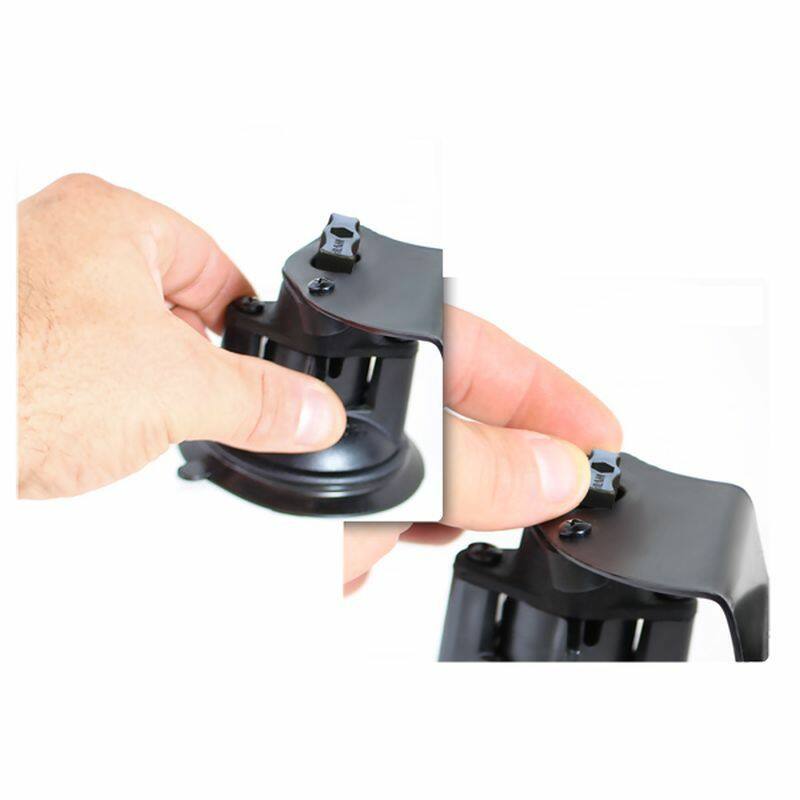

• Twist-Lock™ mechanism: quick, tool-free attachment and release from the mounting surface.
• Integrated 1" ball: diamond ball base compatible with any B-size RAM® double socket arm for near-infinite adjustability.
• Built to last: high-strength composite, powder-coated marine-grade aluminium and powder-coated steel construction.
• Lifetime warranty on the base hardware, with the suction cups excluded as a wear item.

Works With

Suits curved or flat vehicle windscreens and other smooth, non-porous surfaces. If your mounting surface is flat or only gently curved, the RAM-B-189BU fixed dual suction base is a lower-cost alternative.

Dimensions & Specifications

• Suction base: two 83.8mm (3.3") independently articulating cups, 202mm (7.95") total width
• Ball size: B Series 1" rubber ball
• Standard use load capacity: 907g (2 lb)
• Heavy-duty use load capacity: 454g (1 lb)
• Material: high-strength composite, powder-coated marine-grade aluminium, powder-coated steel
• Weight: 0.43kg (0.95 lb)

What's Included

• RAM-B-189B-PIV1U dual articulating Twist-Lock™ suction cup base
• Diamond ball base with 1" ball

Care & Warranty

• Smooth, non-porous surfaces only — anything rough or textured lets air past the seal and the cups will not hold.
• Clean the surface thoroughly before you apply the cups.
• If the vehicle is left sitting in extreme heat or cold, release the cups and stow the base rather than leaving it loaded.
• RAM® classes suction cups as a general wear item, so the cups are excluded from warranty cover. The base and ball hardware are covered as normal.

Videos

• RAM® Twist-Lock suction base overview
• RAM® suction cup mounting demonstration

FAQs

Why an articulating base instead of a fixed dual suction base? Each cup pivots independently, so this base can sit flat against curved glass or bodywork where a rigid dual base wouldn't seal. For flat or gently curved surfaces, the RAM-B-189BU fixed base is a cheaper option.

What does it connect to? The integrated diamond ball base has a B-size 1" ball, compatible with any B-size RAM® double socket arm and cradle/holder combination.

Are the suction cups covered by the warranty? No. RAM® treat suction cups as a general wear item, so they sit outside the lifetime warranty. The base and ball hardware are covered as normal.
