RAM Suction Cup Base - Dual Cup - with AMPS hole pattern

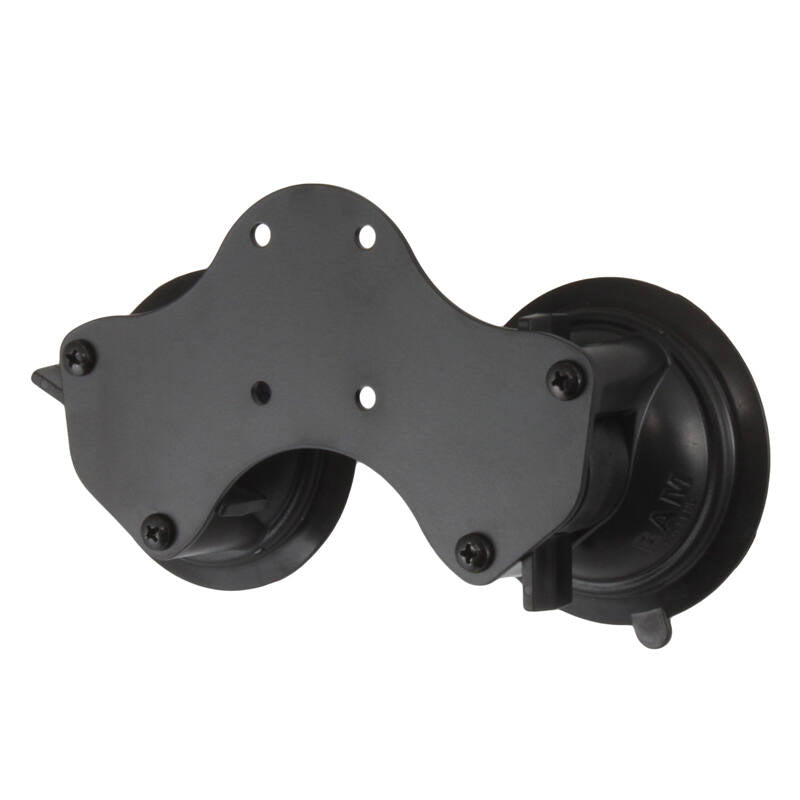

RAM-B-189BU – RAM® Twist-Lock™ Dual Suction Cup Base with AMPS Plate

The RAM-B-189BU is a dual 84mm Twist-Lock™ suction cup base with an AMPS-pattern plate adaptor and no ball hardware, letting you fit the RAM® round base of your choice. Two cups give twice the grip of a single suction base on windscreens, glass and other non-porous surfaces.

Key Features

• Twin RAM® Twist-Lock™ suction cups for vehicle windscreens and other non-porous surfaces
• Plate adaptor with the universal 4-hole AMPS pattern accepts a variety of RAM® bases
• Forms the basis of a rock-solid aviation EFB mount
• High-strength composite and powder-coated construction
• Lifetime warranty on the base hardware, with the suction cups excluded as a wear item

Works With

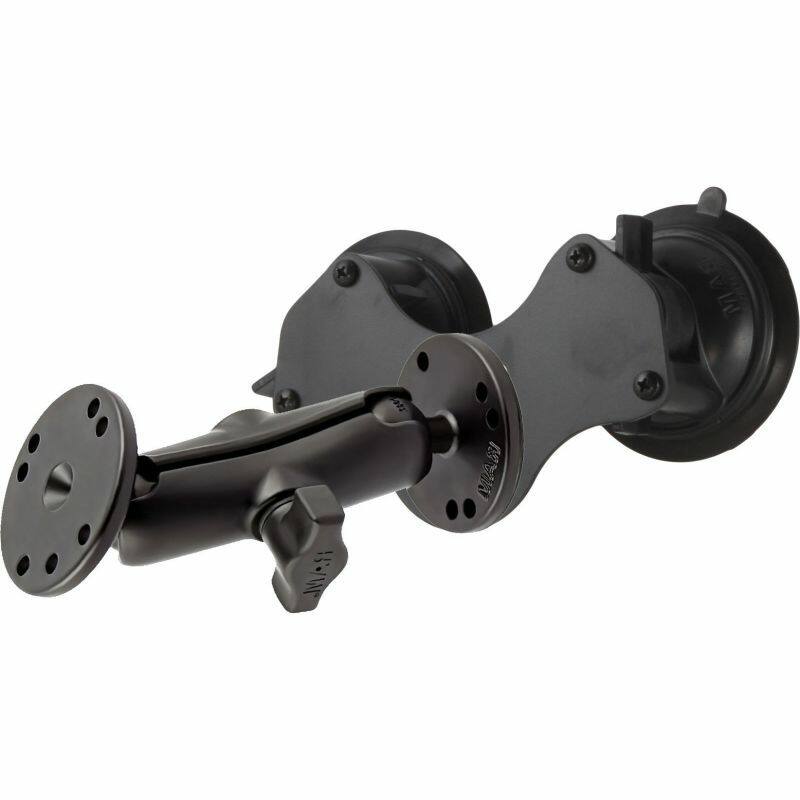

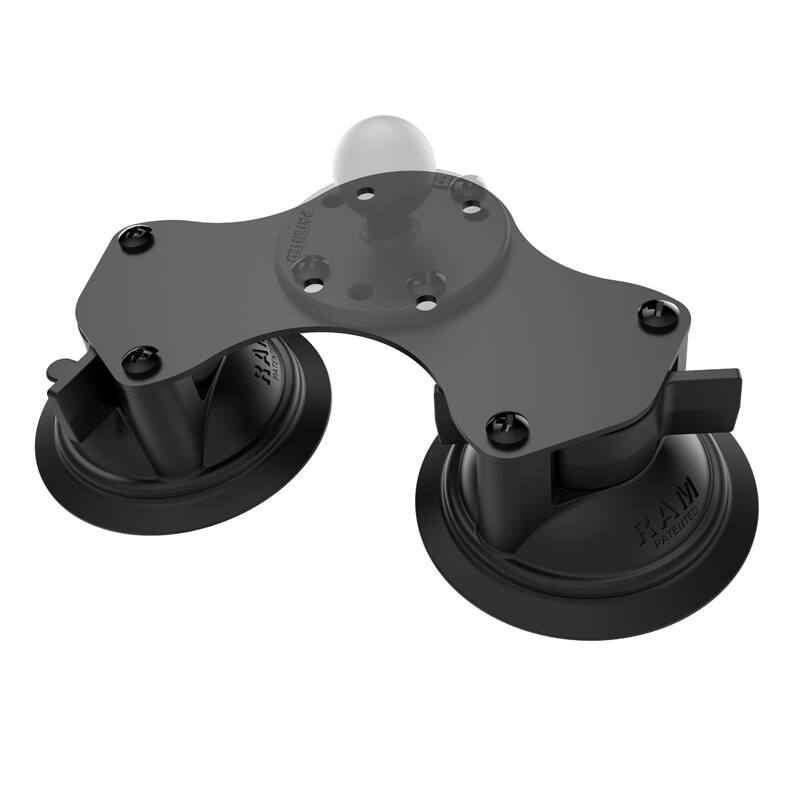

Any RAM® base with the universal AMPS pattern; typically the RAM-B-202U (1" ball) or RAM-202U (1.5" ball; the better choice for high-vibration environments), then arms such as the RAM-B-101U and RAM-B-103U, or C and D size bases (RAM-101U, RAM-D-101U). The fixed plate holds both cups in the same plane, so it seats best on flat or gently curved glass. For a strongly curved windscreen or canopy, the RAM-B-189B-PIV1U articulating base lets each cup angle independently.

What's Included

• RAM-B-189BU dual suction cup base with AMPS plate adaptor
• Assembly hardware

Dimensions & Specifications

• Suction cups: two 83.8mm (3.3") diameter; total width 202mm (7.95")
• Hole pattern: 4-hole AMPS, 1.181" x 1.496" (30mm x 38mm)
• Weight: 318g (0.7 lb)
• Materials: high-strength composite, powder-coated marine-grade aluminium
• Hardware included: assembly hardware
• Warranty: lifetime on the base hardware; suction cups excluded as a wear item

Care & Warranty

• Smooth, non-porous surfaces only; anything rough or textured lets air past the seal and the cups will not hold.
• Clean the surface thoroughly before you apply the cups.
• If the vehicle is left sitting in extreme heat or cold, release the cups and stow the base rather than leaving it loaded.
• RAM® classes suction cups as a general wear item, so the cups are excluded from warranty cover. The base and plate hardware are covered as normal.

Videos

RAM® dual suction base overview

FAQs

Does this come with a ball?

No; this is the suction base and AMPS plate only. Add the RAM® round ball base of your size choice (B, C or D) to build your mount.

Will it hold on a curved windscreen?

The plate is fixed, so both cups sit in the same plane, best on flat or gently curved glass. For a strongly curved windscreen, the RAM-B-189B-PIV1U articulating base is the better choice.

Are the suction cups covered by the warranty?

No. RAM® treat suction cups as a general wear item, so they sit outside the lifetime warranty. The base and plate hardware are covered as normal.

When will my order ship?

If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
