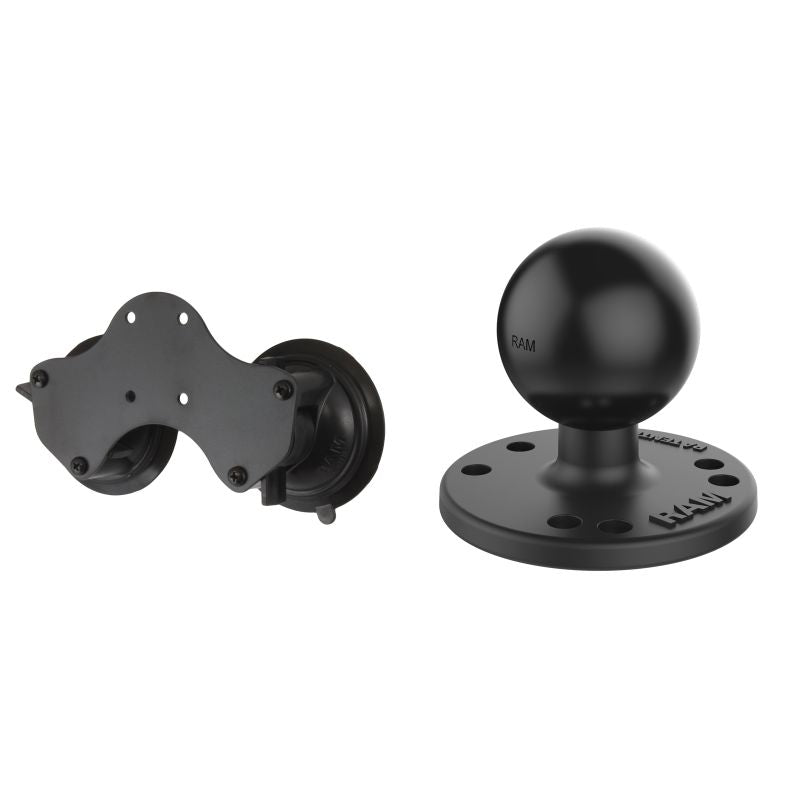

RAM Suction Cup Base - Dual Cup - with C Series Ball Base

RAM-B-189-202U – RAM® Twist-Lock™ Dual Suction Cup Base with C Series Ball Base

The RAM-B-189BU is a dual 84mm Twist-Lock™ suction cup base with a round C Series (1.5") ball base, letting you connect to any RAM® C series arm. Two cups give twice the grip of a single suction base on windscreens, glass and other non-porous surfaces.

Key Features

• Twin RAM® Twist-Lock™ suction cups for vehicle windscreens and other non-porous surfaces
• Round C Series ball base included
• Forms the basis of a rock-solid aviation EFB or agricultural mount
• High-strength composite and powder-coated construction
• Lifetime warranty on the base hardware, with the suction cups excluded as a wear item

Works With

Any RAM® C Series arm - RAM-201U-B, RAM-201U, RAM-201U-D.

What's Included

• RAM-B-189BU dual suction cup base with AMPS plate adaptor
• RAM-202U round base with C series Ball
• Assembly hardware

Dimensions & Specifications

• Suction cups: two 83.8mm (3.3") diameter; total width 202mm (7.95")
• Hole pattern: 4-hole AMPS, 1.181" x 1.496" (30mm x 38mm)
• Weight: 418g (0.92 lb)
• Materials: high-strength composite, powder-coated marine-grade aluminium
• Hardware included: assembly hardware
• Warranty: lifetime on the base hardware; suction cups excluded as a wear item

Care & Warranty

• Smooth, non-porous surfaces only; anything rough or textured lets air past the seal and the cups will not hold.
• Clean the surface thoroughly before you apply the cups.
• If the vehicle is left sitting in extreme heat or cold, release the cups and stow the base rather than leaving it loaded.
• RAM® classes suction cups as a general wear item, so the cups are excluded from warranty cover. The base and plate hardware are covered as normal.

Videos

RAM® dual suction base overview

FAQs

Does this come with a ball?

Yes - this combination includes a C series ball base.

Will it hold on a curved windscreen?

The plate is fixed, so both cups sit in the same plane, best on flat or gently curved glass. For a strongly curved windscreen, the RAM-B-189B-PIV1U articulating base is the better choice.

Are the suction cups covered by the warranty?

No. RAM® treat suction cups as a general wear item, so they sit outside the lifetime warranty. The base and plate hardware are covered as normal.
