RAM Suction Cup Base - Dual with Medium Length Arm and Retention Knob

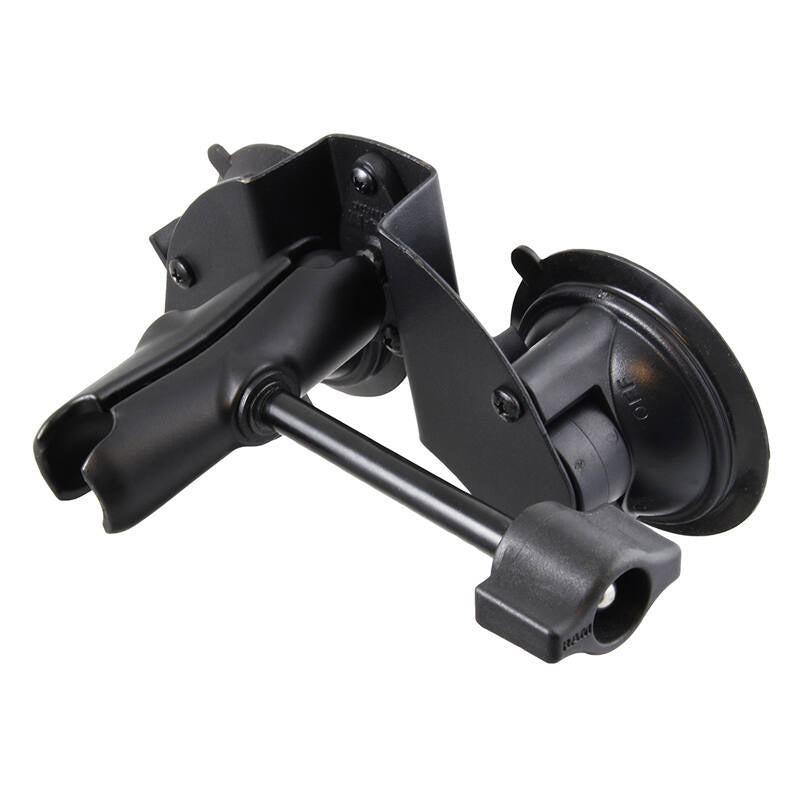

RAM-B-189B-201-ALA1-KRU – RAM® Twist-Lock™ Dual Suction Cup Base with Socket Arm & Retention Knob

The RAM-B-189B-201-ALA1-KRU pairs a dual 84mm (3.3") Twist-Lock™ suction cup base with a B size double socket arm fitted with a retention knob, making an ideal window mount for tablets in aircraft and helicopters; twice as secure as a single-cup base, with easy one-knob adjustment.

Key Features

• Twin RAM® Twist-Lock™ suction cups grip glass and other non-porous surfaces
• B size double socket arm with retention knob for easy adjustment; the knob extension prevents over-loosening
• Ball and socket adjustment at both ends of the arm for near-infinite viewing angles
• High-strength composite and powder-coated steel construction
• Lifetime warranty on the mount hardware, with the suction cups excluded as a wear item

Works With

Flat and gently curved glass and non-porous plastic surfaces, paired with any RAM® holder on a B size (1") ball. For a strongly curved windscreen or canopy, consider the RAM-B-189B-PIV1U dual articulating suction cup base instead.

What's Included

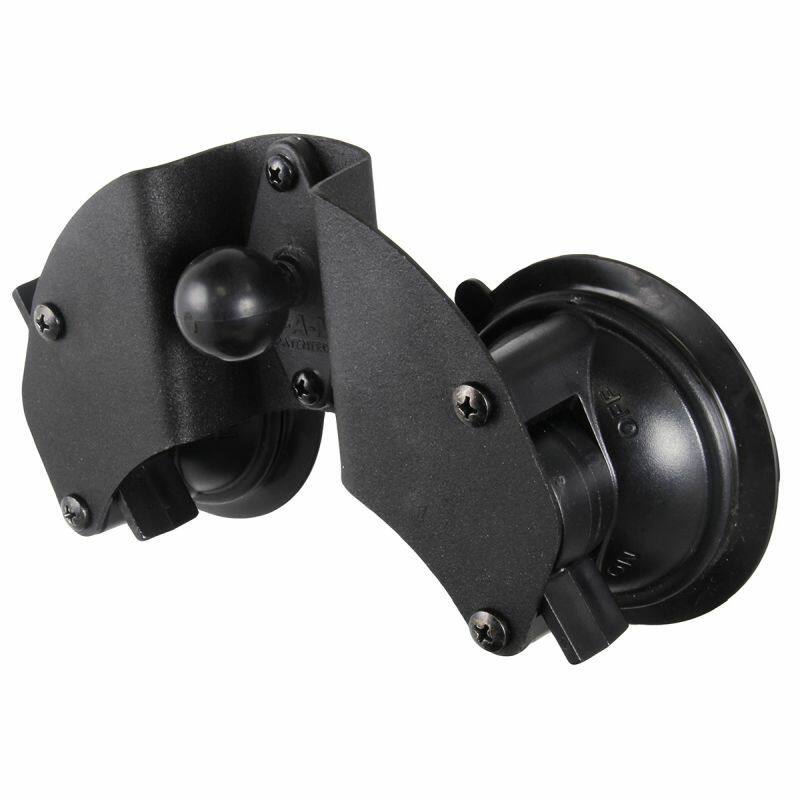

• RAM-B-189BU dual Twist-Lock™ suction cup base

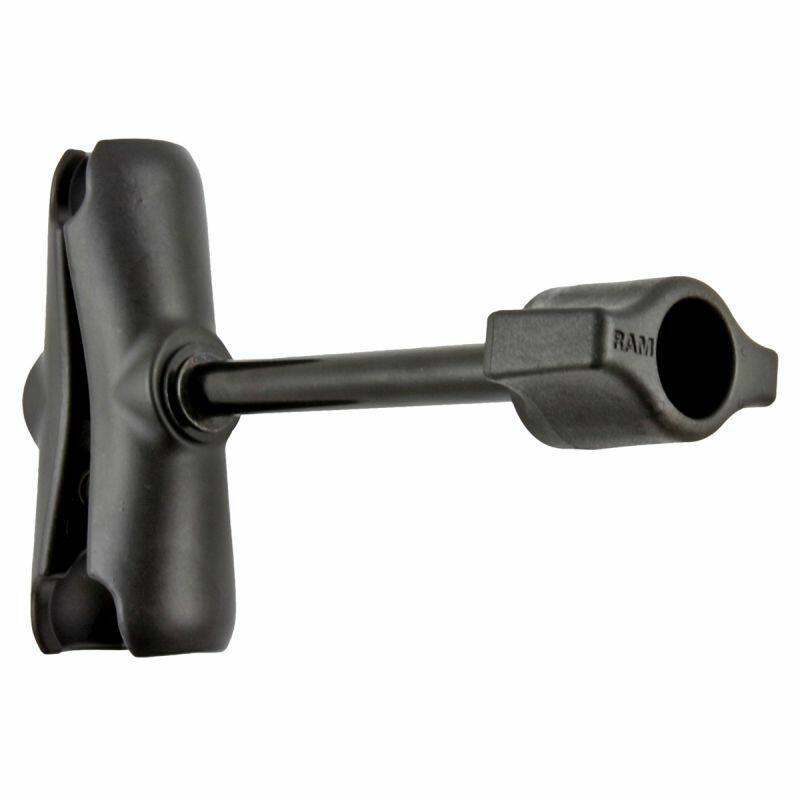

• RAM-B-201-ALA1-KRU B size double socket arm with retention knob

Dimensions & Specifications

• Arm: 94mm (3.69") overall; 76mm (3") socket-to-socket
• Suction cups: two 83.8mm (3.3") diameter; total width 202mm (7.95")
• Ball size: B (1")
• Load capacity: 907g (2 lb) standard use; 454g (1 lb) heavy-duty use
• Weight: 558g (1.23 lb)
• Materials: powder-coated steel, marine-grade aluminium, high-strength composite
• Warranty: lifetime on the mount hardware; suction cups excluded as a wear item

Care & Warranty

• Smooth, non-porous surfaces only; anything rough or textured lets air past the seal and the cups will not hold.
• Clean the surface thoroughly before you apply the cups.
• If the aircraft or vehicle is left sitting in extreme heat or cold, release the cups and stow the mount rather than leaving it loaded.
• RAM® classes suction cups as a general wear item, so the cups are excluded from warranty cover. The base and arm hardware are covered as normal.

Videos

• RAM® Twist-Lock suction base overview
• RAM® suction cup mounting demonstration

FAQs

Will it hold on a curved windscreen?

Suction cups grip best on flat or gently curved glass and non-porous plastic. For a strongly curved surface, look at the RAM-B-189B-PIV1U articulating version, which lets each cup angle independently.

What does the retention knob do?

The extended knob makes the arm easier to loosen and re-tighten in a confined cockpit, and its design stops you backing the knob off far enough to lose the clamp on the balls.

Are the suction cups covered by the warranty?

No. RAM® treat suction cups as a general wear item, so they sit outside the lifetime warranty. The base and arm hardware are covered as normal.

When will my order ship?

If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
