RAM Suction Cup Base - Triple Cup w/ Arm and Rectangular Base Plate (AMPS)

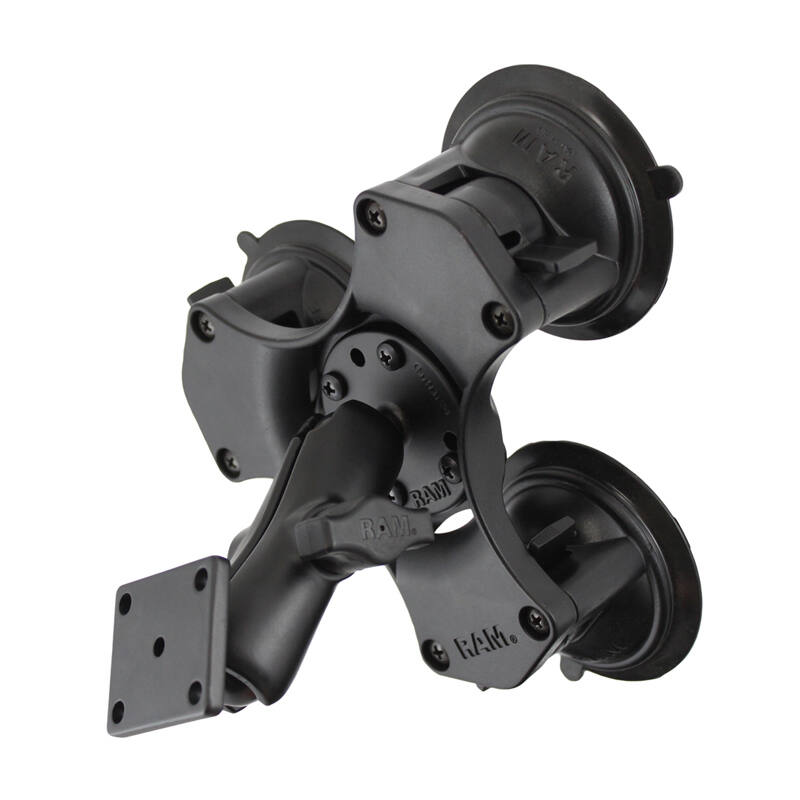

RAM-B-139U-224 – RAM® Twist-Lock™ Triple Suction Cup Mount with Rectangle AMPS Plate

The RAM-B-139U-224 pairs a triple twist-lock suction cup base with a double socket arm and a rectangular AMPS plate, for mounting AMPS-pattern devices in high-vibration environments such as helicopters, tractors and other vehicles.

Key Features

• Triple twist-lock suction base for an extra-strong hold on windscreens and other smooth, non-porous surfaces
• 51mm x 43mm (2" x 1.7") rectangular AMPS plate with four pre-drilled corner holes
• Double socket arm; ball-and-socket design allows near-infinite adjustment
• Powder-coated marine-grade aluminium and high-strength composite construction
• Backed by a lifetime warranty

Works With

Any device or cradle with a standard AMPS mounting pattern. Best on glass or non-porous plastic; use a RAM® adhesive disk on textured surfaces.

Dimensions & Specifications

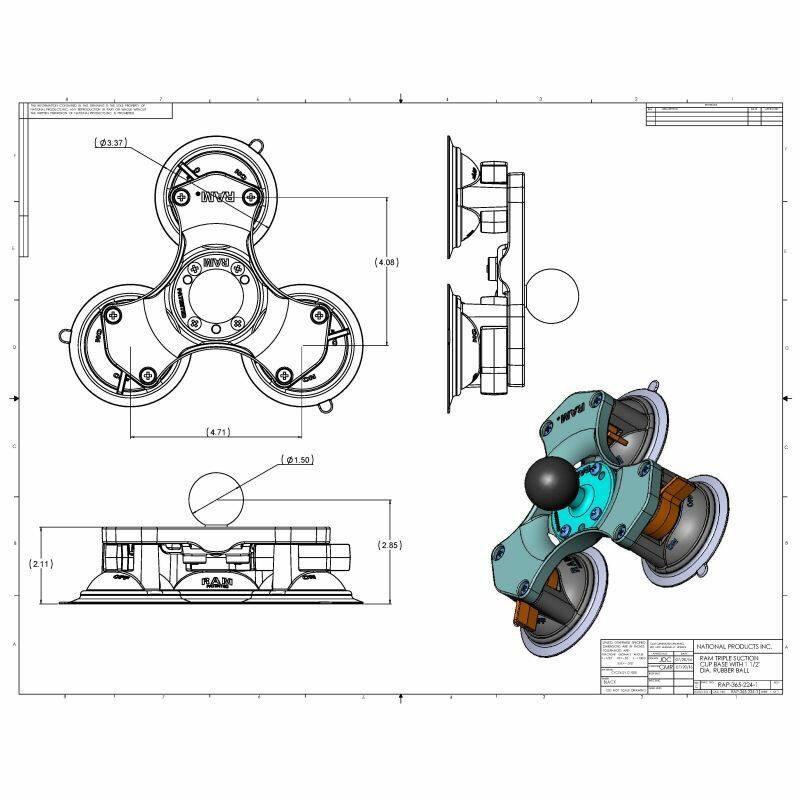

• Suction base: three 84mm (3.3") cups, total width 201.9mm (7.95")

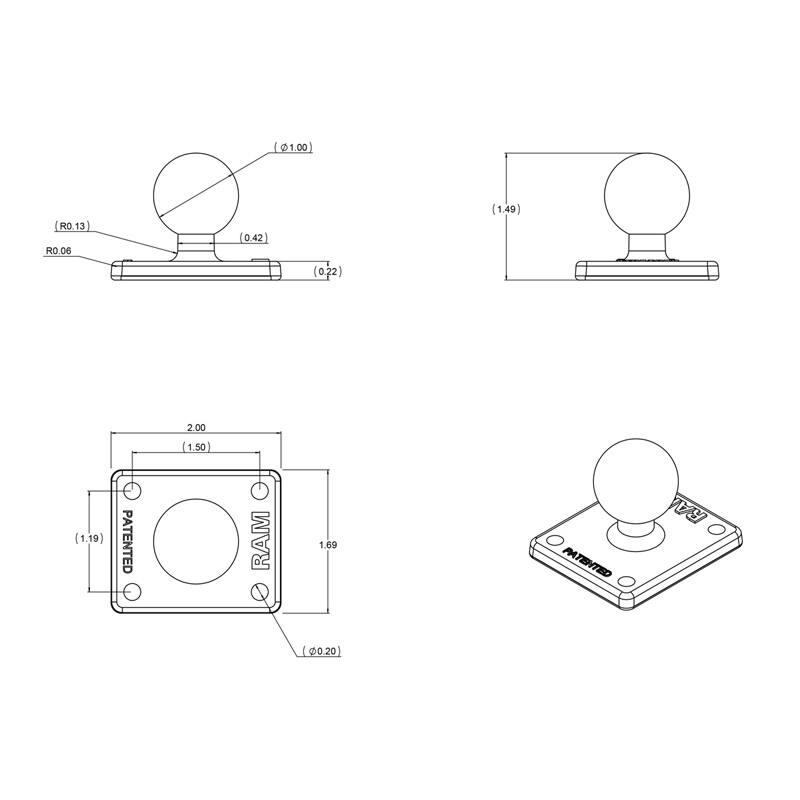

• AMPS plate: 51mm x 43mm (2" x 1.7"), 38mm x 30mm (1.5" x 1.188") hole spacing
• Arm overall length: 94mm (3.69"); socket-to-socket 76mm (3")
• Weight: 907g (2 lb)
• Weight capacity: 907g (2 lb) standard use, 454g (1 lb) heavy-duty use
• Materials: powder-coated marine-grade aluminium, high-strength composite

What's Included

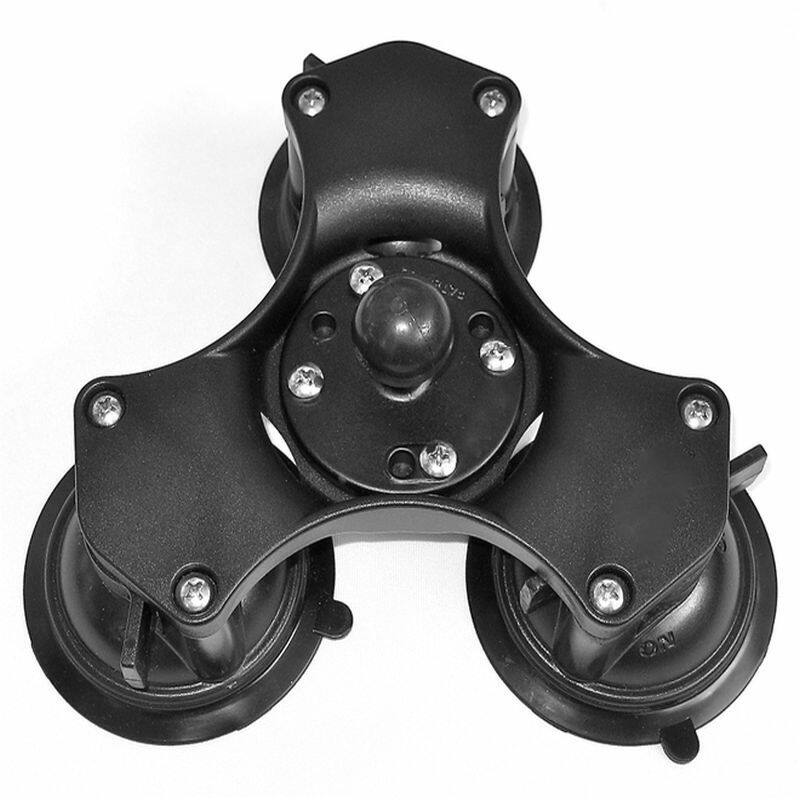

• RAP-365-224-1BU triple suction cup base with AMPS hole pattern
• RAM-B-202U 63mm (2.5") round base with 1" ball
• RAM-B-201U double socket arm for 1" ball

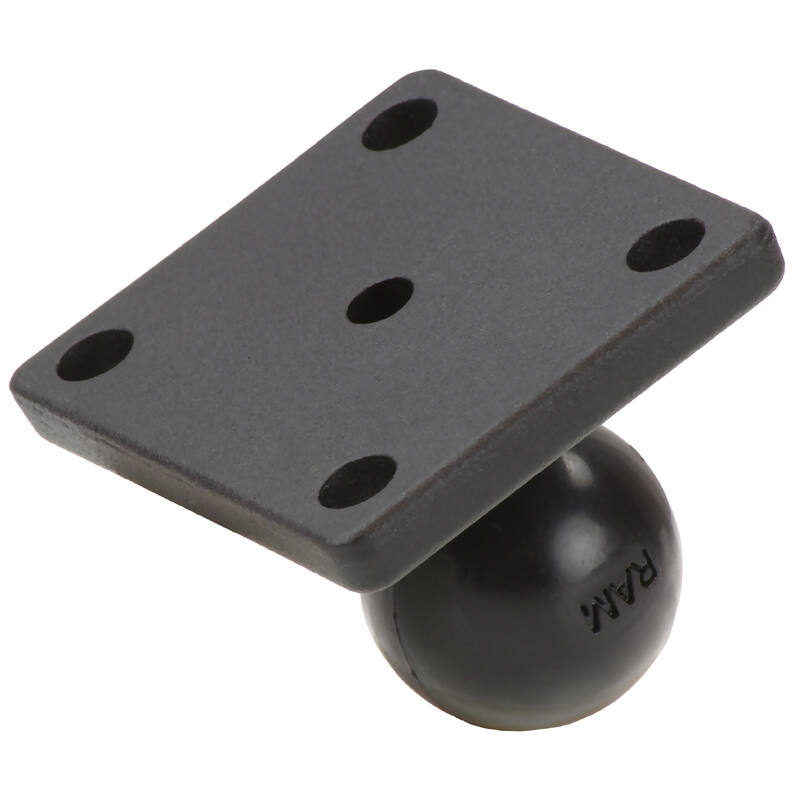

• RAM-B-347U rectangular AMPS plate with 1" ball
