RAM Suction Cup Base - Triple Cup with 1.5" Ball (C Series)

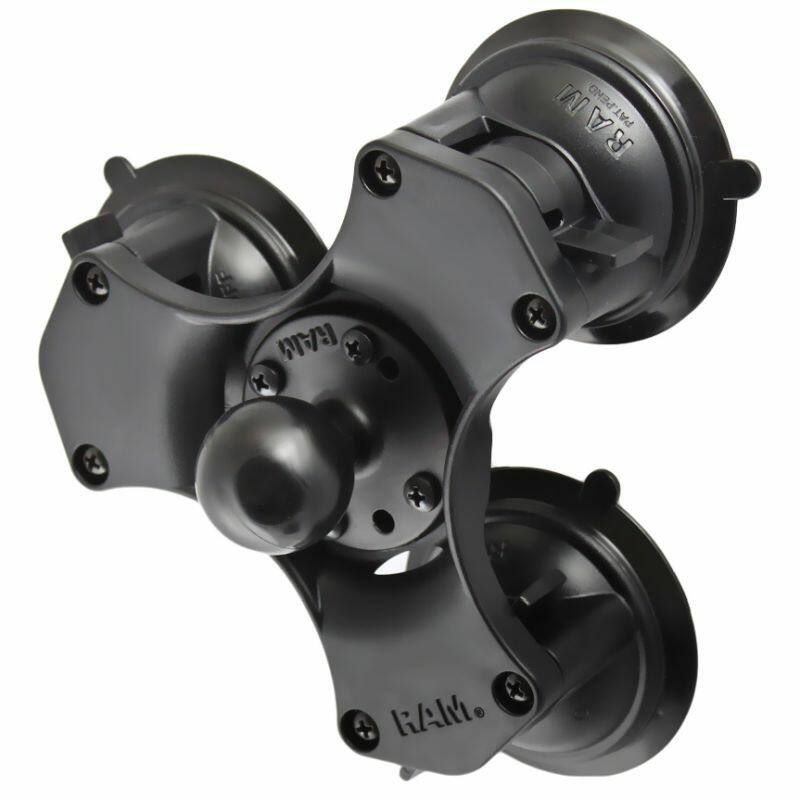

RAP-365-224-1U – RAM® Twist-Lock™ Triple Suction Cup Ball Base, C Series

The RAP-365-224-1U pairs a composite triple suction cup base with a 1.5" C-size round ball base, for an extra-strong hold in high-vibration environments like helicopters and other aircraft.

Key Features

• Triple suction cup base with the universal AMPS hole pattern, for an extra-strong hold on smooth, non-porous surfaces
• 1.5" C-size ball base, compatible with any C-size RAM® double socket arm
• Ball-and-socket technology allows near-infinite adjustability
• Powder-coated marine-grade aluminium and high-strength composite construction
• Backed by a lifetime warranty

Works With

This is a base only — it needs a C-size RAM® double socket arm and a device holder to complete a mount. For the strongest hold, fit the suction cup to glass or another smooth, non-porous surface rather than anything textured.

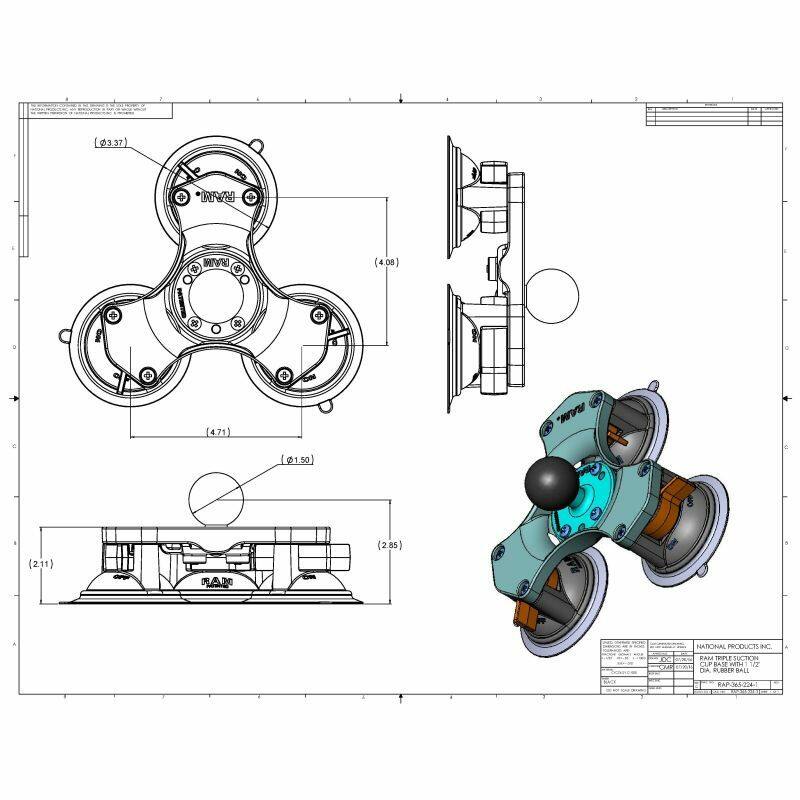

Dimensions & Specifications

• Suction cup diameter: 3 x 84mm (3.3") bases, 201.9mm (7.95") total width
• Ball size: 1.5" C Series ball
• Weight capacity: 1.814kg (4 lb) standard use, 1.36kg (3 lb) heavy-duty use
• Materials: high-strength composite triple suction cup, powder-coated marine-grade aluminium ball base

What's Included

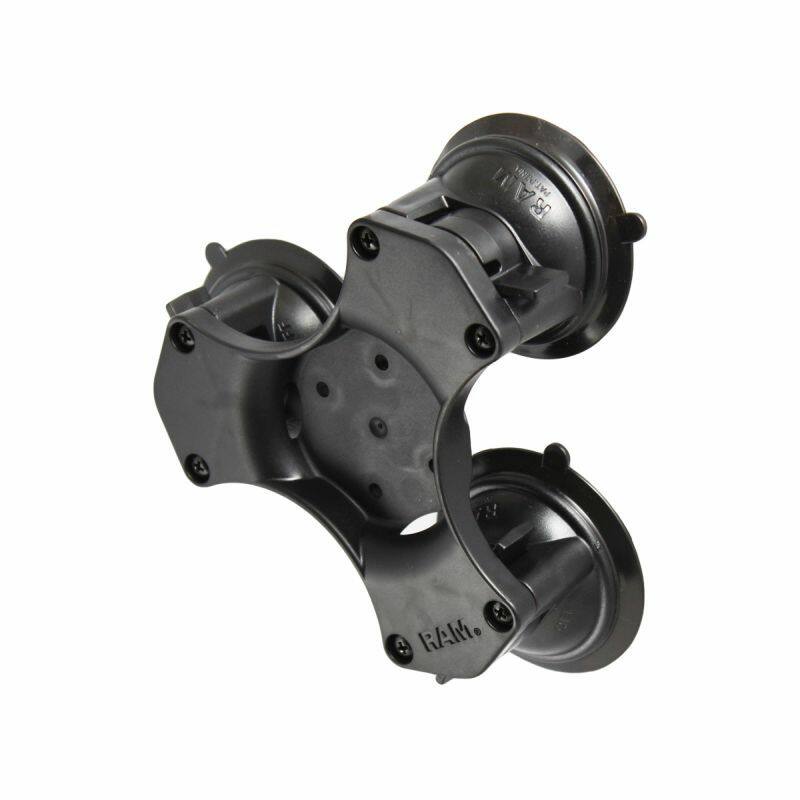

• RAP-365-224-1BU triple suction cup base with AMPS hole pattern

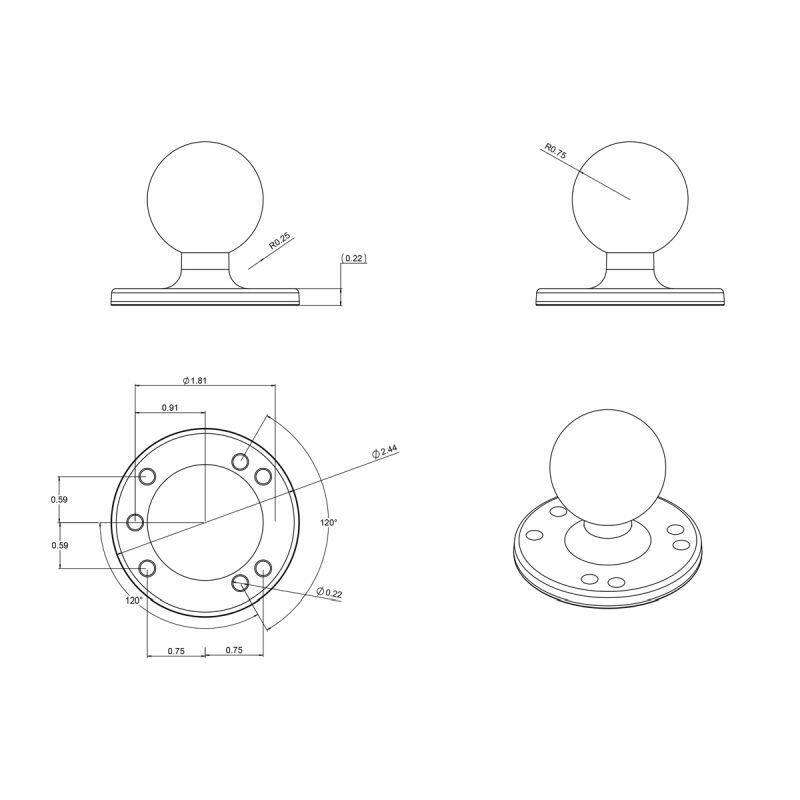

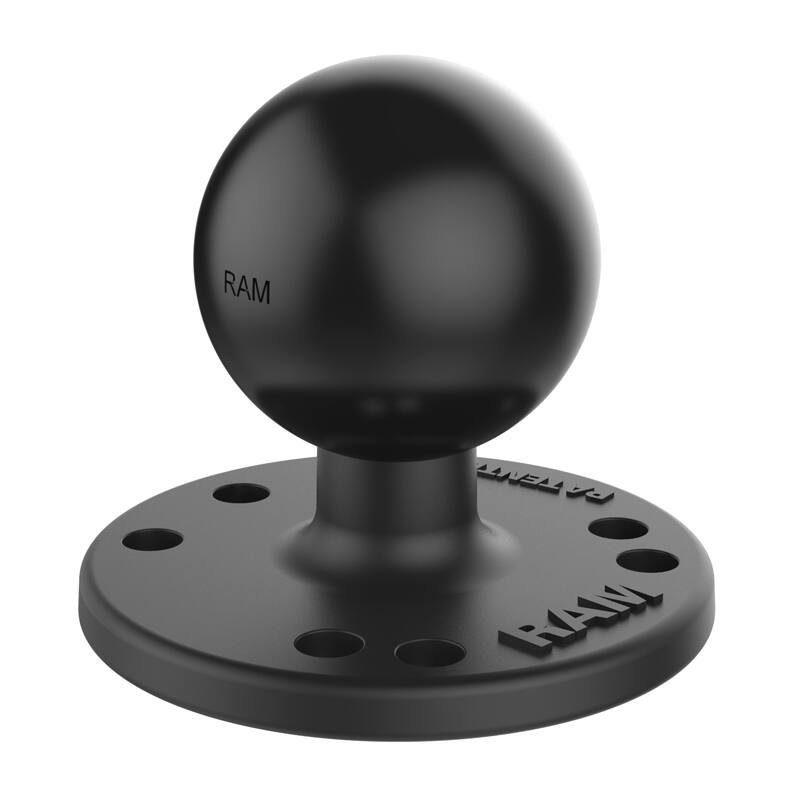

• RAM-202U 63mm (2.5") round base with 1.5" ball

FAQs

What surfaces is this suction cup compatible with? Suction cups work by creating a vacuum, so they need an extremely smooth surface. Any texture lets air in and loosens the grip — windows and highly polished metal work best.

Can the suction cups pivot like the RAM-B-189B-PIV1U? No — only select dual suction cup mounts have the independent pivoting connection for surfaces that aren't fully level.
