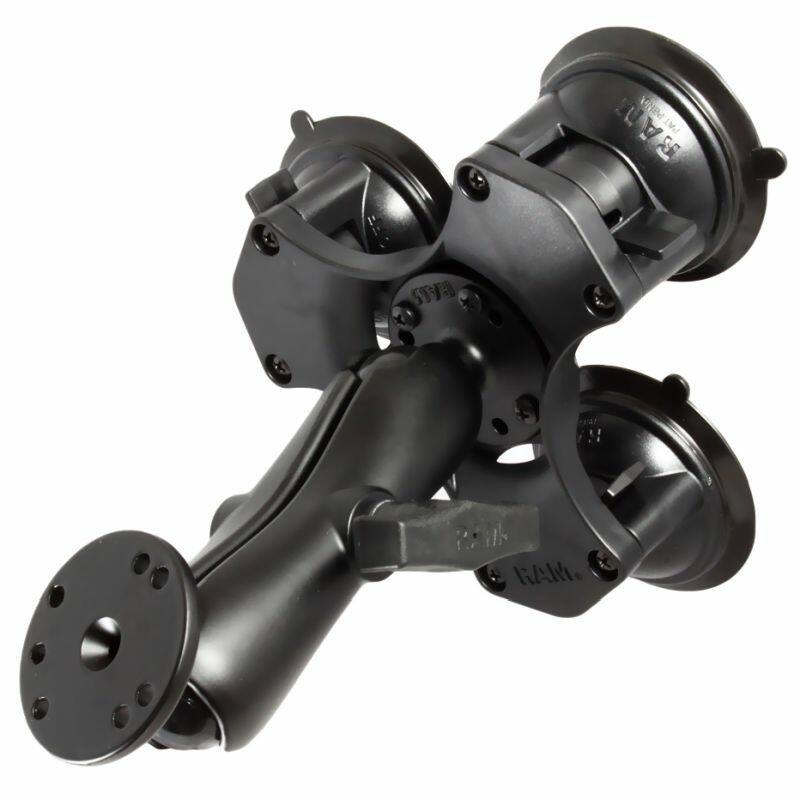

RAP-365-101U RAM® Twist-Lock™ Triple Suction Cup Mount with Round Plate
Features
* RAM® Twist-Lock™ triple suction cup base is ideal for windshields and other nonporous surfaces
* Medium RAM arm with ball and socket technology allows for near-infinite adjustability
* Included round base with C size 1.5" RAM® rubber ball allows for connection to any C size RAM® double socket arm
* Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
Ideally suited to a wide range of agricultural, commercial, and industrial uses, RAM's new triple suction cup base makes it possible to mount your electronics for optimum access, viewing, and safety. This suction mount is ideal for high vibration environments (e.g. helicopters) and consists of a triple 83.8mm / 3.3" twist lock suction cup base with plate that contains the universal AMPs hole pattern. The suction cup is designed to have an extra strong hold on any smooth non-porous surface, but for best result, mount the suction cup on a glass or non-porous plastic surface.

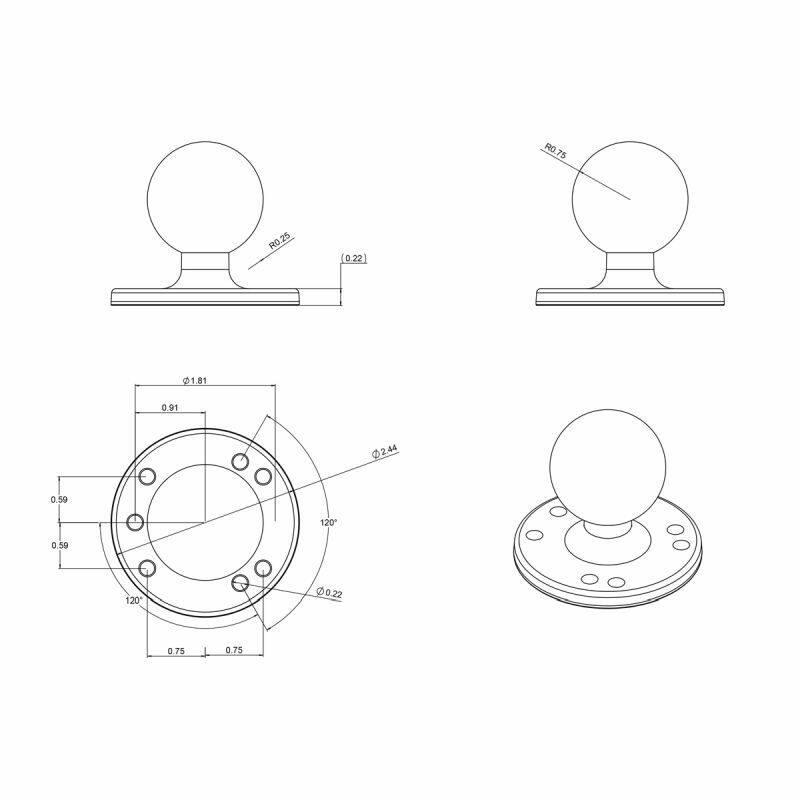

The round plates are 1.5" diameter rubber balls connected to flat 63mm (2.5 inch) diameter base. The bases have pre-drilled holes, including the universal AMPs hole pattern.
Arm Dimensions:
Overall:
143mm (5.625")
Socket-To-Socket:
114mm (4.5")
Suction Size
(3) x 84mm (3.3") Diameter Bases,
Total Width
201.9mm (7.95")
Material:
Powder-coated marine-grade aluminum
High Strength Composite
Weight:
834 grams (1.34lbs)
Components

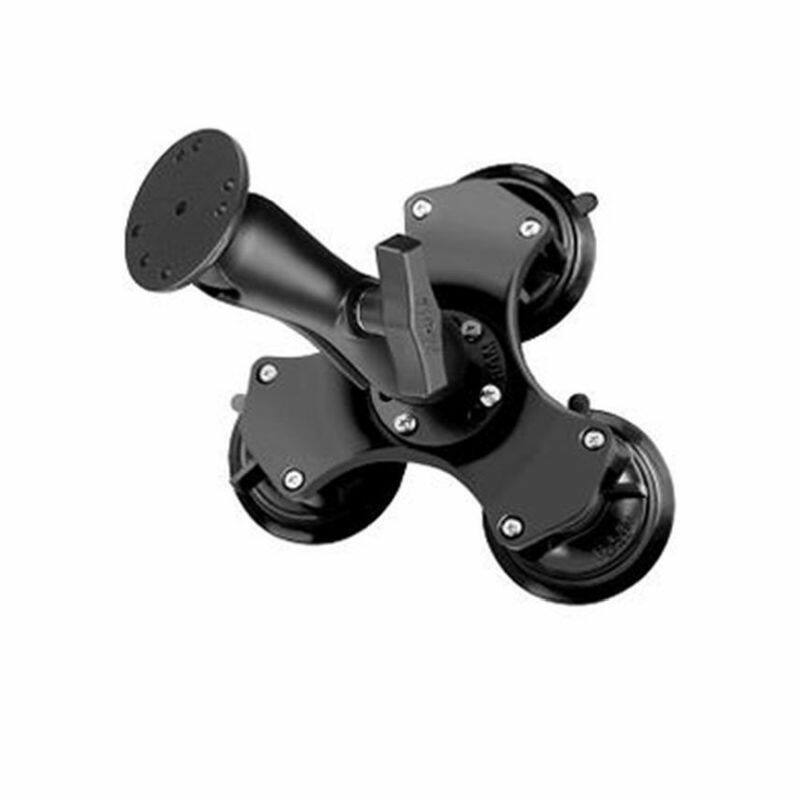

RAP-365-224-1BU Triple Suction Cup Base with AMPs Hole Pattern

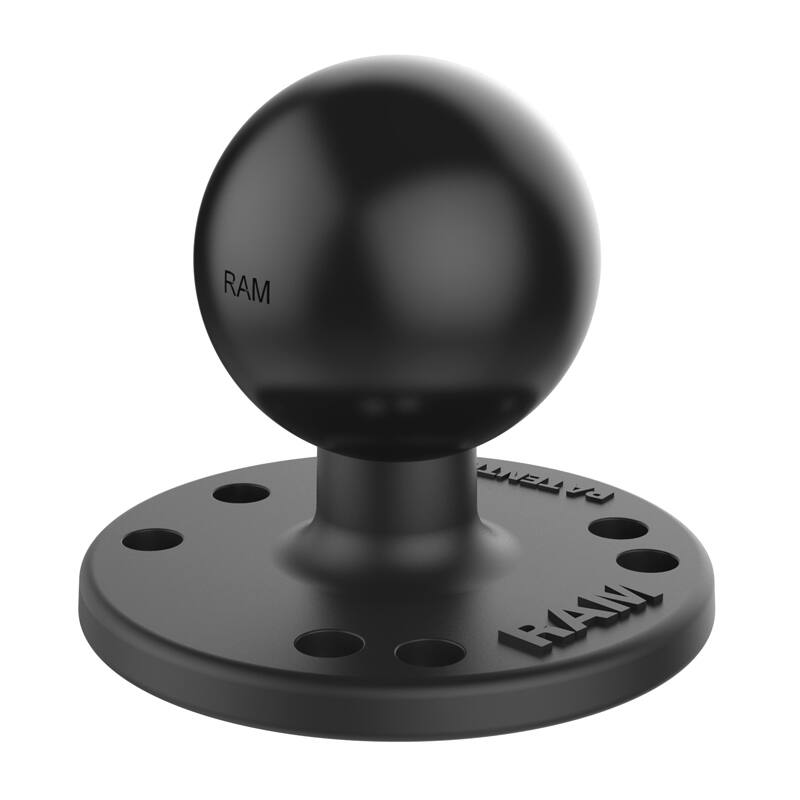

RAM-202U 2.5" / 63mm DIA. BASE 1.5" Ball (x 2)

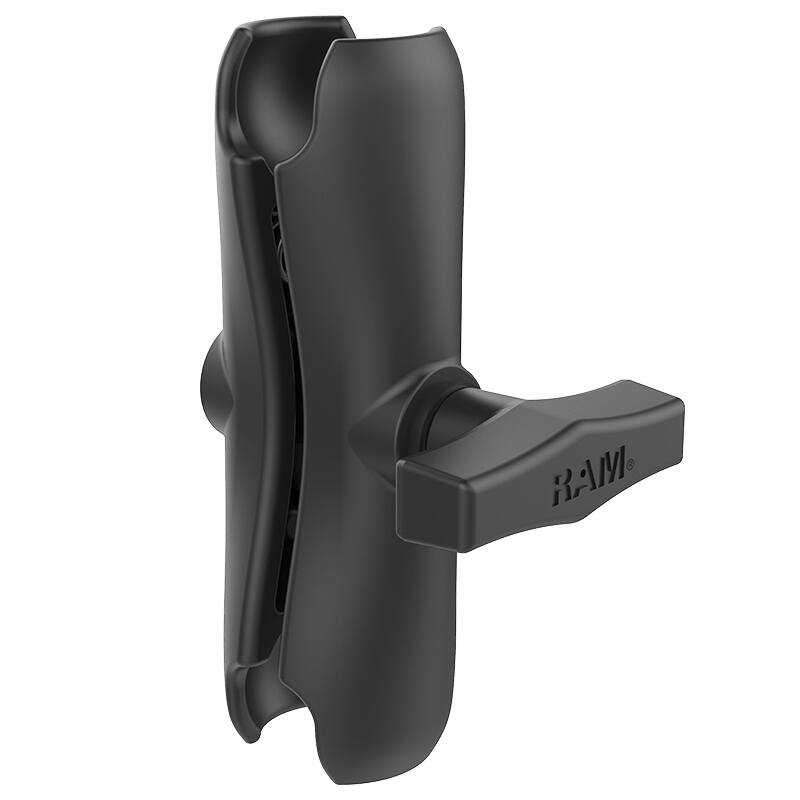

RAM-201U Standard Double Socket Arm for 1.5" Balls
