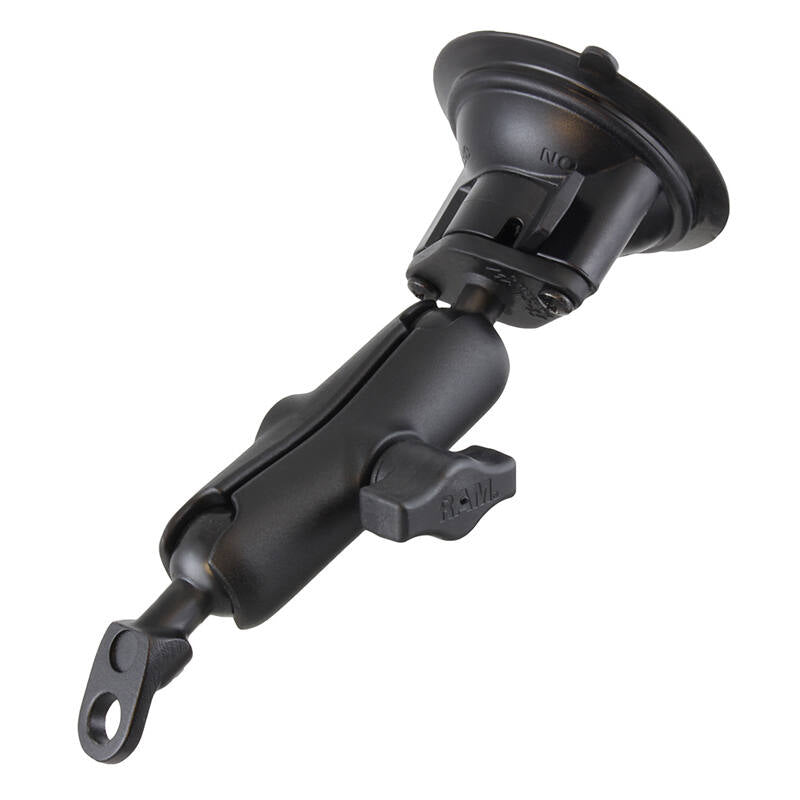

RAM-B-166-272U RAM® Twist-Lock™ Suction Cup with 9mm Hole
Features
* RAM® Twist-Lock™ suction cup base is ideal for vehicle windshields and other nonporous surfaces
* Includes B size medium length RAM® double socket arm and 9mm Angled Bolt Head Adapter Ball Base
* RAM ball and socket technology allows for near-infinite adjustability
* Made of Powder Coated Marine Grade Aluminium and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
This RAM mount consists of a 83.8mm (3.3") suction cup twist lock base and STANDARD length double socket arm for 1" ball diamond bases and a 9mm Angled Bolt Head Adapter Ball Base. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks.
The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
SUCTION SIZE
83mm (3.3") Diameter
SOCKET-TO-SOCKET LENGTH
76.2mm (3")
Material:
Powder Coated Marine Grade Aluminium
Ball Size:
1" Rubber Ball "B" Size
Weight
249 grams (0.55 lbs)
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
Components:

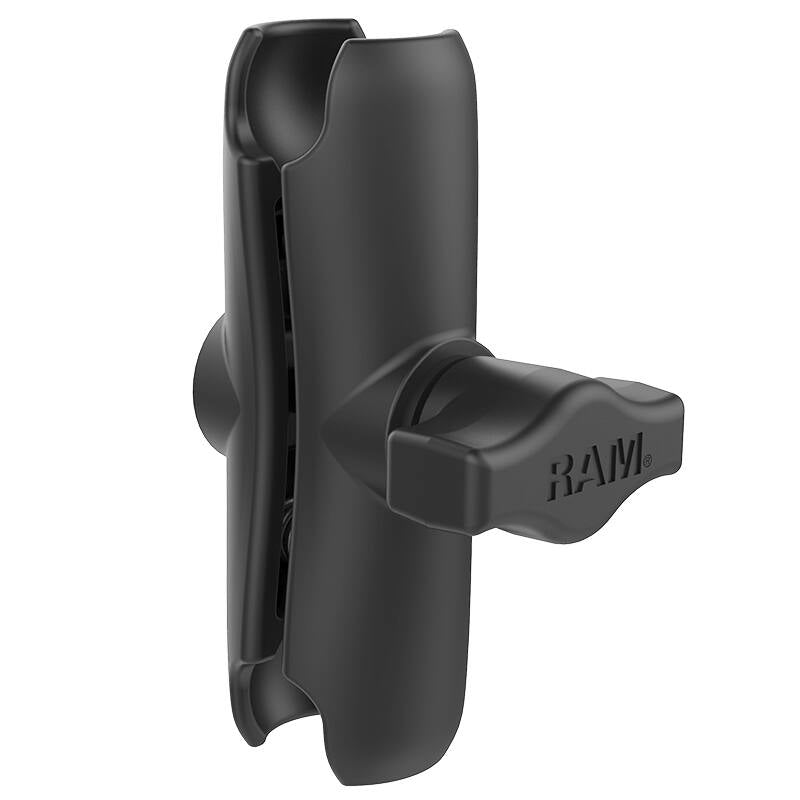

RAM-B-201U standard 96mm long double socket arm

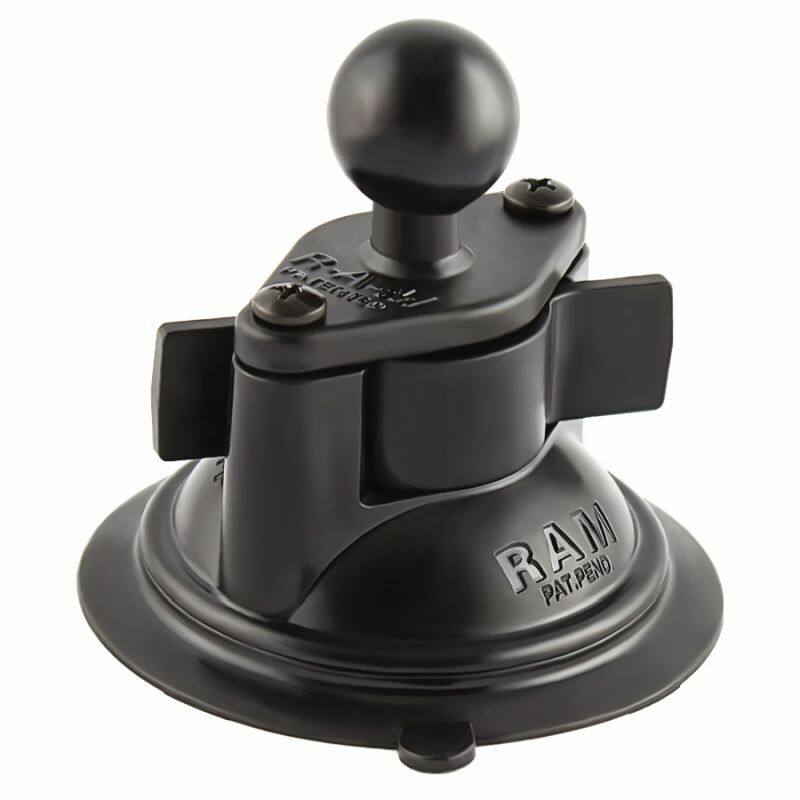

RAM-B-224-1U suction cup with 1" ball

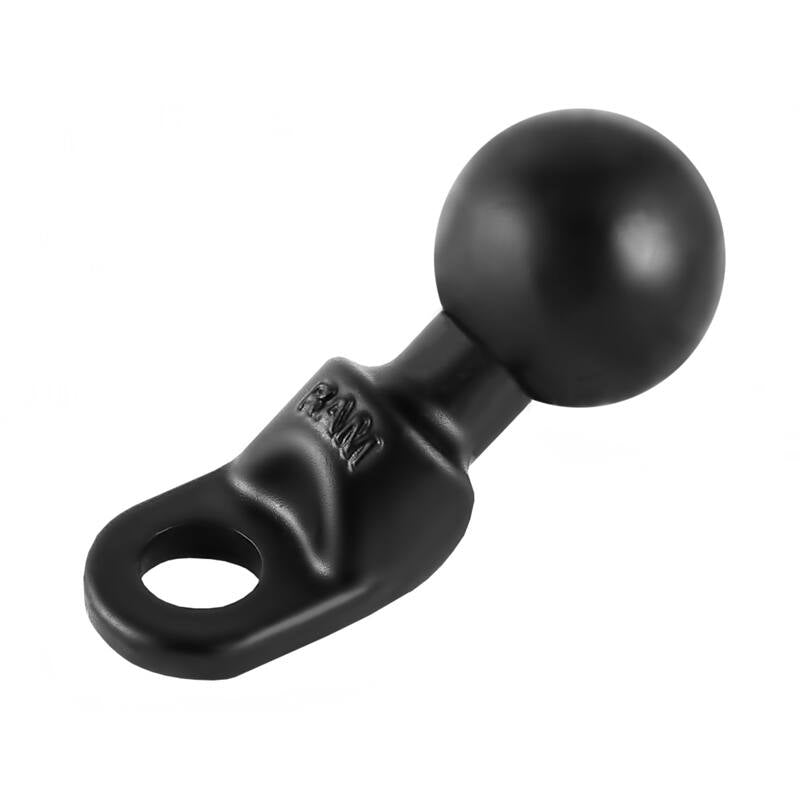

RAM-B-272U RAM MOTORCYCLE BASE WITH 9MM HOLE
