RAM Mounts

RAM Suction Cup Base - with 9mm Hole Base - Short Arm

RAM Suction Cup Base - with 9mm Hole Base - Short Arm

SKU:RAM-B-166-A-272U-V

Regular price $105.00 NZD
Regular price Sale price $105.00 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-B-166-A-272U RAM® Twist-Lock™ Suction Cup with 9mm Hole and Short Arm


Features

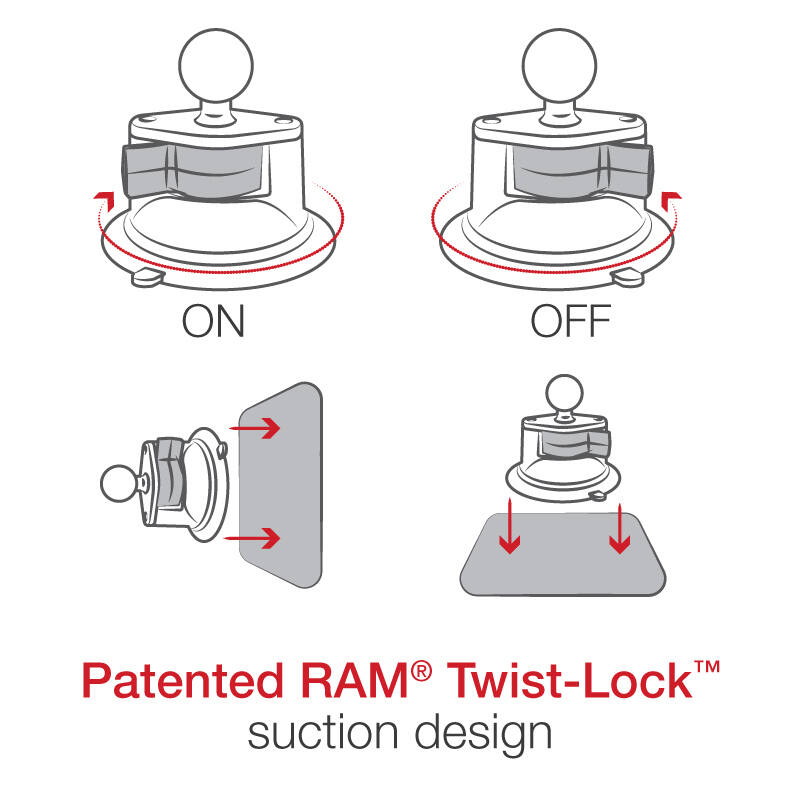

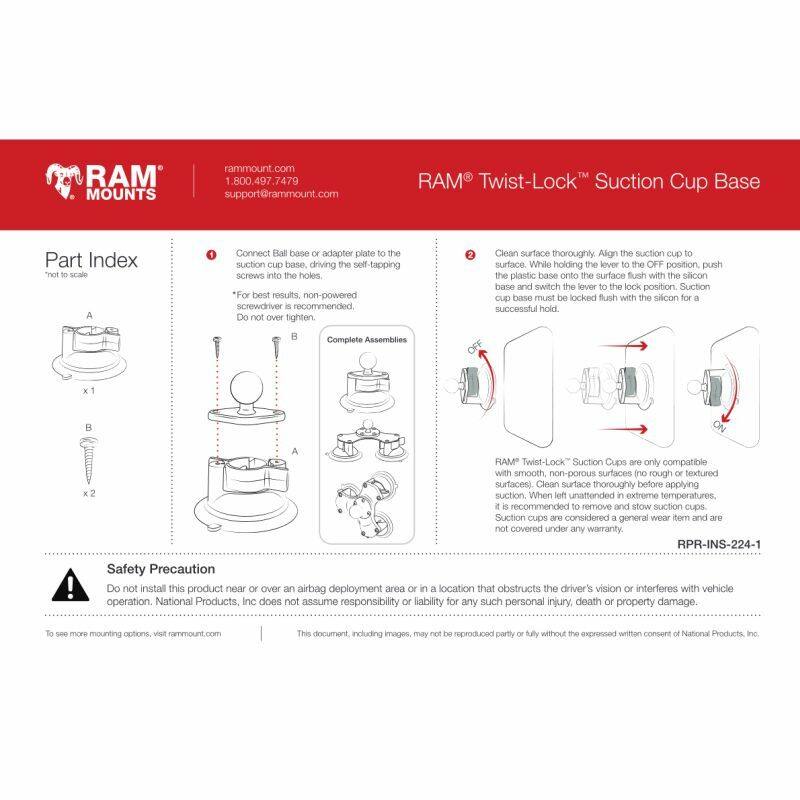

* RAM® Twist-Lock™ suction cup base is ideal for vehicle windshields and other nonporous surfaces
* Includes B size short length RAM® double socket arm and 9mm Angled Bolt Head Adapter Ball Base
* RAM ball and socket technology allows for near-infinite adjustability
* Made of Powder Coated Marine Grade Aluminium and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

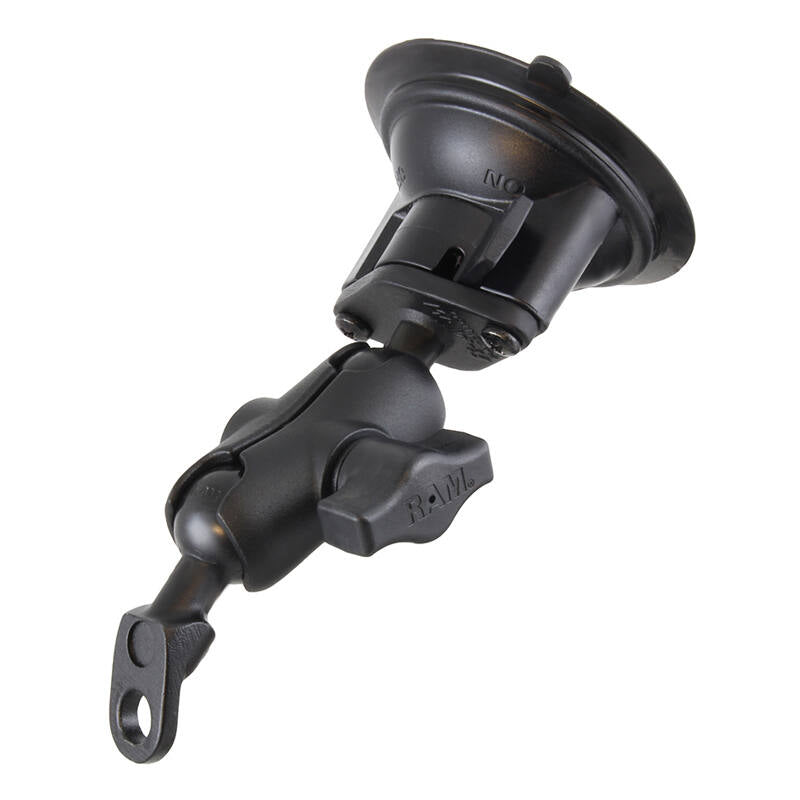

This RAM mount consists of a 83.8mm (3.3") suction cup twist lock base and SHORT length double socket arm for 1" ball diamond bases and a 9mm Angled Bolt Head Adapter Ball Base. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks.

The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

SUCTION SIZE
83mm (3.3") Diameter

Arm Dimensions
Overall Length:
60.5mm (2.38")
Socket-To-Socket Length:
51mm (2")


Material:
Powder Coated Marine Grade Aluminium

Ball Size:
1" Rubber Ball "B" Size

Weight
227 grams (0.5 lbs)

Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)


Components:
RAM-B-201U-A short long double socket arm

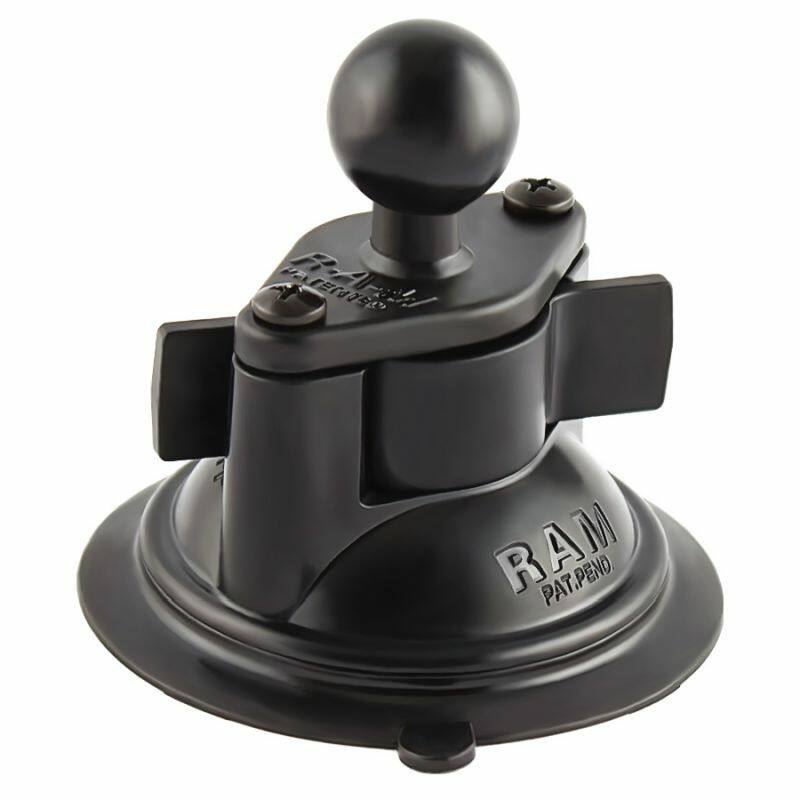

RAM-B-224-1U suction cup with 1" ball

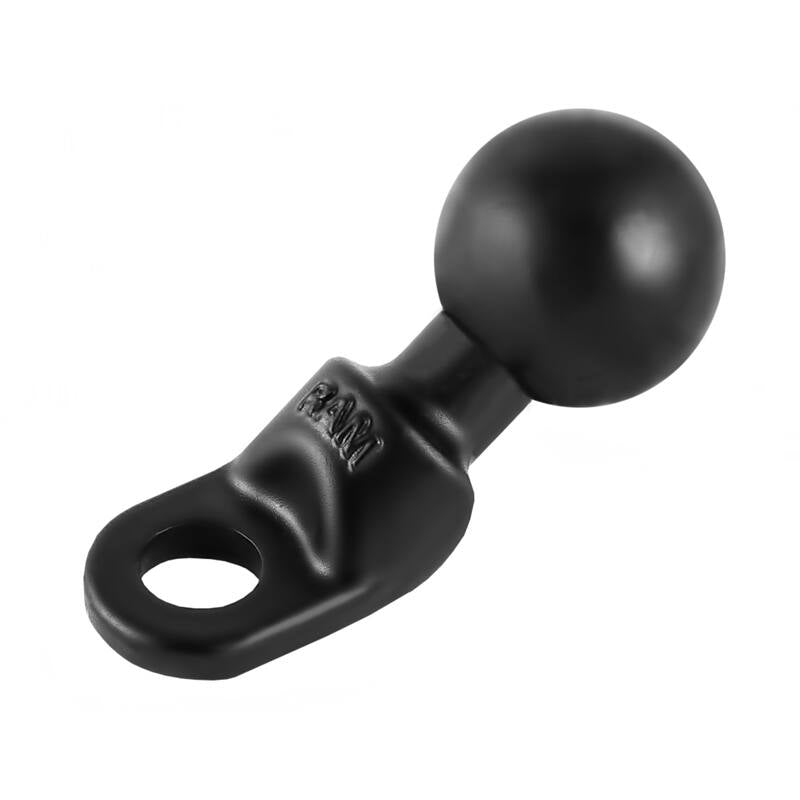

RAM-B-272U MOTORCYCLE BASE WITH 9MM HOLE

YouTube:
https://www.youtube.com/watch?v=L8bbzMCMaUg
