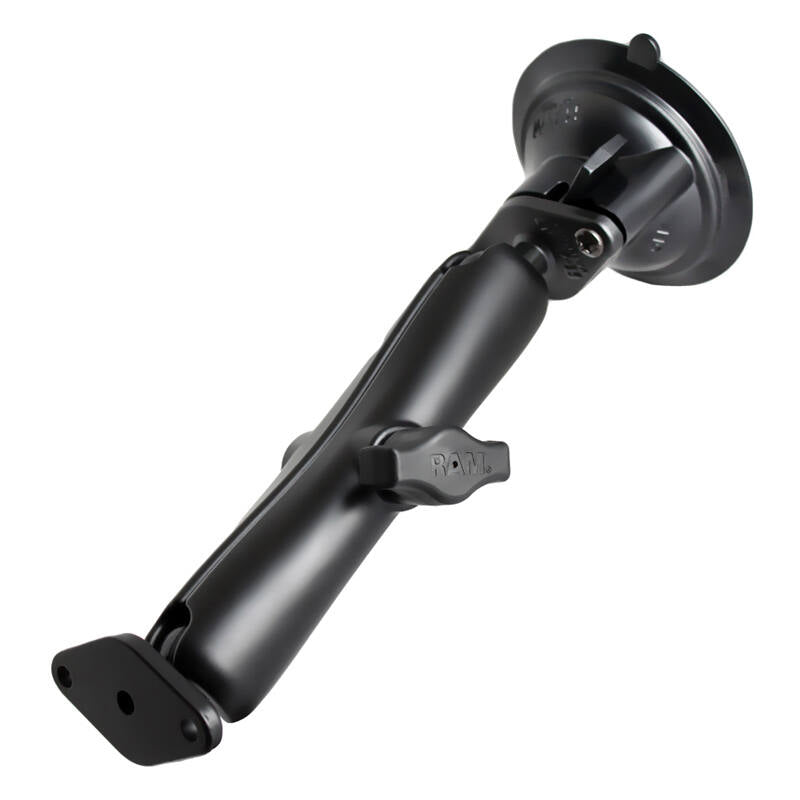

RAM-B-166U-C Twist-Lock Suction Cup Mount, Diamond Base & Long Arm
RAM-B-166U-C pairs a Twist-Lock suction cup base with a long B Series double socket arm and a diamond ball adapter, giving near-infinite adjustment on windscreens and other non-porous surfaces.
Key Features
84mm (3.3") Twist-Lock suction cup base holds firm on glass, smooth plastic and RAM adhesive disks

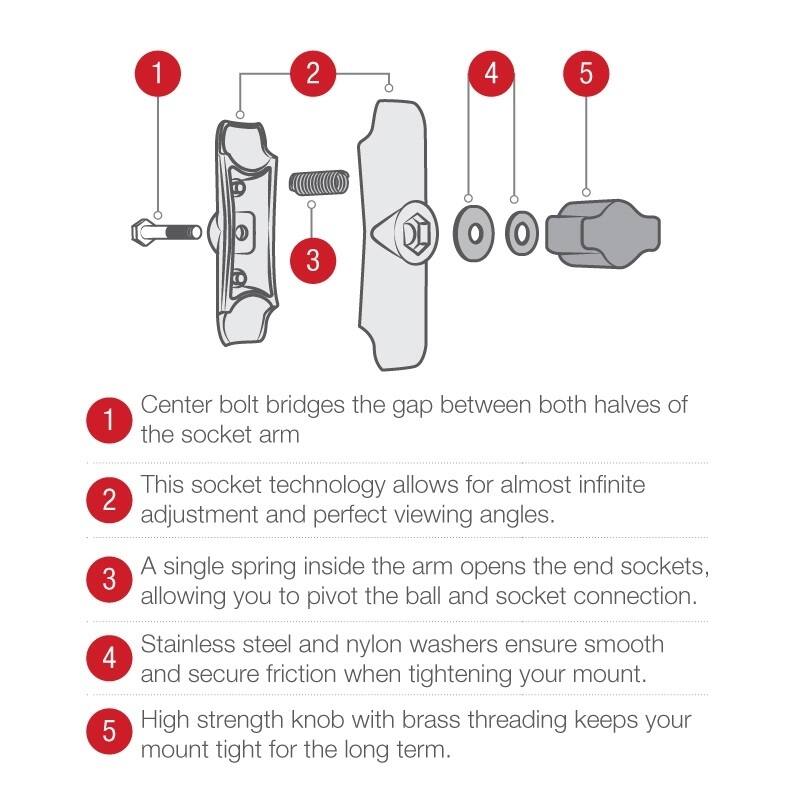

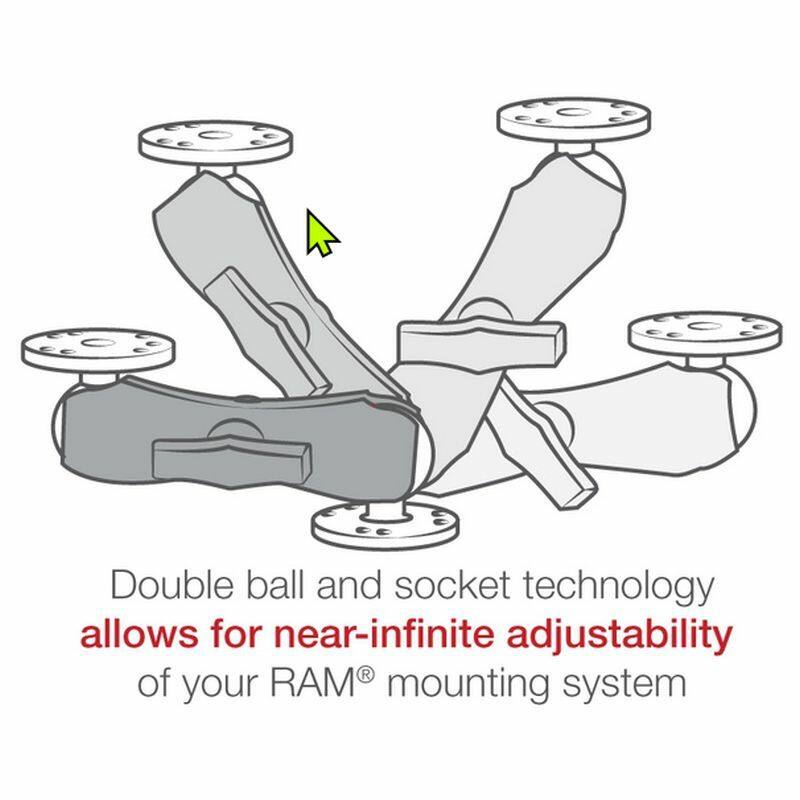

Long B Size double socket arm with adjustment points at both ends
Diamond base adapter fits the 2-hole AMPS pattern used by most RAM cradles
Powder-coated marine-grade aluminium and high-strength composite construction
Lifetime warranty on the mount hardware, with the suction cup excluded as a wear item
What's in the Box

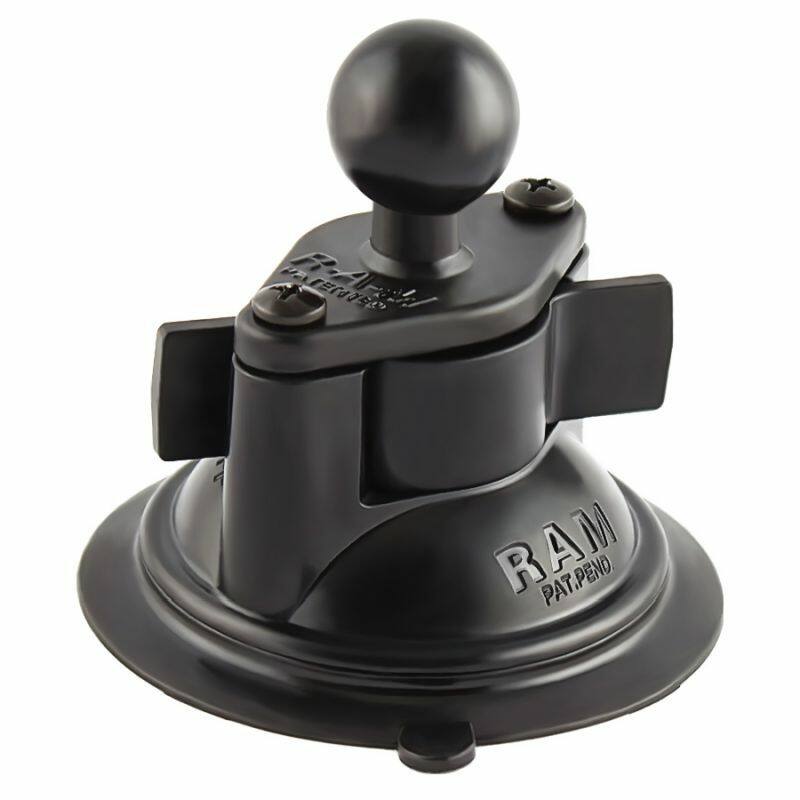

RAM-B-224-1U 84mm suction cup base with 1" ball
RAM-B-238U diamond plate, 1" ball
RAM-B-201U-C long double socket arm
Dimensions & Specifications
Suction cup diameter: 83.8mm (3.3")
Hole pattern (2-hole AMPS): 48.6mm (1.912")
Diamond plate size: 61.7mm x 33.3mm (2.43" x 1.31")
Arm overall length: 152mm (6")
Arm socket-to-socket length: 134mm (5.25")
Total assembled length: 229mm (9")
Material: Powder-coated marine-grade aluminium
Ball size: 1" rubber ball, B Size
Care & Warranty
Smooth, non-porous surfaces only; anything rough or textured lets air past the seal and the cup will not hold.
Clean the surface thoroughly before you apply the cup.
If the vehicle is left sitting in extreme heat or cold, release the cup and stow the mount rather than leaving it loaded.
RAM® classes suction cups as a general wear item, so the cup is excluded from warranty cover. The base, arm and plate hardware are covered as normal.
FAQs
Is the suction cup covered by the warranty? No. RAM® treat suction cups as a general wear item, so the cup sits outside the lifetime warranty. The rest of the mount hardware is covered as normal.
