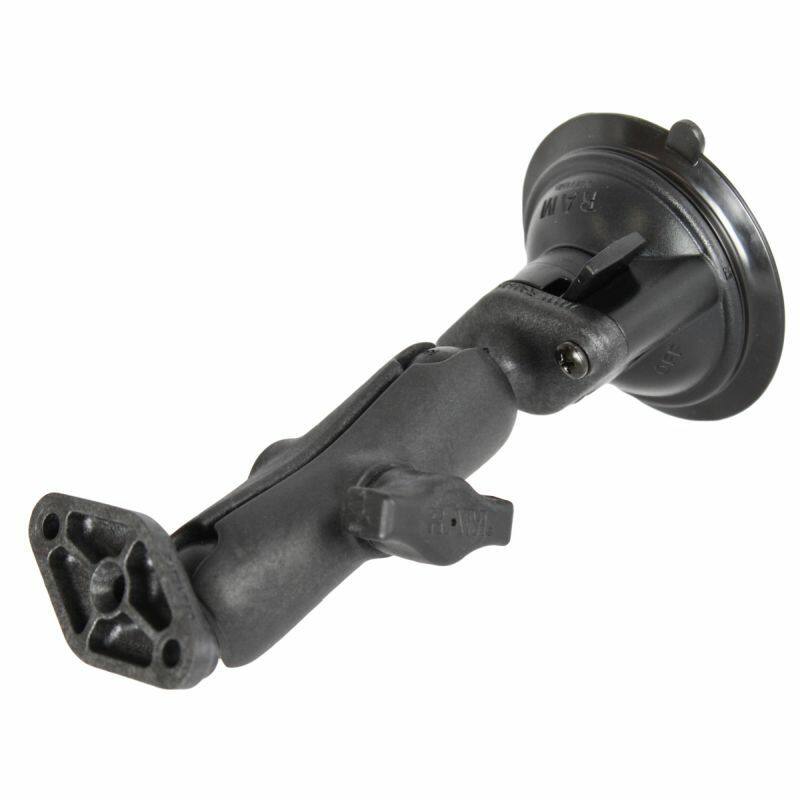

RAP-B-166U RAM Composite Twist-Lock™ Suction Cup with Double Socket Arm and Diamond Base Adapter

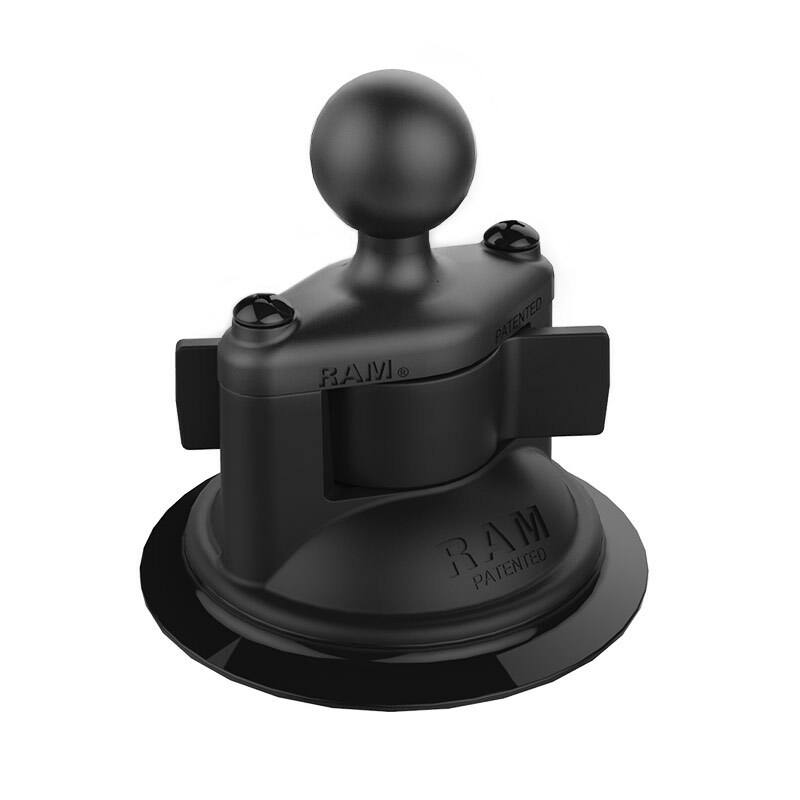

The RAP-B-166U consists of a 84mm (3.3") diameter suction cup twist lock base, STANDARD length double socket arm and diamond base adapter. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks.

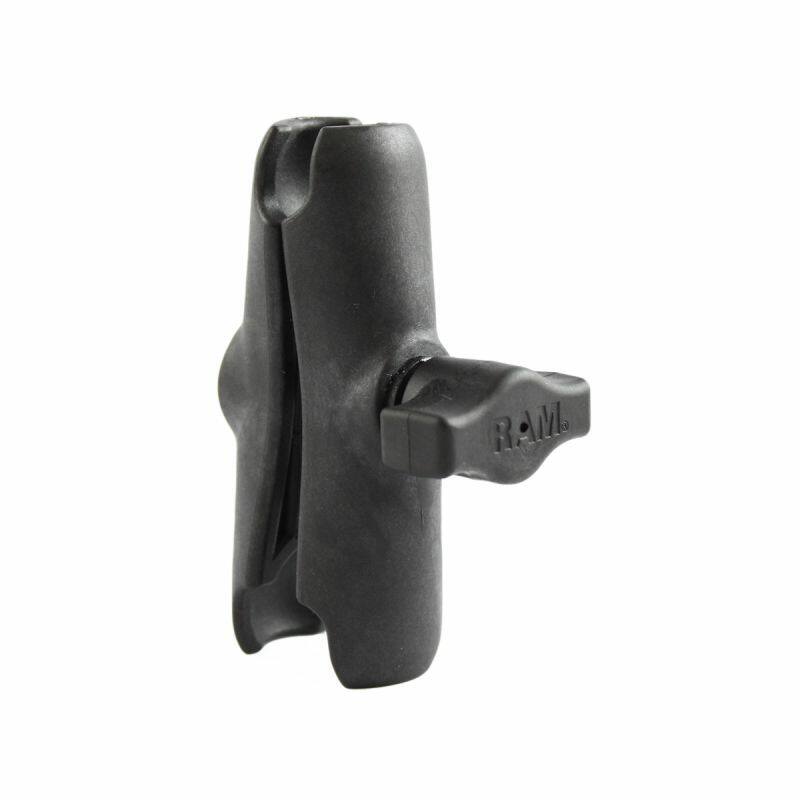

The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

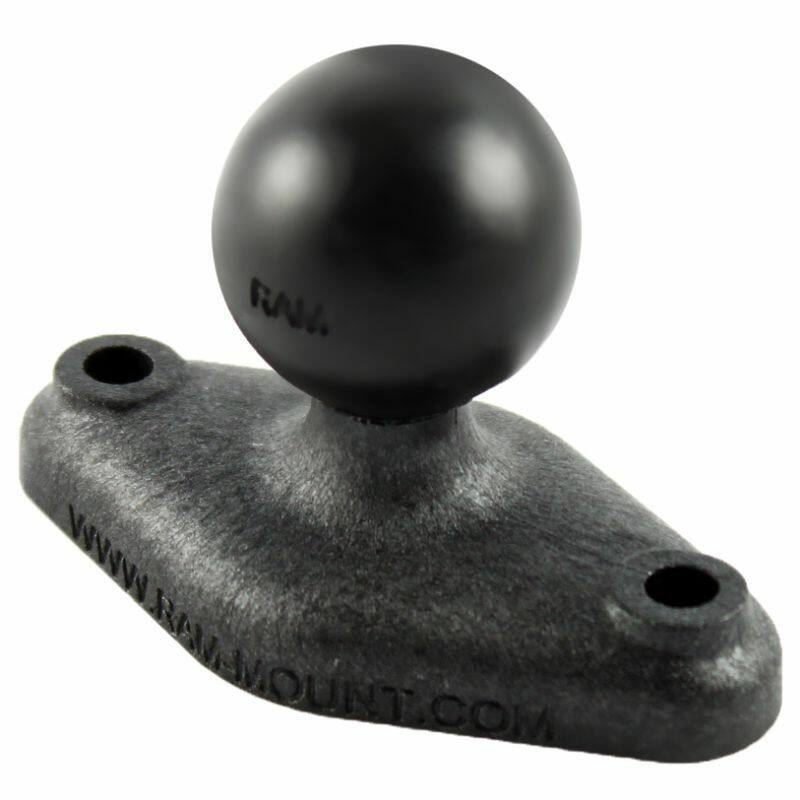

The hole pattern found on the diamond base adapter will connect to most RAM cradles.
Note:
This mount does not require any drilling for installation.
Overall Length:
171mm / 6.75"
Hole Pattern:
2-Hole AMPS: 48.6mm (1.912")
Diamond Plate Size:
61.7mm x 33.3mm (2.43" x 1.31")
Mateial:
High Strength Composite
Ball Size:
1" Rubber Ball "B" Size
Weight:
226 grams / 0.5 lbs.
Weight Capacity
Standard Use: 907 grams (2 lbs)
Heavy-Duty Use: 454 grams (1 lb)
