RAM Suction Cup Base - with Diamond Base and Short Arm - ( B Series 1")

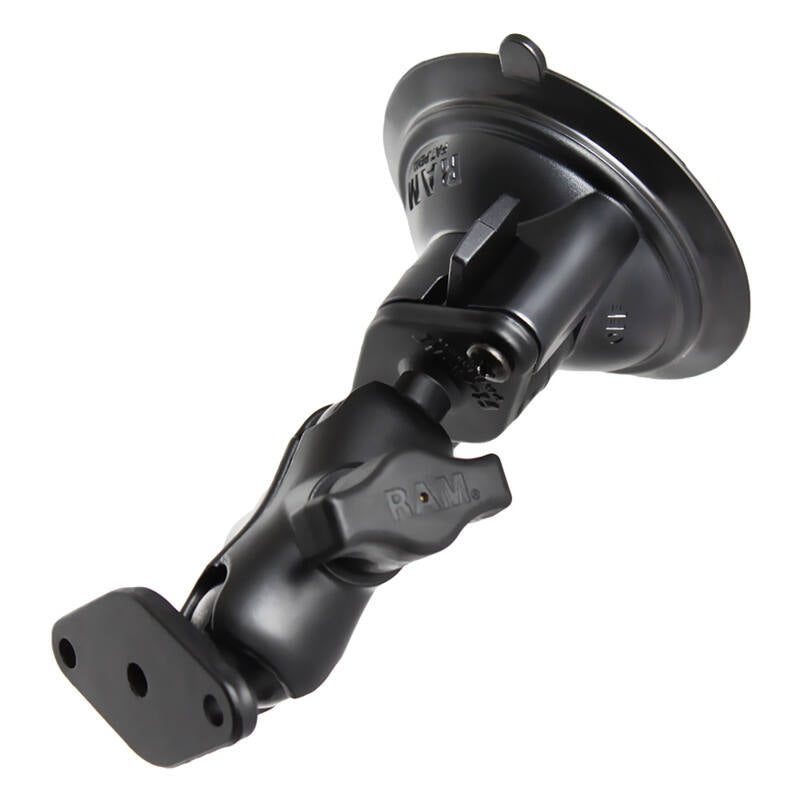

RAM-B-166U-A RAM® Twist-Lock™ Suction Cup Mount – Diamond Base, Short Arm

The RAM-B-166U-A pairs an 83.8mm (3.3") Twist-Lock™ suction cup base with a short double socket arm and diamond base plate, giving a strong, no-drill hold on vehicle windscreens and other non-porous surfaces.

Key Features

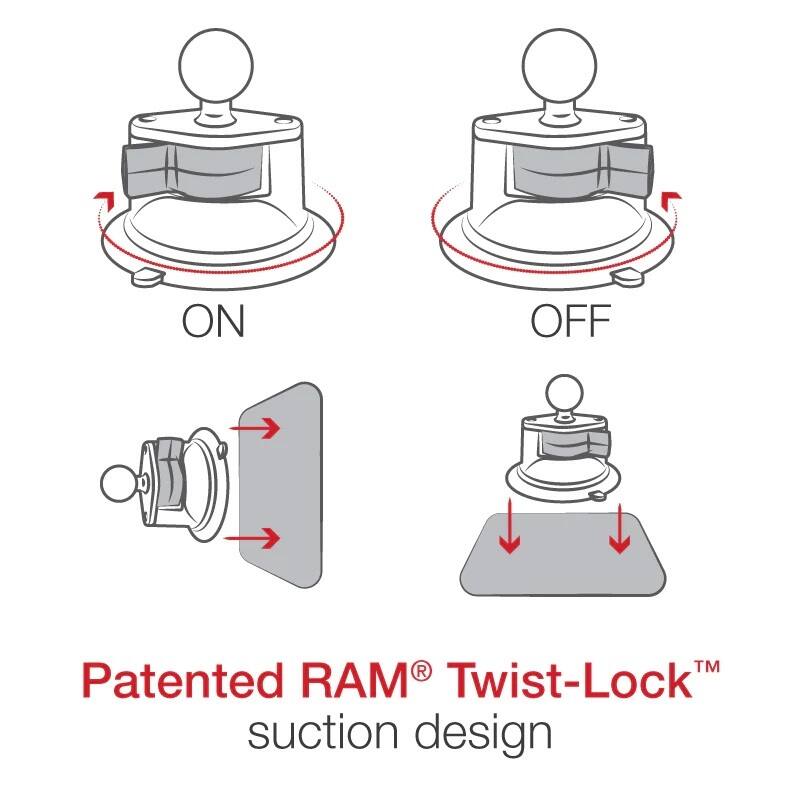

• Twist-Lock™ suction cup ideal for glass and non-porous plastic surfaces, including RAM adhesive discs

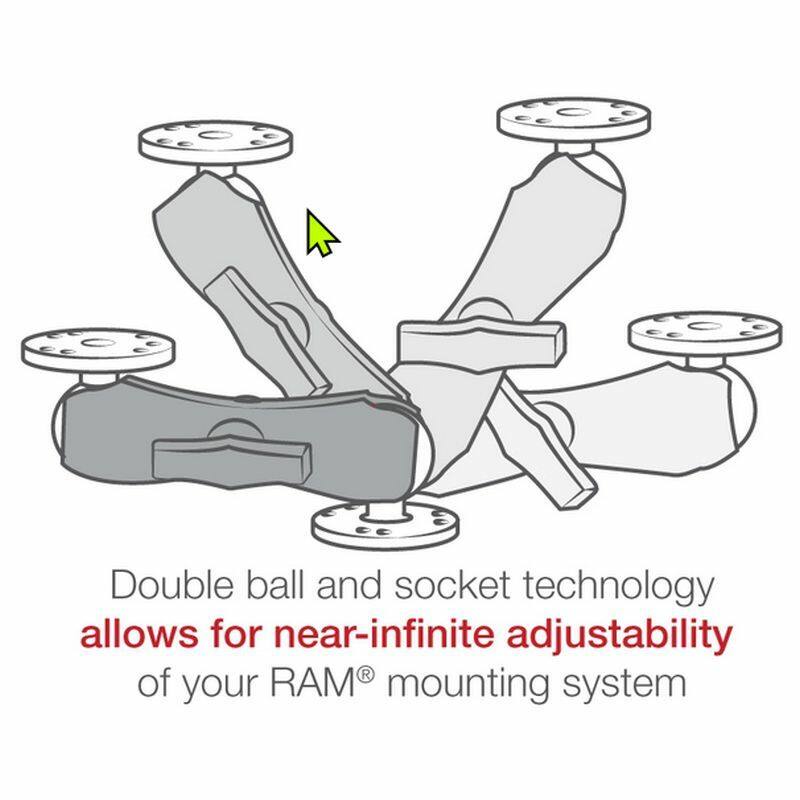

• Short (60mm) B Size double socket arm with 1" rubber balls at each end for near-infinite adjustability

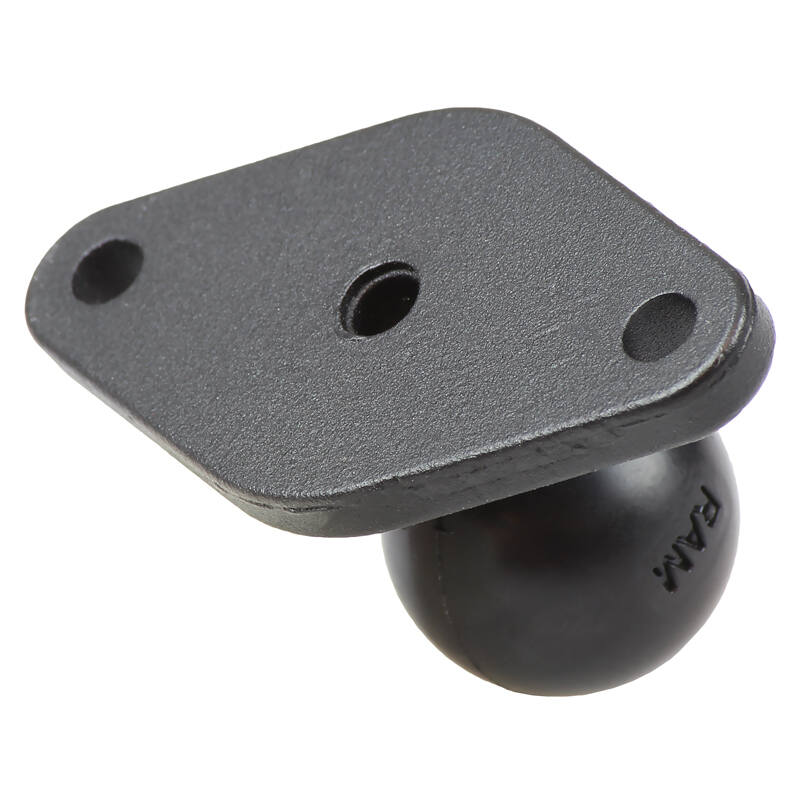

• Diamond base plate connects to most lighter RAM® cradles
• Powder-coated marine-grade aluminium and high-strength composite construction
• No drilling required for installation
• Lifetime warranty on the mount hardware, with the suction cup excluded as a wear item

Works With

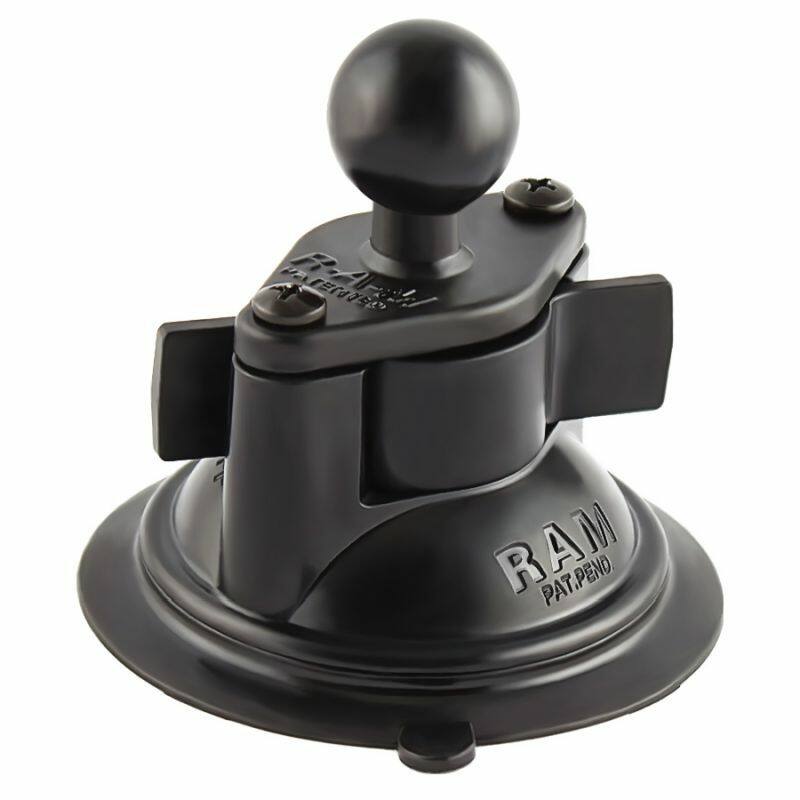

Built from RAM-B-224-1U (suction cup base), RAM-B-238U (diamond plate), and RAM-B-201U-A (short double socket arm). Connects to any RAM cradle with a matching diamond base hole pattern.

Dimensions & Specifications

• Suction cup diameter: 83.8mm (3.3")
• 2-Hole AMPS: 1.912" (48.6mm)
• Overall length: 138.2mm (5.44")
• Arm length: 60.5mm (2.38"), socket-to-socket 51mm (2")
• Ball size: B Size (1" rubber)
• Material: Powder-coated marine-grade aluminium
• Weight: 240 grams (0.53 lbs)
• Weight capacity: 907 grams (2 lbs) standard use, 454 grams (1 lb) heavy-duty use

Care & Warranty

• Smooth, non-porous surfaces only — anything rough or textured lets air past the seal and the cup will not hold.
• Clean the surface thoroughly before you apply the cup.
• If the vehicle is left sitting in extreme heat or cold, release the cup and stow the mount rather than leaving it loaded.
• RAM® classes suction cups as a general wear item, so the cup is excluded from warranty cover. The base, arm and plate hardware are covered as normal.

Videos

• Suction cup mount overview
• Installation demonstration
• RAM short double socket arm overview

FAQs

Is the suction cup covered by the warranty? No. RAM® treat suction cups as a general wear item, so the cup sits outside the lifetime warranty. The rest of the mount hardware is covered as normal.
