RAM Suction Cup Base - with Medium Double Socket Arm - (B Series 1")

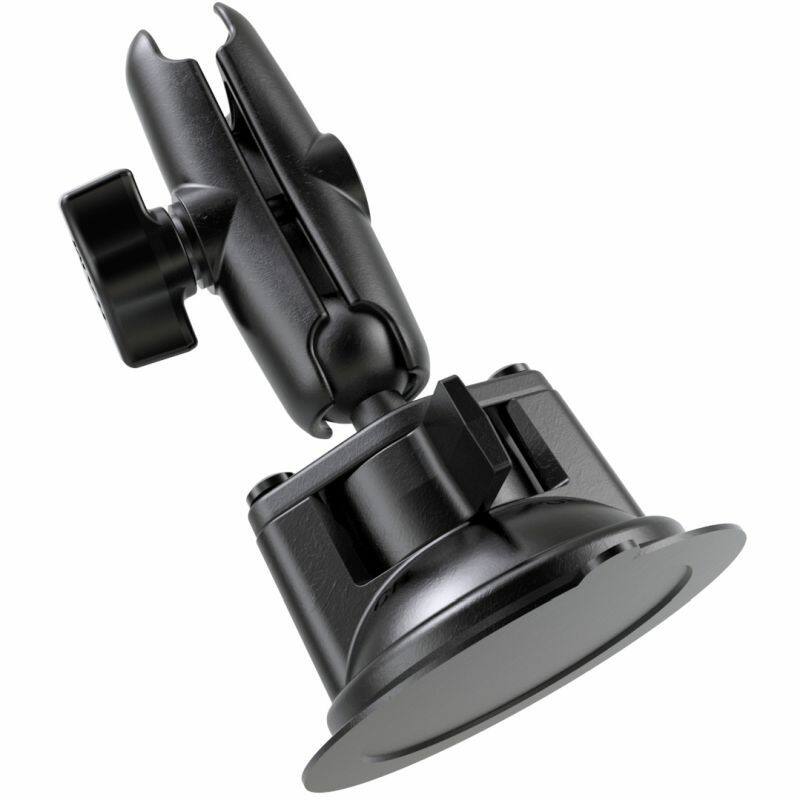

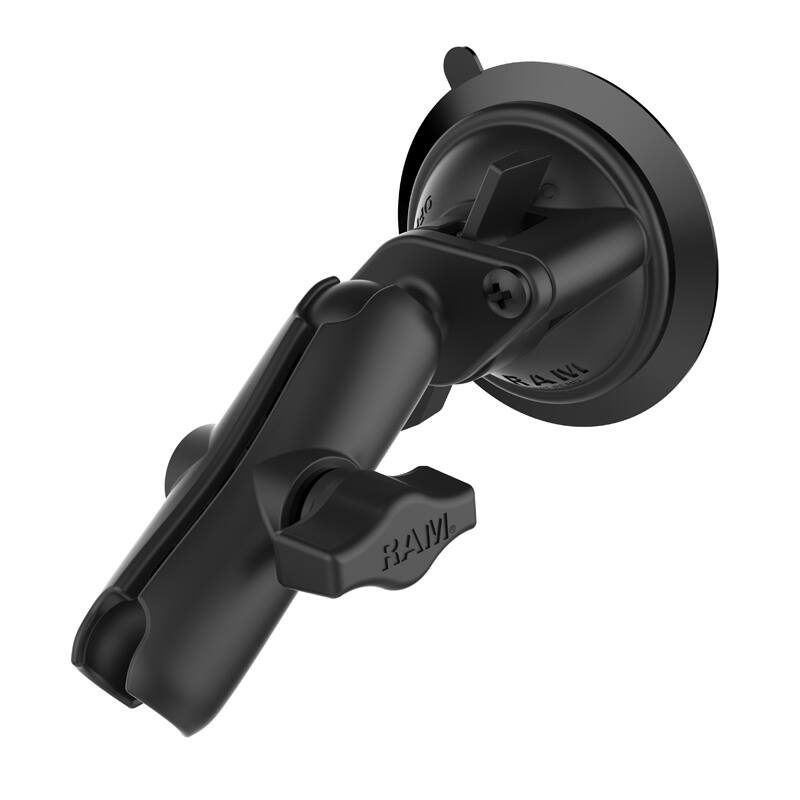

RAM-B-166-103U RAM® Twist-Lock™ Suction Cup Base with Medium Double Socket Arm

The RAM-B-166-103U pairs an 84mm (3.3") RAM® Twist-Lock™ suction cup base with a medium B Series double socket arm, leaving an open socket to take any RAM® cradle or base with a 1" ball. It gives a strong, tool-free hold on windscreens, glass, and other smooth non-porous surfaces.

Key Features

• Twist-Lock™ suction cup holds firm on vehicle windscreens and non-porous surfaces, including RAM® adhesive discs
• Medium B Series double socket arm with adjustment points at both ends for near-infinite positioning
• Open socket accepts any RAM® 1" (B size) ball base or cradle
• Powder-coated marine-grade aluminium and high-strength composite construction
• Backed by RAM®'s lifetime warranty on the base hardware; the suction cup itself is treated as a wear item and sits outside that cover

What's Included

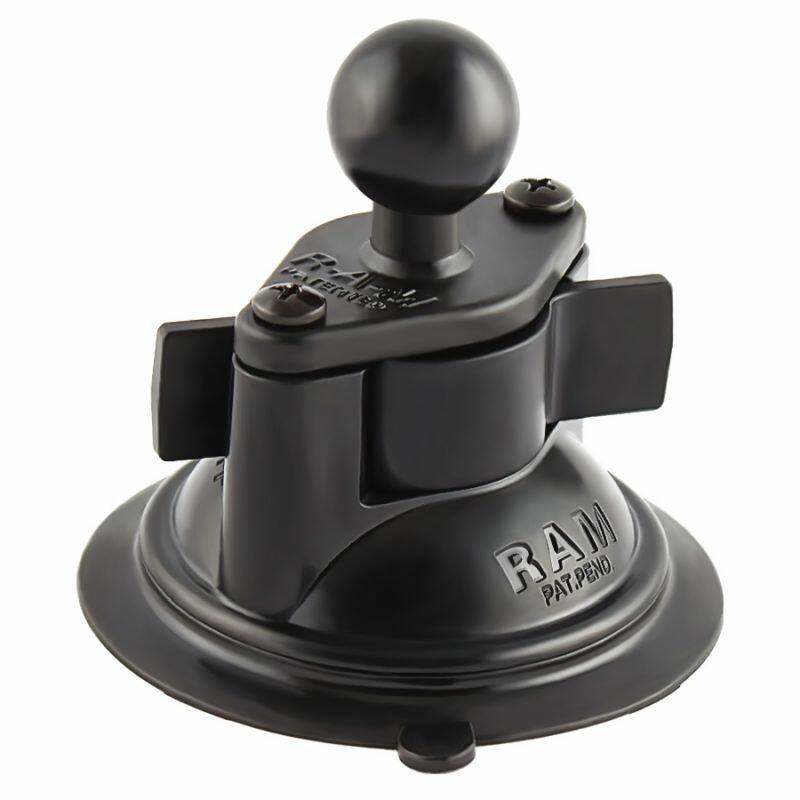

• RAM-B-224-1U Twist-Lock™ suction cup base with 1" B-size ball
• RAM-B-201U medium double socket arm

Works With

The open socket fits any RAM® component with a 1" B size ball: X-Grip® phone cradles, diamond and round base plates, action camera adapters and more. Where there's no glass to mount to, the suction cup will also grip a RAM® adhesive disc fixed to a textured surface.

Dimensions & Specifications

• Suction cup diameter: 83.8mm (3.3")
• Arm length: 94mm (3.69") overall; 76mm (3") socket-to-socket
• Ball size: 1" rubber ball (B size)
• Weight: 249g (0.55 lb)
• Load rating: 907g (2 lb) standard use / 454g (1 lb) heavy-duty use

Care & Warranty

• Smooth, non-porous surfaces only; anything rough or textured lets air past the seal and the cup will not hold.
• Clean the surface thoroughly before you apply the cup.
• If the vehicle is left sitting in extreme heat or cold, release the cup and stow it rather than leaving it loaded.
• RAM® classes suction cups as a general wear item, so the cup is excluded from warranty cover. The base and arm hardware are covered as normal.

Videos

Watch: RAM® Twist-Lock™ suction cup mount overview

FAQs

Does this include a phone or device holder?
No. The top socket is open, so you add the RAM® 1" ball cradle that suits your device, such as an X-Grip®.

Is the suction cup covered by the warranty?
No. RAM® treat suction cups as a general wear item, so the cup sits outside the lifetime warranty. The rest of the mount hardware is covered as normal.

Will it stick to a textured dashboard?
Not directly. Fit a RAM® adhesive disc to the dash first and attach the suction cup to that.

How quickly does this ship?
If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
