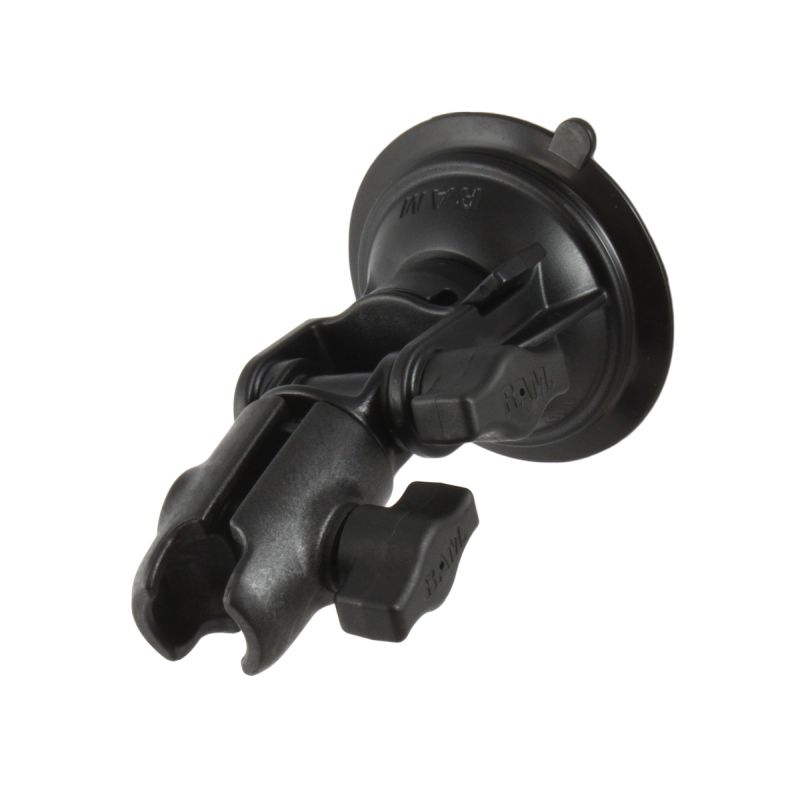

RAM Suction Cup Base with Ratchet Mount and Socket Arm

RAP-B-104-224U-QU1 RAM® Twist-Lock™ Composite Suction Cup Ratchet Mount with Socket Arm

The RAP-B-104-224U-QU1 is a low-profile, lightweight composite suction cup ratchet mount paired with a short socket arm, attaching securely to a windscreen or other smooth surface for mounting RAM® cradles and accessories.

Key Features

• Ratchet/pivot suction cup base for a low-profile, secure mount on smooth surfaces like a windscreen
• Includes a RAM® socket arm; rubber ball-and-socket technology allows near-infinite adjustment for the perfect viewing angle
• Dampens shock and vibration to help protect your mobile device
• High-strength composite construction

Works With

The arm's socket end accepts most RAM® model-specific phone cradles (such as the RAM-HOL-AP33U) and other RAM® cradles that accept a diamond base. If you're unsure which cradle suits your device, get in touch and we can help.

Components

• RAP-B-104-224U — Twist-Lock™ composite suction cup ratchet base

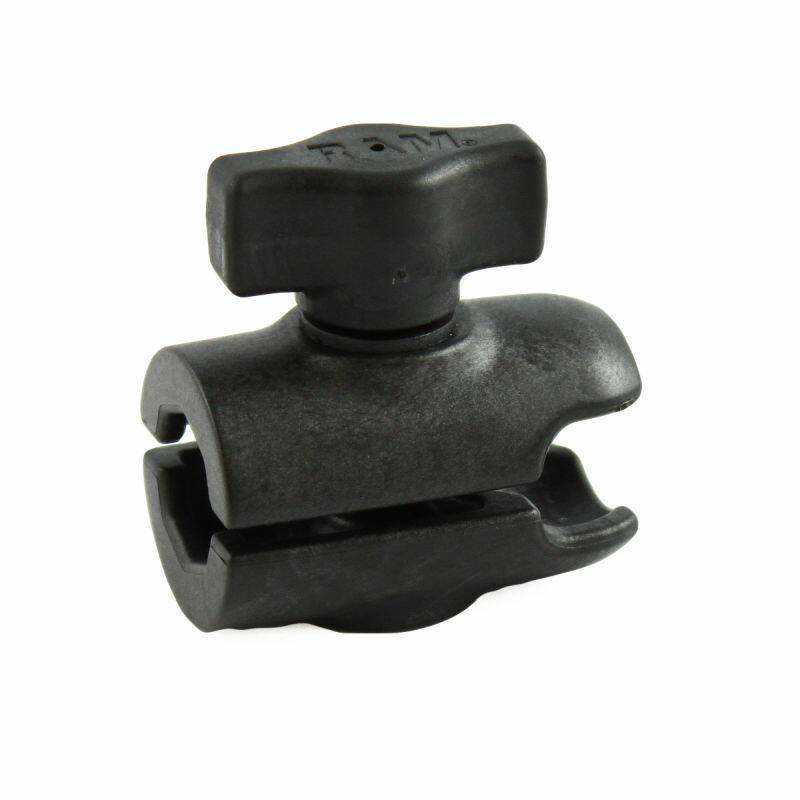

• RAP-B-200-1U — socket arm

Dimensions & Specifications

• Suction cup diameter: 83mm (3.3")
• Ball size: 1" rubber ball, B Size
• Hole pattern: 2-hole AMPS, 48.6mm (1.912")
• Material: high-strength composite
• Weight: 218g
• Weight capacity: standard use 907g (2 lbs); heavy-duty use 454g (1 lb)
• Hardware included: assembly hardware
