RAM Suction Cup Base - with Round Base and Long Arm - (B Series 1")

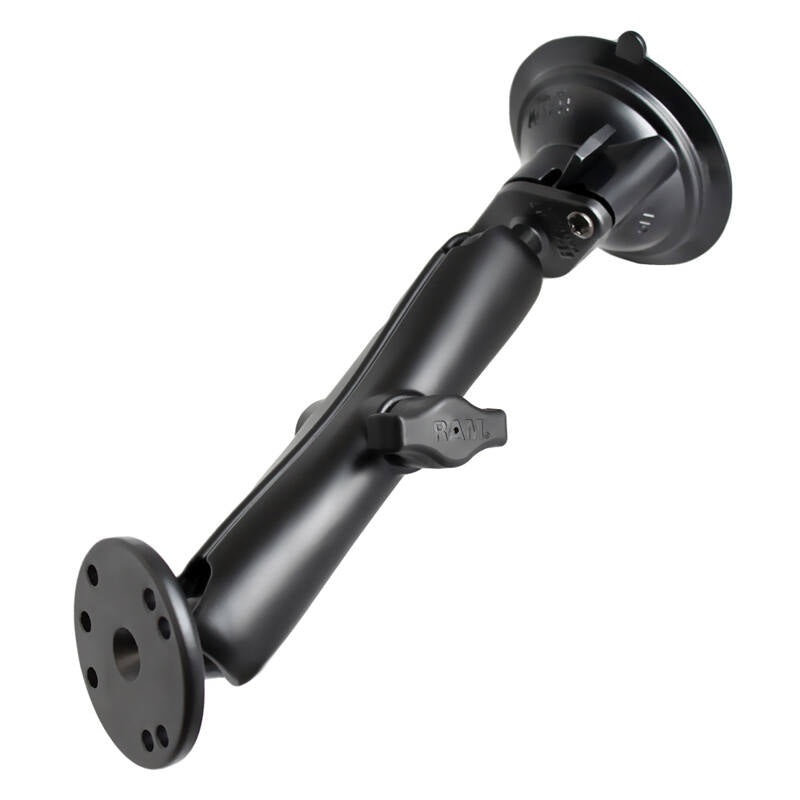

RAM-B-166-C-202U – RAM® Twist-Lock™ Suction Cup Mount with Round Base (Long Arm)

The RAM-B-166-C-202U is a RAM® Twist-Lock™ suction cup mount with a long double socket arm and a 63.5mm round base, ready to take any RAM cradle with the AMPS hole pattern. The longer arm gives extra reach for windscreens and other smooth, non-porous surfaces, with no drilling needed.

Key Features

• Twist-Lock™ suction base grips glass and non-porous surfaces, including RAM adhesive disks
• 84mm (3.3") suction cup locked down with a flip switch for a strong, quick hold
• Long double socket arm for extra reach; ball-and-socket design allows near-infinite positioning
• 63.5mm round base with the universal AMPS hole pattern connects to most RAM and third-party cradles
• Powder-coated marine-grade aluminium and high-strength composite construction
• Backed by RAM®'s lifetime warranty on the base hardware; the suction cup itself is treated as a wear item and sits outside that cover

What's Included

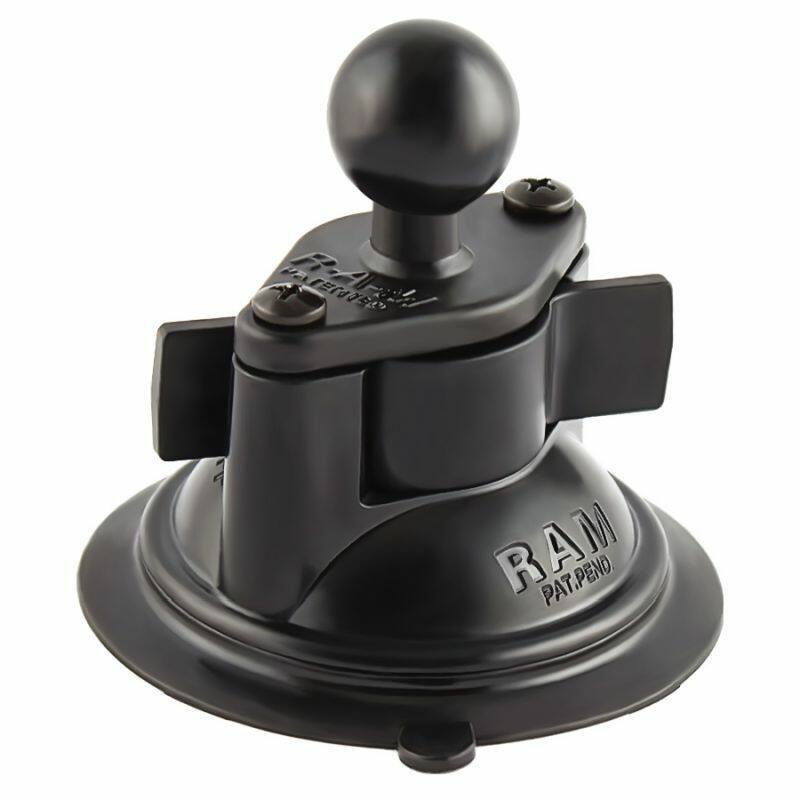

• RAM-B-224-1U Twist-Lock™ suction cup base with 1" B-size ball
• RAM-B-201U-C long double socket arm
• RAM-B-202U 63.5mm round base with 1" B-size ball

Works With

Just add the RAM cradle that suits your device; this mount provides the suction base, arm, and round AMPS plate.

Dimensions & Specifications

• Suction cup diameter: 83.8mm (3.3")
• Overall height: 229mm (9")
• Arm overall length: 152mm (6"); socket-to-socket 134mm (5.25")
• Base diameter: 63.5mm (2.5")
• Hole pattern: 4-hole AMPS 30mm x 38mm (1.181" x 1.496"); 3-hole 120-degree 46mm (1.812")
• Ball size: B size, 1" rubber ball
• Weight: 408g (0.9 lb)
• Load capacity: 907g (2 lb) standard use; 454g (1 lb) heavy-duty use
• Materials: powder-coated marine-grade aluminium, high-strength composite

Care & Warranty

• Smooth, non-porous surfaces only; anything rough or textured lets air past the seal and the cup will not hold.
• Clean the surface thoroughly before you apply the cup.
• If the vehicle is left sitting in extreme heat or cold, release the cup and stow it rather than leaving it loaded.
• RAM® classes suction cups as a general wear item, so the cup is excluded from warranty cover. The base, arm and plate hardware are covered as normal.

Videos

RAM Twist-Lock suction base demo · RAM double socket arm adjustment

FAQs

Is the suction cup covered by the warranty?
No. RAM® treat suction cups as a general wear item, so the cup sits outside the lifetime warranty. The rest of the mount hardware is covered as normal.

What surfaces will the cup stick to?
Glass and smooth, non-porous surfaces. Textured dashboards will not hold; fit a RAM® adhesive disk to the dash first and stick the cup to that.
