RAM Suction Cup Base with Round Base and Composite Medium Arm - (B Series)

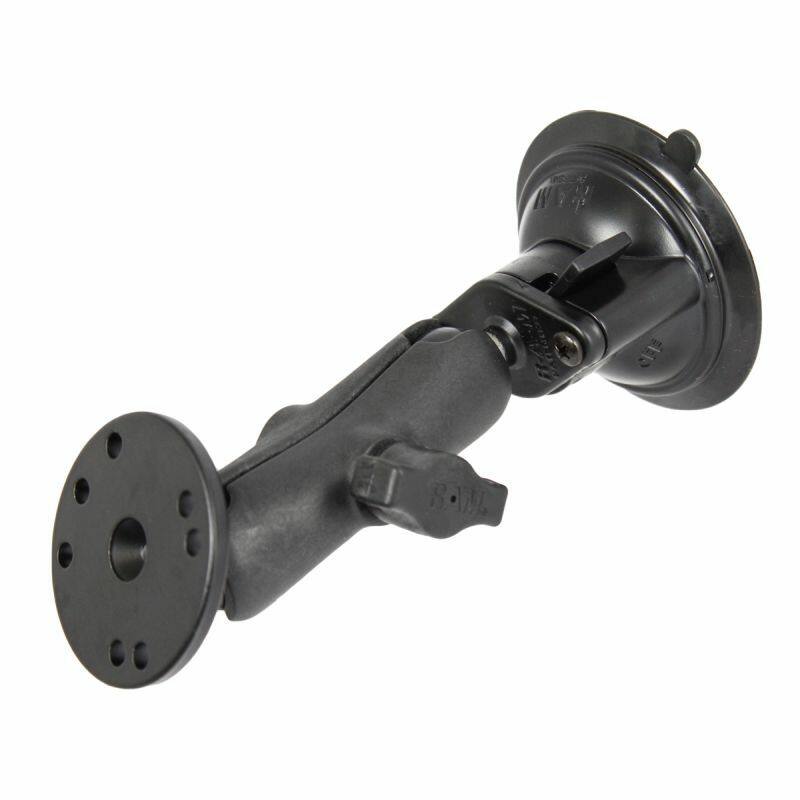

RAP-B-101-2241-OT1U RAM® Twist-Lock™ Suction Cup Mount with Round Plate

The RAP-B-101-2241-OT1U pairs an 84mm Twist-Lock™ suction cup base with a medium double socket arm and a 63.5mm round AMPS base, ideal for vehicle windscreens and other non-porous surfaces.

Key Features

• Twist-Lock™ suction cup ideal for vehicle windscreens and other non-porous surfaces
• Medium B Size double socket arm with 1" rubber ball for near-infinite adjustability
• 63.5mm round base connects to many RAM® cradles, including all iPad cradles
• High-strength composite and powder-coated, marine-grade aluminium; lifetime warranty on the mount hardware, with the suction cup excluded as a wear item
• No drilling required for installation

Works With

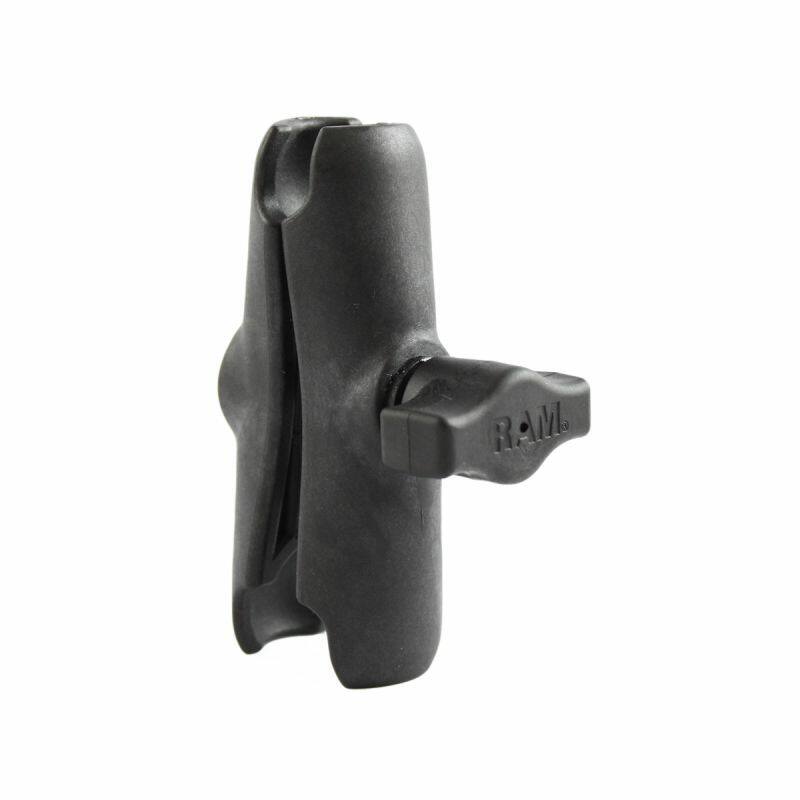

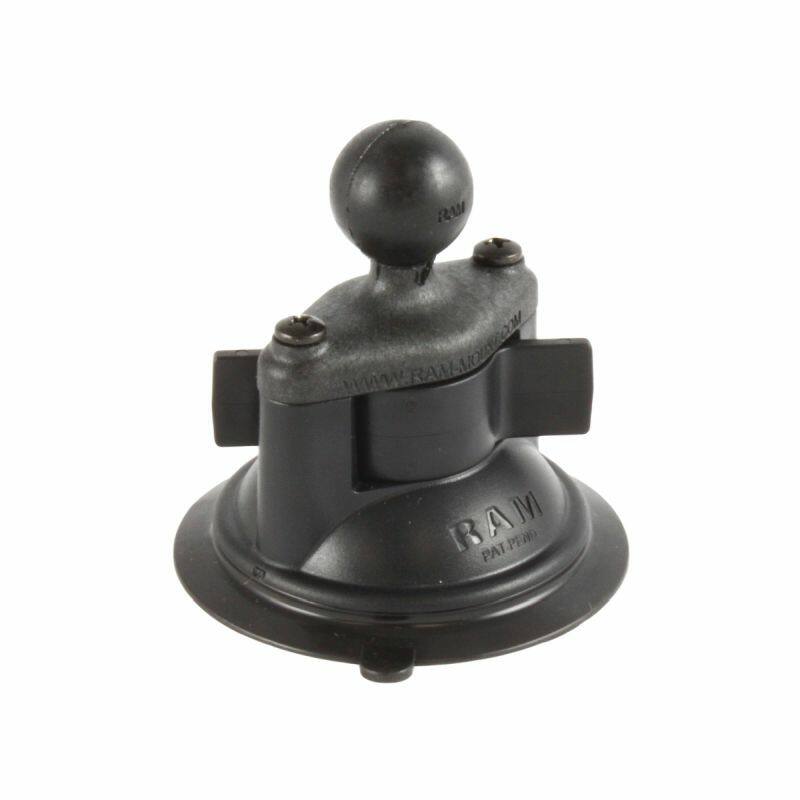

Built from RAM-B-224-1U (84mm Twist-Lock™ suction cup base with 1" ball), RAP-B-201U (composite medium double socket arm), and RAM-B-202U (63.5mm round base).

Dimensions & Specifications

• Suction cup diameter: 83.8mm (3.3")

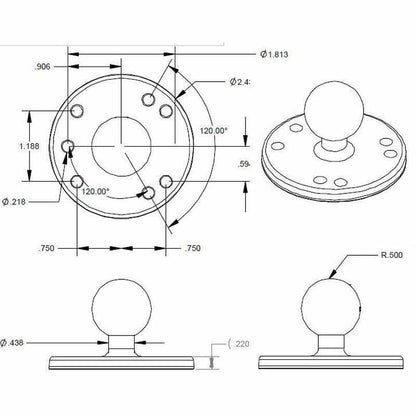

• 4-Hole AMPS: 1.181" x 1.496" (30mm x 38mm)
• 3-Hole AMPS 120°: 1.812" (46.0mm)

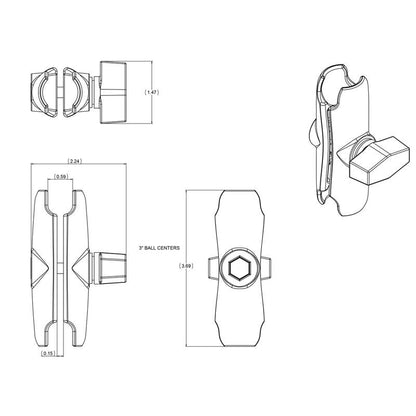

• Arm length: 94mm (3.69"), socket-to-socket 76mm (3")
• Ball size: B Size (1" rubber)
• Materials: high-strength composite, powder-coated marine-grade aluminium
• Weight: 272 grams (0.6 lbs)
• Weight capacity: 907 grams (2 lbs) standard use, 454 grams (1 lb) heavy-duty use

Care & Warranty

• Smooth, non-porous surfaces only; anything rough or textured lets air past the seal and the cup will not hold.
• Clean the surface thoroughly before you apply the cup.
• If the vehicle is left sitting in extreme heat or cold, release the cup and stow the mount rather than leaving it loaded.
• RAM® classes suction cups as a general wear item, so the cup is excluded from warranty cover. The base, arm and round plate hardware are covered as normal.

Videos

Suction cup mount overview

FAQs

Are the suction cups covered by the warranty? No. RAM® treat suction cups as a general wear item, so they sit outside the lifetime warranty. The rest of the mount hardware is covered as normal.

Shipping: If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
