RAM Suction Cup Base - with Round Base and Short Arm - ( B Series 1")

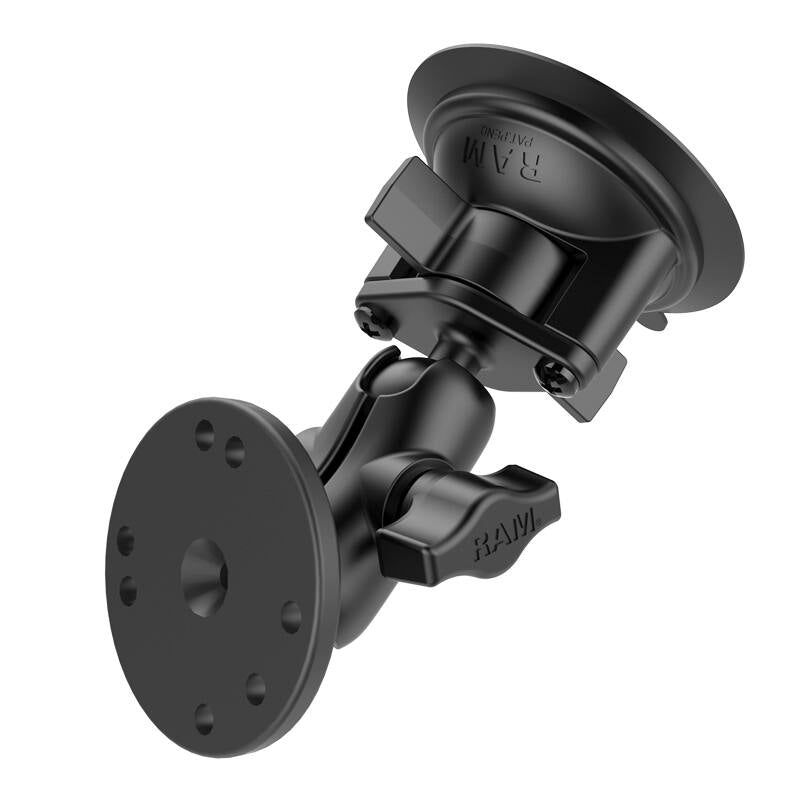

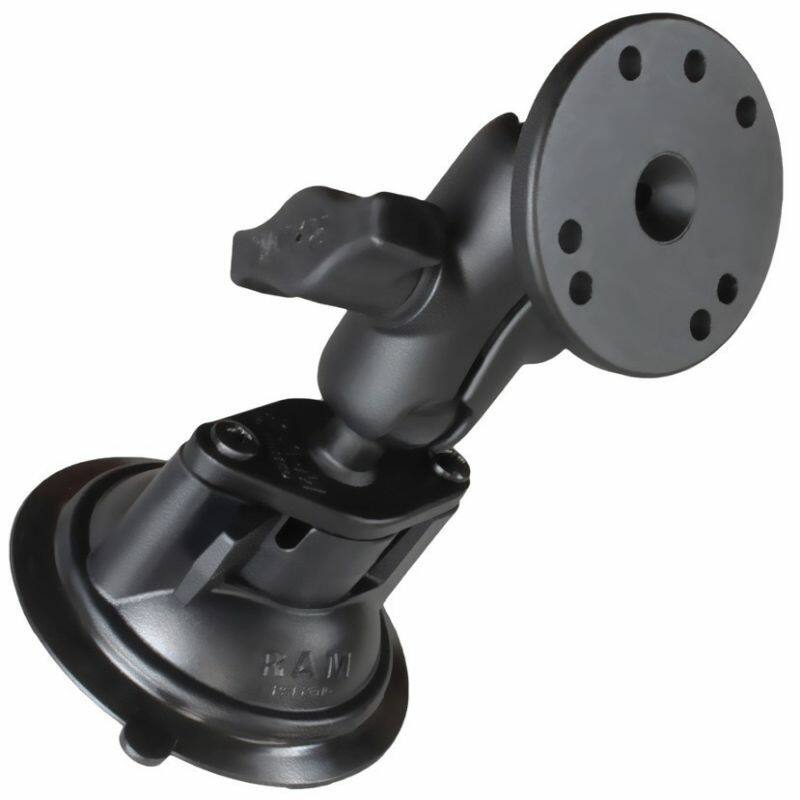

RAM-B-166-A-202U – RAM® Twist-Lock™ Suction Cup Mount with Round Base (Short Arm)

The RAM-B-166-A-202U pairs a RAM® Twist-Lock™ suction cup base with a short double socket arm and a 63.5mm round base, giving you an AMPS-pattern plate ready for most RAM cradles. The base grips glass and smooth, non-porous surfaces (including RAM adhesive disks), making it a tidy windscreen or dashboard mount for cars, trucks, and boats.

Key Features

• Twist-Lock™ suction cup base holds firmly on glass and non-porous surfaces; flip the switch to lock the seal
• Short double socket arm keeps the device close to the glass; ball-and-socket design allows near-infinite positioning
• 63.5mm round base with the universal AMPS hole pattern connects to most RAM and third-party cradles
• Powder-coated marine-grade aluminium construction
• Backed by RAM®'s lifetime warranty on the base hardware; the suction cup itself is treated as a wear item and sits outside that cover

What's Included

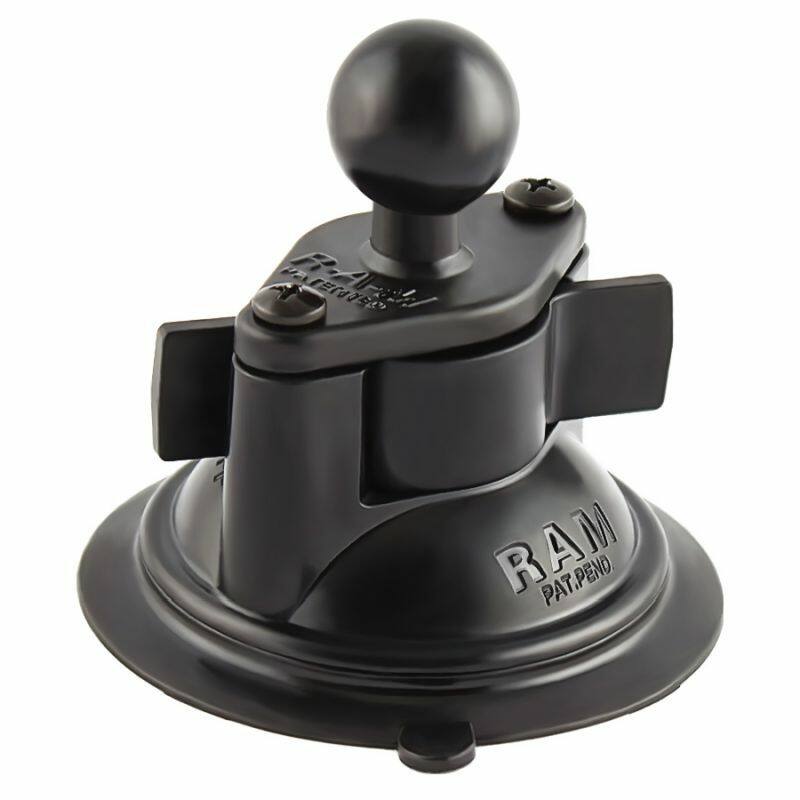

• RAM-B-224-1U Twist-Lock™ suction cup base, 84mm (3.3") diameter, with 1" B-size ball
• RAM-B-201U-A short double socket arm
• RAM-B-202U 63.5mm round base with 1" B-size ball

Works With

Add the RAM cradle for your device to complete the mount. Ideal for phones, GPS units and other holders that use the AMPS round-base connection.

Dimensions & Specifications

• Suction cup diameter: 83.8mm (3.3")
• Arm overall length: 60.5mm (2.38"); socket-to-socket 51mm (2")
• Base diameter: 63.5mm (2.5")
• Hole pattern: 4-hole AMPS 30mm x 38mm (1.181" x 1.496"); 3-hole 120-degree 46mm (1.812")
• Ball size: B size, 1" rubber ball
• Load capacity: 907g (2 lb) standard use; 454g (1 lb) heavy-duty use
• Material: powder-coated marine-grade aluminium

Care & Warranty

• Smooth, non-porous surfaces only; anything rough or textured lets air past the seal and the cup will not hold.
• Clean the surface thoroughly before you apply the cup.
• If the vehicle is left sitting in extreme heat or cold, release the cup and stow it rather than leaving it loaded.
• RAM® classes suction cups as a general wear item, so the cup is excluded from warranty cover. The base, arm and plate hardware are covered as normal.

Videos

RAM Twist-Lock suction cup demo · RAM short double socket arm overview

FAQs

Is the suction cup covered by the warranty?
No. RAM® treat suction cups as a general wear item, so the cup sits outside the lifetime warranty. The rest of the mount hardware is covered as normal.

What surfaces will the cup stick to?
Glass and smooth, non-porous surfaces. Textured dashboards will not hold; fit a RAM® adhesive disk to the dash first and stick the cup to that.

How fast does it ship?
If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
