RAM Suction Cup Base - with Short Arm - Small Twist-Lock - B Series

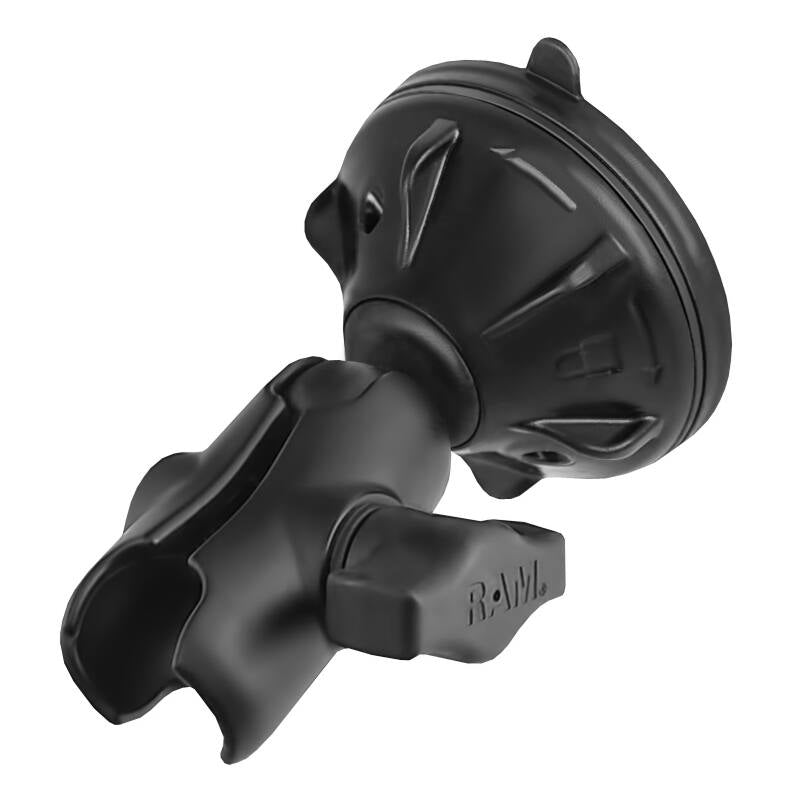

RAM-B-166-2-AU-NB – RAM® Twist-Lock™ Low-Profile Suction Cup Base with Short Double Socket Arm

The RAM-B-166-2-AU-NB is a low-profile 70mm (2.75") RAM® Twist-Lock™ suction cup base paired with a short double socket arm, finishing in an open 1" socket ready for any B-size (1" ball) RAM® cradle or accessory. It's a slimmer, lower-profile alternative to the RAM-B-224-1U for vehicle windscreens and other smooth, non-porous surfaces.

Key Features

• Low-profile 70mm (2.75") Twist-Lock™ suction cup base for a strong hold on glass and smooth, non-porous surfaces
• A lower-profile alternative to the RAM-B-224-1U
• Short double socket arm with an open 1" socket; ball-and-socket design allows near-infinite positioning
• High-strength composite and powder-coated marine-grade aluminium; backed by a lifetime warranty

Works With

Any RAM® cradle or accessory that uses a B-size 1" ball. For best results, mount the suction cup on clean glass or a smooth, non-porous plastic surface.

Dimensions & Specifications

• Suction cup diameter: 69.9mm (2.75")
• Ball size: B size, 1" rubber ball
• Arm overall length: 60.5mm (2.38"); socket-to-socket 51mm (2")
• Weight: 163g (0.36 lb)
• Materials: high-strength composite, powder-coated marine-grade aluminium

What's Included

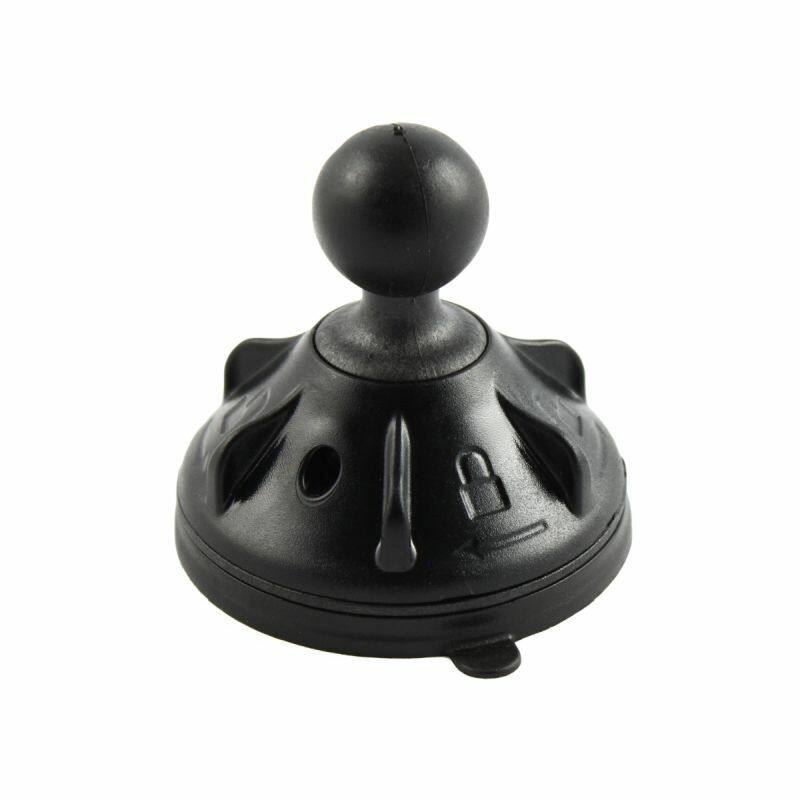

• RAP-B-224-2U low-profile Twist-Lock™ suction cup base, 69.9mm (2.75") diameter, with 1" B-size ball
• RAM-B-201U-A short double socket arm

FAQs

Q: Does the arm include the spring pin?
A: No. This arm ships without the spring pin.
