RAM Tab-Lock Locking Cradle - 7"- 8" Tablets with cases

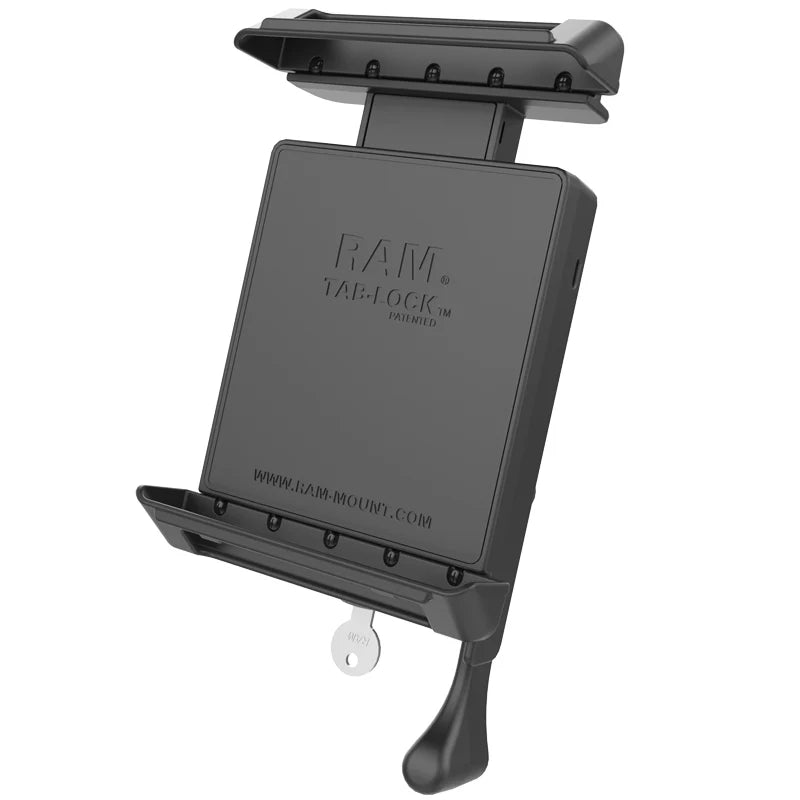

RAM-HOL-TABL4U RAM® Tab-Lock™ Locking Cradle for 7"-8" Tablets with Cases

The RAM-HOL-TABL4U is a key-locking version of RAM's Tab-Tite™ cradle for 7"-8" tablets with a case, built around the Google Nexus 7 and a wide range of small Android tablets. It shares the same cradle body and AMPS mounting pattern as the standard Tab-Tite cradle, with a spring-loaded backplate, keyed lock, and interchangeable support cups for a secure, tool-free release.

Key Features

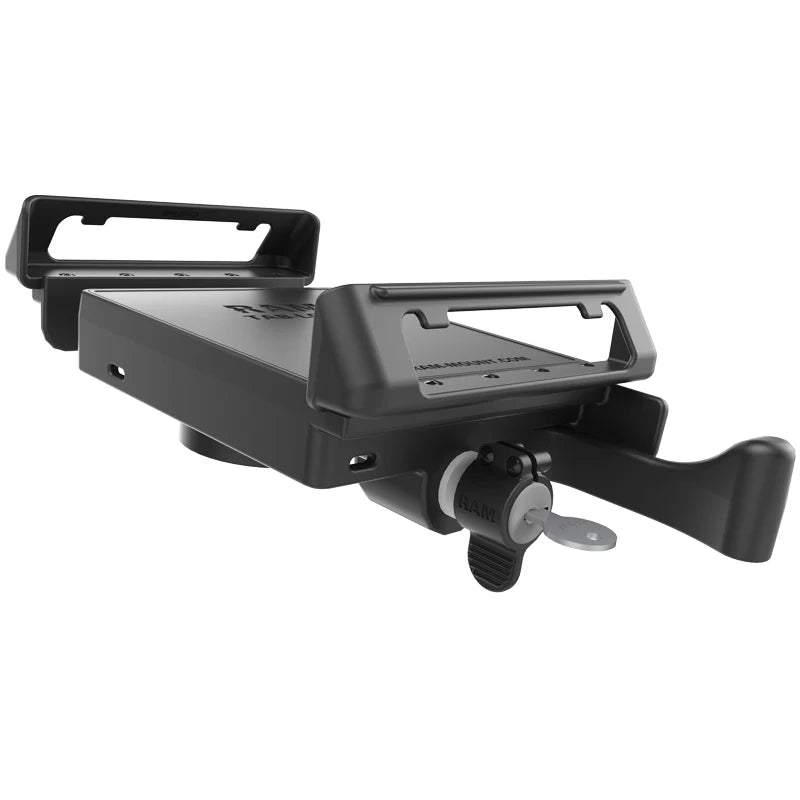

• Key-locking mechanism deters theft and unwanted tampering in public or shared settings

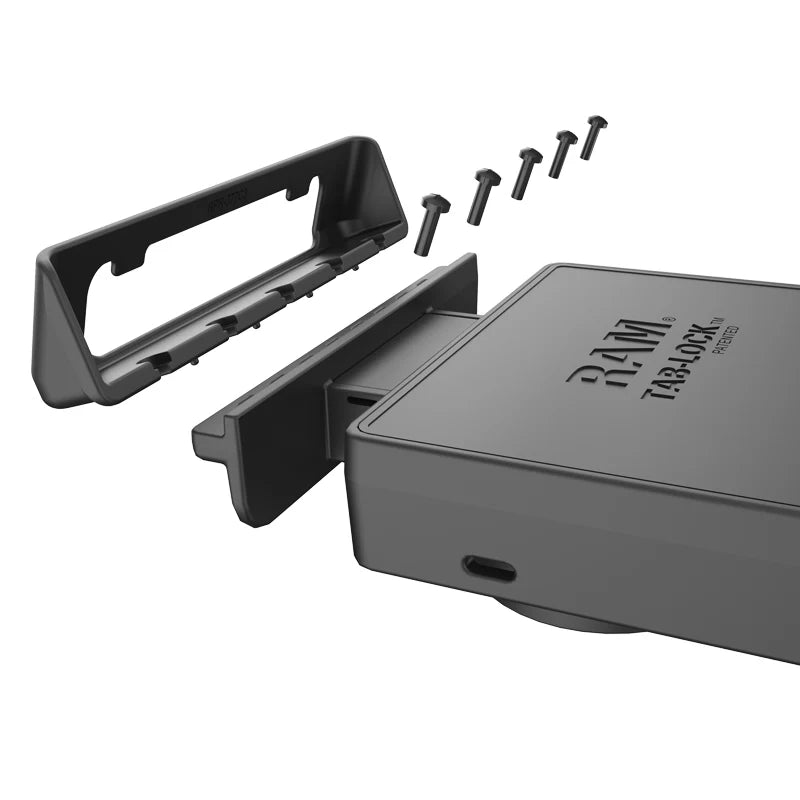

• Spring-loaded backplate with interchangeable support cups for a secure, quick-release fit
• Open-slotted support cups keep audio jacks, USB, power, and other ports accessible while mounted
• Manufactured from high-strength composite for durability in demanding environments
• Backed by RAM's lifetime warranty

Works With

Attaches to any RAM component or mount with the standard 4-hole AMPS pattern using the included hardware. Support cups are field-replaceable, so the same backplate and lock can be re-fitted for a different device down the track.

Dimensions & Specifications

• Fits tablets (in case): 187.32–254mm H x 101.6–134.9mm W x 3.3–26.9mm D (7.375"–10" x 4"–5.31" x 0.13"–1.06")

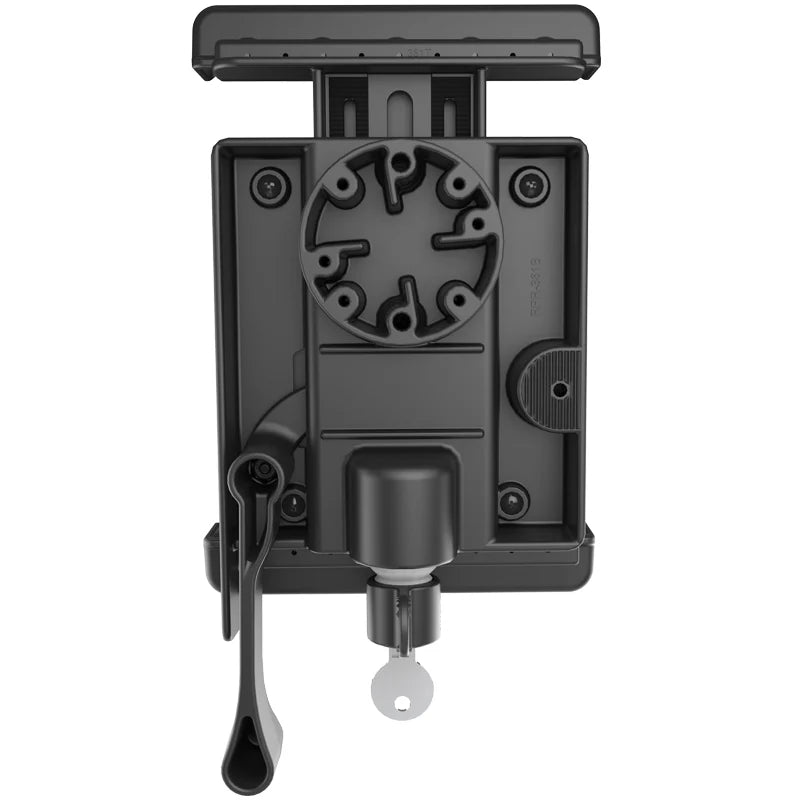

• Hole pattern: 4-hole AMPS, 30mm x 38mm (1.181" x 1.496")
• Weight: 548g (1.21 lbs)
• Material: high-strength composite

Compatible Devices

Amazon

• Fire 7 with Case

ASUS

• ZenPad C 7.0 with Case

Dell

• Venue 7 with Case
• Venue 7 (2014) with Case
• Venue 7 3741 with Case

Google

• Nexus 7 with Case

HP

• Slate 7 with Case

Huawei

• MediaPad T1 7.0 with Case
• MediaPad T3 7 with Case

Lenovo

• IdeaTab A1000 with Case
• IdeaTab A3000 with Case
• Tab 2 A7-10 with Case
• Tab 2 A7-20 with Case
• Tab 2 A7-30 with Case
• Tab 7 Essential with Case
• Tab A7-30 with Case
• Tab A7-40 with Case
• Tab A7-50 with Case
• Tab M8 HD with Case
• Tab3 7 with Case

LG

• G Pad 7.0 with Case
• G Pad X 8.0 with Case

Samsung

• Galaxy Tab 3 7.0 with Case
• Galaxy Tab 3 Lite 7.0 with Case
• Galaxy Tab A 7.0 with Case
• Galaxy Tab E 7.0 with Case

Zebra

• ET1 Enterprise Tablet

What's Included

• RAM® Tab-Lock™ spring-loaded, key-locking cradle (backplate, support cups, and lock)
• 2 keys
• Assembly hardware: (2) #8 x 5/8" sheet metal screws, (2) M4 x 32mm machine screws, (2) M4 Nylock nuts

Product consists of holder only — tablet and case not included.

FAQs

How fast does it ship? If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.

Will this fit my tablet if it's not listed? Check your tablet's dimensions (in its case) against the sizes above — any tablet within that range will fit, even if the exact model isn't named.

What's the difference between this and the standard Tab-Tite cradle? The Tab-Lock version adds a key-locking mechanism to the same cradle body, for use in public or shared vehicles where theft deterrence matters.
