RAM Tab-Lock Locking Cradle - Panasonic Toughpad FZ-A1 with Case

RAM-HOL-TABL9U RAM® Tab-Lock™ Locking Cradle for Panasonic Toughpad FZ-A1 with Case

The RAM-HOL-TABL9U is a key-locking version of RAM's Tab-Tite™ cradle built for the Panasonic Toughpad FZ-A1 with case, also fitting the Dell Latitude 12 Rugged. It shares the same cradle body and AMPS mounting pattern as the standard Tab-Tite cradle, with a spring-loaded backplate, keyed lock, and interchangeable support cups for a secure, tool-free release.

Key Features

• Key-locking mechanism deters theft and unwanted tampering in public or shared settings
• Spring-loaded backplate with interchangeable support cups for a secure, quick-release fit
• Open-slotted support cups keep audio jacks, USB, power, and other ports accessible while mounted
• Manufactured from high-strength composite for durability in demanding environments
• Backed by RAM's lifetime warranty

Works With

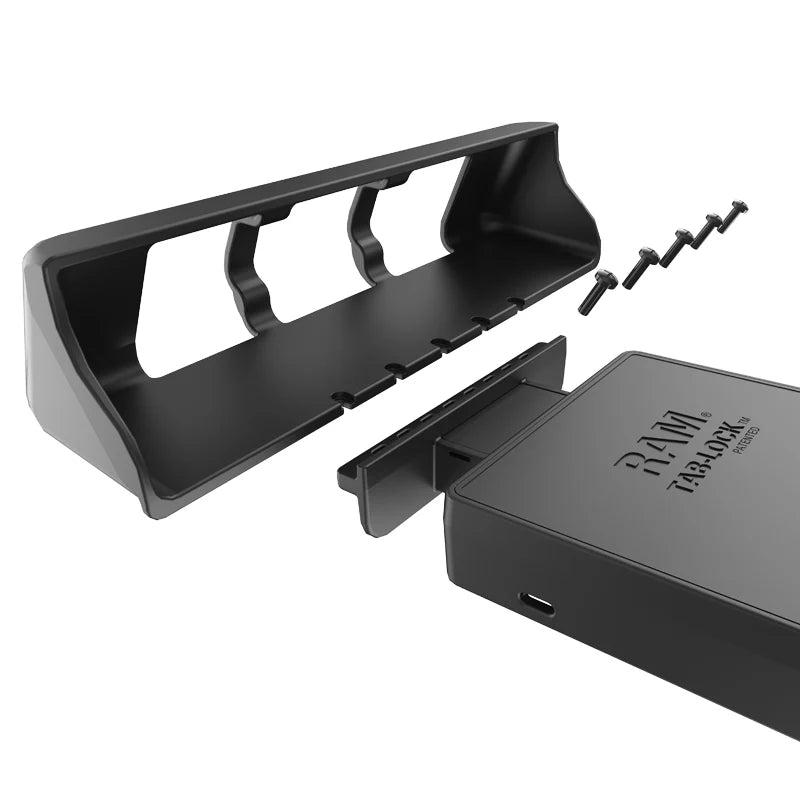

Attaches to any RAM component or mount with the standard 4-hole AMPS pattern using the included hardware. Support cups are field-replaceable, so the same backplate and lock can be re-fitted for a different device down the track.

Dimensions & Specifications

• Fits tablets (in case): 269.9–320.7mm H x 162.1–235mm W x 3.3–50.8mm D (10.625"–12.625" x 6.38"–9.25" x 0.13"–2")

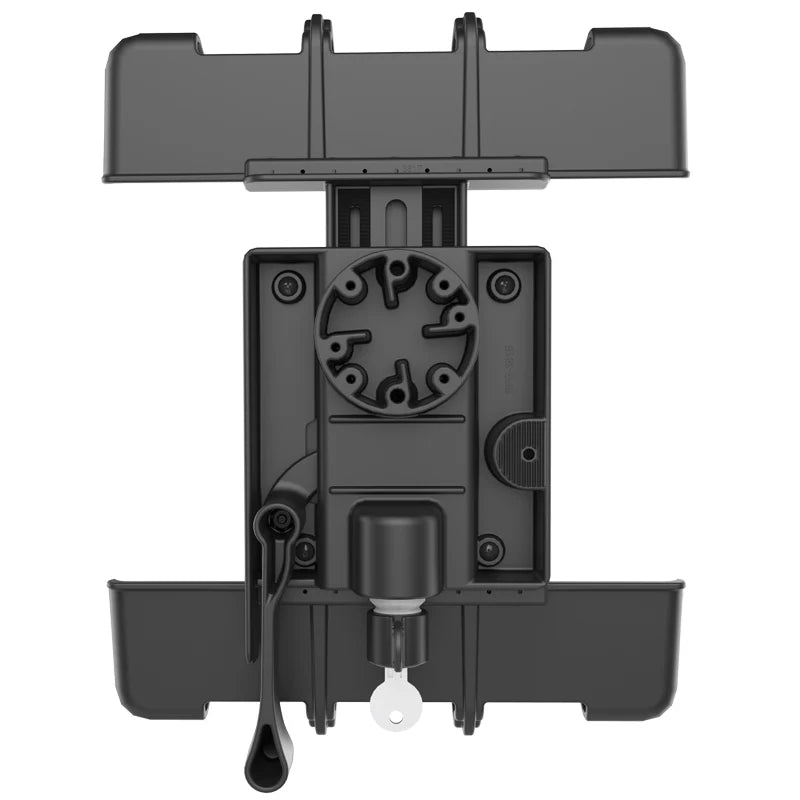

• Hole pattern: 4-hole AMPS, 30mm x 38mm (1.181" x 1.496")
• Weight: 734g (1.62 lbs)
• Material: high-strength composite

Compatible Devices

Dell

• Latitude 12 Rugged

Panasonic

• Toughpad FZ-A1

What's Included

• RAM® Tab-Lock™ spring-loaded, key-locking cradle (backplate, support cups, and lock)
• 2 keys
• Assembly hardware: (2) #8 x 5/8" sheet metal screws, (2) M4 x 32mm machine screws, (2) M4 Nylock nuts

Product consists of holder only — tablet and case not included.

FAQs

How fast does it ship? If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.

Will this fit a Samsung Galaxy Tab Active 4 Pro? This cradle is sized for wider, heavier-duty cases. For a Tab Active 4 Pro in a standard case, the closer match in our range is the 9"-10.5" Tab-Lock cradle (TABL20U).

Will this fit my tablet if it's not listed? Check your tablet's dimensions (in its case) against the sizes above — any tablet within that range will fit, even if the exact model isn't named.

What's the difference between this and the standard Tab-Tite cradle? The Tab-Lock version adds a key-locking mechanism to the same cradle body, for use in public or shared vehicles where theft deterrence matters.
