RAM-HOL-TAB19U RAM® Tab-Tite™ Holder for 10”-11” Rugged Tablets
Features
* Spring-loaded holder secures large rugged tablets; interchangeable end cups allow you to modify the holder when upgrading devices
* Compatible with B and C size RAM® round ball bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of high-strength composites for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

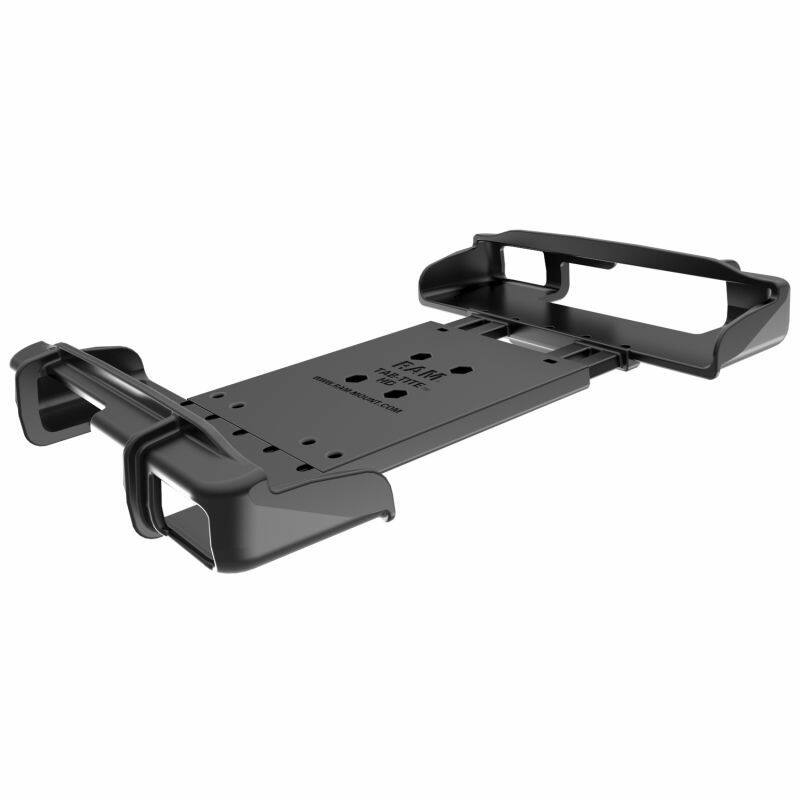

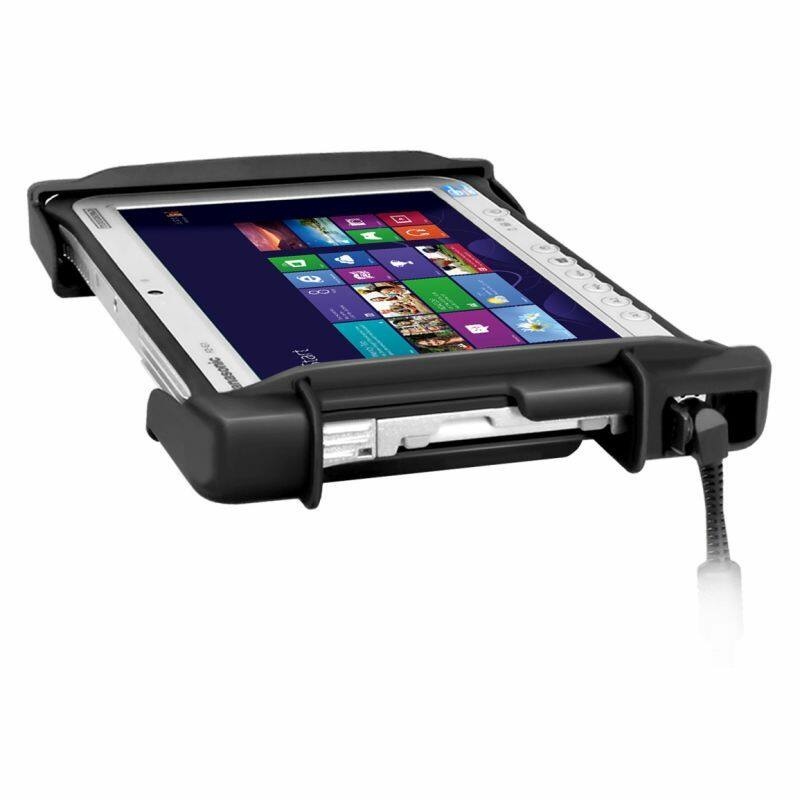

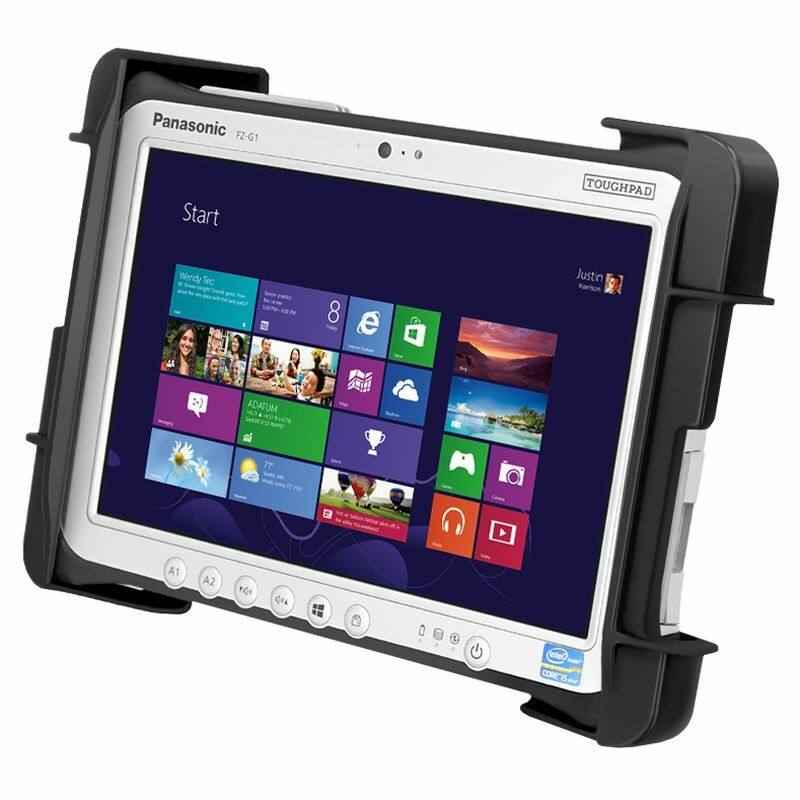

The RAM-HOL-TAB19U consists of a spring loaded back plate and custom support cups for the Panasonic Toughpad FZ-G1. The spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. Perfect for stationary or on the go applications, the RAM-HOL-TAB19U is just what you need to get the most out of your tablet.

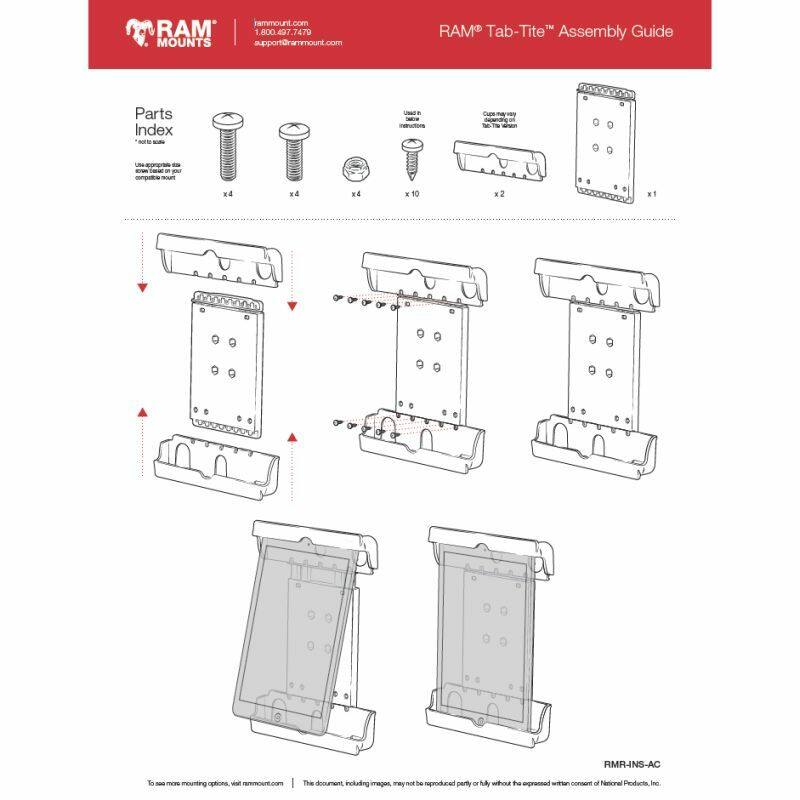

Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern.
The Tab-Tite cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
Cradle Dimensions:
H: 273 - 340mm (10.75" - 13.375")
W: 165 - 197mm (6.5" - 7.75")
D: 3.3 - 23.6mm (0.13" - 0.93")
Compatible Devices Include
Amazon
Fire HD 10 with Case
Apple
iPad 4th gen Pro 11"
ASUS
MeMO Pad FHD 10 with Case
Transformer Pad with Case
Dell
Venue 11 Pro with Case
Venue 11 Pro 7000 with Case
HP
ElitePad 900 with Case
Lenovo
Tab A10 with Case
Tab P12 Pro with Case
ThinkPad 10 with Case
Yoga Tablet 10 with Case
Yoga Tablet 10 HD+ with Case
Samsung
Galaxy Tab S8 Plus with Case
Zebra
L10 XSLATE 10.1
ET5x 10" with Case
Material:
High Strength Composite

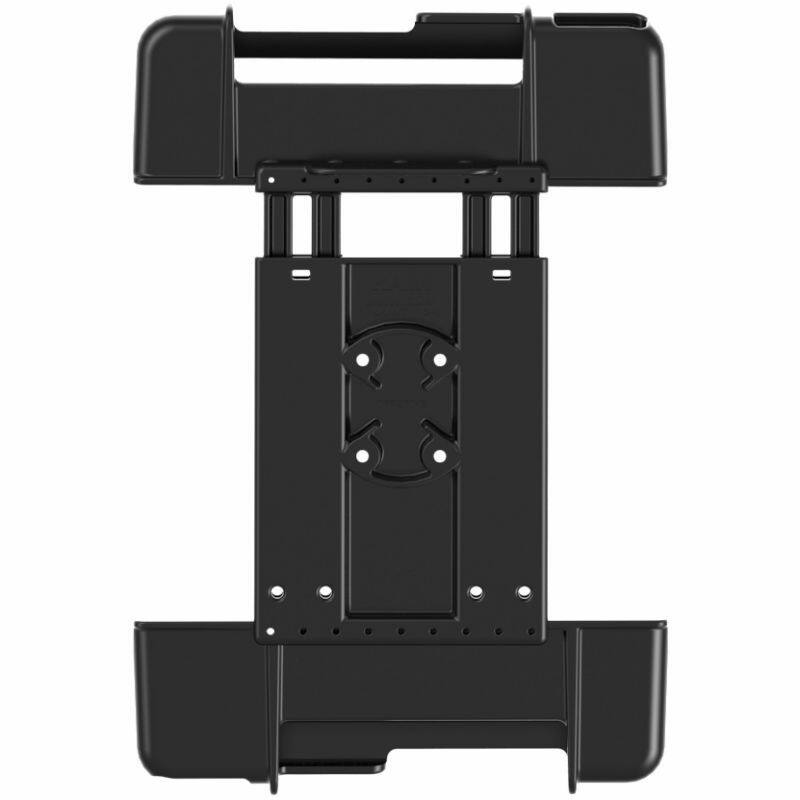

Hole pattern
4-Hole AMPS:
1.181" x 1.496"
Weight:
326 grams (0.72 lbs)
Additional Information
If your tablet has a handstrap integrated in the back, a set of risers (RAM-HOL-TAB-RISER1U or RAM-HOL-TAB-RISER2U) may be required to offset the cups to accomodate the added thickness. This holder will not support the Panasonic Toughpad FZ-G1 with an extended battery pack.
YouTube:
https://www.youtube.com/watch?v=_gHqfV_xn44
QUESTIONS & ANSWERS
Q: is it compatible with iPad pro 11 4th generation?
A: Yes, the RAM-HOL-TAB19U will accommodate a 4th gen iPad Pro 11" and will fit best if you're using a case with your tablet
