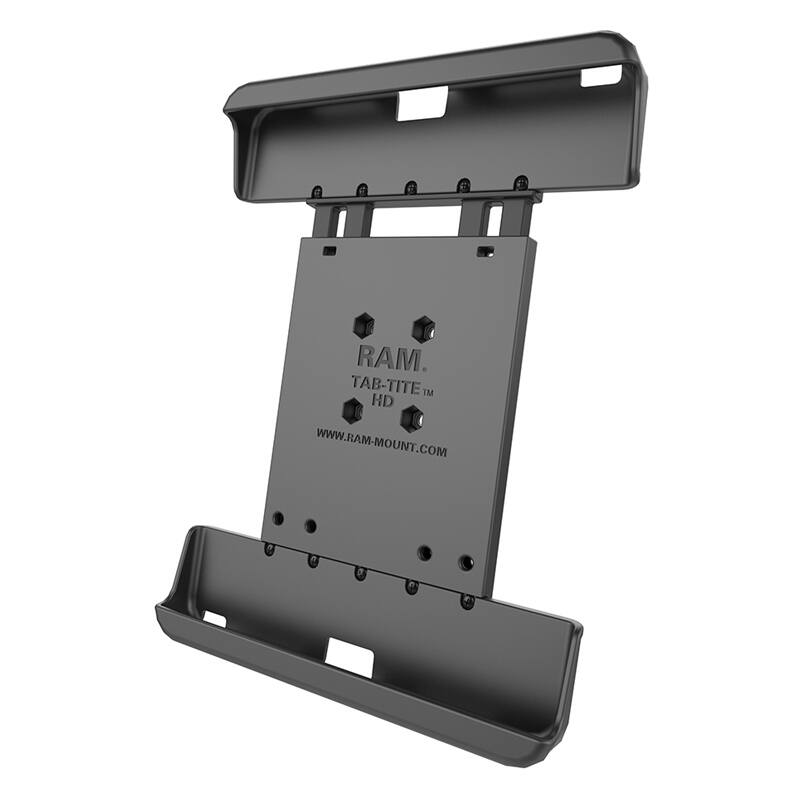

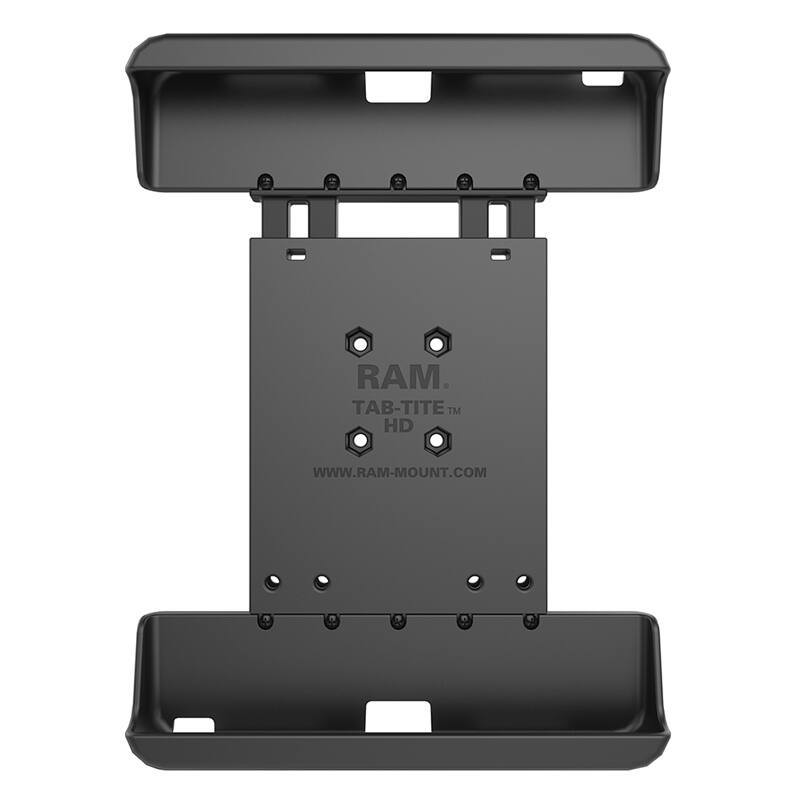

RAM-HOL-TAB25U RAM® Tab-Tite™ Tablet Holder for 10" Tablets with Case + More
Features
* Spring-loaded holder secures various 10" tablets with a case; interchangeable end cups allow you to modify the holder when upgrading devices
* Compatible with B and C size RAM® round ball bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of high-strength composites for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

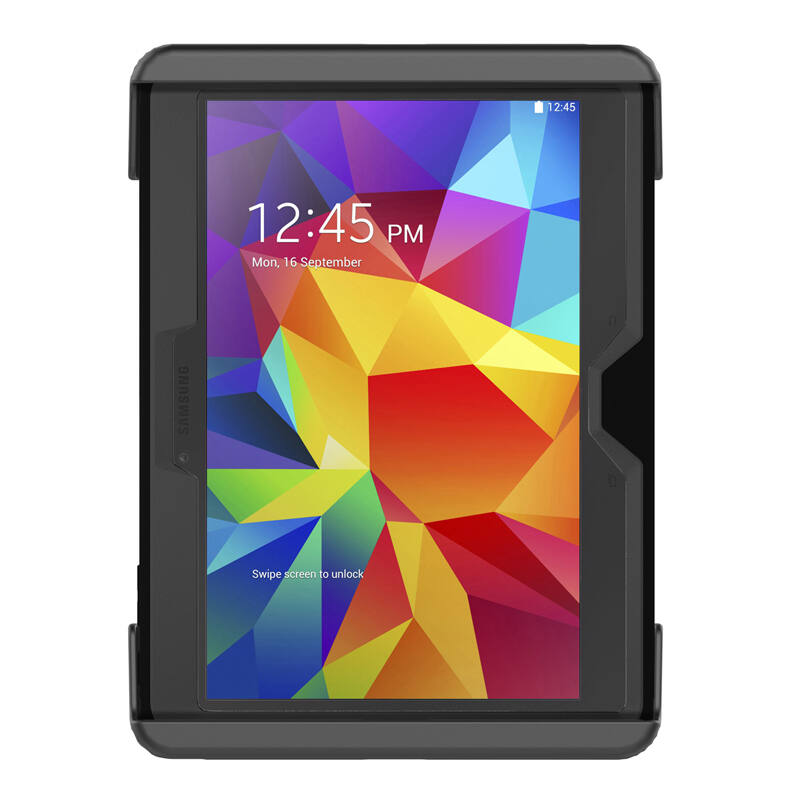

The RAM® Tab-Tite™ spring loaded, quick release cradle offers a secure fit with easy access to the mounted tablet. The interchangeable cup ends are designed specifically for the Samsung Galaxy Tab 4 10.1 and Tab S 10.5 with an Otterbox Defender case, but also support many other tablet models and industrial tablet PC's. The spring loaded design makes it easy to insert and remove your tablet, along with keeping it secure in mobile applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all ports and tablet functions.

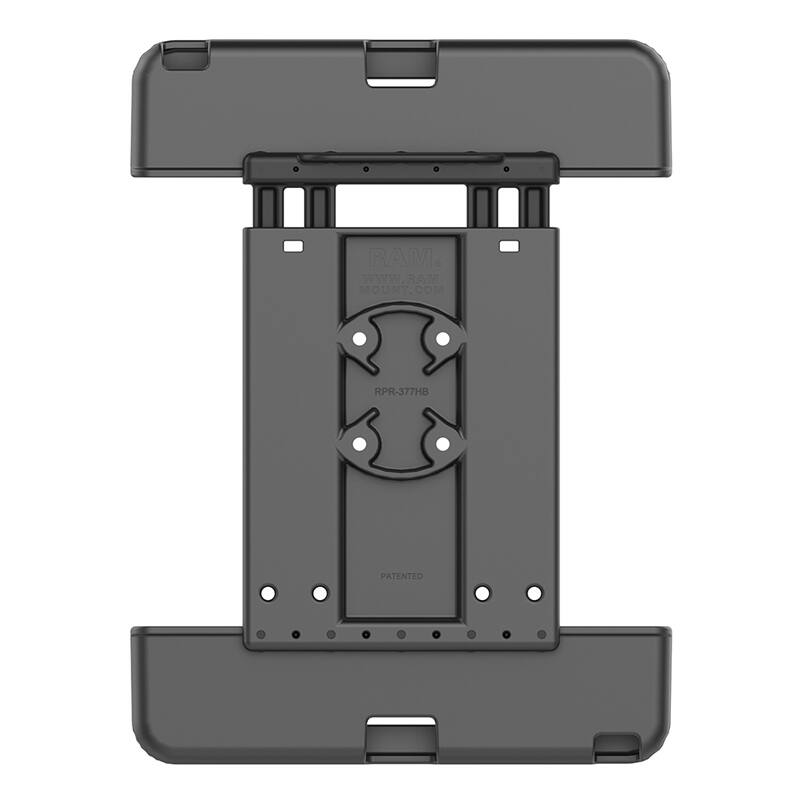

The included back plate is interchangeable with various size support cups, making it compatible with numerous tablet models. New detachable support cups are the only components needed for purchase, attach to the back plate for support of your new tablet. Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern.
For off-road environments and extreme use, we recommended the use of a tether to assist in retaining your device. The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
Holder Dimensions
H: 244.9 - 313mm (9.64 - 12.32")
W: 155.7 - 188mm (6.13 - 7.4")
D: 3.3 - 17.78mm (.13 - .7")
Compatible Devices Include:
Dell
Venue 11 Pro
HP
Pro Slate 10.1
Lenovo
IdeaTab Lynx K3011
Microsoft
Surface 2
Surface 3
Surface Pro
Surface Pro 2
Samsung
Galaxy Tab 4 10.1 with Case
Galaxy Tab A 10.1 (2019) with Case
Galaxy Tab E 9.6 with Case
Galaxy Tab S 10.5 with Case
Sony
Vaio Tap 11
Zebra
ET50
ET55
Note: Product consists of holder only. Case not included.

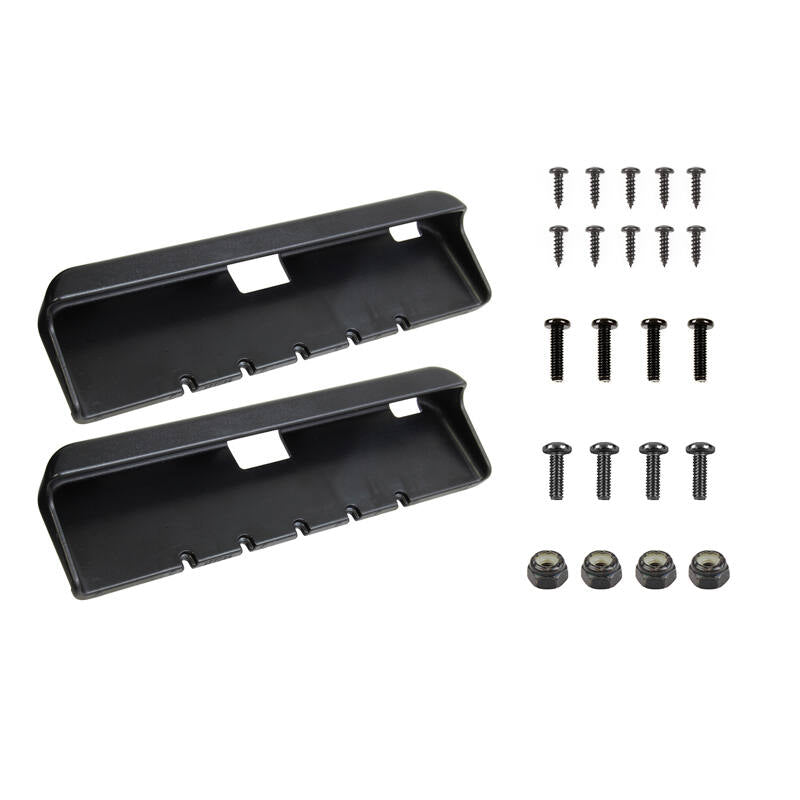

Hardware Included
Assembly Hardware
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts
Hole Pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
Materials
High strength composite
Weight
294 grams (0.65 lbs.)
YouTube:
https://www.youtube.com/watch?v=_gHqfV_xn44
