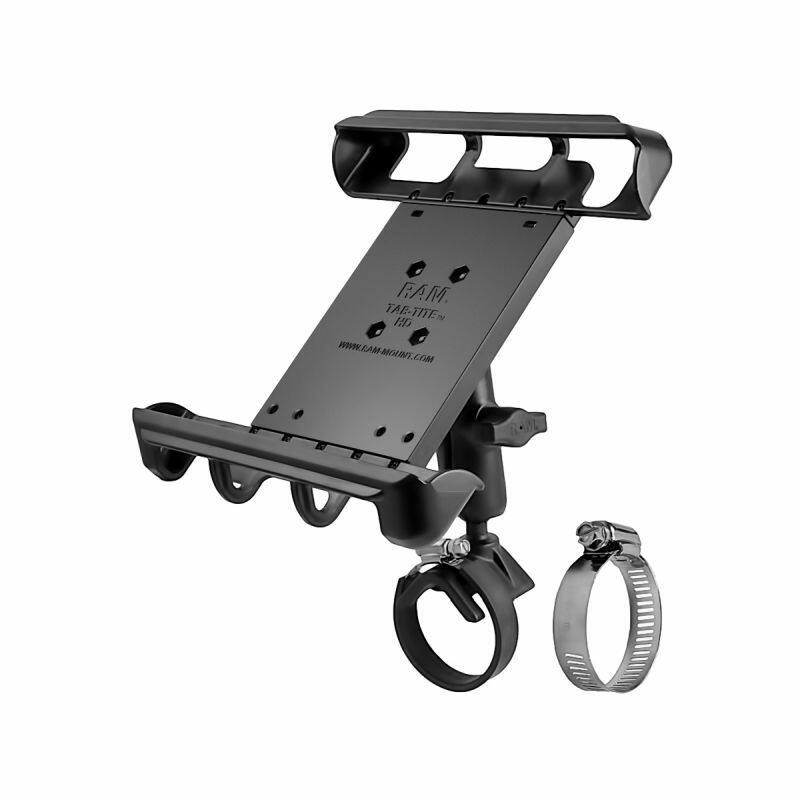

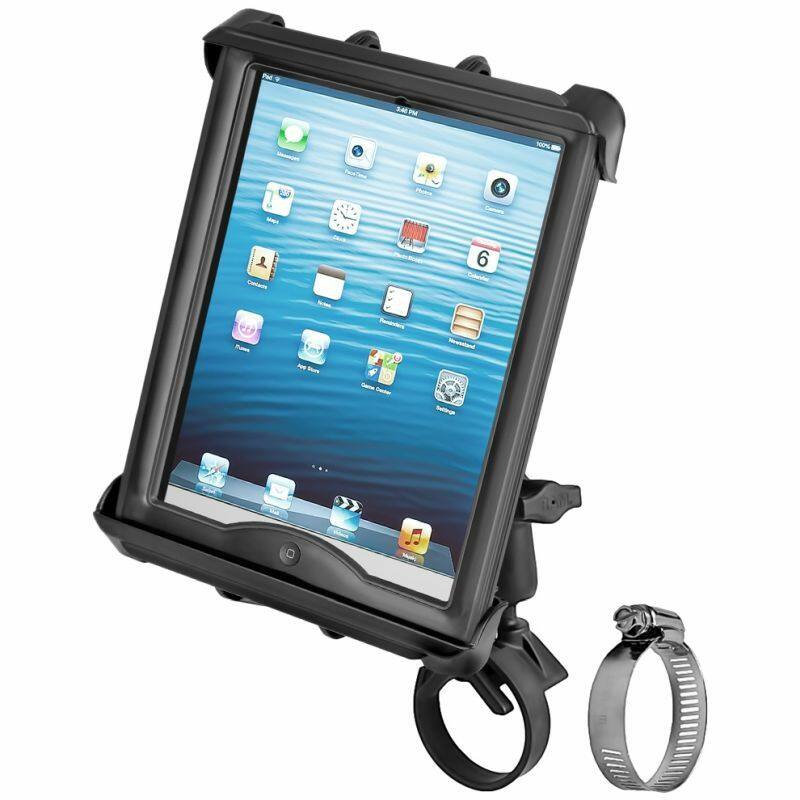

RAM-B-108-TAB8U RAM® Tab-Tite™ Mount with Strap Hose Clamp for iPad with Case + More
Features
* Spring-loaded holder secures 9.7-10.5" tablets with / without case
* Interchangeable end cups allow you to modify the holder when upgrading devices
* Saddle-shaped clamp mount ideal for rails ranging from 25-53mm in diameter
* Included B size RAM® double socket arm with ball and socket technology allows for near-infinite adjustability
* Made of Marine-grade aluminium and high-strength composites for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

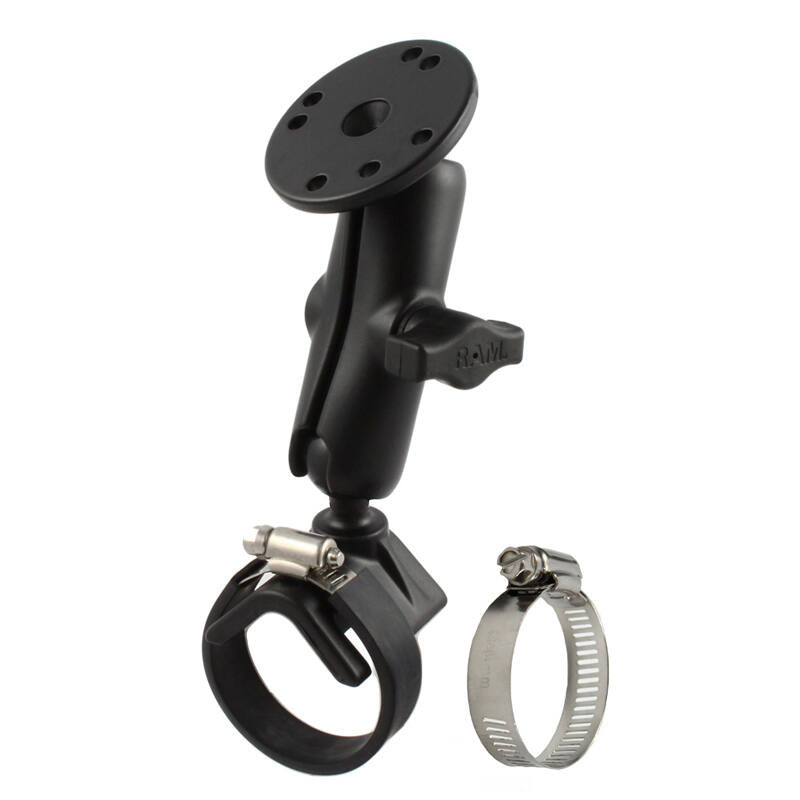

This consists of a V-Shape base, metal clamp straps, double socket arm, round base adapter and Tab-Tite™ universal clamping cradle.

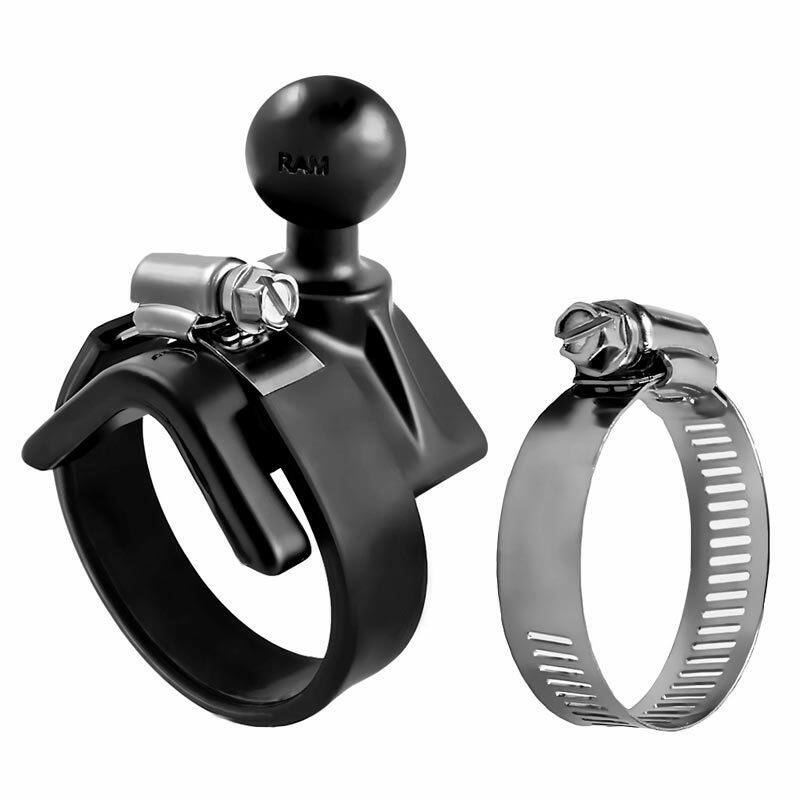

The V-Shape base accommodates rails from 25-53mm diameter. This an alternative mounting base for Beechcraft airplanes with a “throw over yoke”. The mount is designed with a RAM 1" diameter patented rubber ball and socket system which allows for almost infinite adjustment and perfect viewing angles.

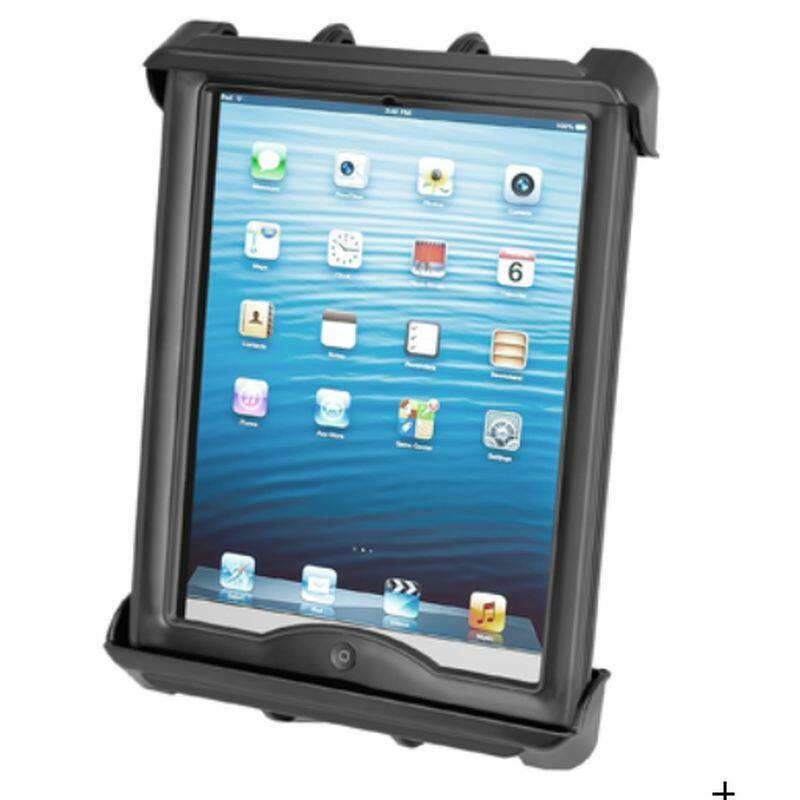

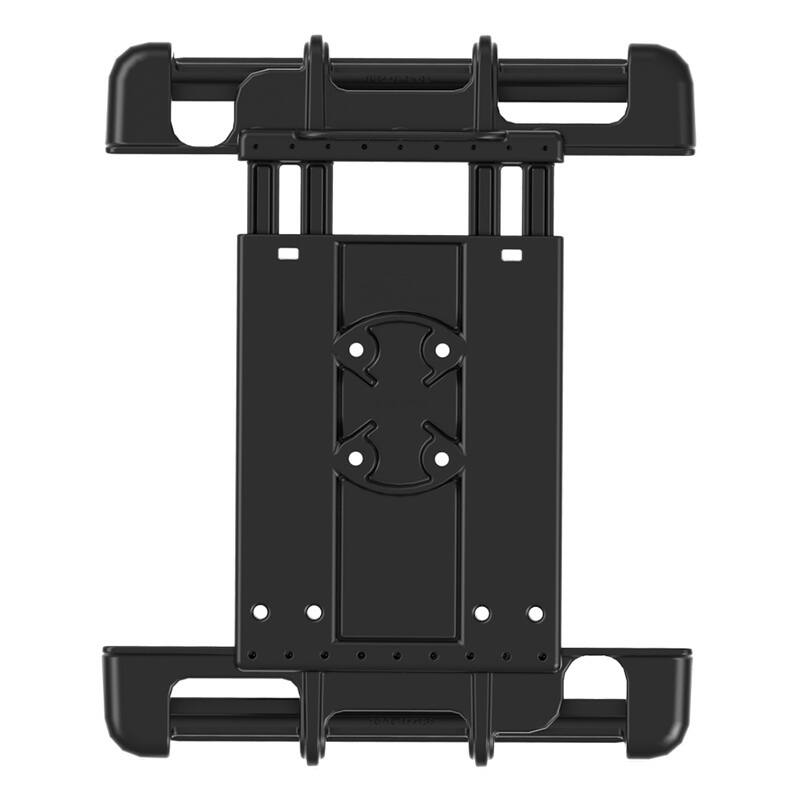

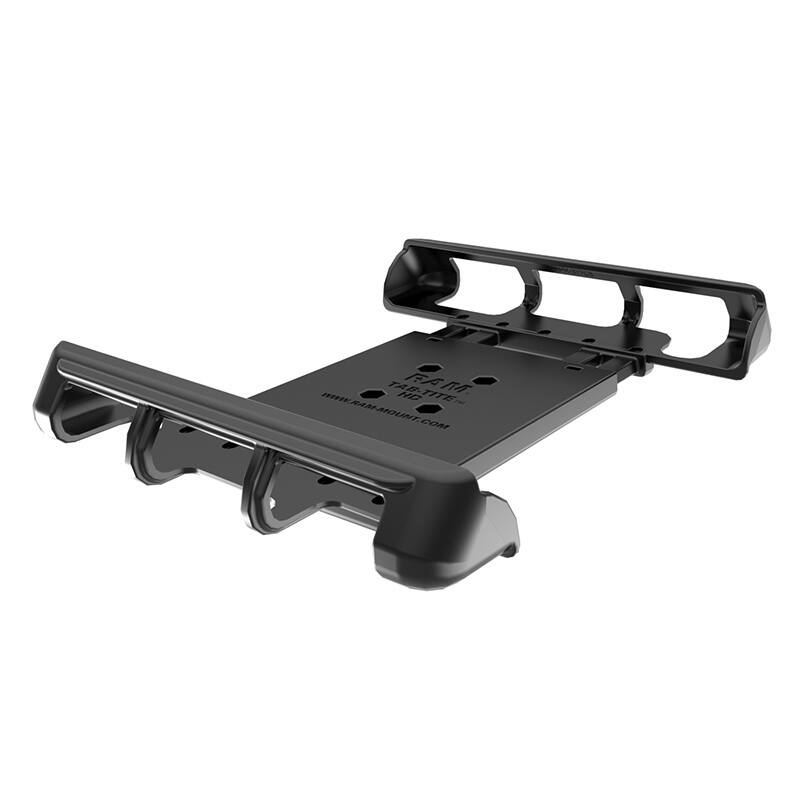

The Tab-Tite™ cradle includes a spring loaded back plate and custom support cups for 10" screen tablets WITH heavy duty cases. The spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports.
The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. Check the dimensions of your tablet when determining the overall size.
Compatible Devices include:
Apple iPad Pro 9.7 (1st Generation) with Case
Samsung Galaxy Tab 10.x series,
10" Screen Tablets with OtterBox Defender cases / Gumdrop Drop Tech cases / Griffin Technology cases / Belkin cases / heavy duty cases
iPad Mini 4 with SupCase Unicorn Beetle case
Cradle Dimensions:
Height: 229mm to 292mm (9" to 11.5")
Width: 162mm to 211mm (6.38" to 8.31")
Depth: 3.3mm to 28mm (0.13" to 1.12")

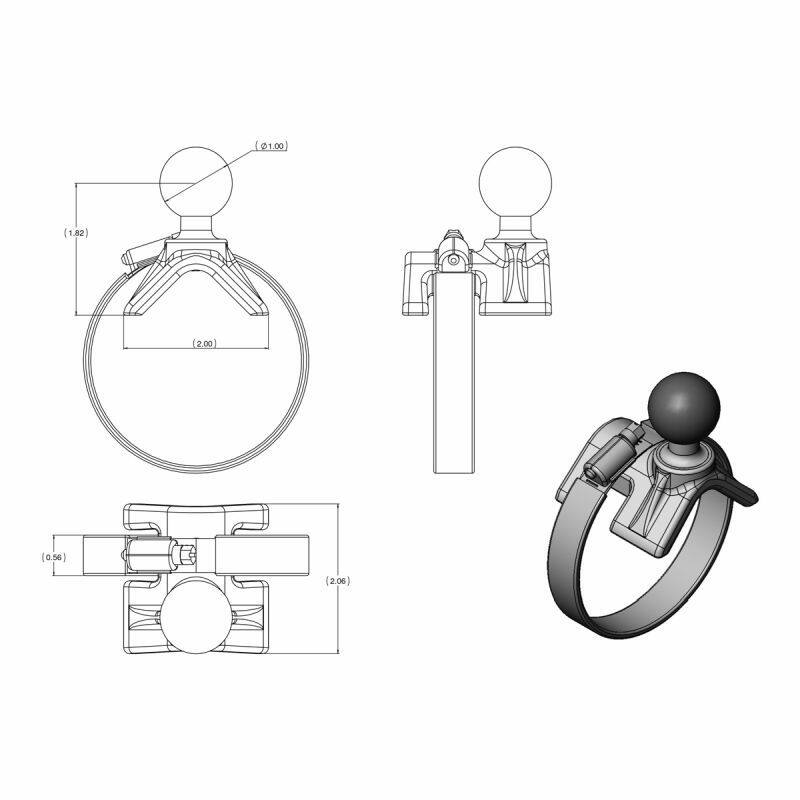

Clamp Dimensions:
25.4mm to 53.3mm (1" to 2.1")
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Assembly Hardware Included
Materials
Marine-grade aluminum
High strength composite
Ball Size:
1" "B" Size
Weight
662 grams (1.46lbs)
Components:
RAM-HOL-TAB8U TAB-TITE Cradle
RAM-B-108BU V BASE BALL AND STRAPS
RAM-B-202U 62mm DIA.BASE
RAM-B-201U DOUBLE SOCKET ARM
