RAM Tab-Tite Cradle - 7-8" Tablets with 1" Ball base
RAM Tab-Tite Cradle - 7-8" Tablets with 1" Ball base
Couldn't load pickup availability

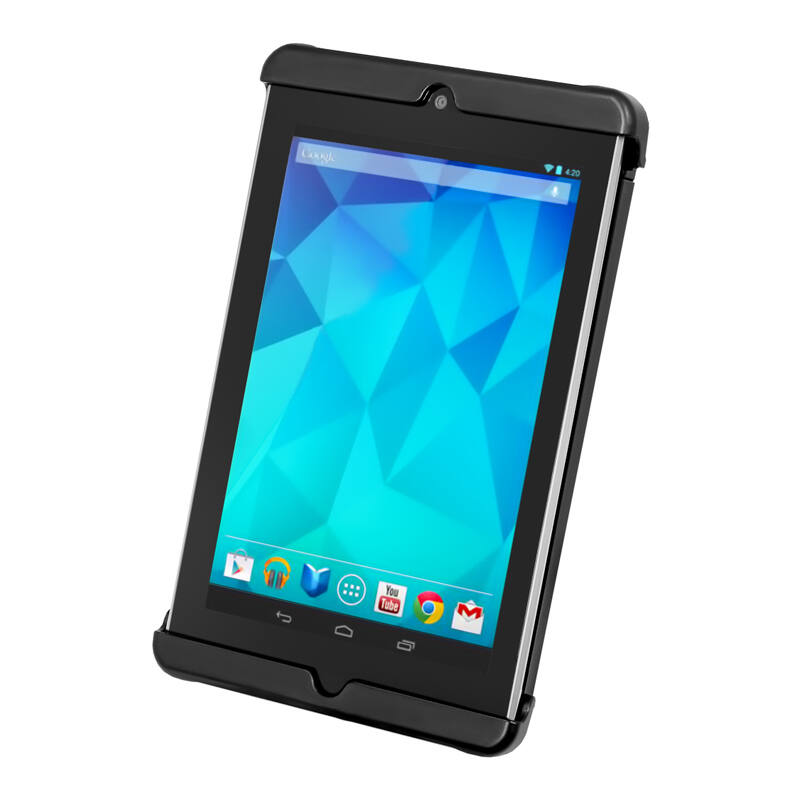

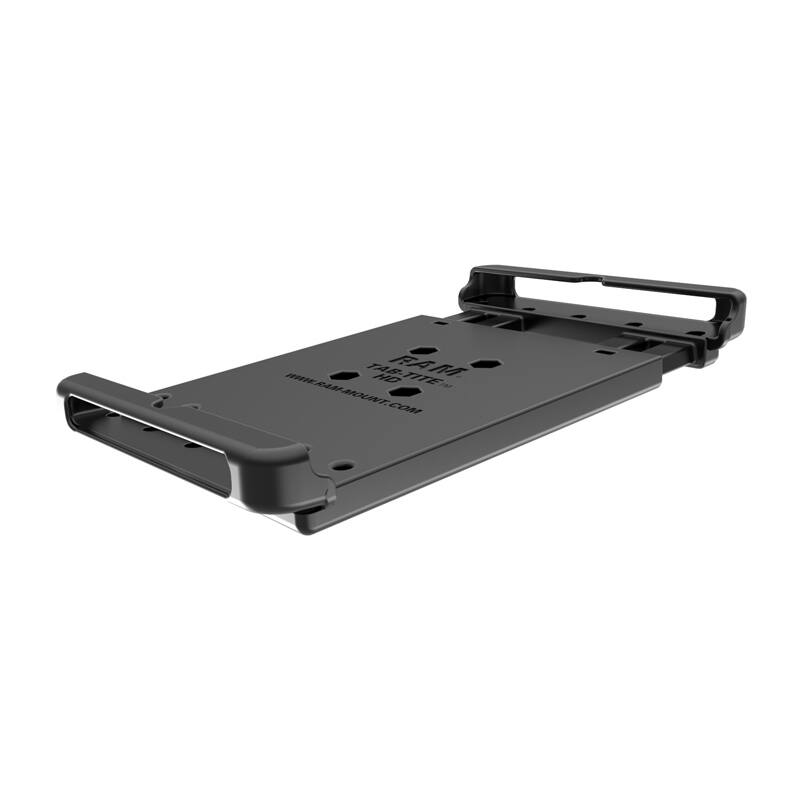

RAM-HOL-TAB18-B-202U RAM® Tab-Tite™ Universal Spring Loaded Holder for 7-8" Tablets with 1" Ball Base
Features
* Spring-loaded holder secures small tablets; interchangeable end cups allow you to modify the holder when upgrading devices
* Includes B size RAM® round ball base for attaching a B Series double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of high-strength composites for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

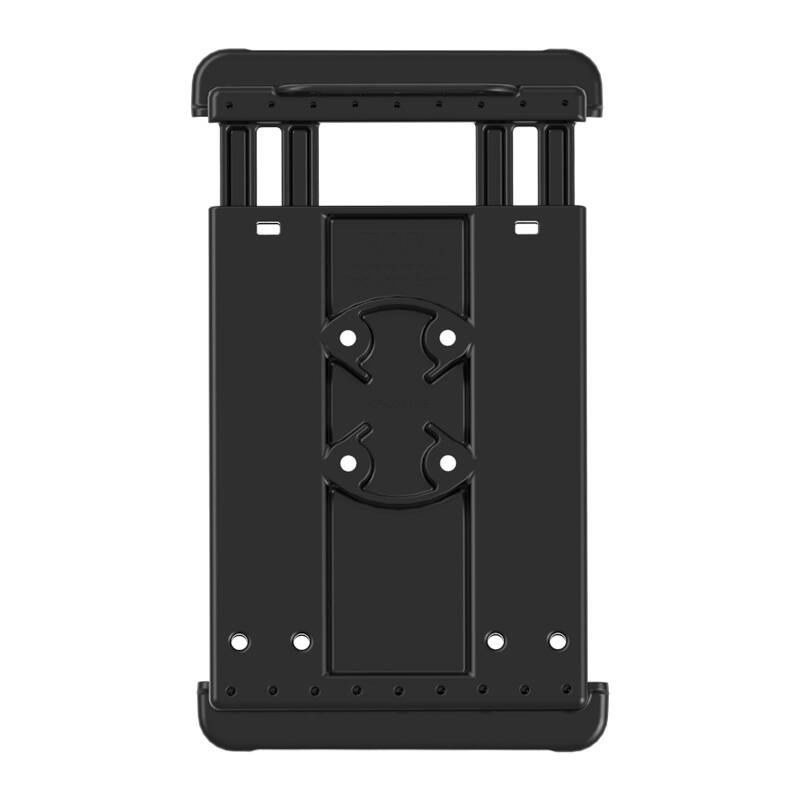

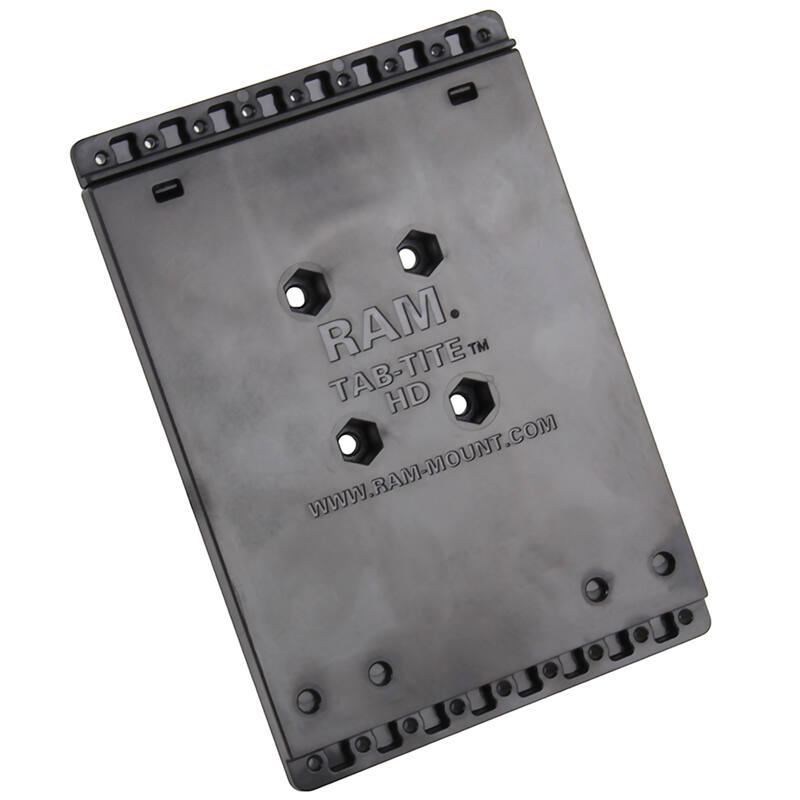

The RAM-HOL-TAB18-B-202U consists of a spring loaded back plate and custom support cups for the Google Nexus 7 and the LG G Pad 7.0 WITH OR WITHOUT LIGHT DUTY SLEEVE. The spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended.

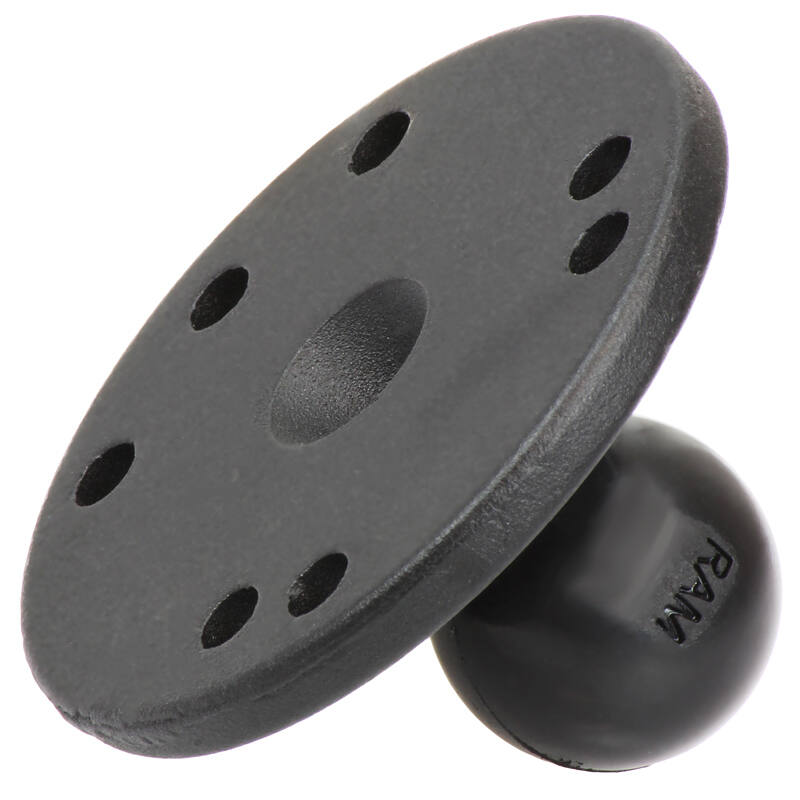

Included is a set of four nuts and bolts to attach to the included round base with 1" ball.
For off-road environments and extreme use, we recommended the use of a tether to assist in retaining your device. The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
Cradle Dimensions
H: 190.5mm - 257.2mm (7.5" - 10.125")
W: 95.3mm - 119.4mm (3.75" - 4.7")
D: 3.3mm - 10.9mm (.13" - .43")
Compatible Devices
Amazon
Fire 7
Dell
Venue 7
Venue 7 (2014)
Google
Nexus 7
HP
Slate 7
Samsung
Galaxy Tab 3 Lite 7.0
Galaxy Tab E 7.0
Note: Product consists of holder only. Case not included.

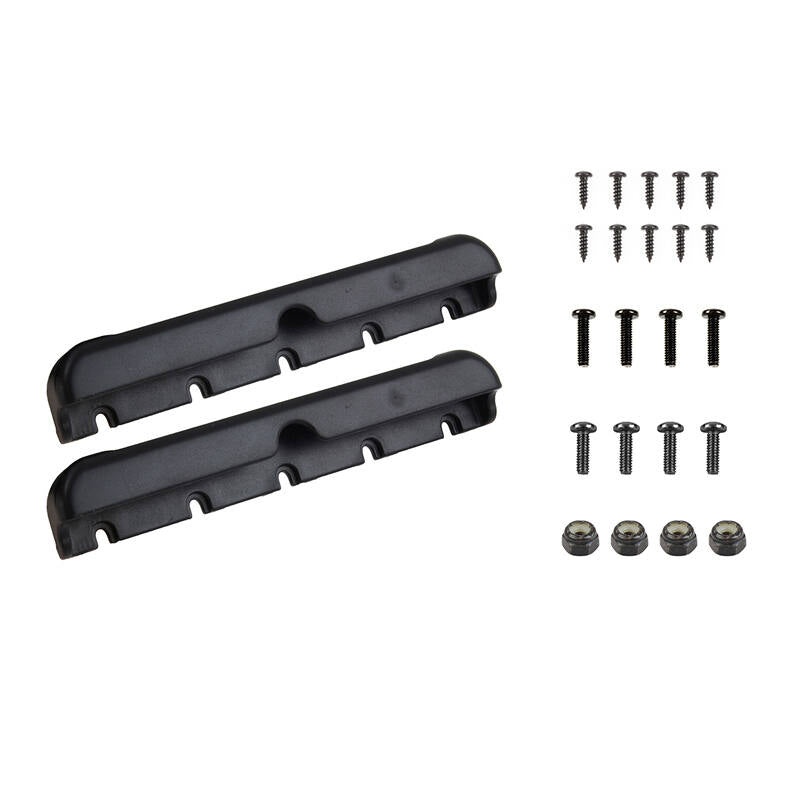

Hardware Included
Assembly Hardware
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts
Ball Size
B Series 1"
Hole Pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
Materials
High strength composite
Powder coated marine grade aluminum alloy
Weight
249 grams (0.55 lbs.)
YouTube:
https://www.youtube.com/watch?v=_gHqfV_xn44
