RAM-101B-TAB20U RAM® Dashboard Mount with Backing Plate for 9"-10.5" Tablets with Cases
Features
* Spring-loaded holder secures most 9"-10.5" tablets with cases; interchangeable end cups allow you to modify the holder when upgrading devices
* Includes 4-hole AMPS pattern ball adapter, C size short length double socket arm, and backing plate kit for drill-down mounting
* Ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

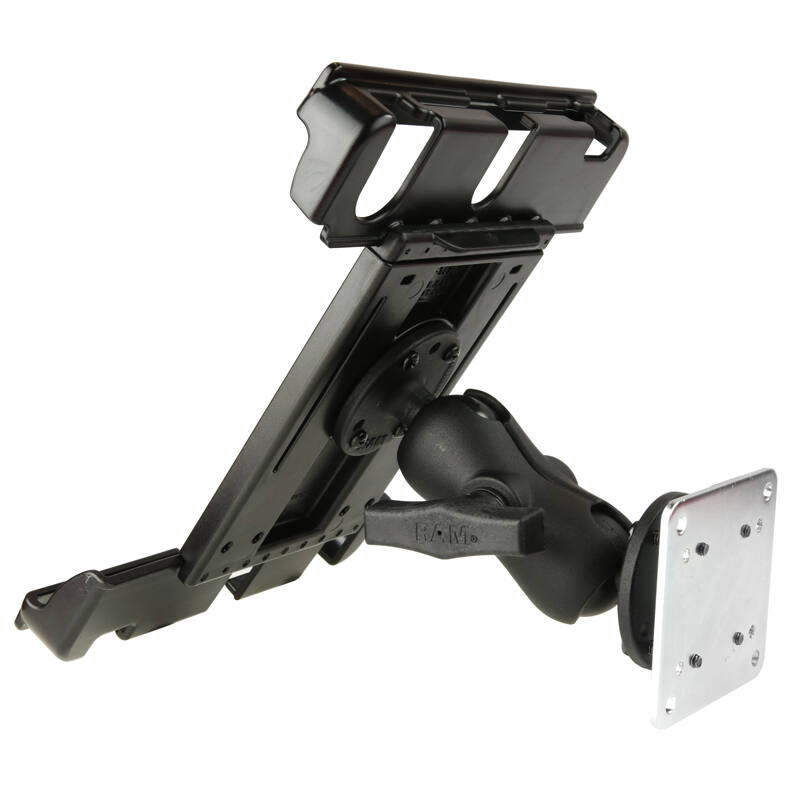

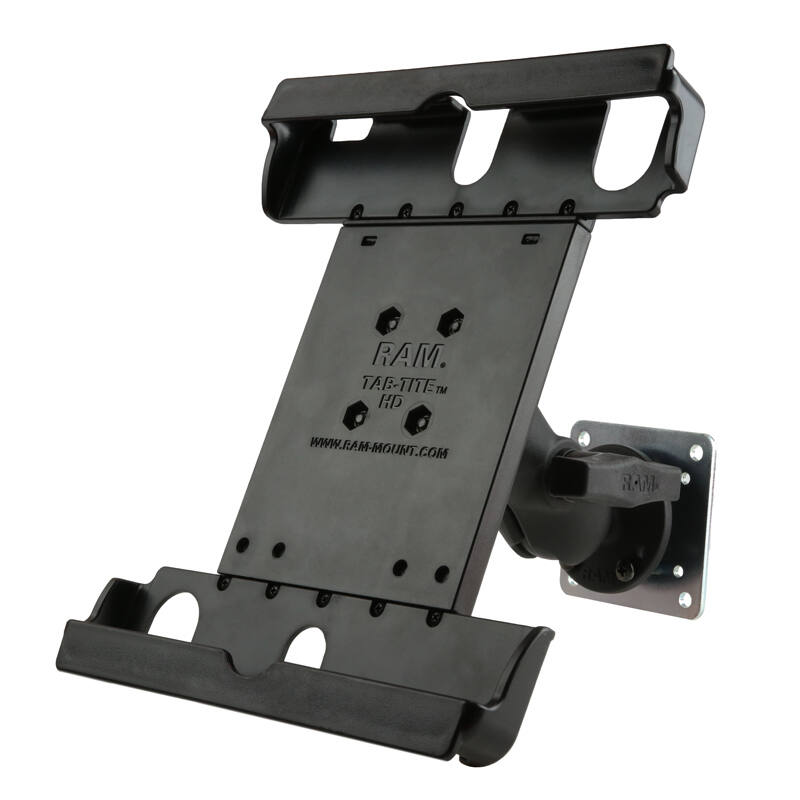

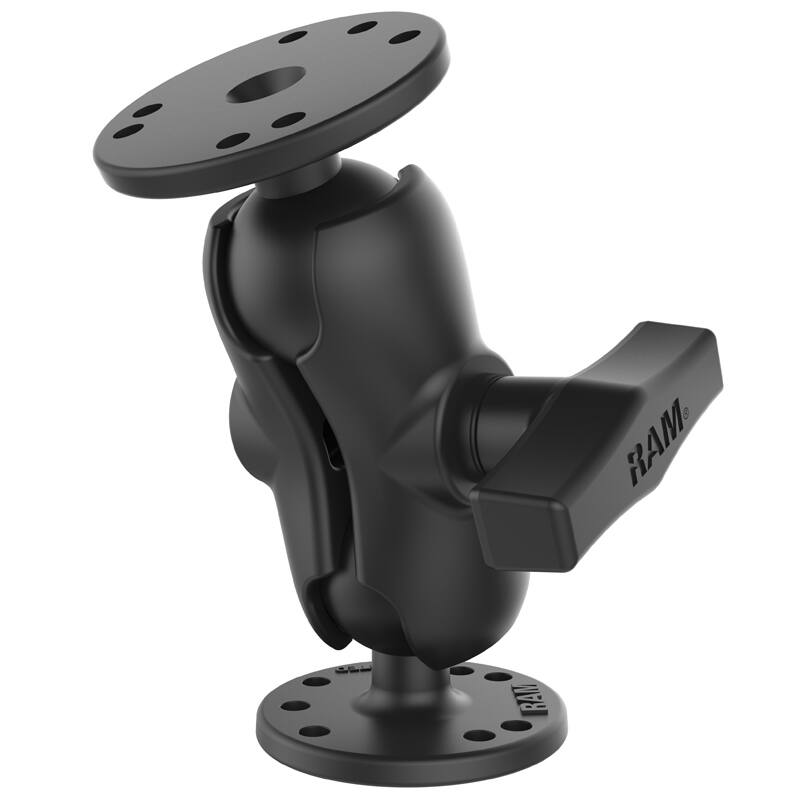

This vehicle kit consists of a RAM® Tab-Tite™ spring loaded holder for 9"-10.5" tablets with a case, SHORT C size double socket arm, two 2.5" diameter round bases that contain the universal AMPS hole pattern, a 3" x 3" backing plate, and mounting hardware. The mount is designed with a 1.5" diameter C size rubber ball and socket system that features adjustment points at both ends of the double socket arm, allowing for near-infinite adjustability for ideal viewing angles.

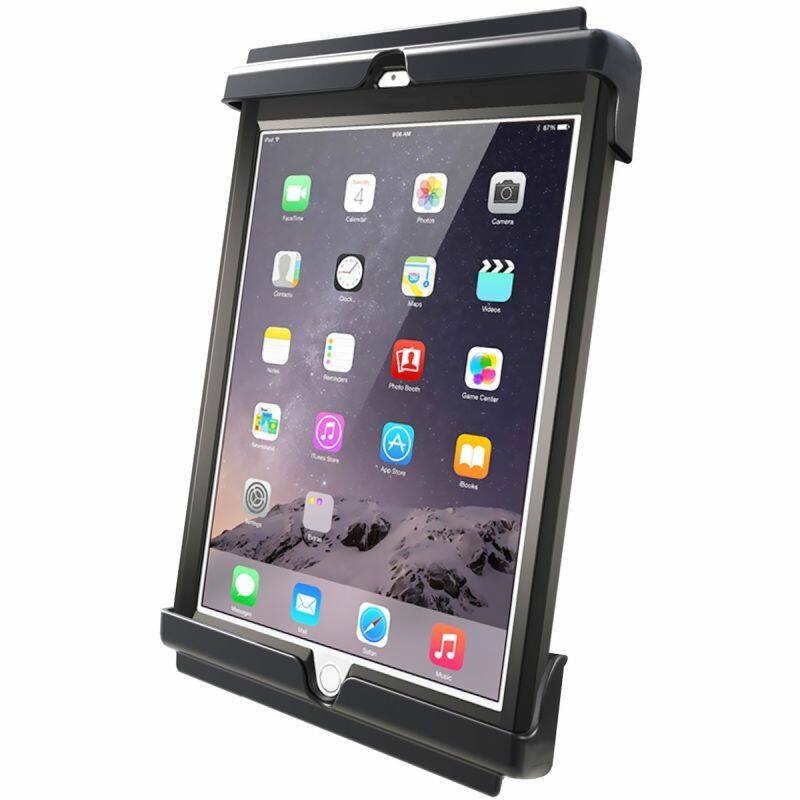

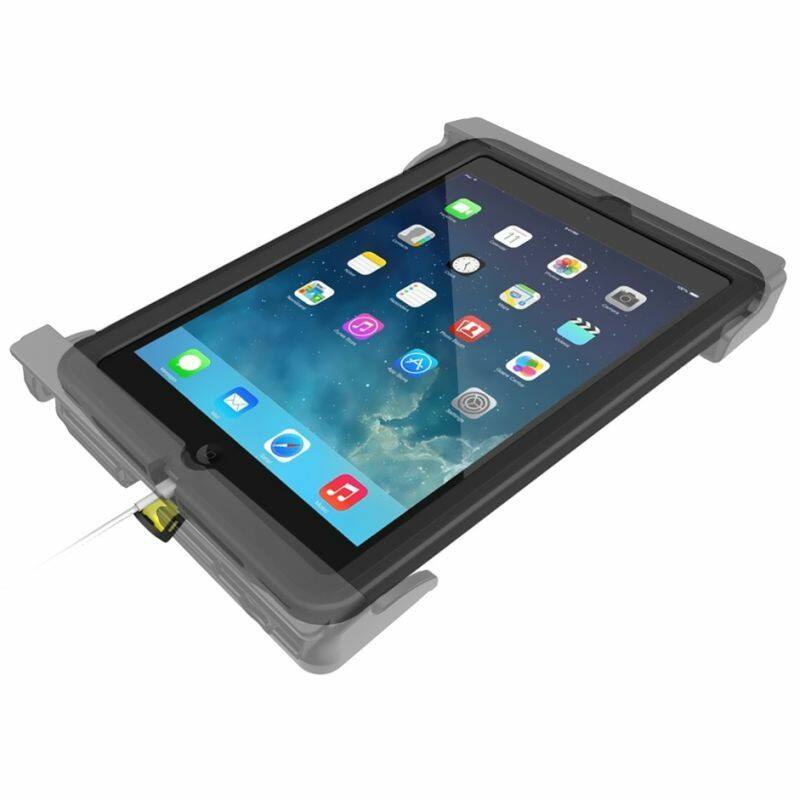

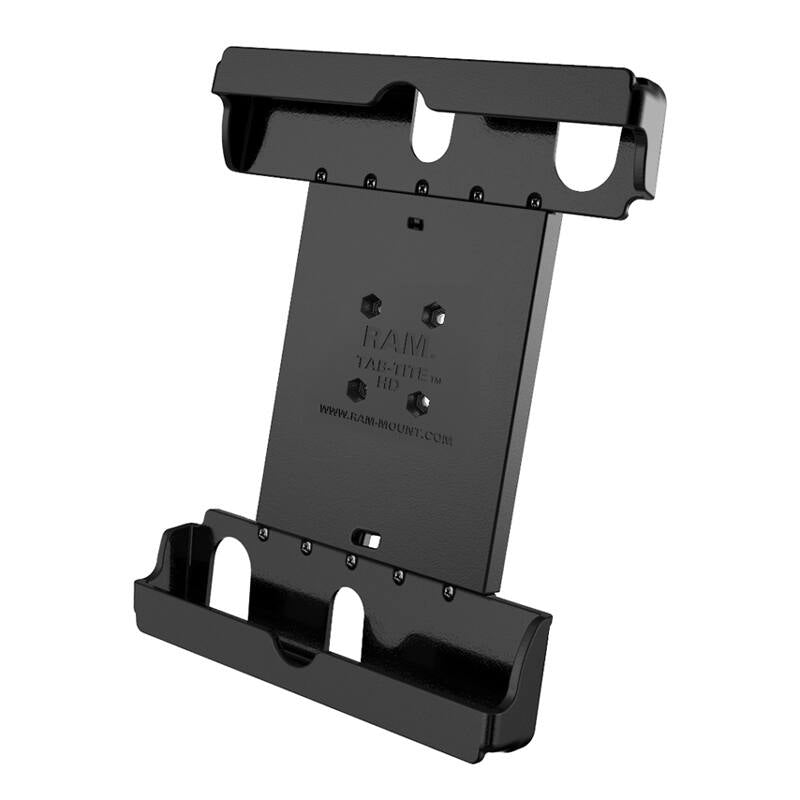

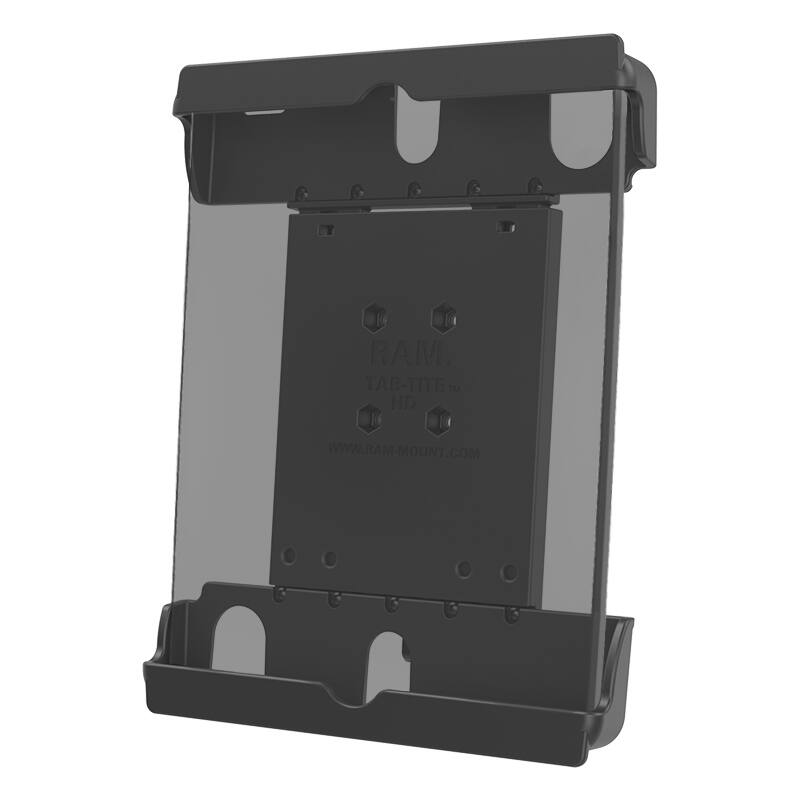

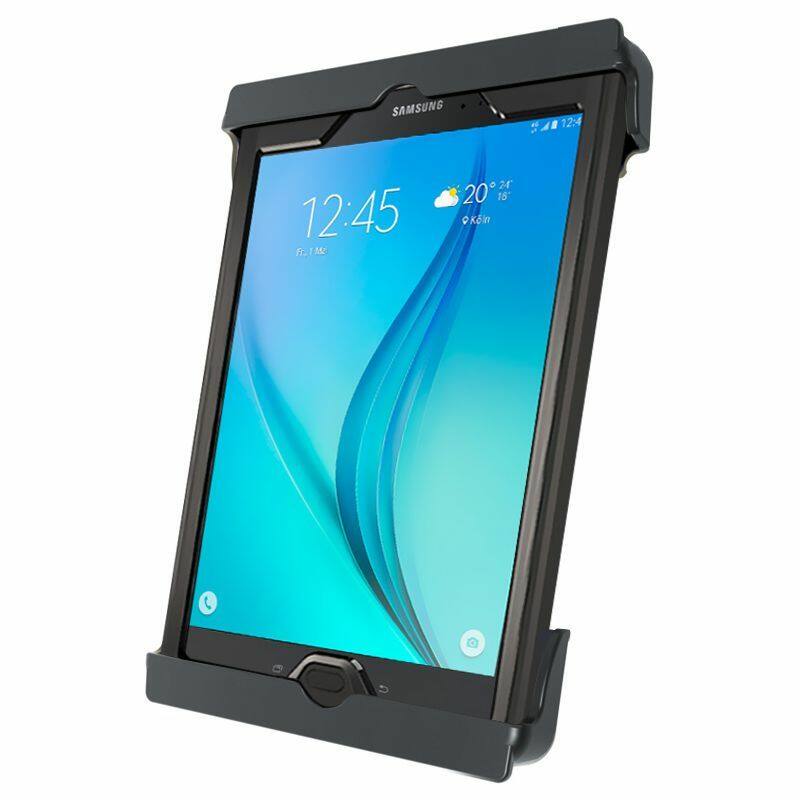

RAM-HOL-TAB20U RAM® Tab-Tite™ Holder is for 9"-10.5" Tablets with Heavy Duty Cases. This spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Cup ends allow access to audio jacks, USB, power, and other ports so your tablet can be used just as it was intended. Perfect for stationary or on the go applications, this is just what you need to get the most out of your tablet.
The Tab-Tite cradle is compatible with any tablet that will fit the following dimensions. Please verify the dimensions of your tablet when determining the overall size.
Tab-Tite Cradle Dimensions:
Height:
241mm min to 308mm max (9.5"to 12.125")
Width:
166mm to 189mm (6.55" to 7.43")
Depth:
7.6mm to 22mm (0.3" to 0.875")
Hardware Included
Assembly Hardware

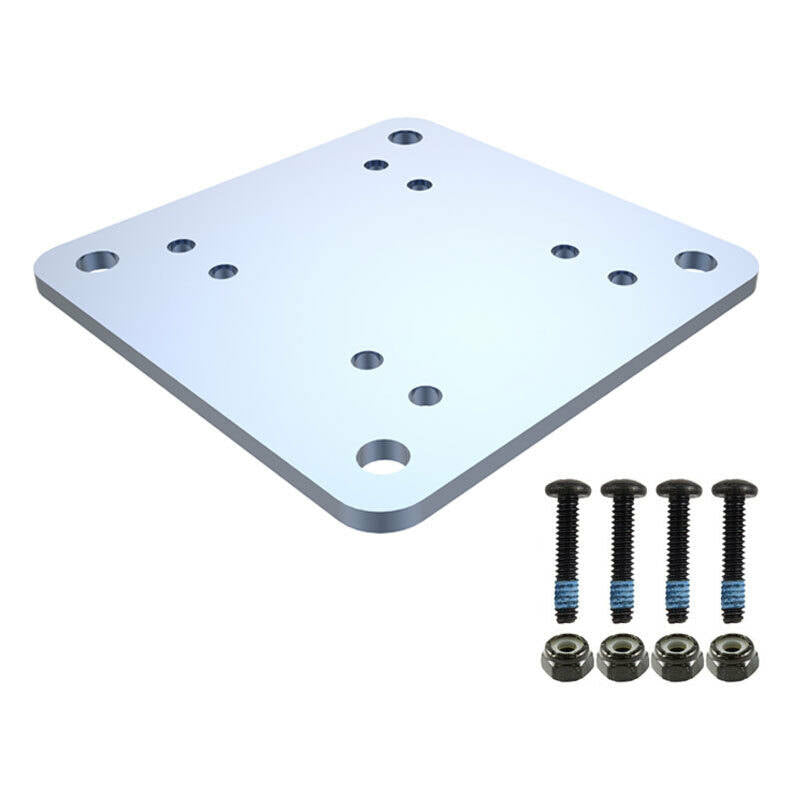

(1) 3" x 3" Steel Backing Plate
(4) #10-24 x 1" Thread Locking Screws
(4) #10-24 Nylock Nuts

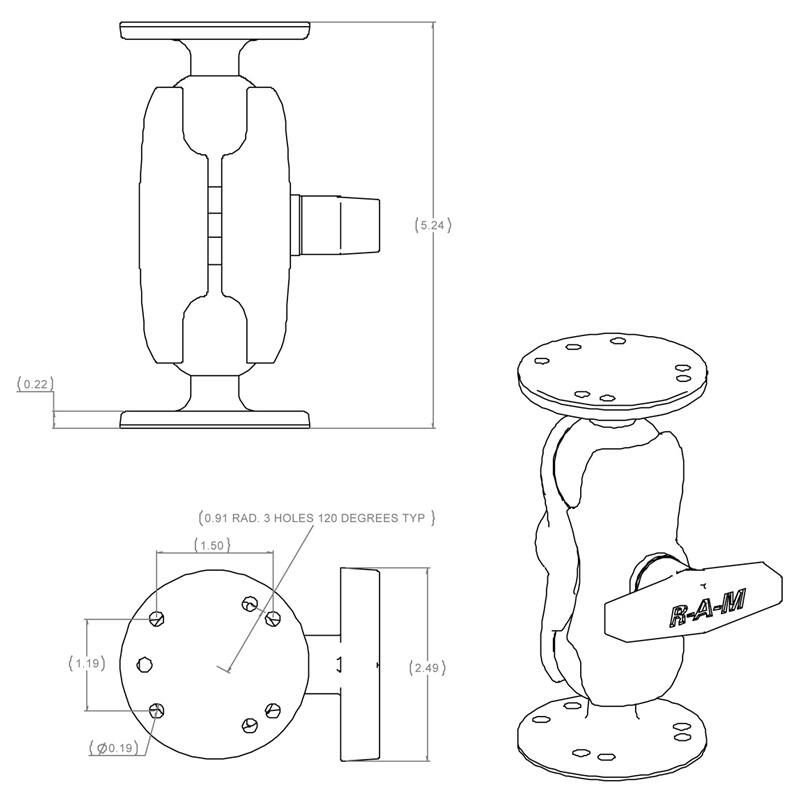

Socket-to-Socket Length
63.5mm (2.5")
Overall Height
132.7mm (5.225")
Hole Pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole 120-Degree:
1.812" Diameter (46.0mm)
Ball/Socket Size
C Size (1.5")
Weight Capacity
Standard Use: 1.814kg (4 lbs)
Heavy-Duty Use: 1.36kg (3 lbs)
Materials
Marine-grade aluminum
High strength composite
Powder coated steel
Weight
912 grams (2.01 lbs.)
YouTube:
https://www.youtube.com/watch?v=_gHqfV_xn44
Components:

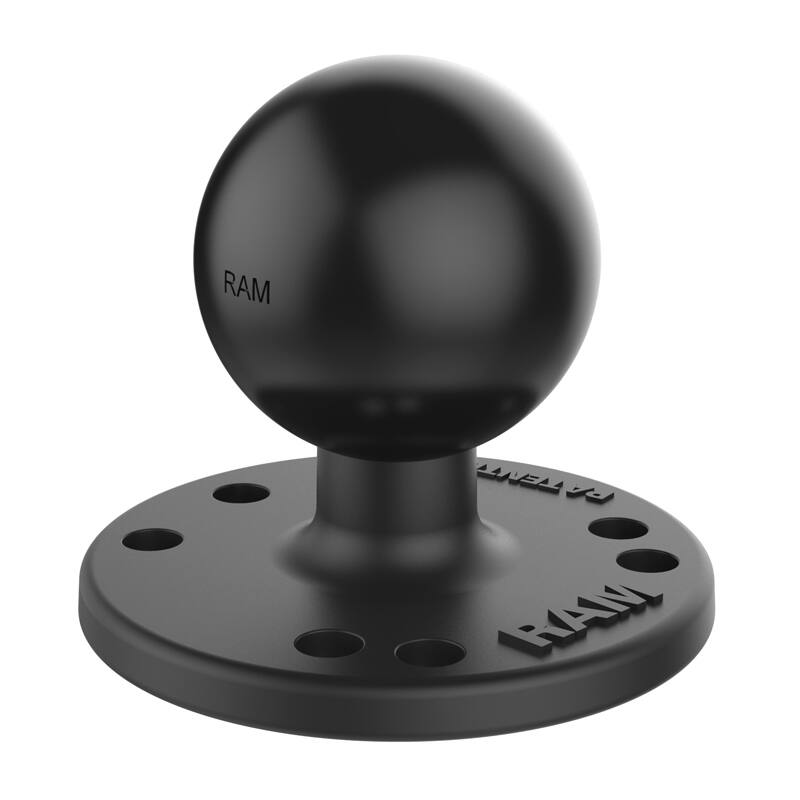

RAM-202U 2.5" / 63mm DIA. BASE 1.5" Ball

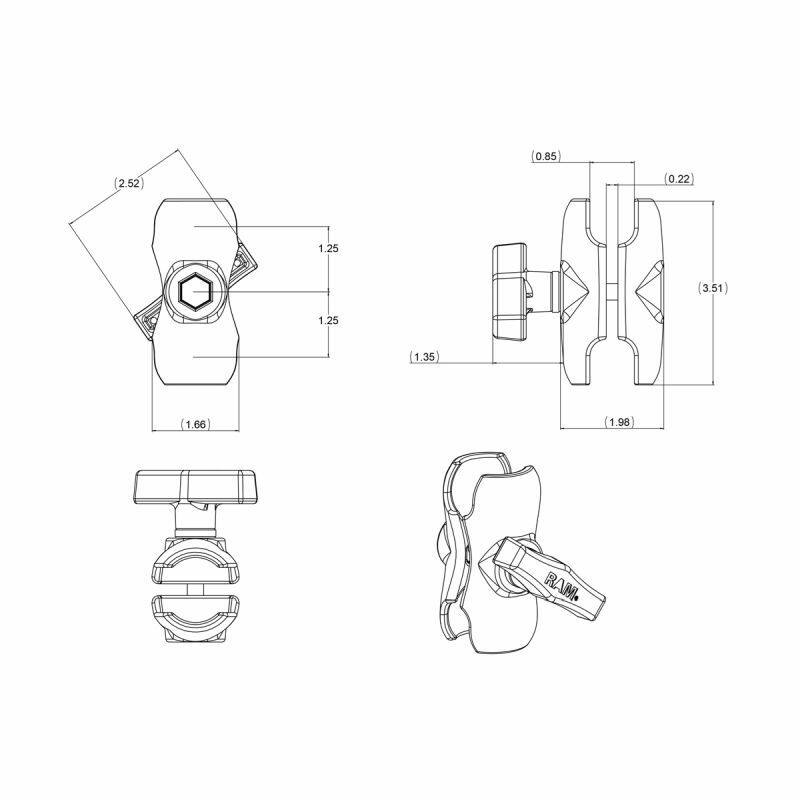

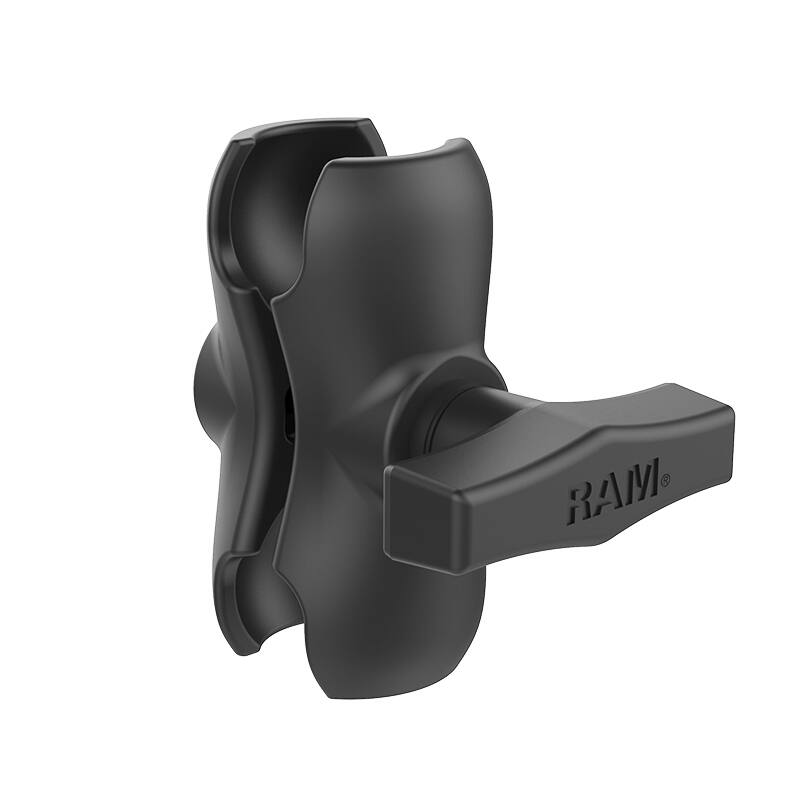

RAM-201U-B short 1.5" (C-Series) Alloy Arm
RAM-202-225BU Backing Plate Adapter
RAM-HOL-TAB20U TAB-TITE IPAD AIR W CASE
