RAM-B-166-TAB20U RAM® Tab-Tite™ Suction Cup Mount for 9-10.5" Tablets

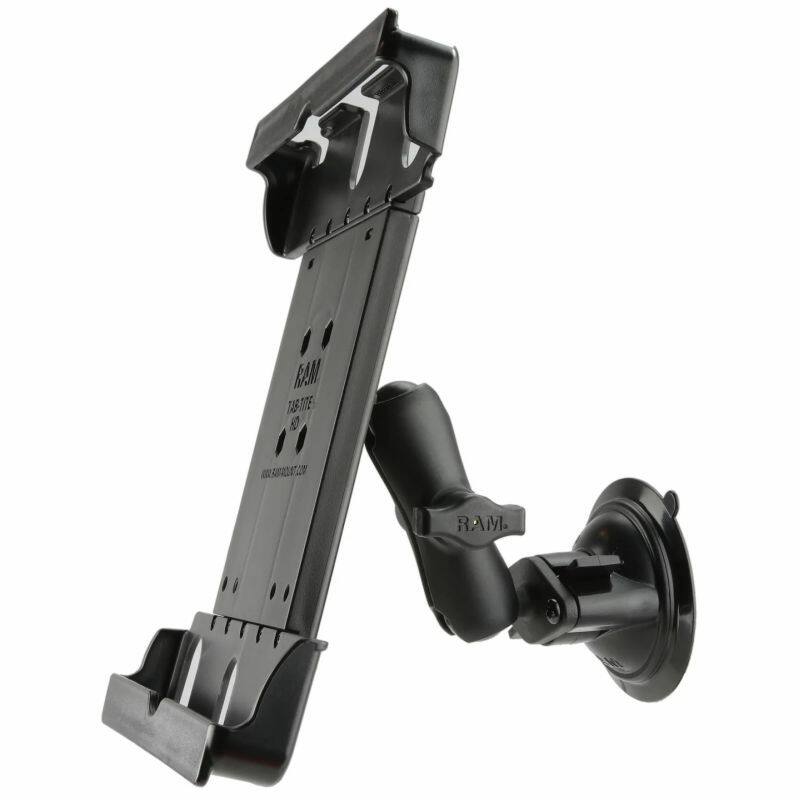

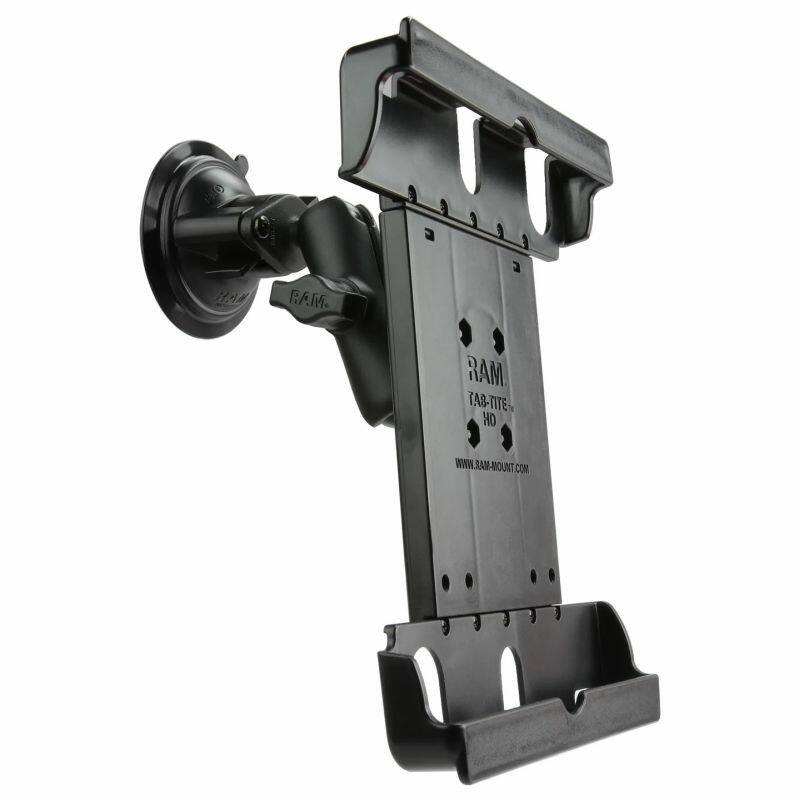

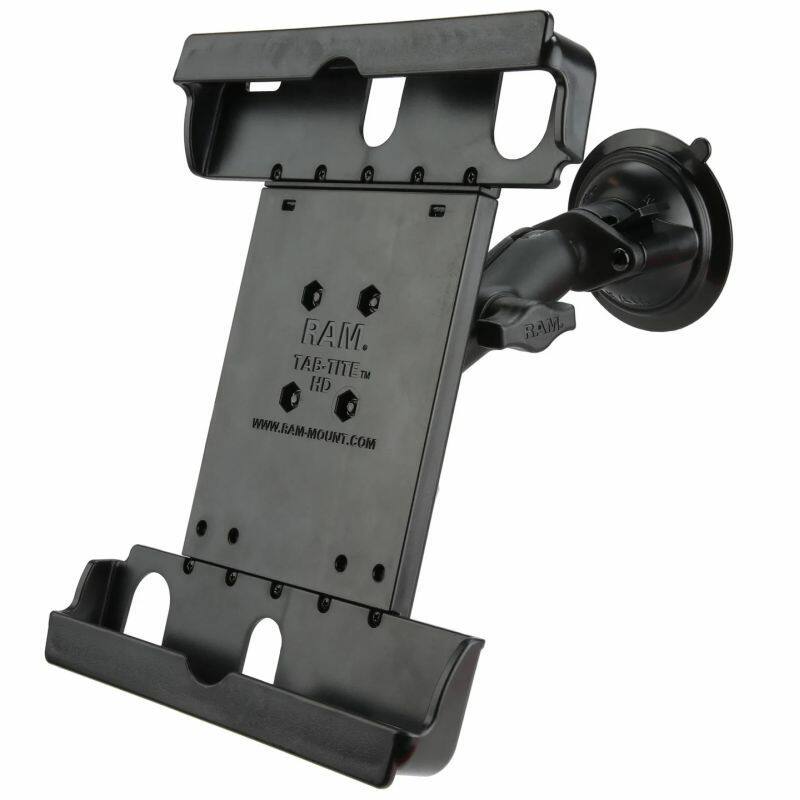

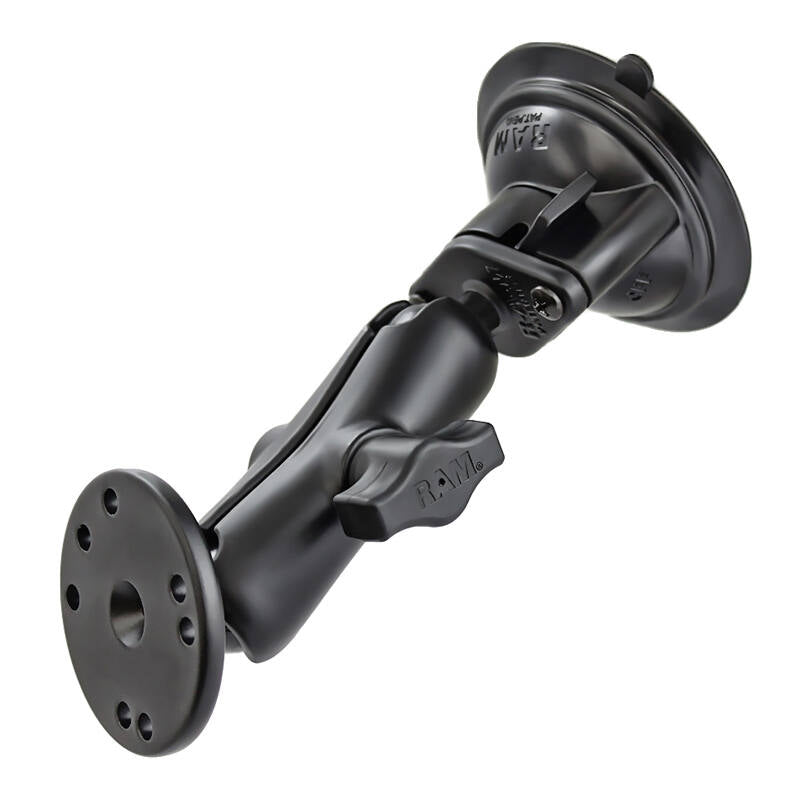

The RAM-B-166-TAB20U is a complete RAM® suction cup mount for 9" to 10.5" tablets in heavy-duty cases. It pairs the spring-loaded RAM® Tab-Tite™ cradle with a RAM® Twist-Lock™ suction base and a medium B-size arm, so you can mount a cased tablet to a windscreen or other smooth surface and adjust it to almost any angle. Popular for aircraft, trucks and vehicle cabs.
Key Features
Complete mount: cradle, suction base and arm in one kit, no extra parts needed to get mounted.

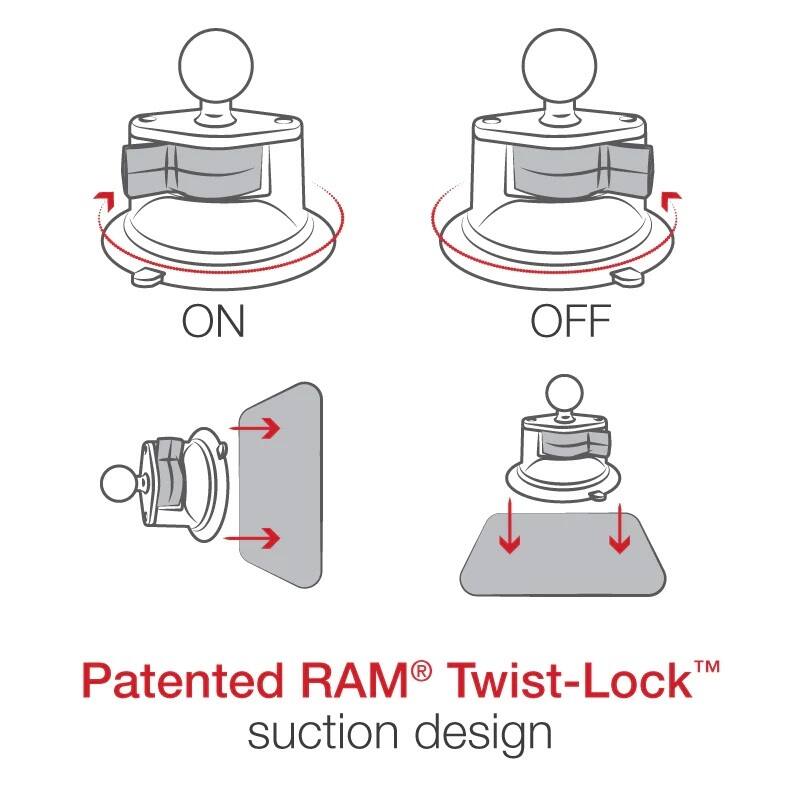

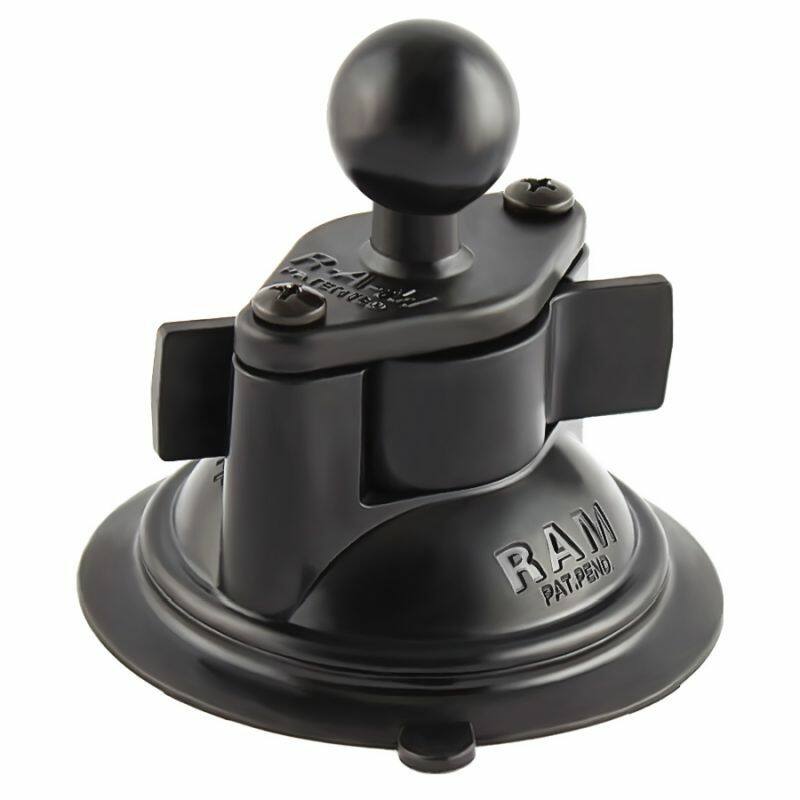

Twist-Lock suction base: 83.8mm (3.3") cup grips glass and smooth, non-porous surfaces and locks down with a flick of the lever. Use a RAM® adhesive disk for textured dashboards.

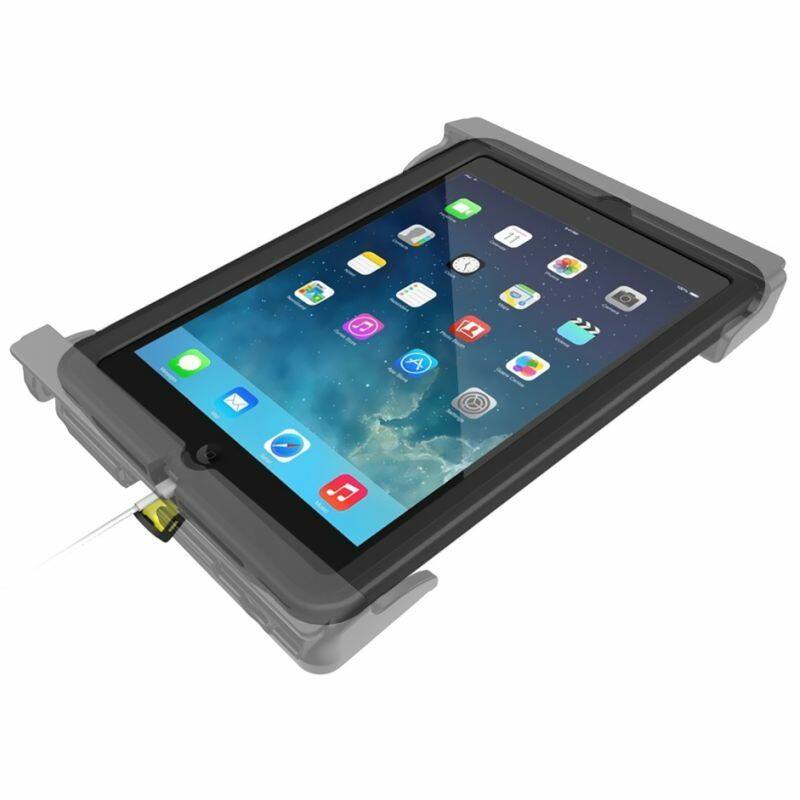

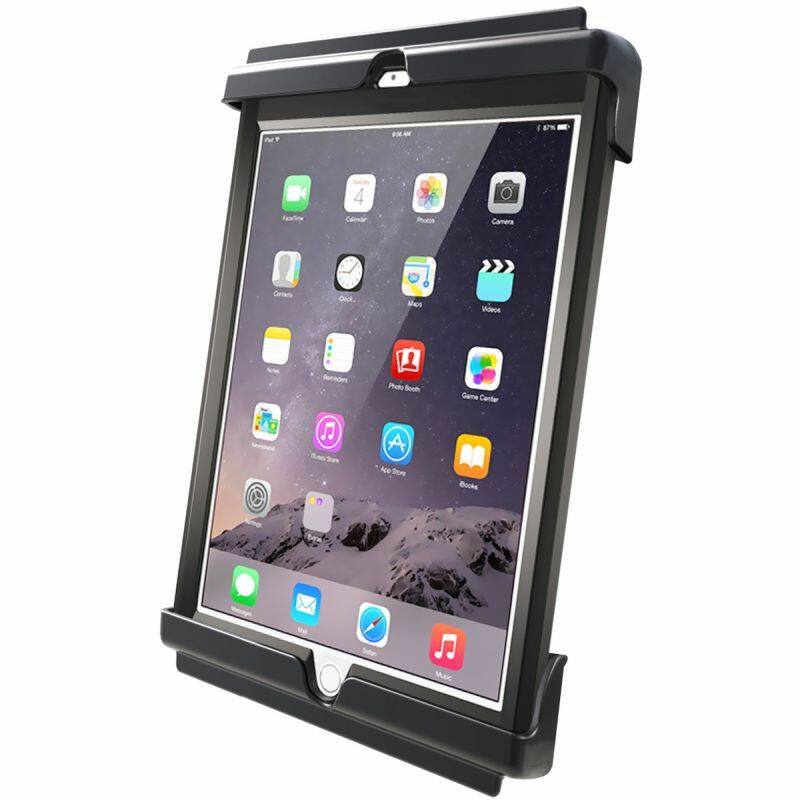

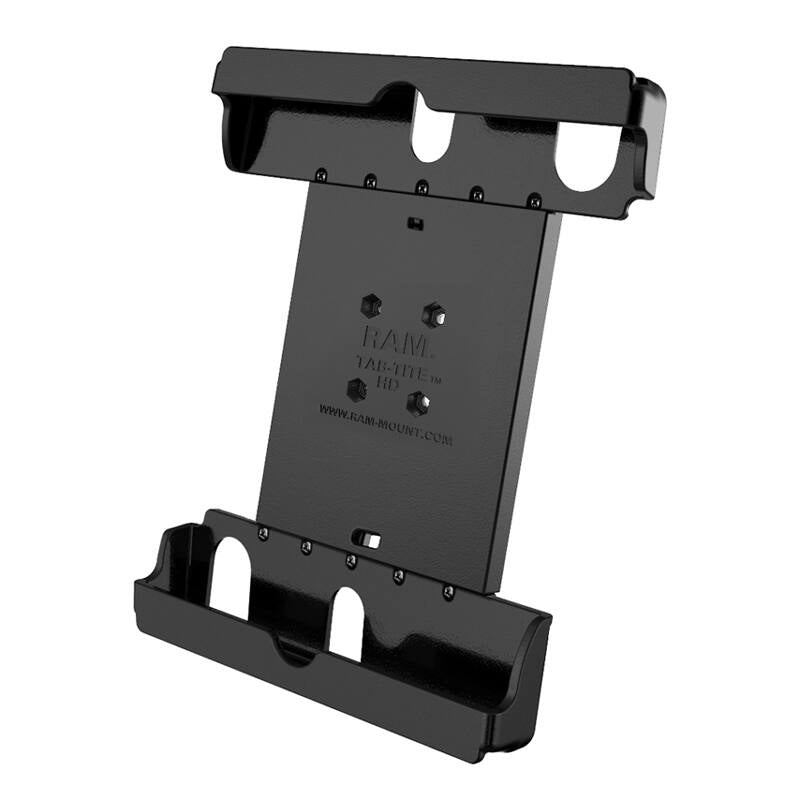

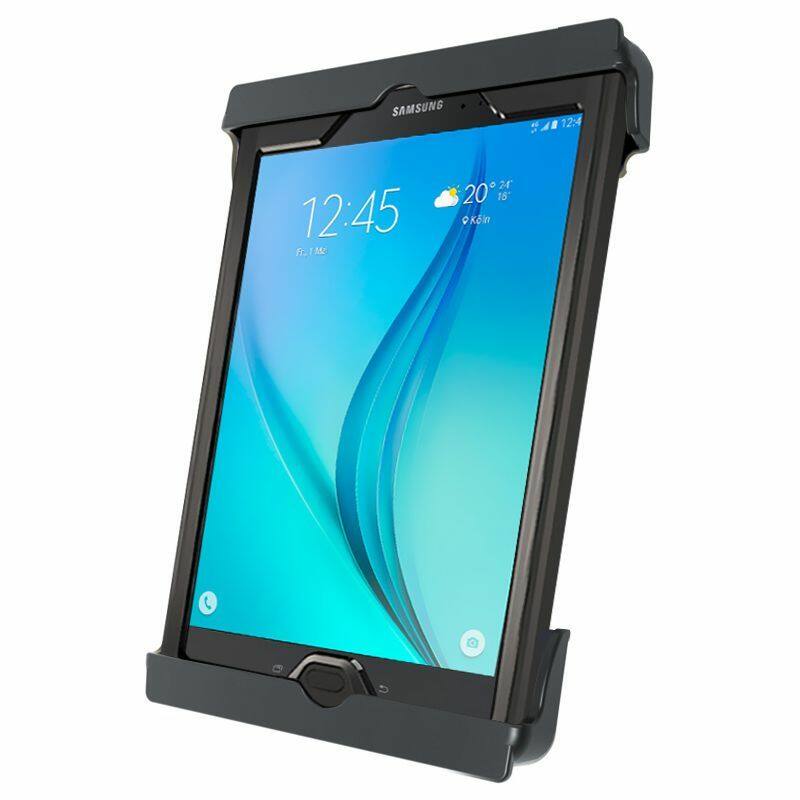

Spring-loaded Tab-Tite cradle: holds the tablet top and bottom with interchangeable end cups; re-fit it to a new device with a fresh pair of cups.
Infinite adjustment: B-size 1" ball at each end of the double socket arm locks solid with a single knob.
Built to last: powder-coated marine-grade aluminium and high-strength composite, backed by RAM®'s lifetime warranty.
Works With
Suits most 9" to 10.5" tablets in heavy-duty cases that fit the cradle dimensions below. Mounts to windscreens, glass and other smooth, non-porous surfaces; pair with a RAM® adhesive disk for textured surfaces.

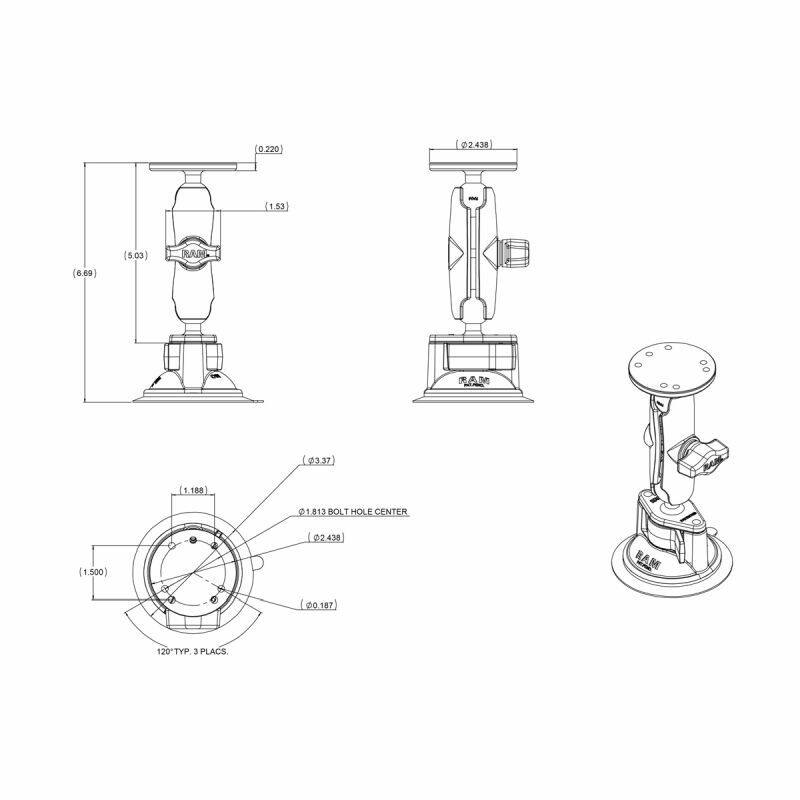

Dimensions & Specifications
Cradle height range: 241–308mm (9.5"–12.125")
Cradle width range: 166–189mm (6.55"–7.43")
Cradle depth range: 7.6–22mm (0.3"–0.875")

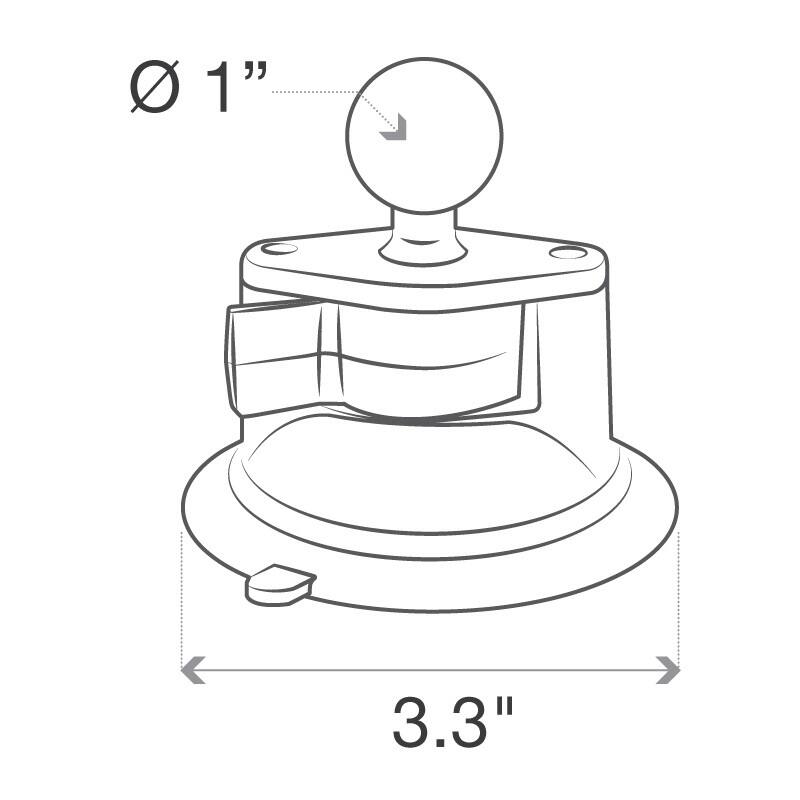

Suction cup diameter: 83.8mm (3.3")
Ball size: B Series 1"
Arm length: 94mm (3.69") overall, 76mm (3") socket-to-socket
Load rating: 907g (2 lb) standard use, 454g (1 lb) heavy-duty use
Hole pattern: 4-Hole AMPS, 1.181" x 1.496" (30mm x 38mm)
Material: powder-coated marine-grade aluminium and high-strength composite
Weight: 635g (1.4 lb)
What's Included

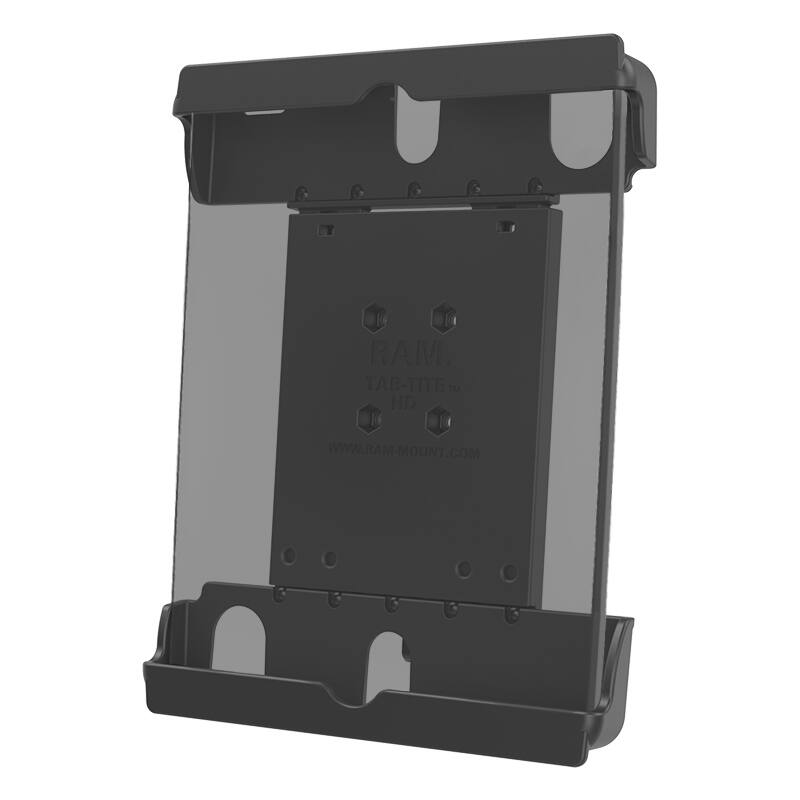

RAM® Tab-Tite™ spring-loaded cradle (back plate and end cups)
RAM® Twist-Lock™ suction cup base with 1" ball
RAM® medium double socket arm
Round base adapter with 1" ball
Assembly hardware
FAQs
Will it hold on my dashboard? The suction base needs a smooth, non-porous surface like glass. For a textured dash, stick down a RAM® adhesive disk first and suction to that.
Will my tablet fit? If your tablet in its heavy-duty case sits within the cradle ranges above, it will fit.
How fast does it ship? Items shown in stock will normally be shipped from our Auckland warehouse in 1 business day. For out of stock items please enquire.
