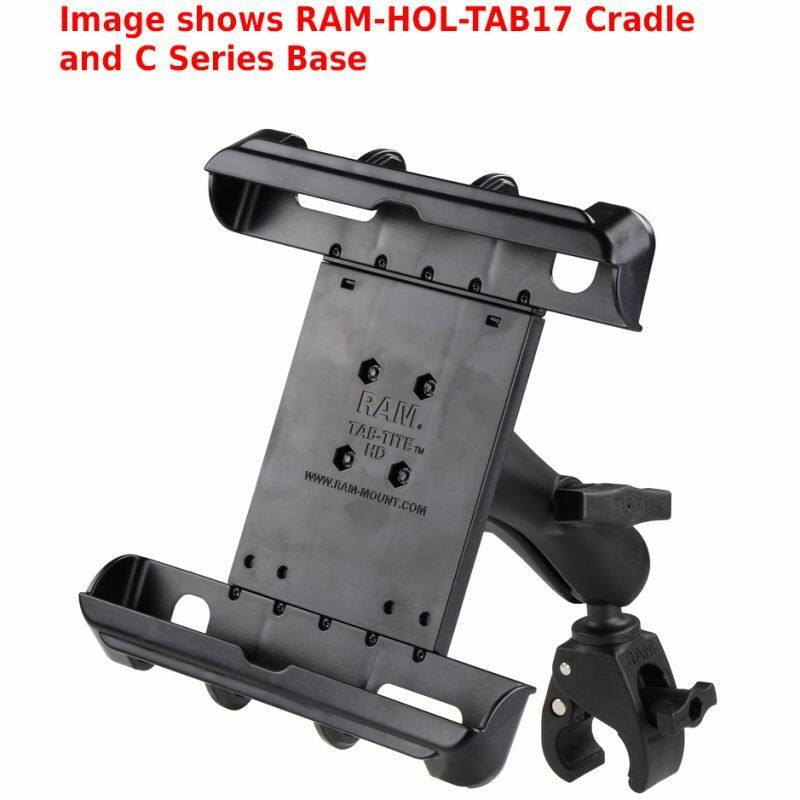

RAP-B-400-TAB3U RAM® Tab-Tite™ for iPad 1-4 with Small RAM® Tough-Claw™
Features
* Spring-loaded holder secures the iPad (1st, 2nd, 3rd, and 4th Gen) without case and more; interchangeable end cups allow you to modify the holder when upgrading devices
* Tough-Claw allows for fast, tool-less installation on rails / bars 16-28mm in diameter or flat surfaces up to 29mm
* B size RAM® double socket arm with ball and socket technology allows for near-infinite adjustability
* Made of high-strength composites for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
The RAP-B-400-TAB3U is ideal for commercial or pro-sumer applications where mounting the tablet to a round or flat surface is required but when removal without tools is desired.

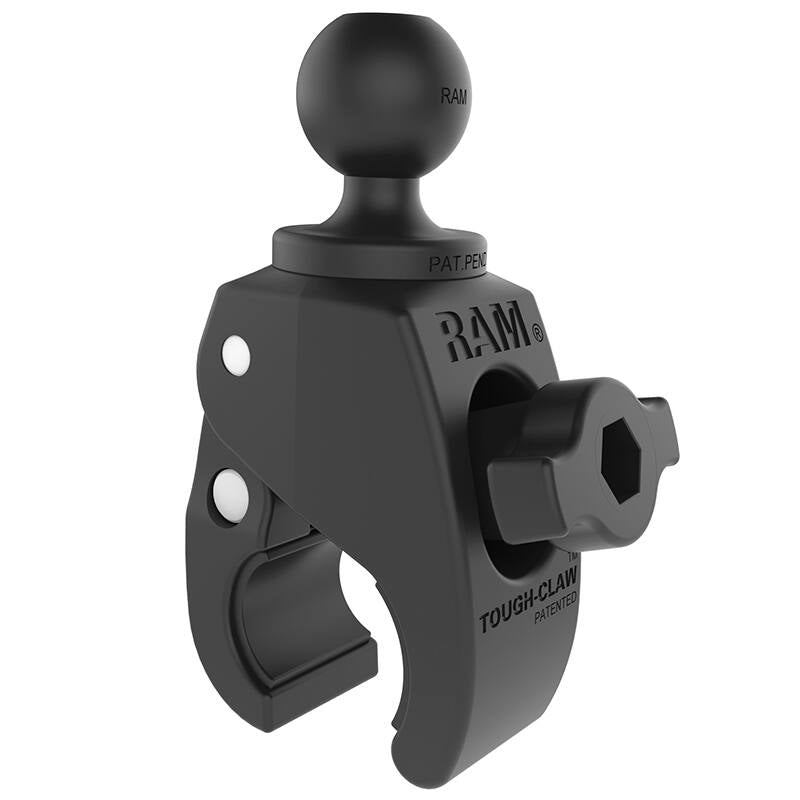

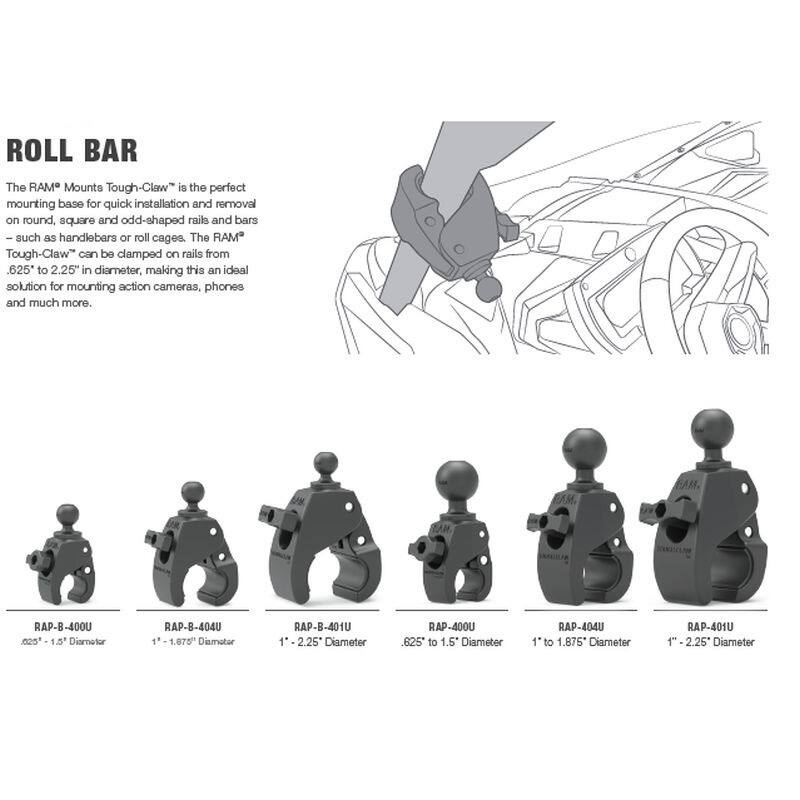

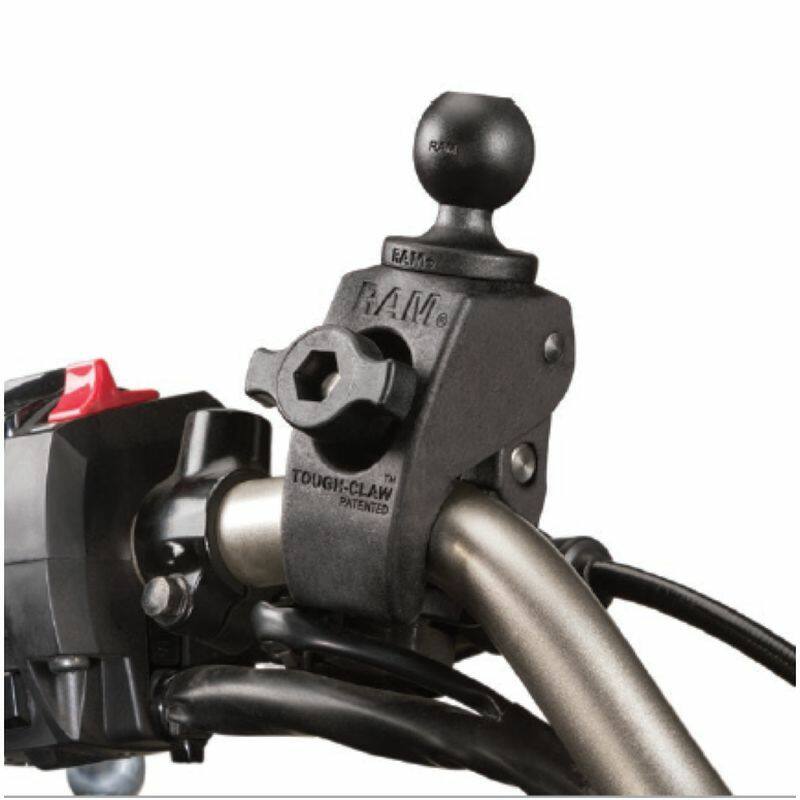

The RAM Tough-Claw base is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The Tough-Claw can be clamped on rails from 16mm to 38mm (outer diameter). Just place the clamp over the rod/rail and tighten with the knob - no tools needed!
Perfectly suited for mounting on the yoke of an aircraft, handlebars and seat posts of bicycles, kayak rails, roll bars and much more, the RAM Tough-Claw will soon become another essential RAM component in your collection of mounting options. Our customers tell us that this is an ideal mount for wheelchairs and mobility devices - easy to install and remove when needed.

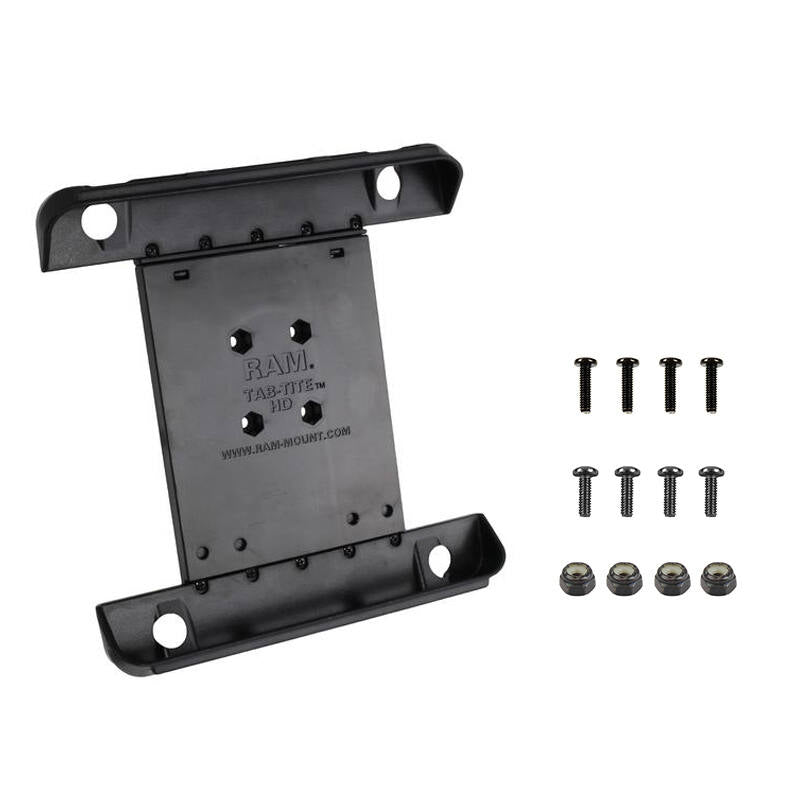

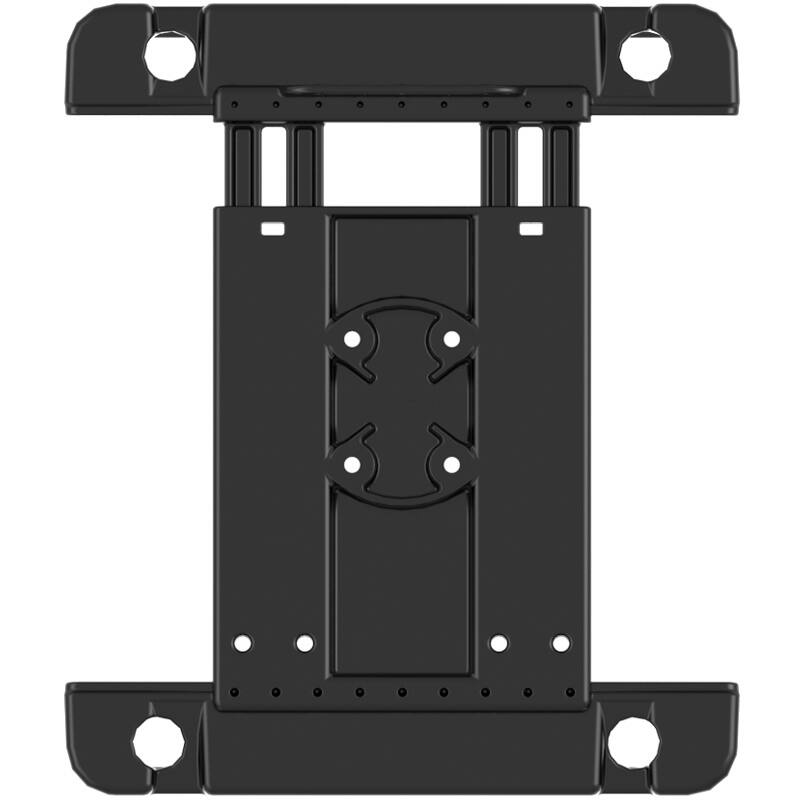

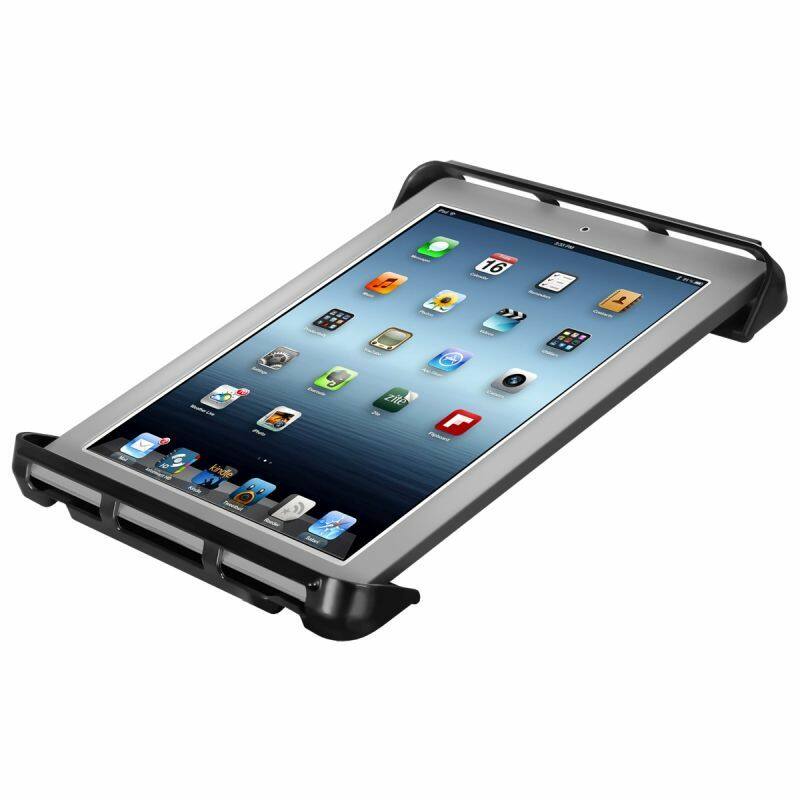

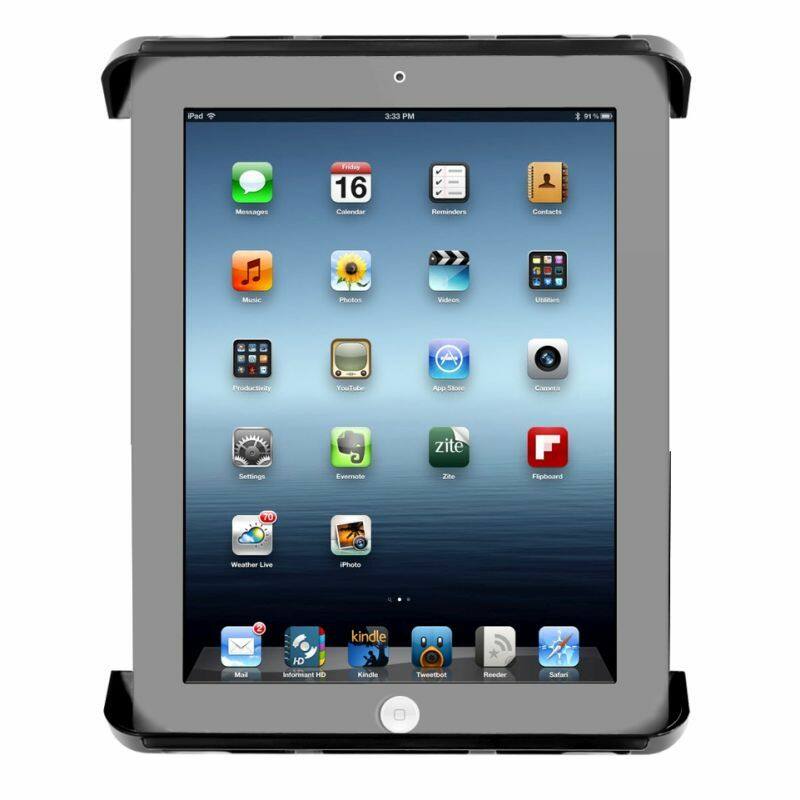

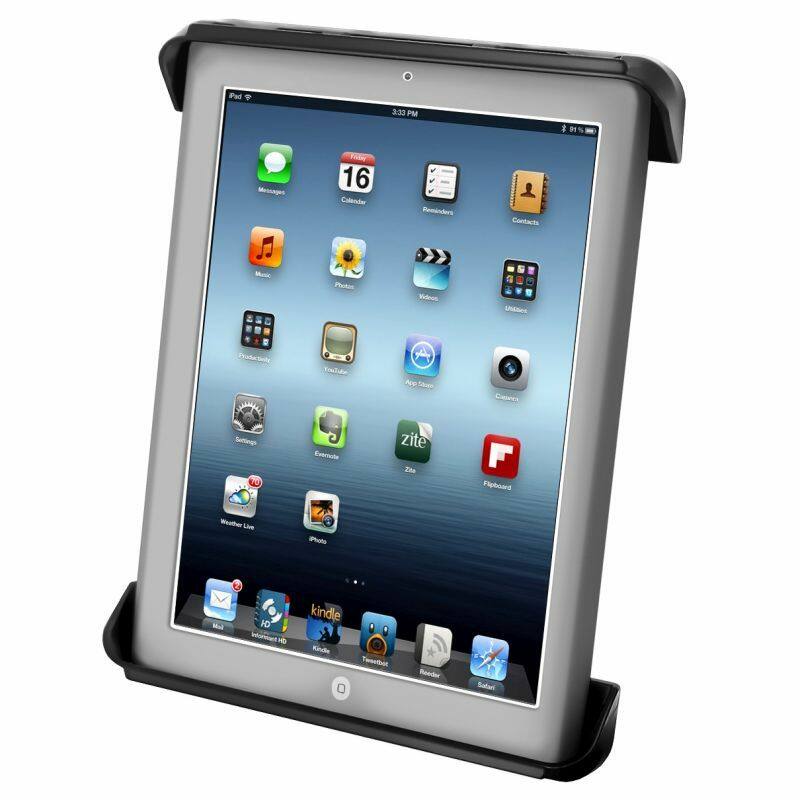

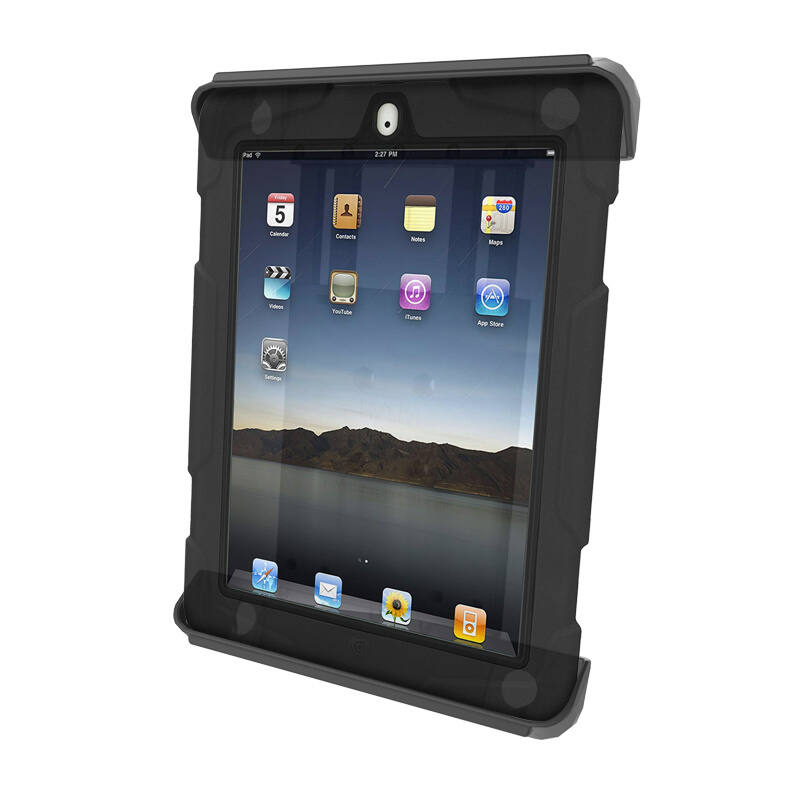

The spring loaded Tab-Tite™ cradle design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. Perfect for stationary or on the go applications, the RAM-HOL-TAB3U is just what you need to get the most out of your tablet.
The Tab-Tite is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
Cradle Dimensions:
Height: 216mm to 283mm (8.5" to 11.125")
Width: 162mm to 197mm (6.38" to 7.75")
Depth: 3.3mm to 14.2mm (0.13" to 0.56")
Compatible Devices - 9.7" to 10" Tablets including:
Apple
iPad (1st Generation)
iPad (2nd Generation)
iPad (3rd Generation)
iPad (4th Generation)
iPad Air 4
iPad Pro 11"
iPad Pro 11" (2020)
ASUS
MeMO Pad FHD 10
Transformer Pad
Dell
Venue 10 7000
Venue 11 Pro 7000
HP
ElitePad 900
ElitePad 900 G1
Pro 610
Lenovo
S6000
Tab A10
ThinkPad 10
Yoga Tablet 10
Yoga Tablet 10 HD+
Yoga Tablet 2 (10 inch)

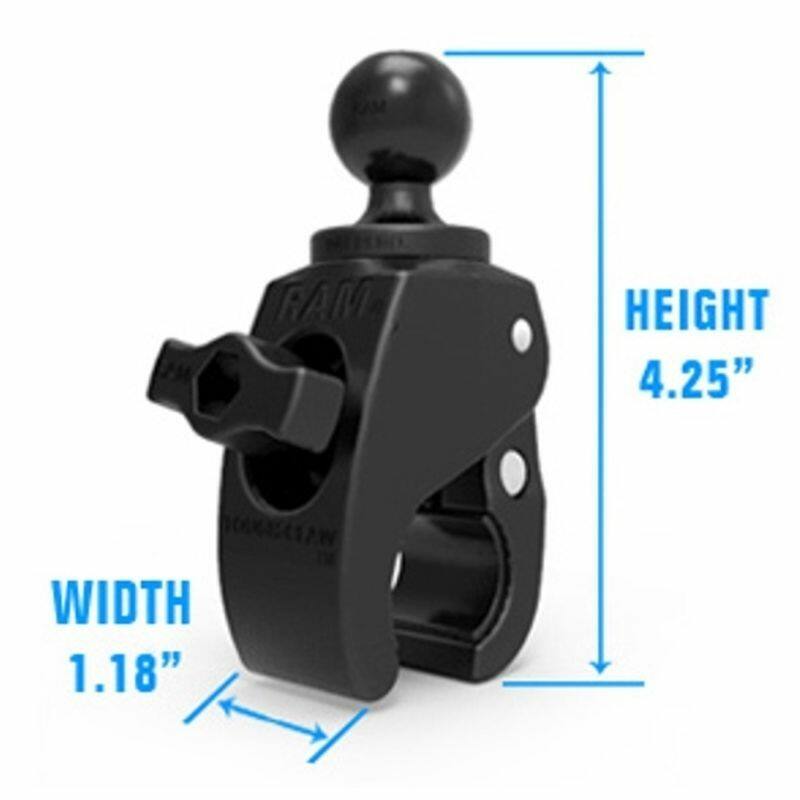

Tough Clamp Clamping Range (Rail/Tube Surfaces):
16mm to 28mm (0.625" to 1.14")
Clamping Range (Flat Surfaces):
0 to 29mm (1.14")

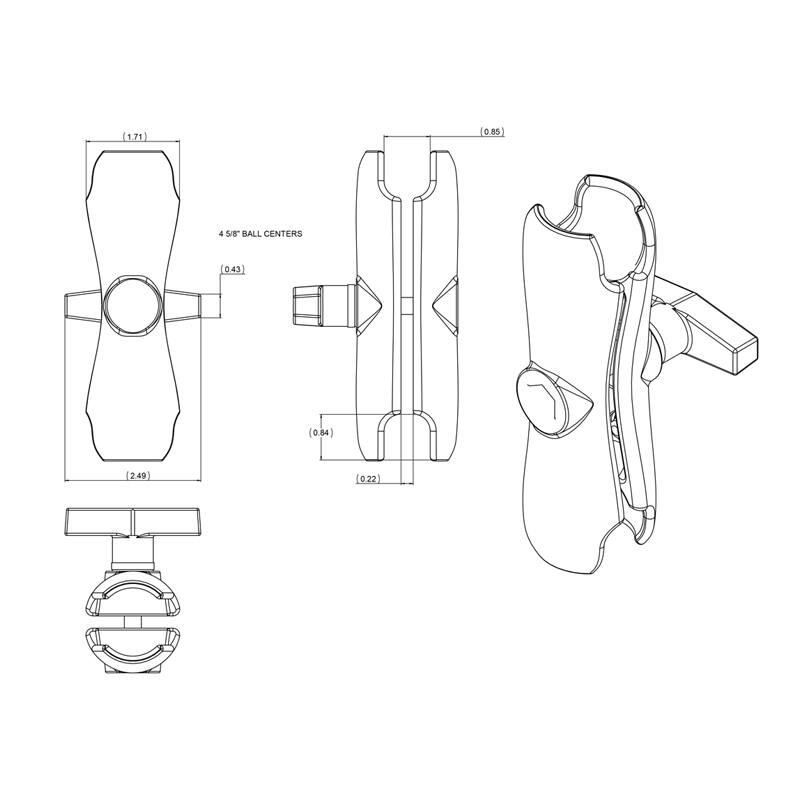

Arm Dimensions:
Overall Length: 94mm (3.69")
Socket-To-Socket Length: 76mm (3")
Ball/Socket Size
B Size (1")
Components:
RAM-HOL-TAB3U TAB-TITE IPAD MID TABLETS
RAM-B-201U DOUBLE SOCKET ARM FOR 1" BALL
RAM-B-202U 62mm DIA.BASE WITH 1" BALL
RAP-B-400U SMALL TOUGH CLAW WITH 1" BALL
