RAM Tab-Tite Cradle - Large Tablets in Cases (incl iPad)

RAM-HOL-TAB-LGU RAM® Tab-Tite™ Universal Spring-Loaded Holder for Large Tablets

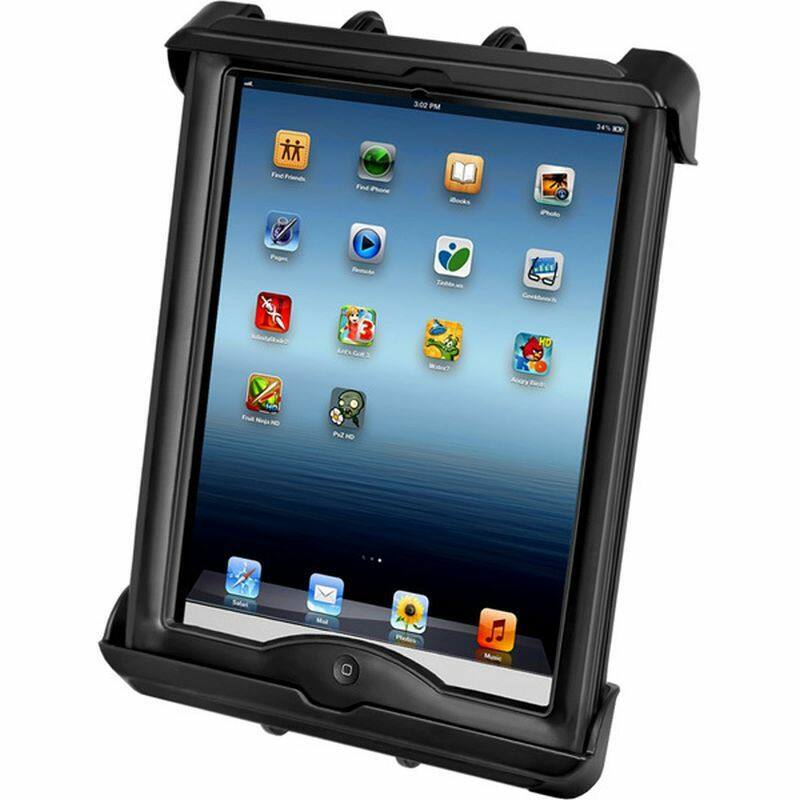

RAM-HOL-TAB-LGU is RAM's spring-loaded Tab-Tite™ cradle for 10" tablets in heavy-duty cases, including full-sized iPads. Interchangeable cup ends give a near-custom fit and keep audio, USB and power ports accessible. Needs a separate B or C size AMPS base – see Works With below.

Key Features

• Spring-loaded design for quick, secure loading and unloading

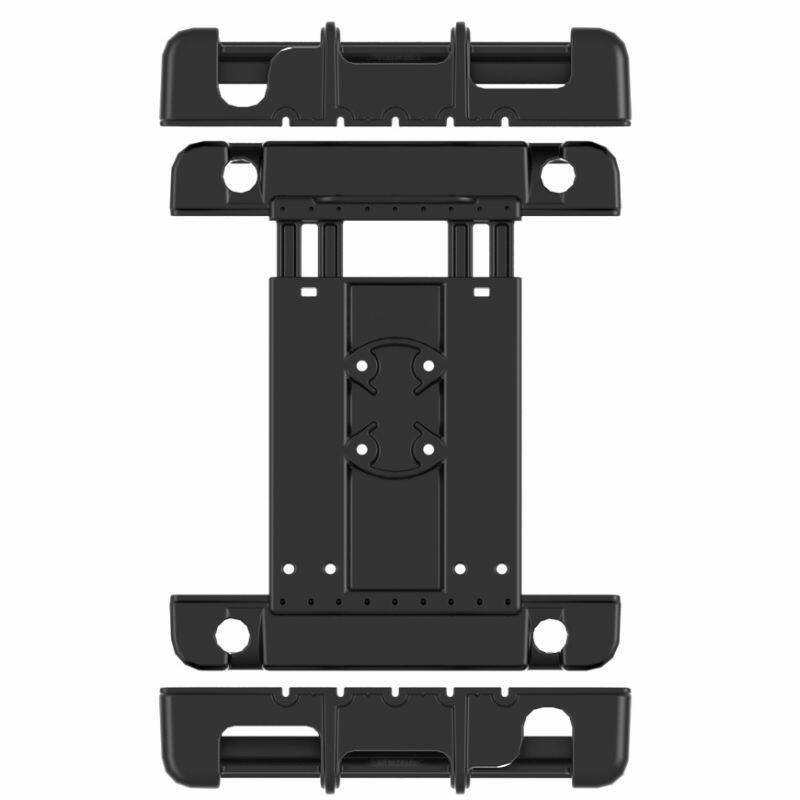

• Two sets of interchangeable cup ends for a near-custom fit as devices change
• Cup ends keep audio jacks, USB and power ports accessible
• Compatible with B-size and C-size RAM round ball bases
• Backed by a lifetime warranty

Works With

Any RAM base or arm using the 4-hole AMPS pattern (30mm x 38mm), such as the RAM-B-202U or RAM-202U round bases. This cradle is the holder only – pair it with the base and arm combination that suits your mounting point.

Dimensions & Specifications

• Height range: 216mm to 298.5mm (8.5" to 11.75")
• Width range: 197mm to 209.6mm (7.75" to 8.25")
• Depth range: 14.2mm to 27.9mm (0.56" to 1.1")
• Hole pattern: 4-hole AMPS, 30mm x 38mm (1.181" x 1.496")
• Material: high-strength composite

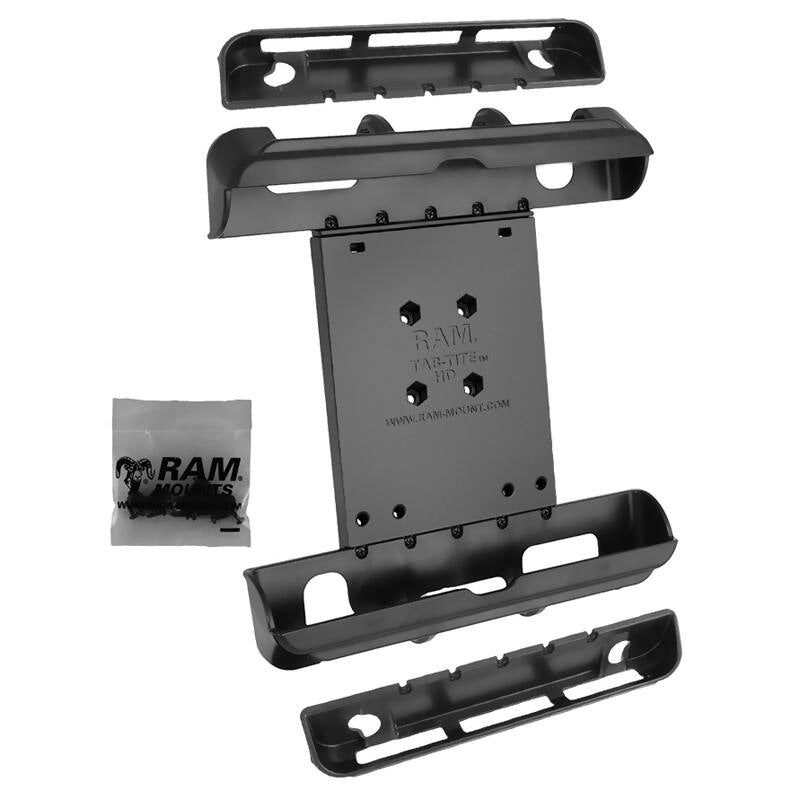

What's Included

• 4x #8-32 x 5/8" machine screws
• 4x #8-32 x 1/2" machine screws
• 4x #8-32 nylock nuts

Compatible Devices

Apple

• iPad 1, 2, 3, 4
• iPad Air, Air 2

HP

• TouchPad

Samsung

• Galaxy Note 10.1

Fits 10" tablets in LifeProof nÜd, Lifedge and other heavy-duty cases within the dimensions above.

FAQs

Do I need to buy a base separately? Yes, this listing is the Tab-Tite cradle only. Pair it with a RAM base and arm using the 4-hole AMPS pattern to suit your mounting surface.

How fast does it ship? If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.

Videos

RAM Tab-Tite cradle overview
