RAM-VP-SW1-8 RAM® 8" Upper Pole with Double Swing Arms & Round Plate
Features
* Dual articulating swing arms allows for ideal device placement
* Compatible with a variety of RAM® laptop, tablet, and other device holders
* Made of powder-coated steel and marine-grade aluminium
* Backed by a lifetime warranty

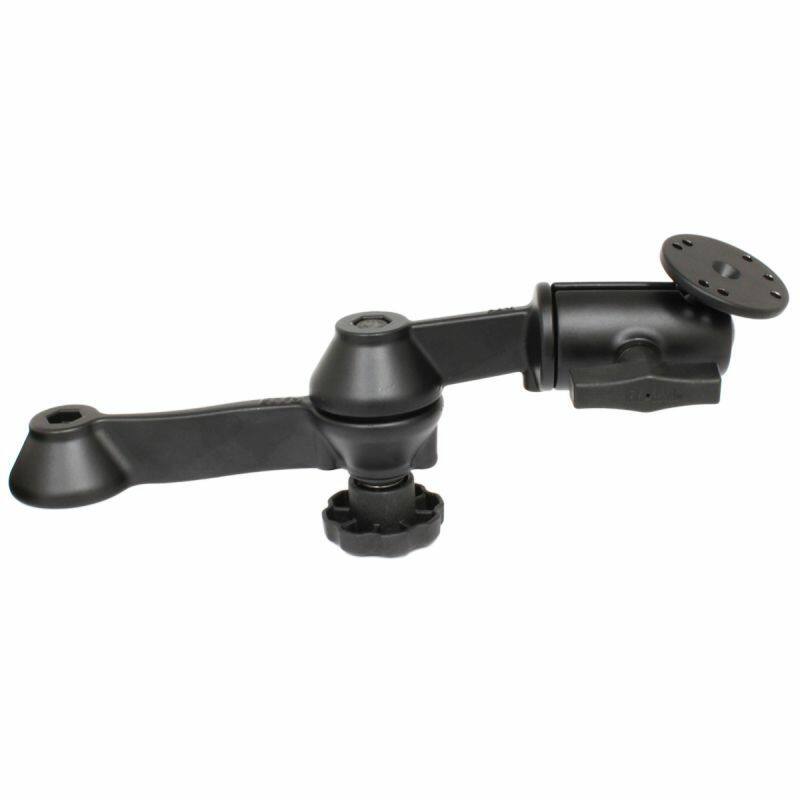

The RAM-VP-SW1-8 consists of a 203mm (8") upper male Tele-Pole™, double swing arm and 2.5" round base that contains the universal AMPs hole pattern. The Tele-Pole™ can be easily adjusted by turning the knob at the top of the post. Once the knob has been tightened, the Tele-Pole™ becomes a rigid support for connecting devices or cradles. The Tele-Pole™ will connect to any RAM vehicle base with a welded female Tele-Pole™. The double swing arm with rotating plate, allows you to twist and tilt the viewing angle of your connected electronic device, when mounted on your RAM Vehicle Mount. The rotating swivel arm gives you even more viewing positions for your mounted electronic device while holding everything firmly in place. The length of the double swing arm is 305mm (12").

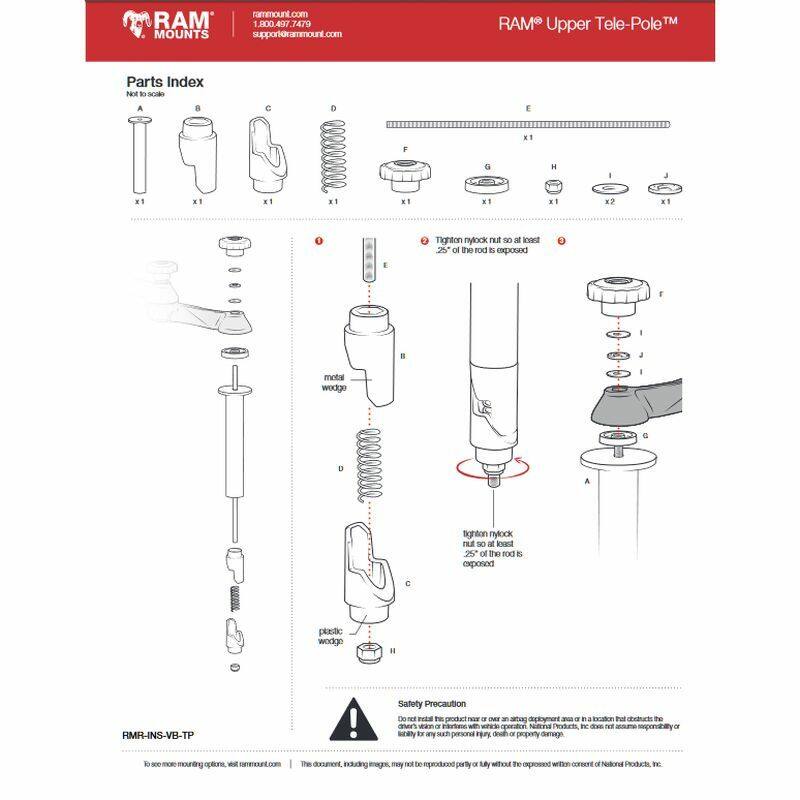

Hardware Included
Assembly Hardware

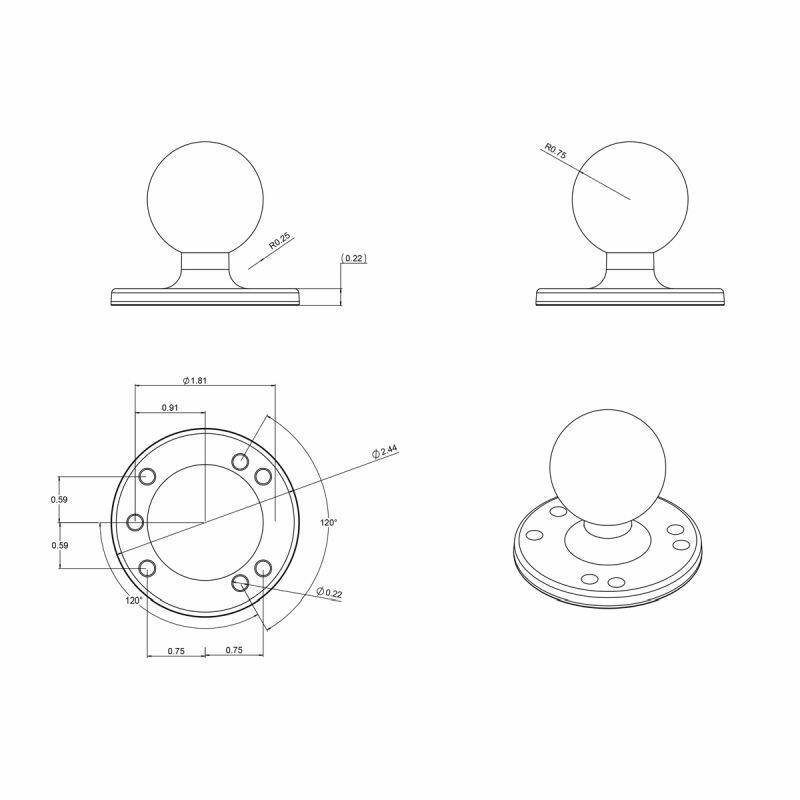

Round Plate Hole Pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole 120-Degree:
1.812” (46.0mm)
Plate Size
63mm (2.5") Diameter
Ball/Socket Size
C Size (1.5")
Materials
Powder coated steel
Marine-grade aluminium
Weight
2 kg (4.4 lbs.)
YouTube:
https://www.youtube.com/watch?v=m42uzfsX2xs&feature=emb_logo
