RAM-VP-SW2F-89-2461 RAM® Tele-Pole™ with 8” & 9” Poles and Double Ball 75x75mm VESA Mount
Features
* Designed to support a screen and laptop from the same base
* Base rotates to provide ideal viewing angles
* Square base plate connects to RAM® No-Drill™ and drill-down vehicle bases

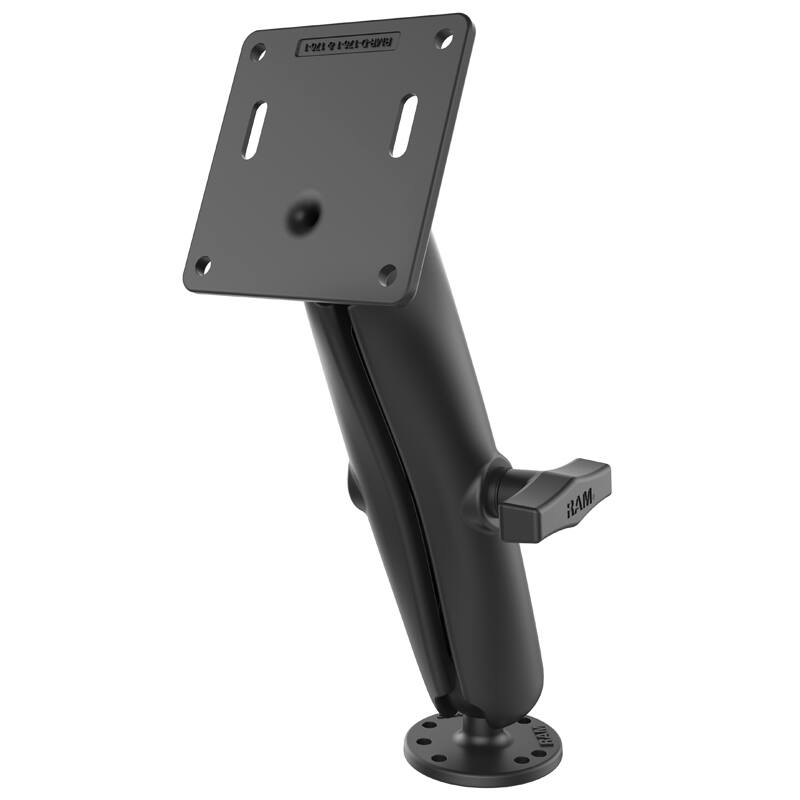

* Square plate features the VESA hole pattern for connection to a wide variety of devices
* 2.5" round plate connects to RAM® device holders containing the universal AMPS hole pattern
* C size 1.5" RAM® ball and socket technology allows for near-infinite adjustability
* Made of power-coated, marine-grade aluminium for durability and reliability in the most demanding marine environments
* Backed by a lifetime warranty

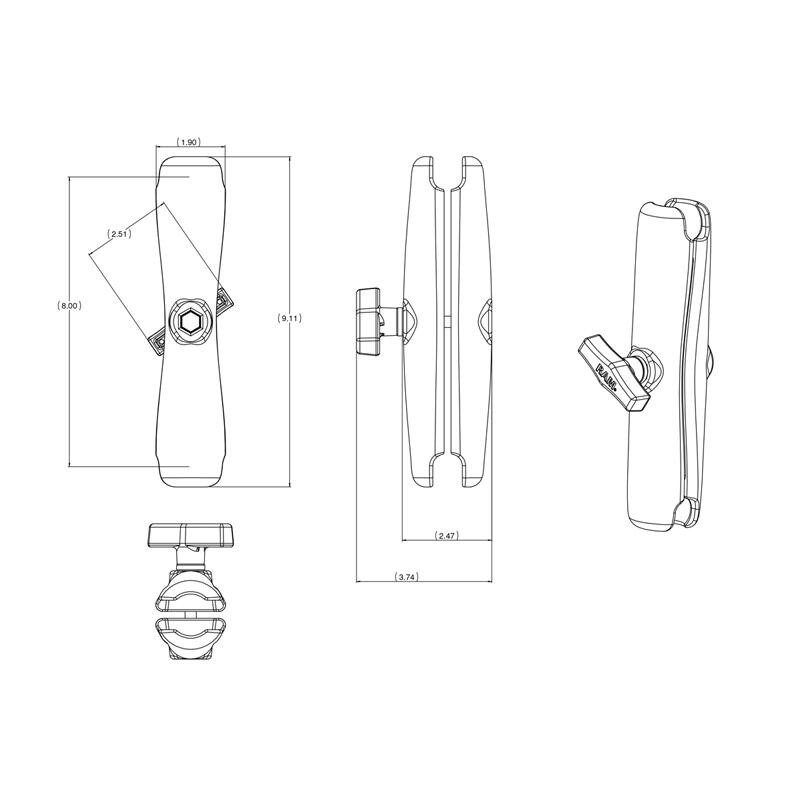

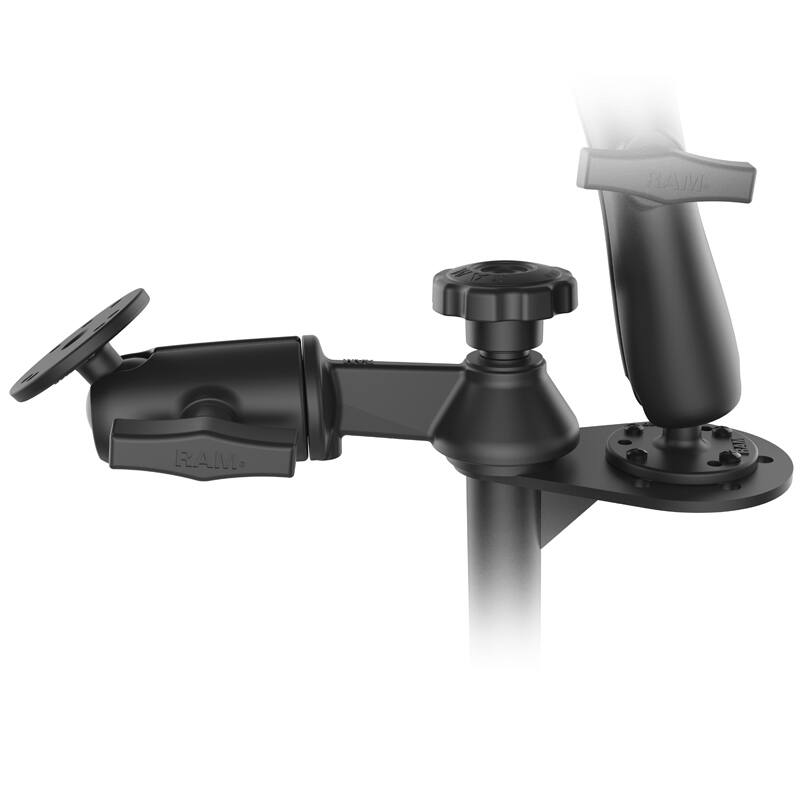

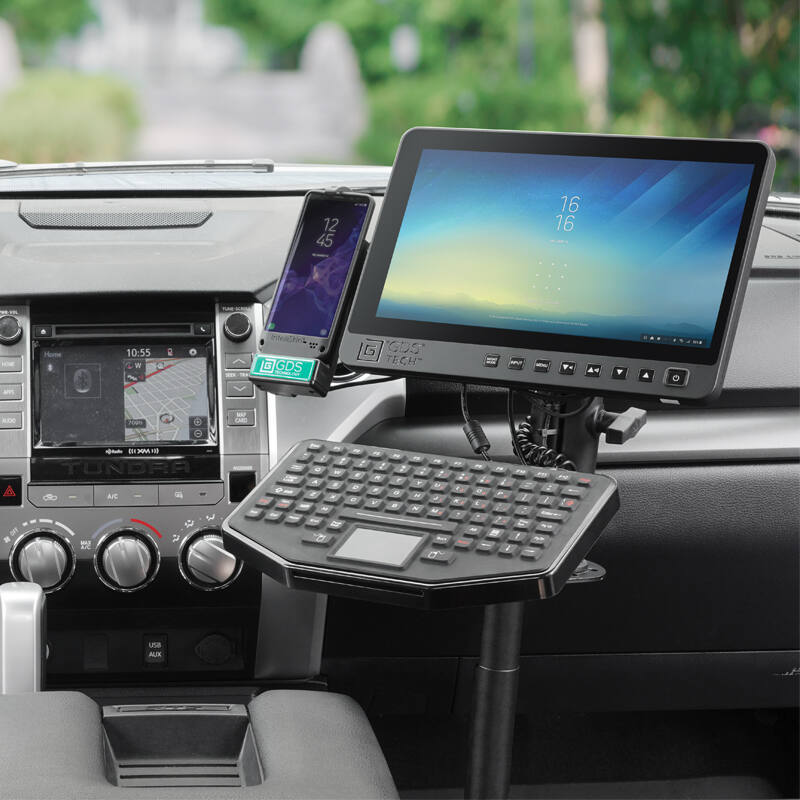

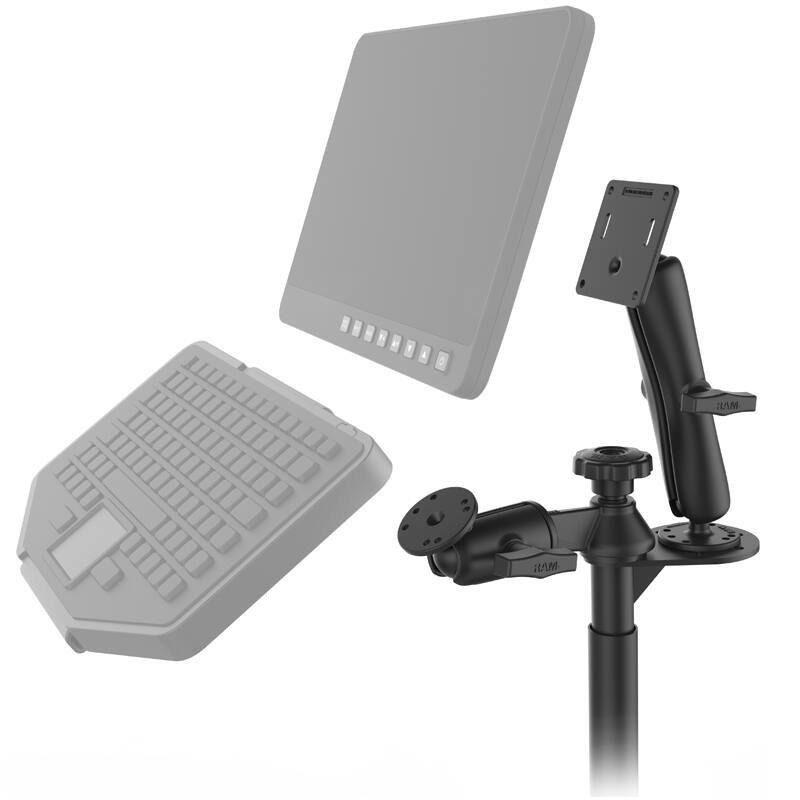

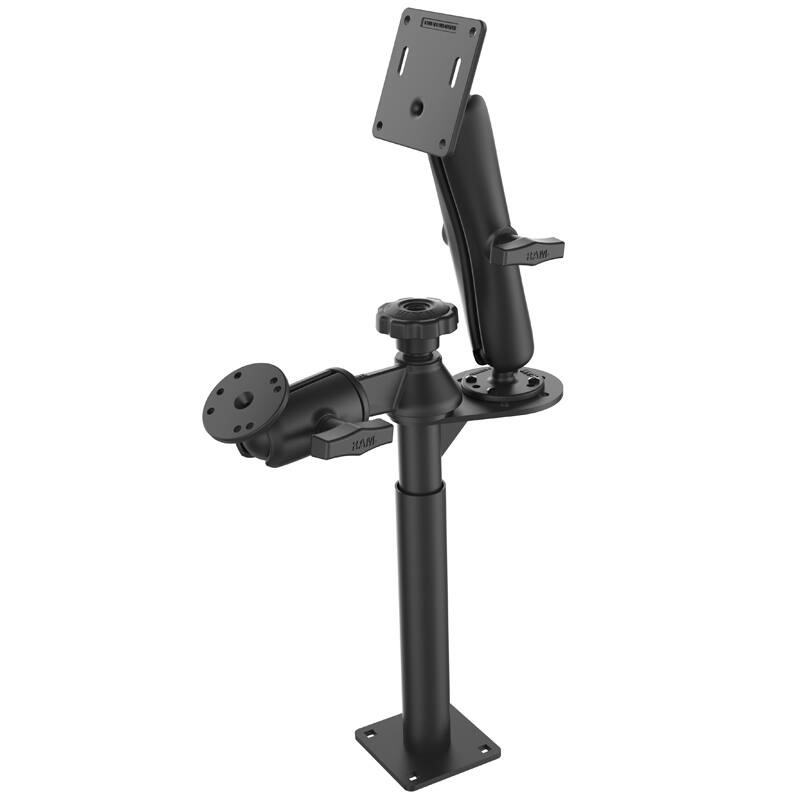

This in-vehicle GDS® View™ monitor and GDS® Keyboard™ mount features a RAM® Tele-Pole™ 229mm (9”) base, RAM® Tele-Pole™ 203mm (8”) upper pole with flange, 152mm (6”) swing arm, and a long C size double socket arm.

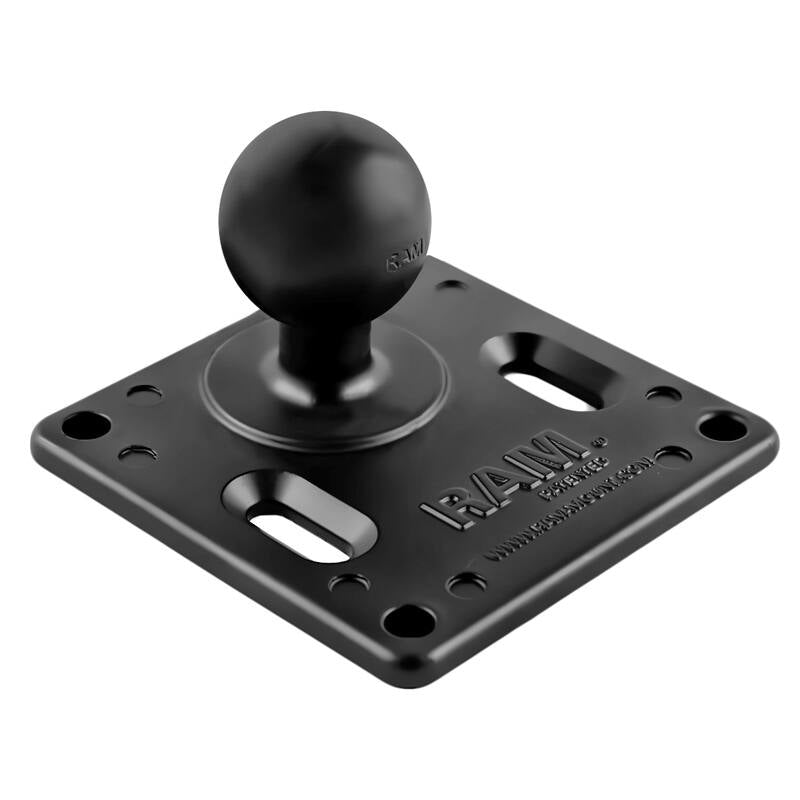

Easily connect your GDS® Keyboard™ to the swing arm, and attach the GDS® View™ monitor to the flange and double socket arm via the included ball bases. With the ability to swing the keyboard out of the way when not in use as well as position the monitor at nearly any angle, ensure your mobile workstation is backed by RAM® Mounts for strength, durability, and versatility.

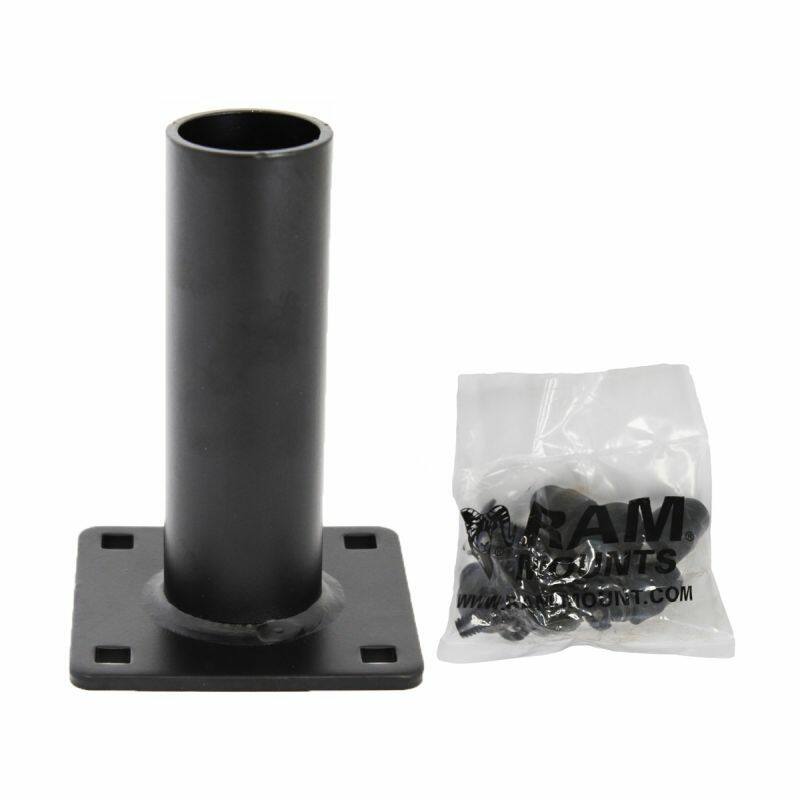

Assembly Hardware
(4) 5/16"-18 x 1" Carriage Bolts
(4) 5/16"-18 Hex Nuts
(4) 5/16" Flat Washers
(4) 5/16" Split Lock Washers
(4) Rubber Caps
Hole Pattern
Tele-Pole: 66.7mm x 66.7mm (2.625" x 2.625")

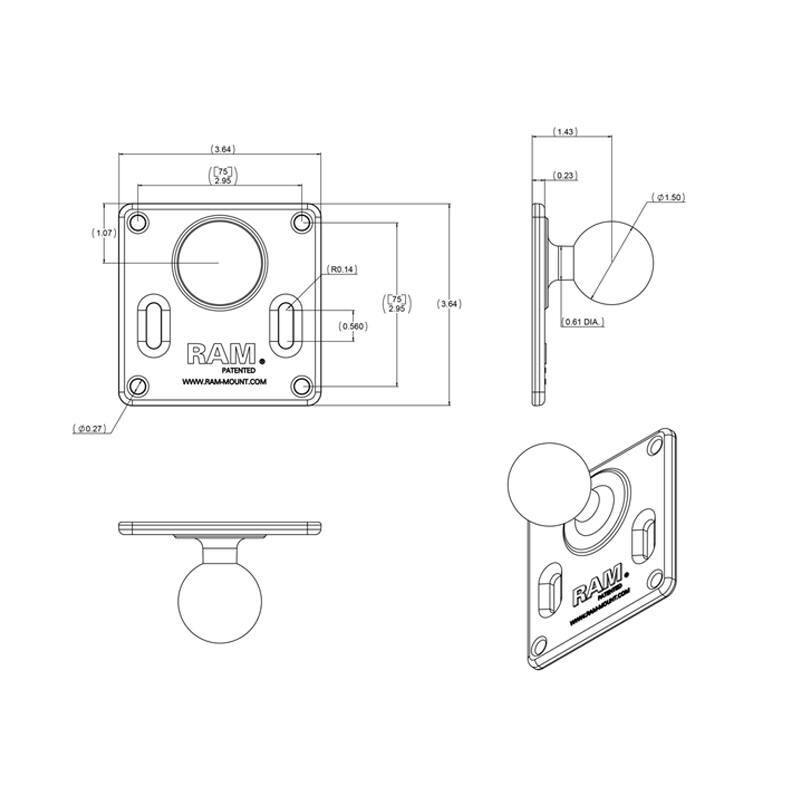

VESA Plate: See Drawing
Ball/Socket Size
C Size (1.5")
Materials
Powder coated steel
Marine-grade aluminium
Weight
4.58 kg (10.1 lbs.)
Weight Capacity
Standard Use: 1.814kg (4 lbs)
Heavy-Duty Use: 1.36kg (3 lbs)
