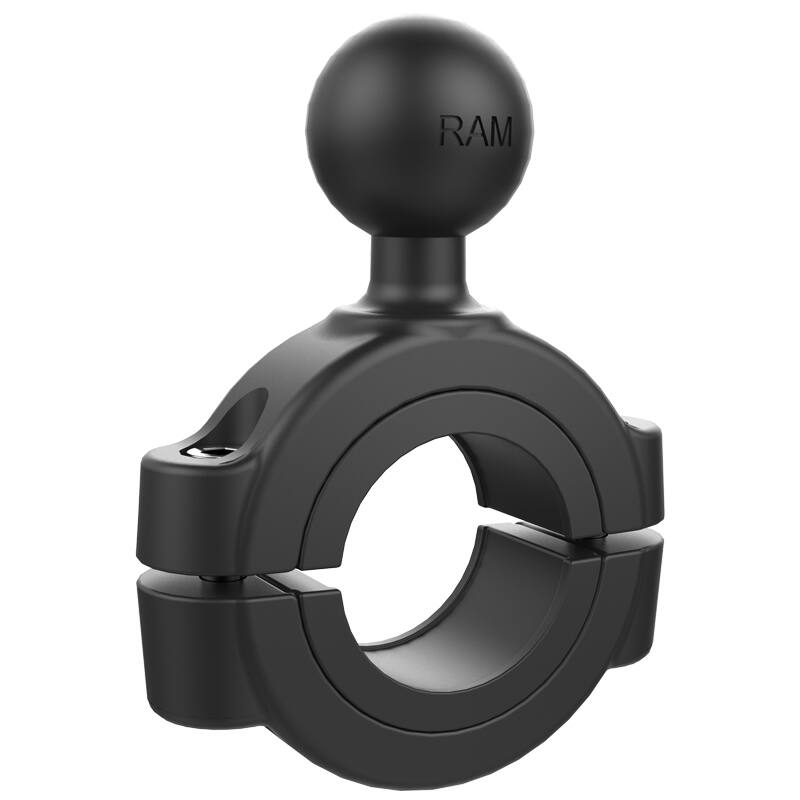

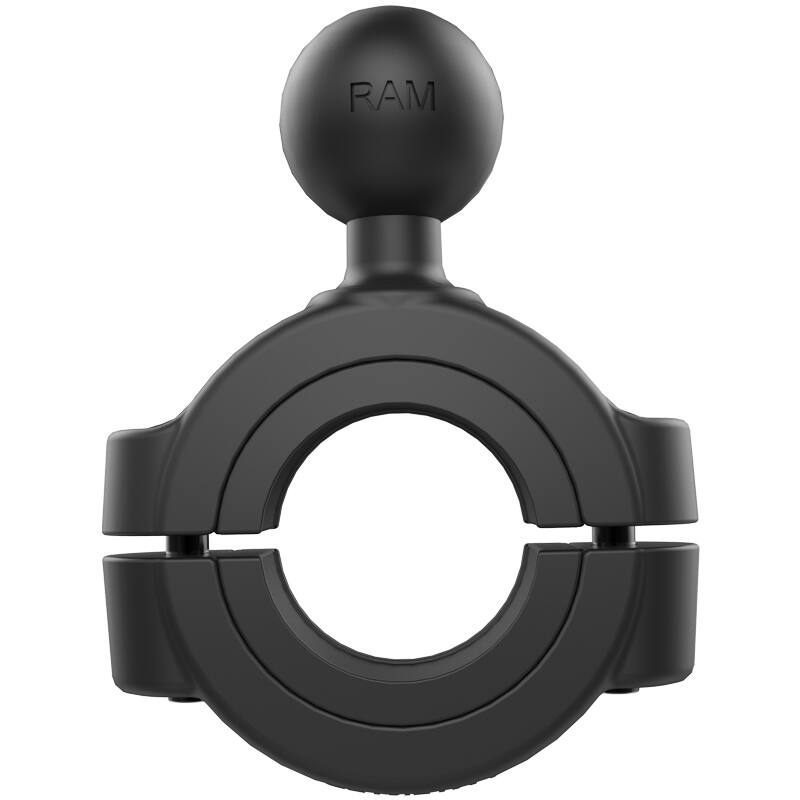

RAM-B-408-112-15U RAM® Torque™ Large Rail Base, B Size
RAM-B-408-112-15U is a Torque™ handlebar and rail mounting base with a 1" B-size ball, fitting large rails 28.5mm to 38mm in diameter.
Key Features

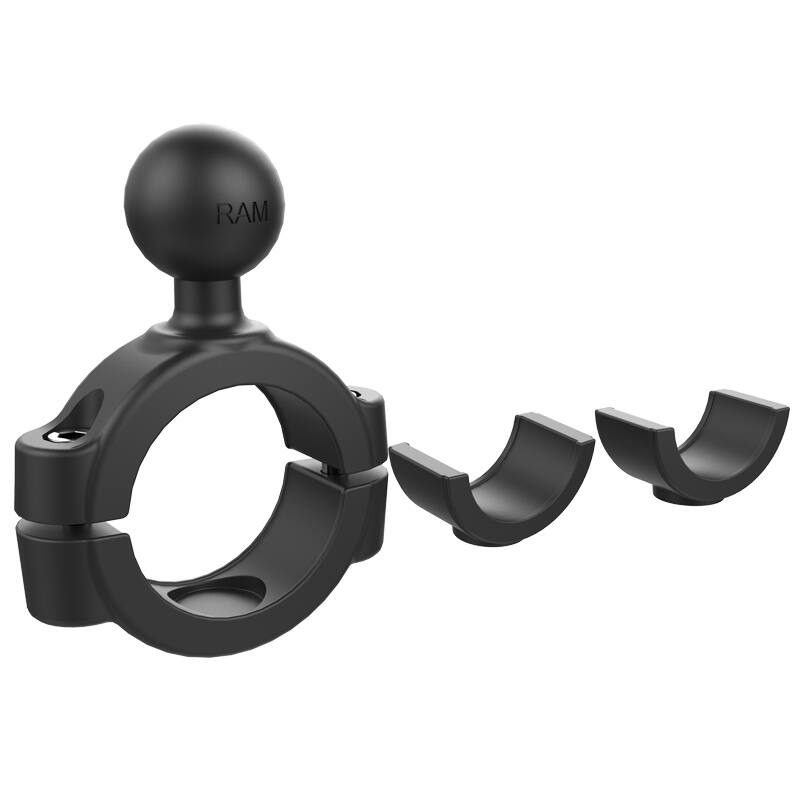

Sizing inserts included for a snug fit that protects the rail surface
Nylon-insert locknuts resist loosening in high-vibration environments
Powder-coated marine-grade aluminium construction
Backed by a lifetime warranty
Works With
Any RAM double socket arm using a B-size (1") ball socket. Fits handlebars and rails 28.5mm to 38mm (1 1/8" to 1.5") in diameter.
Dimensions & Specifications

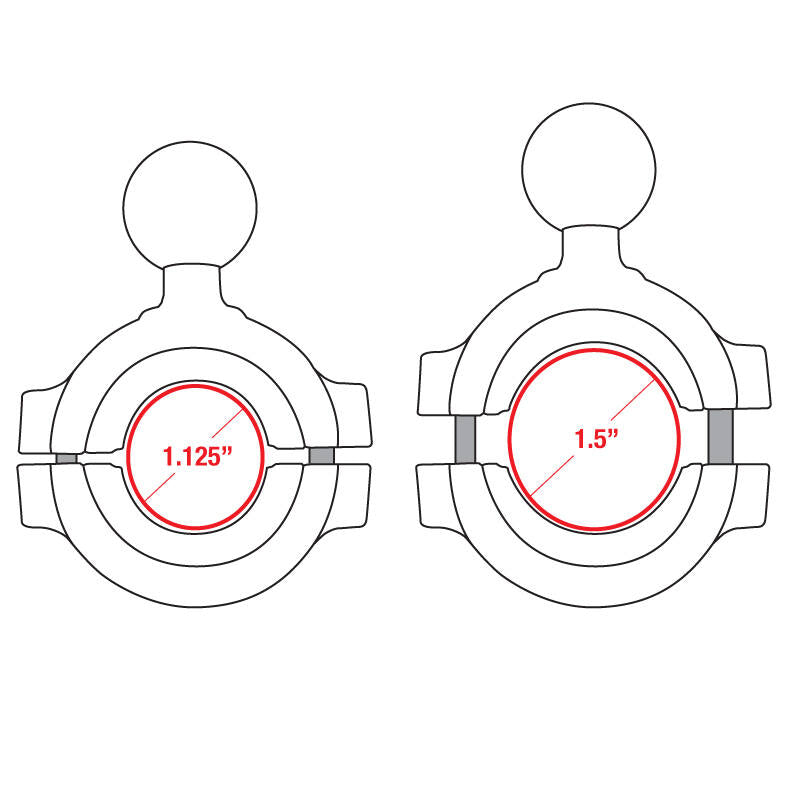

Rail diameter: 28.5mm to 38mm (1 1/8" to 1.5")
Material: powder-coated marine-grade aluminium
Ball size: B size, 1" rubber ball
Weight: 127g (0.28 lbs)
Weight capacity: 907g (2 lbs)

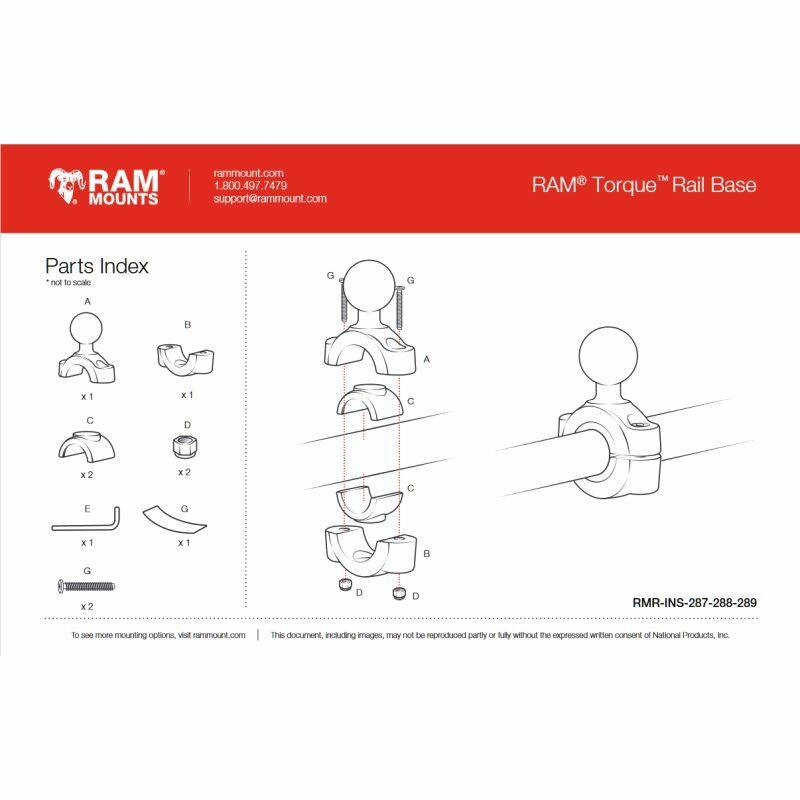

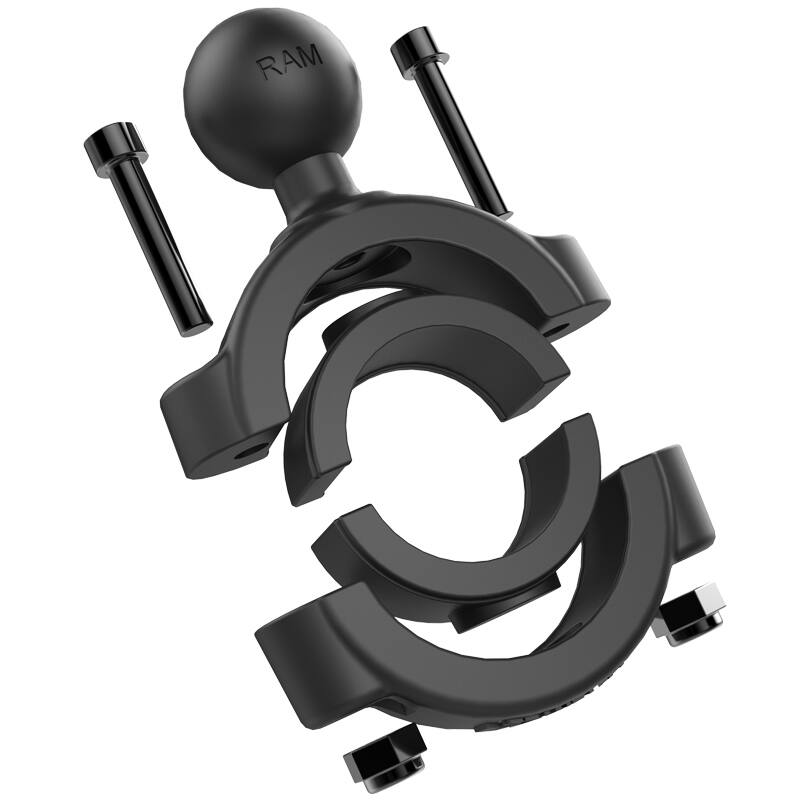

What's Included
2x #10-24 x 1" socket head cap screws
2x #10-24 nylock nuts
2x 1.12" split reducing bushings
2x 1.27" split reducing bushings
1x 5/32" hex key wrench
1x 127mm x 17mm rubber adhesive strip
FAQs
Is there a size for smaller bars? Yes, RAM-B-408-75-1U suits medium bars 19-25mm and RAM-B-408-37-62U suits mini bars 9.5-15.5mm, both with the same B-size ball.
