RAM-B-408-112-15-A-238U RAM® Torque™ Large Rail Base with Diamond Plate - Short
Features

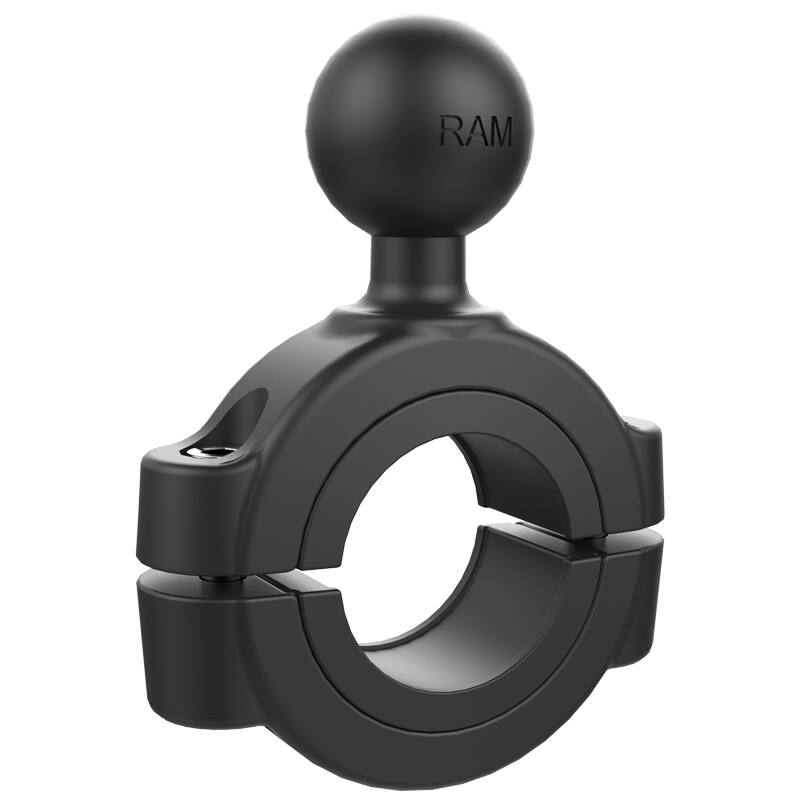

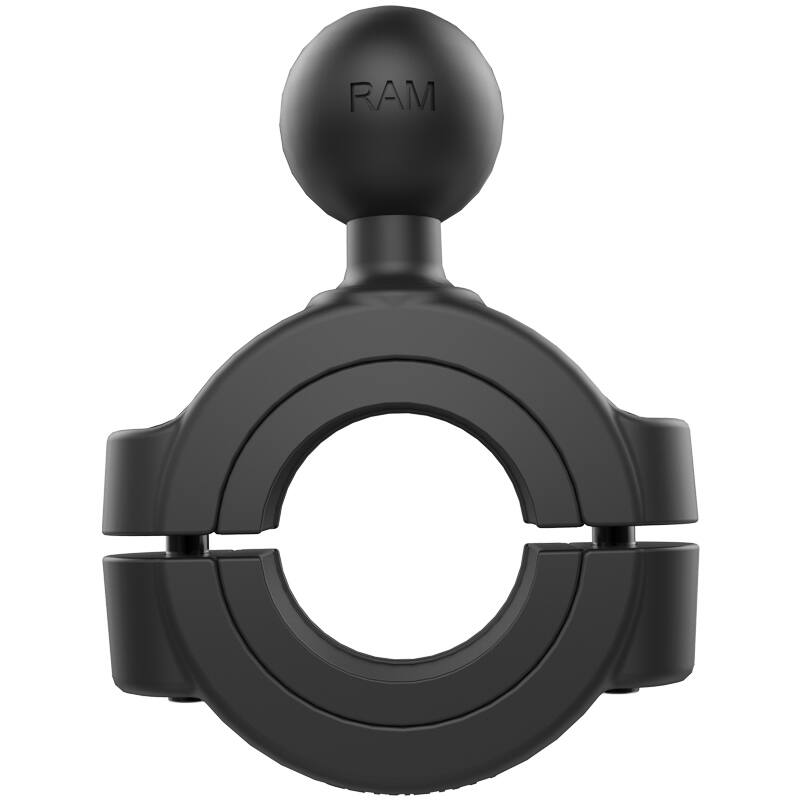

* Handlebar mounting base with B size 1" rubber ball accommodates LARGE rails 28.5-38mm in diameter

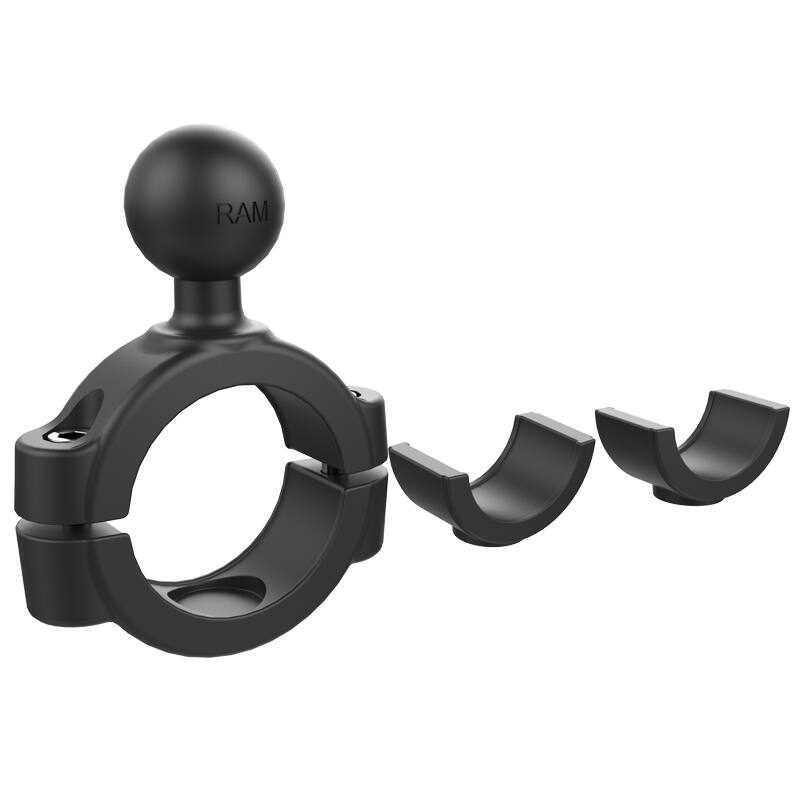

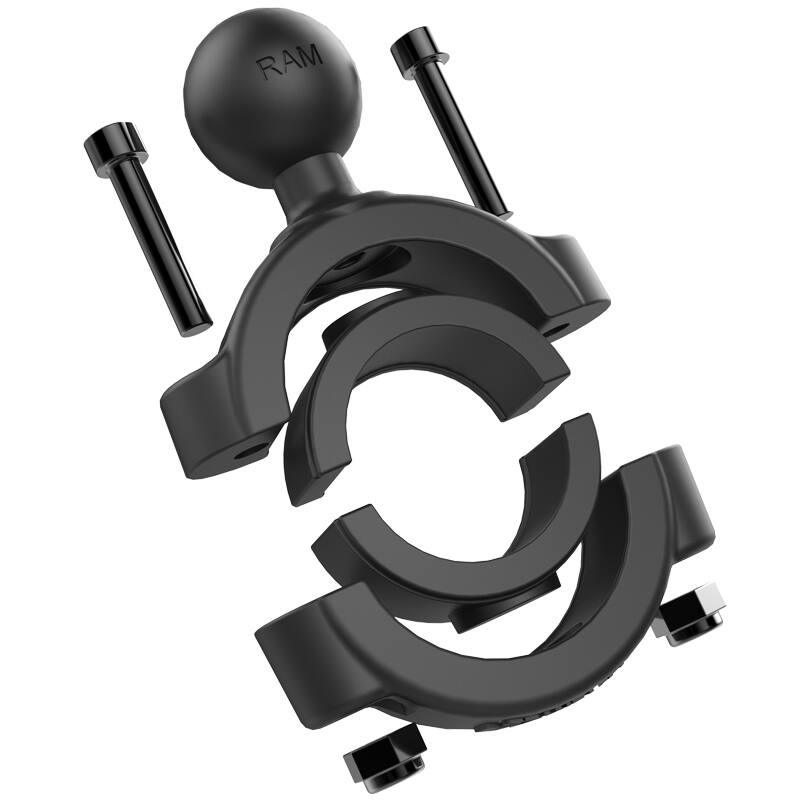

* Includes sizing inserts to provide a tight fit while protecting the mounting surface; mount includes nylon-insert locknuts to prevent loosening

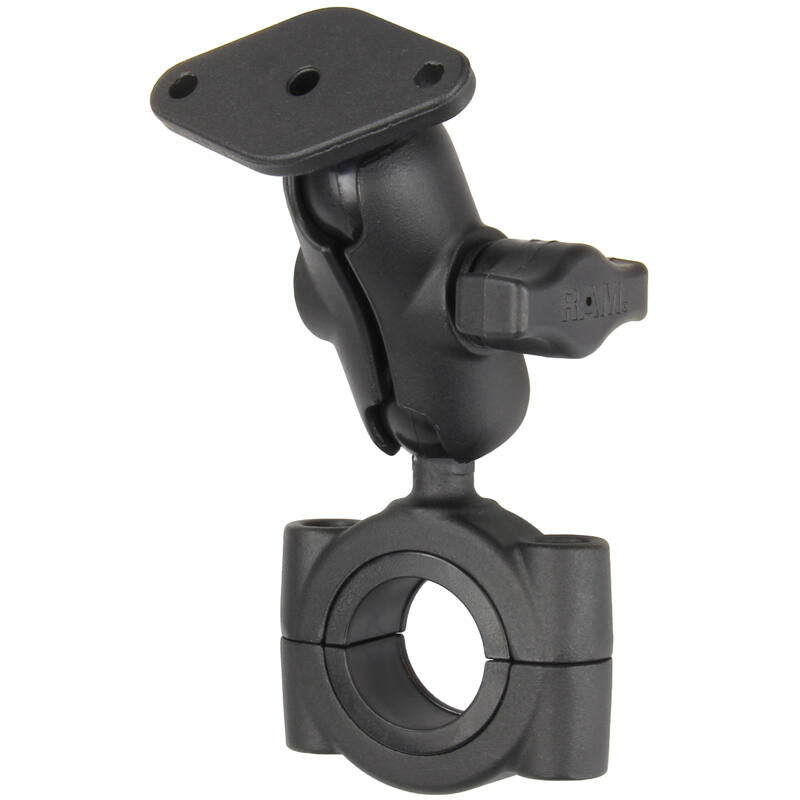

* Includes short B Series arm and diamond base which features the AMPS 2-hole pattern for attachment to lighter device holders
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
Take your mobile entertainment on the road with the new RAM® Torque™ handlebar and rail mounting base. We’ve paired a Torque™ that accommodates large bars from 28.5 to 38mm in diameter with a short length arm and diamond base so that you can connect any of the RAM Mounts cradles or anything else with the AMPs hole pattern. Sizing inserts are included to provide a snug fit and offer additional protection for the rail. The mount utilizes nylon-insert locknuts to prevent loosening in high vibration environments. This low-profile mount is the perfect way to secure your personal electronics and small accessories in any high-vibration environment.
This arm has a socket at both ends that accommodates 1", B-series ball bases - RAM socket technology allows for almost infinite adjustment and perfect viewing angles.
The Diamond Plate measures 61.7mm x 33.3mm (2.43" x 1.31") and has a B Size 1" Ball. The plate has two holes 48.5mm from centre to centre, which matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles.
Dimensions:
Torque base Dimensions:

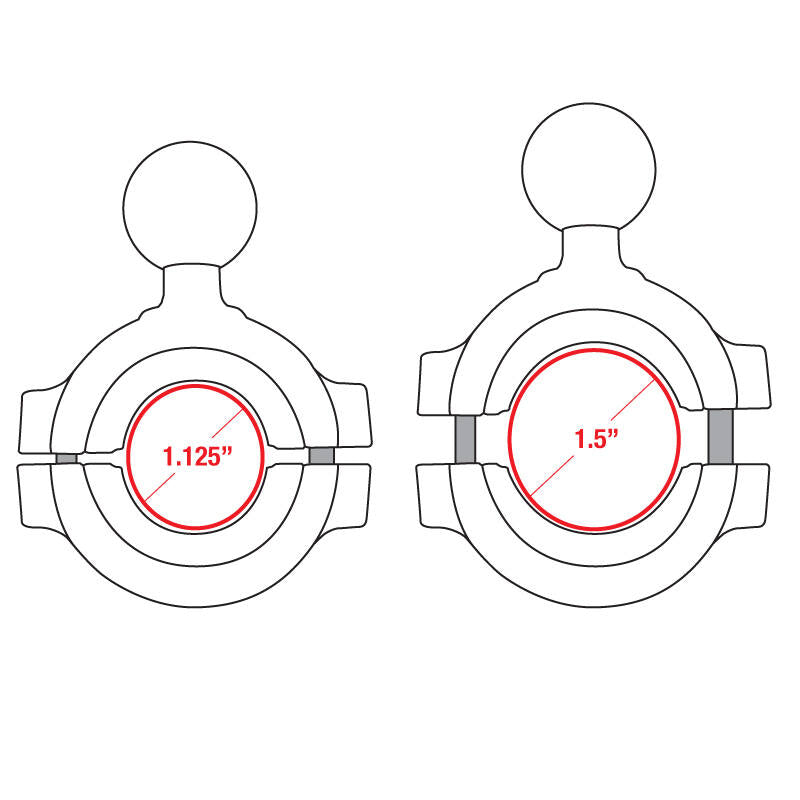

Accommodates rails 28.5-38mm (1 1/8 - 1 1/2") in diameter.
Arm Dimensions:
Overall Length:
60.5mm (2.38")
Socket-To-Socket Length:
51mm (2")
Diamond Plate Hole Pattern
2-Hole AMPS:
48.6mm (1.912")
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
Components:
RAM-B-408-112-15U - RAM Handlebar Torque Base - medium bars 28.5-38mm diameter - 1" (B Series) Ball
RAM-B-201U-A - 60mm Double Socket Arm
RAM-B-238U - Diamond base with 1" ball
