RAM Torque Base (Large Bars) with Medium Arm and Diamond Base (B Series)

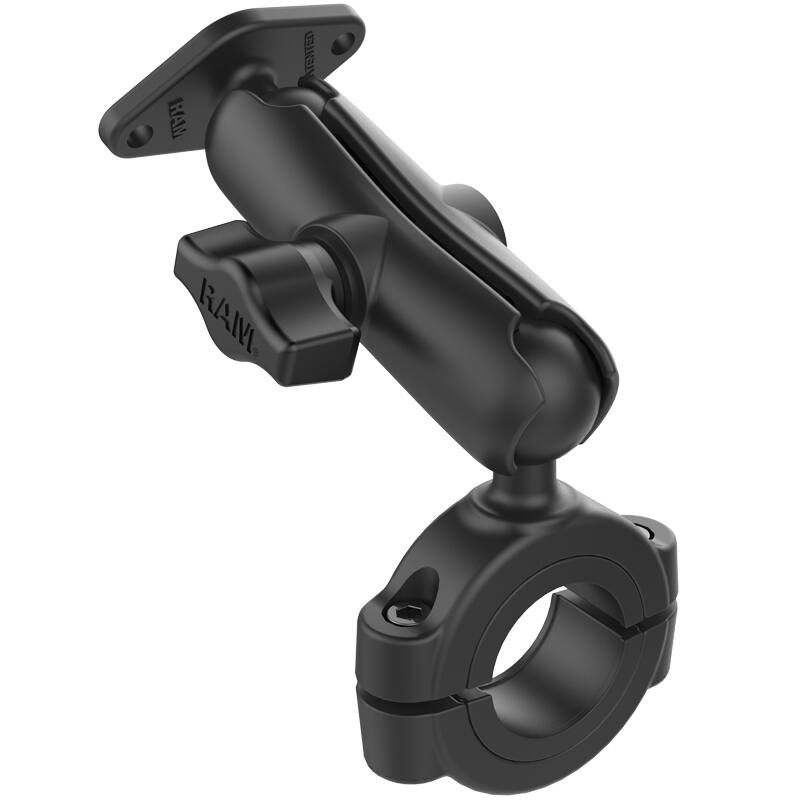

RAM-B-408-112-15-238U RAM® Torque™ Large Rail Base with Diamond Plate, Medium Arm

The RAM-B-408-112-15-238U pairs a Torque™ base for large rails (28.5mm to 38mm) with a standard-length double socket arm and diamond base plate, ready for any RAM® cradle or accessory with the AMPS hole pattern.

Key Features

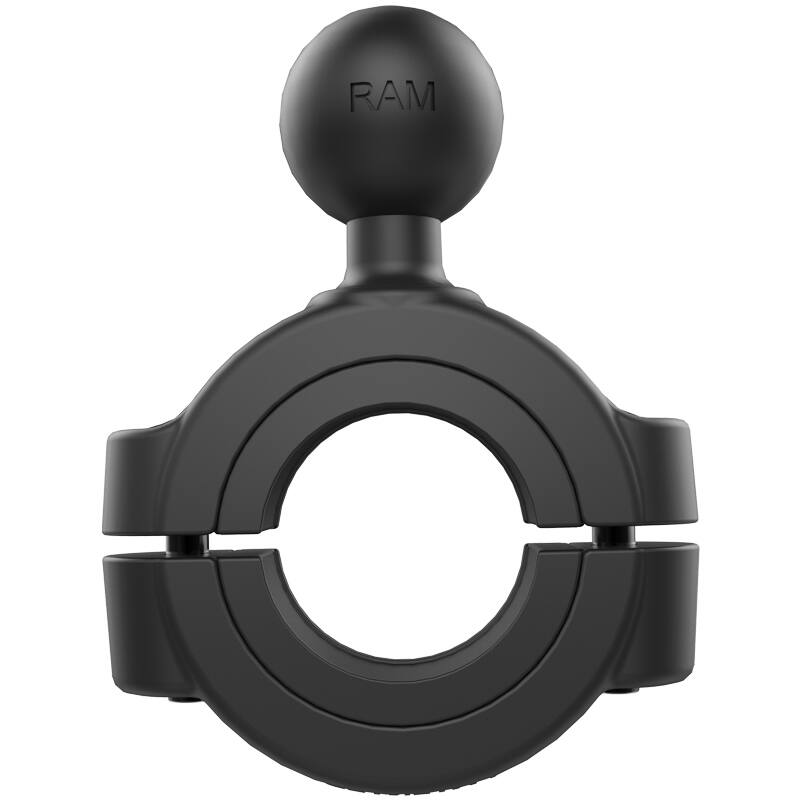

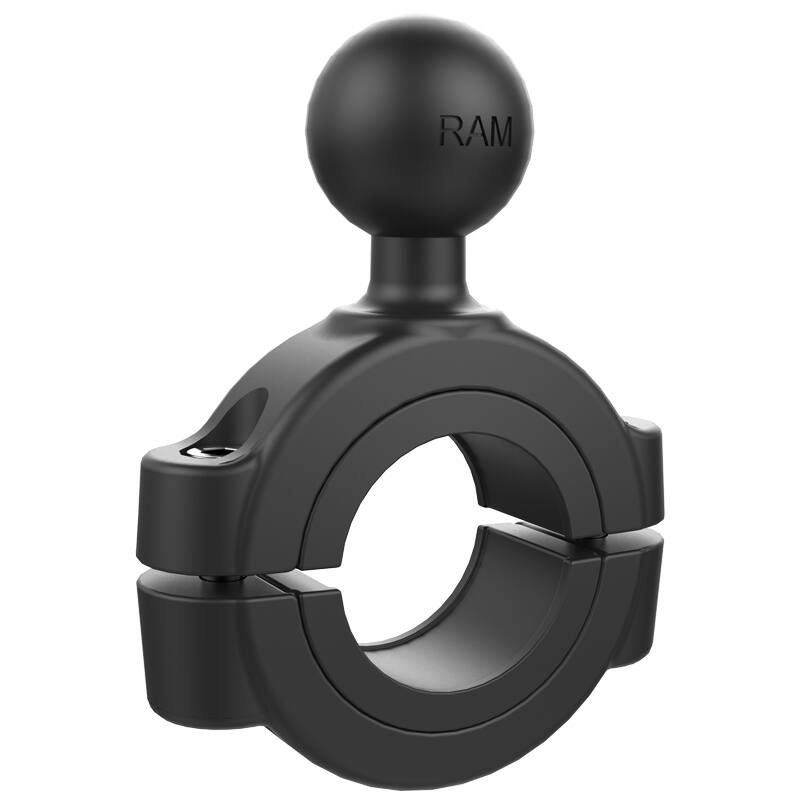

• Torque™ base accommodates large rails from 28.5mm to 38mm in diameter

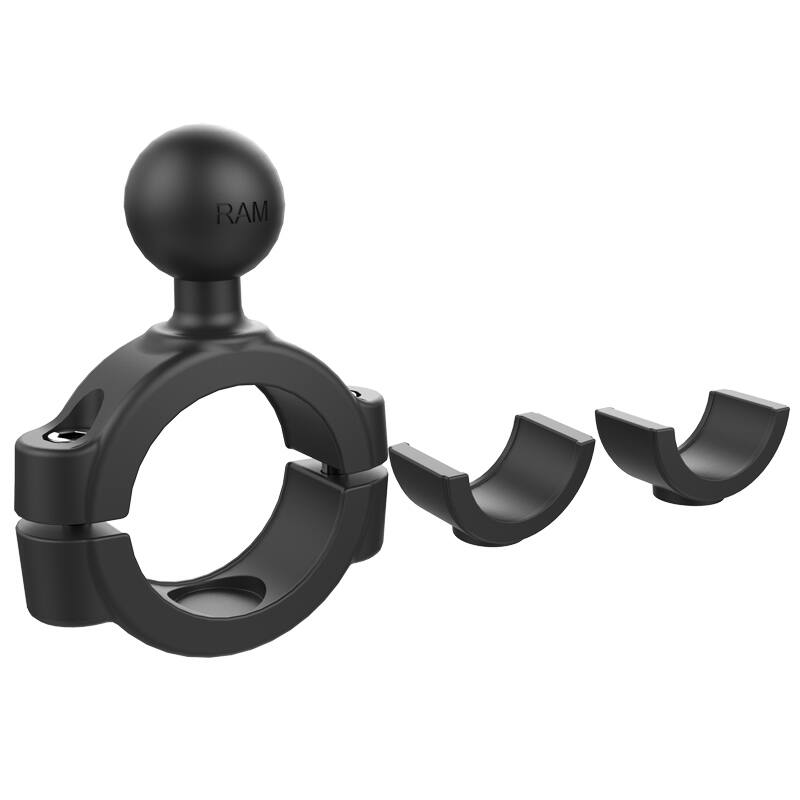

• Sizing inserts included for a snug fit and rail protection; nylon-insert locknuts prevent loosening in high-vibration environments
• Medium B Series arm and diamond base with 2-hole AMPS pattern connect to lighter device holders
• Ball-and-socket design allows near-infinite adjustability
• Powder-coated marine-grade aluminium construction
• Backed by RAM's lifetime warranty

Works With

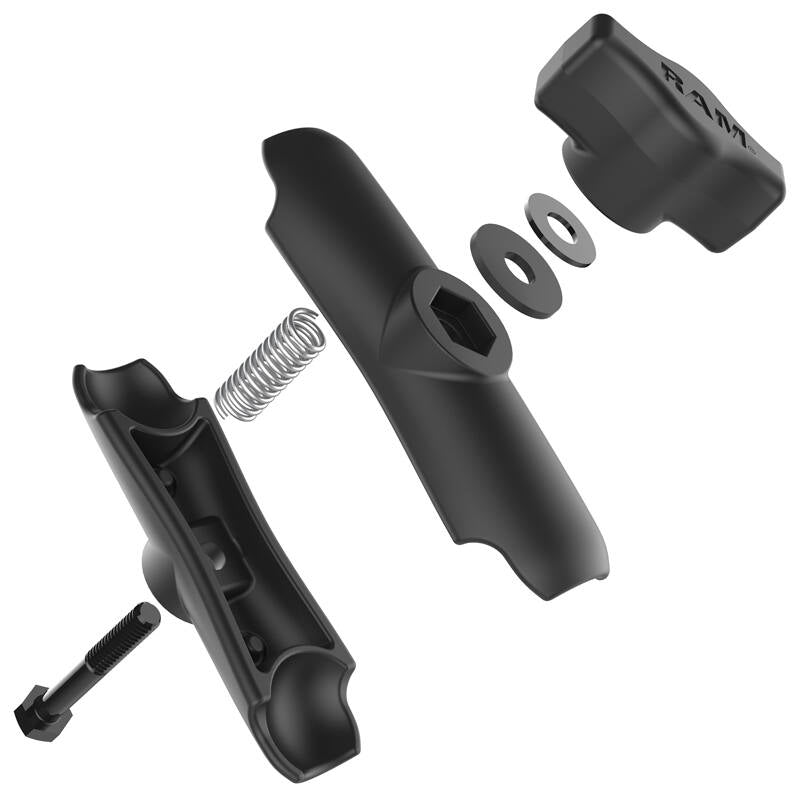

Built from RAM-B-408-112-15U (Torque base), RAM-B-201U (96mm double socket arm), and RAM-B-238U (diamond base with 1" ball).

Dimensions & Specifications

• Torque base range: 28.5mm to 38mm (1 1/8" to 1 1/2")
• Arm length: 94mm (3.69"), socket-to-socket 76mm (3")

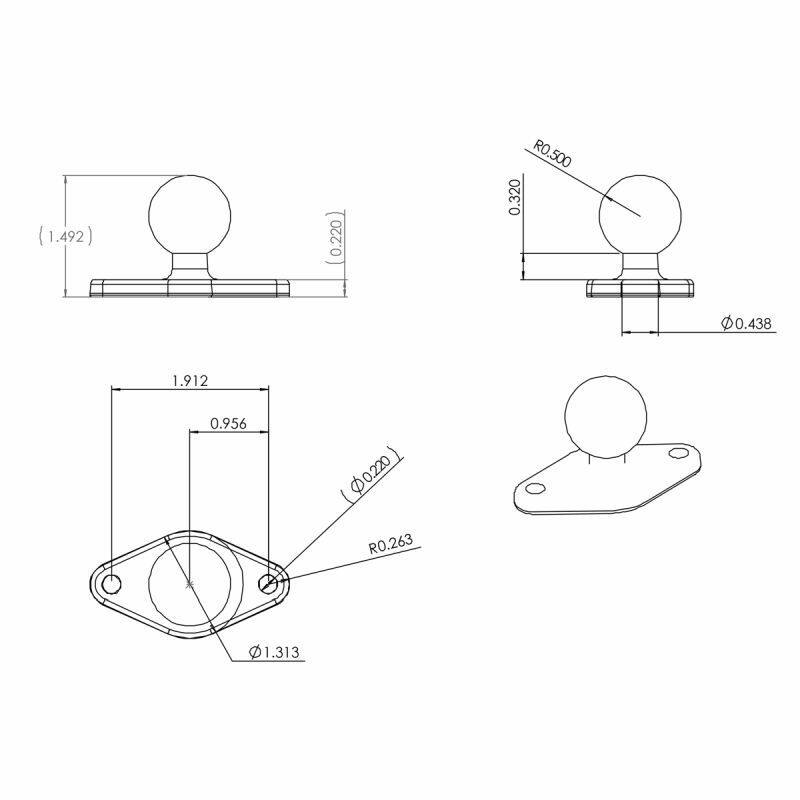

• Diamond plate: 61.7mm x 33.3mm (2.43" x 1.31")
• 2-Hole AMPS: 1.912" (48.6mm)
• Ball size: B Size (1")
• Weight capacity: 907 grams (2 lbs) standard use, 454 grams (1 lb) heavy-duty use
• Material: Powder-coated marine-grade aluminium alloy
• Weight: 304 grams (0.67 lbs)

FAQs

If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
