RAM Torque Base (Medium Bars) with 1" Ball, Medium Arm and Diamond Base

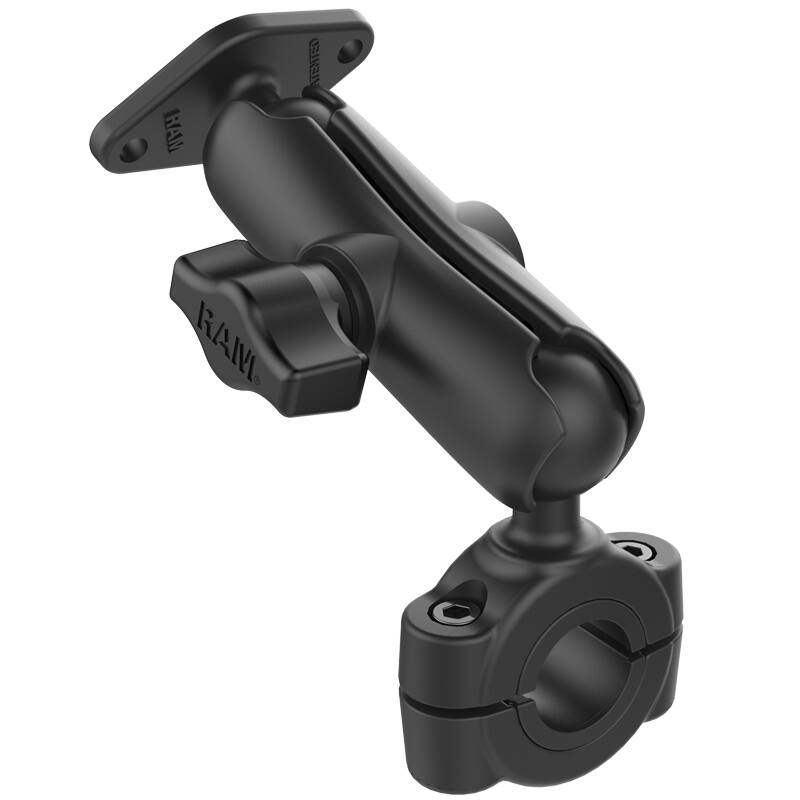

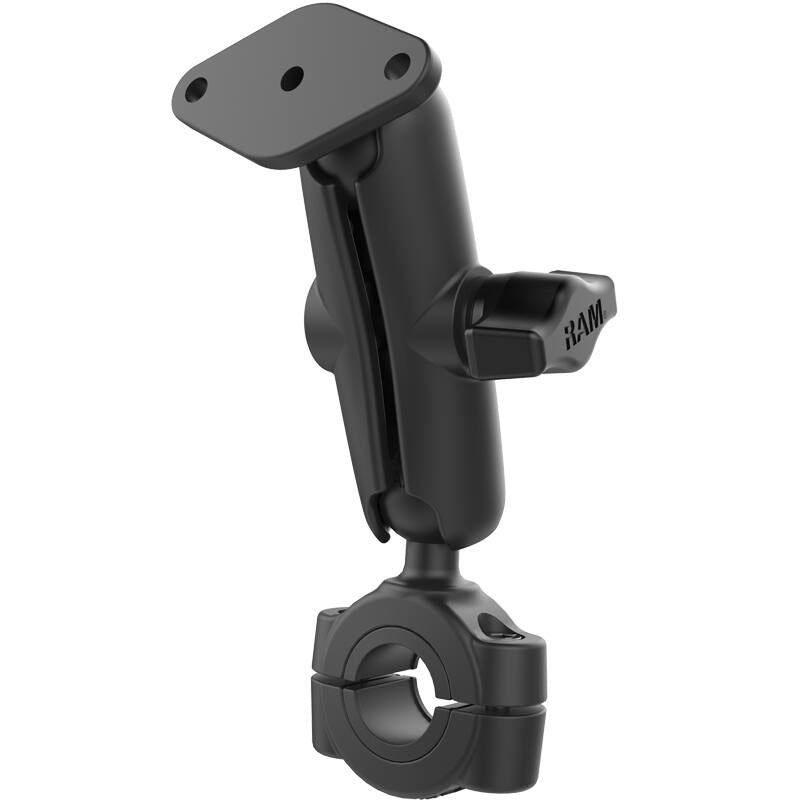

RAM-B-408-75-1-238U Torque™ Medium Rail Double Ball Mount with Diamond Plate

The RAM-B-408-75-1-238U is a Torque™ handlebar mounting base for medium bars 19–25mm in diameter, pairing a 1" B-Size ball with a medium double socket arm and diamond AMPS plate.

Key Features

• Fits handlebars and rails 19–25mm (0.75" to 1") in diameter
• Includes double socket arm and diamond plate for near-infinite adjustability
• Sizing inserts included for a snug, protective fit; nylon-insert locknuts resist loosening under vibration
• Powder-coated marine-grade aluminium construction
• Lifetime warranty

Dimensions & Specifications

• Bar/rail diameter: 19–25mm (0.75" to 1")
• Arm overall length: 94mm (3.69"); socket-to-socket: 76mm (3")
• Diamond plate: 61.7mm x 33.3mm (2.43" x 1.31")
• 2-hole AMPS pattern: 1.912" (48.6mm)
• Material: marine-grade aluminium
• Weight: 281g (0.61 lbs)
• Weight capacity — standard use: 907g (2 lbs); heavy-duty use: 454g (1 lb)

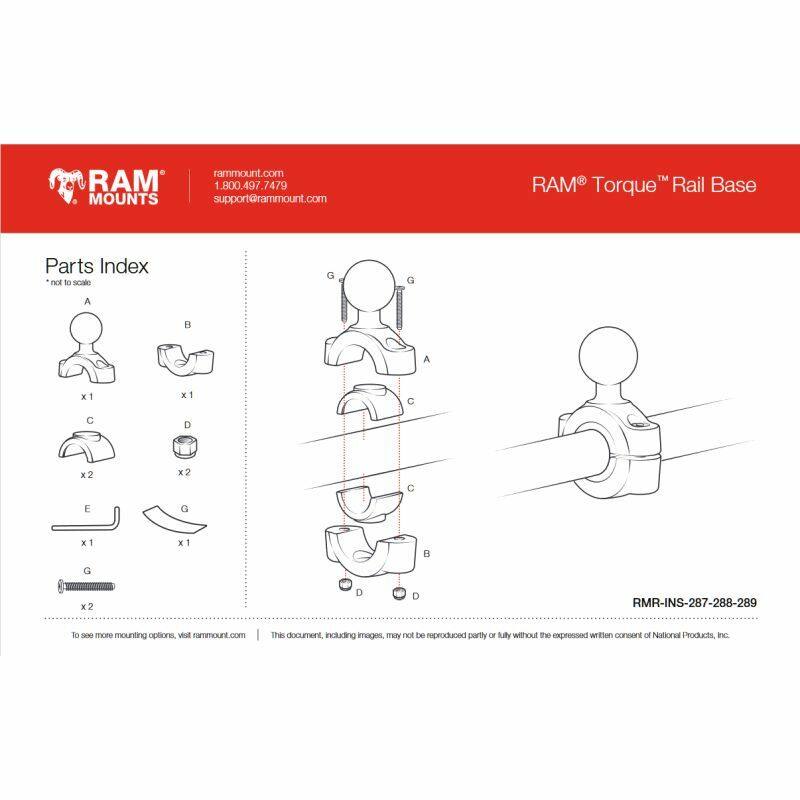

Hardware Included

• 2x #10-24 x 1" socket head cap screws
• 2x #10-24 nylock nuts
• 2x 0.75" composite bushings
• 2x 0.9" composite bushings
• 1x 88.9mm rubber strip
• 1x 5/32" hex key wrench

Components

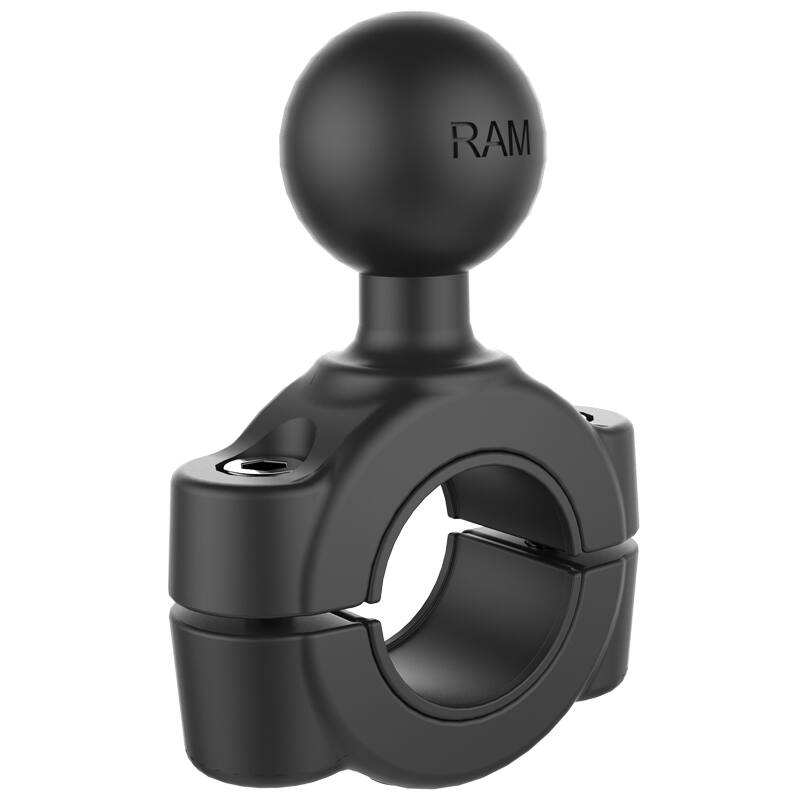

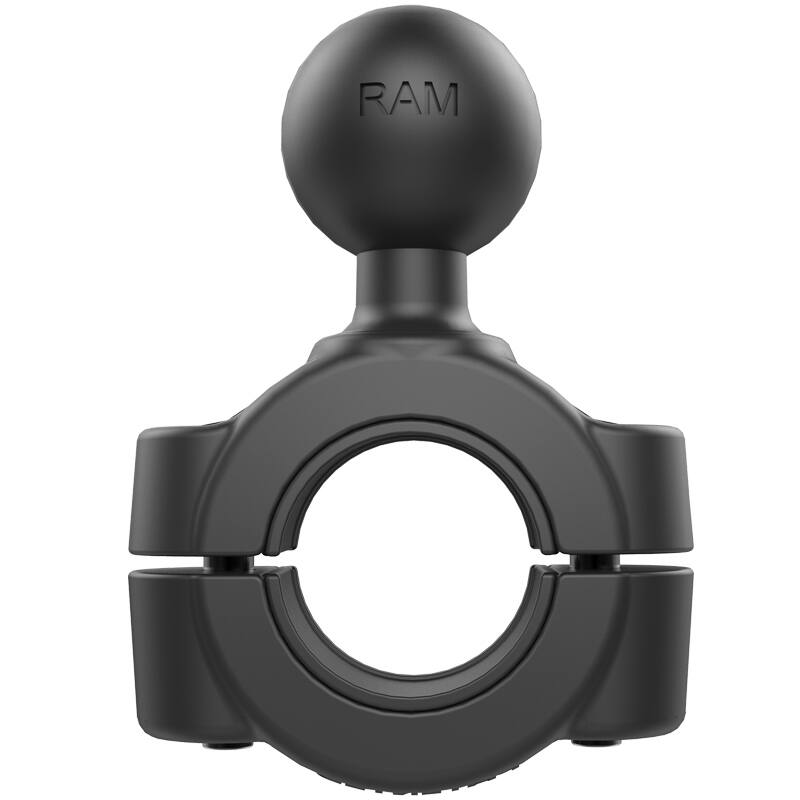

• RAM-B-408-75-1U Torque handlebar base
• RAM-B-201U 96mm double socket arm
• RAM-B-238U diamond base

FAQs

How fast does this ship? If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
