RAM Torque Base (Mini Bars / Posts) - B Series 1" ball

RAM Torque Base (Mini Bars / Posts) - B Series 1" ball

SKU:RAM-B-408-37-62U

Regular price $57.97 NZD
Regular price Sale price $57.97 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

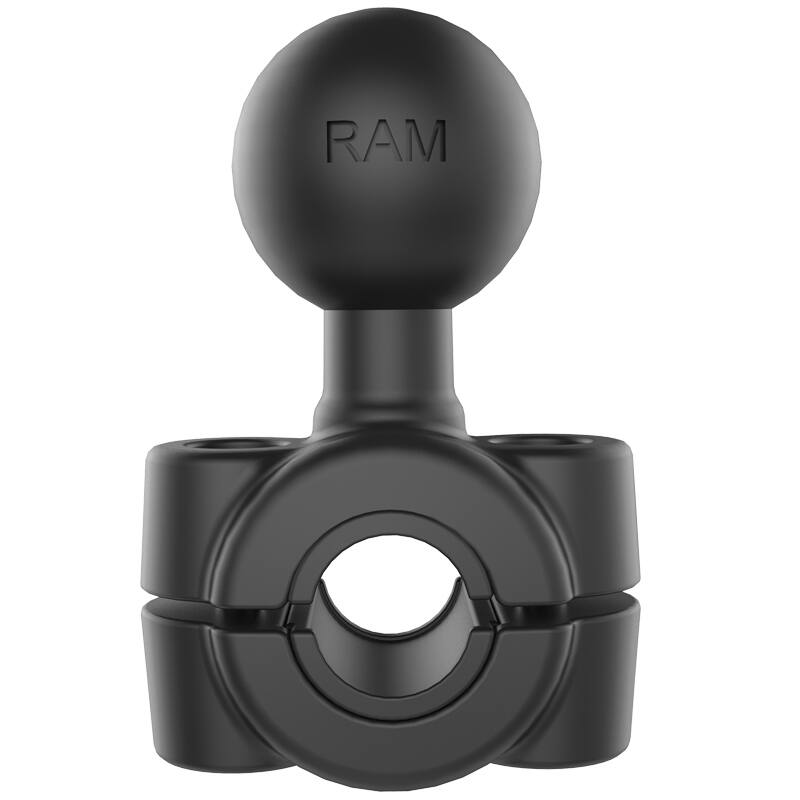

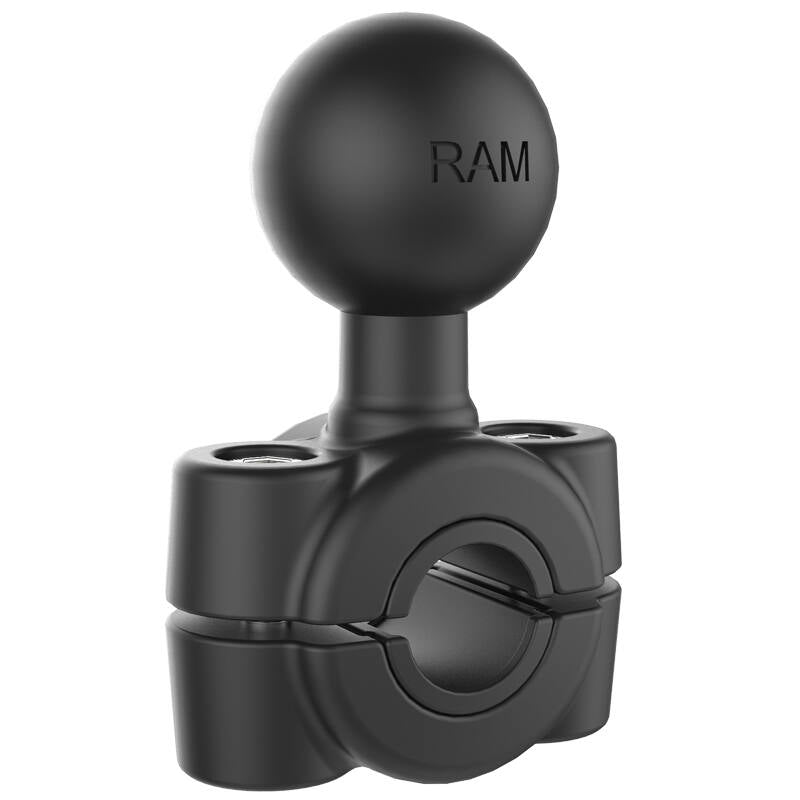

RAM-B-408-37-62U RAM® Torque™ Small Rail Base


Features

* Ideal mounting base for scooter mirror rails, vehicle headrests, and much more
* Included B size 1" RAM® rubber ball allows for connection to any B size RAM® double socket arm
* RAM® ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

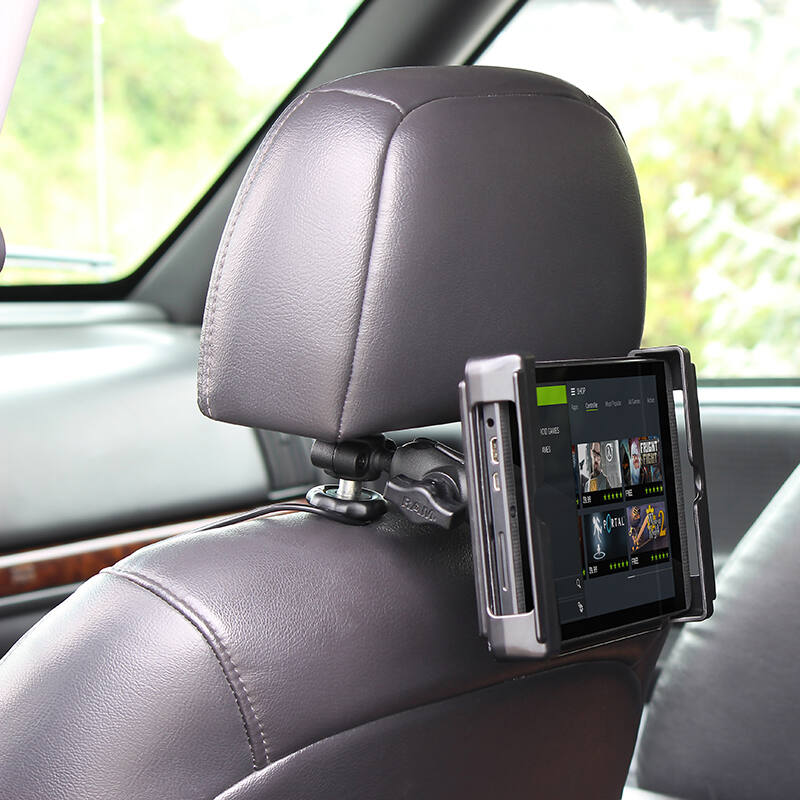

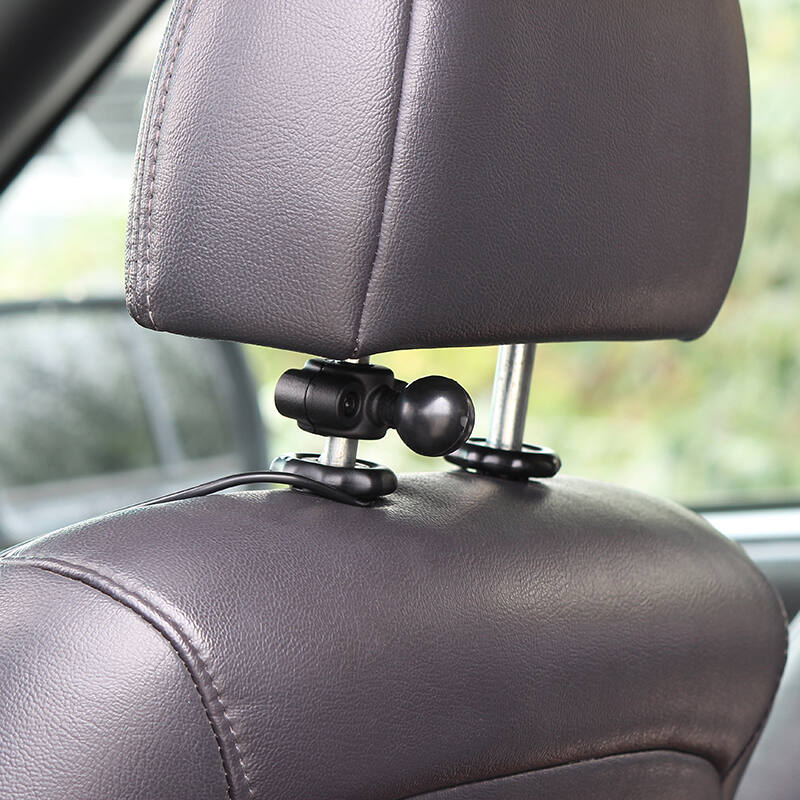

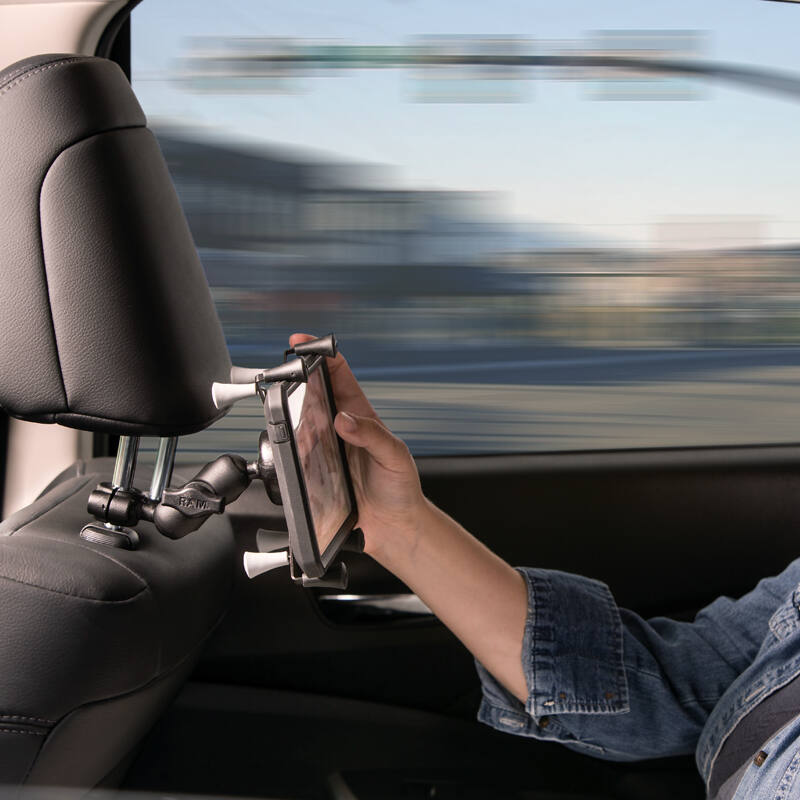

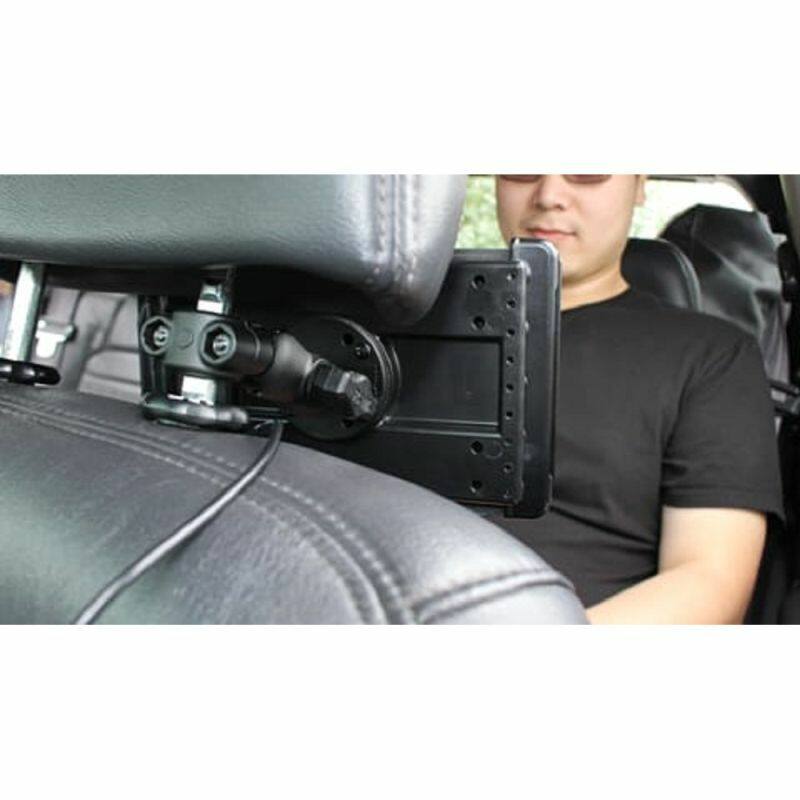

The mini sized RAM Torque mount is ideal for small rails and posts. In practice this means items such as car headrest posts and is perfect for rear seat iPad mounts. It will also mount easily onto most motorcycle mirror posts.


The RAM® Torque™ bar mount has a 1” rubber ball and accommodates rails from 9.5 to 15.5mm (3/8” to ⅝”) in diameter.

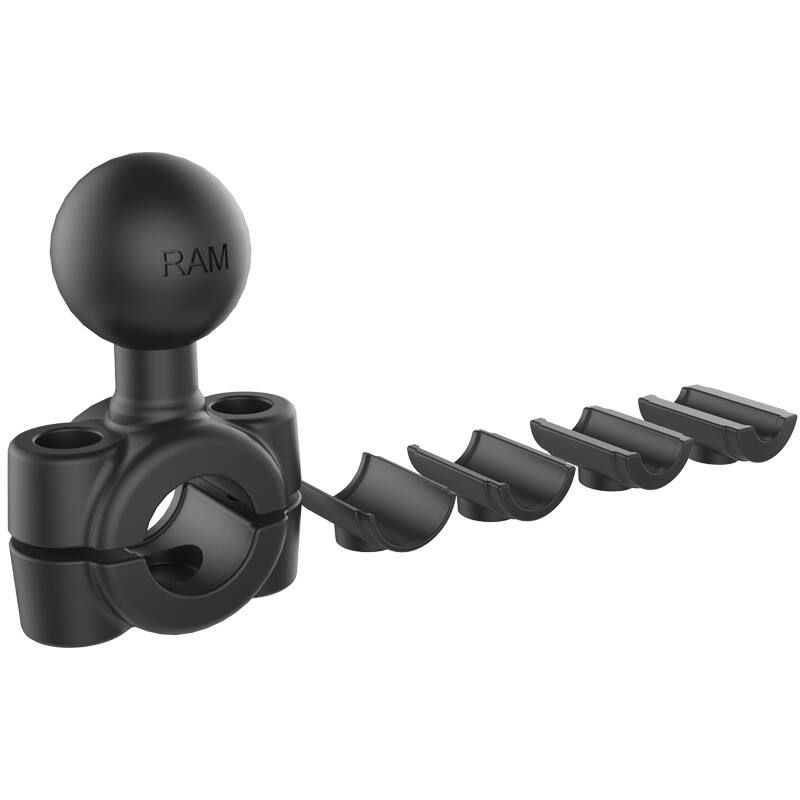

Sizing inserts are included to provide a snug fit and protection of the rail. The mount utilizes nylon-insert locknuts to prevent loosening in high vibration environments.

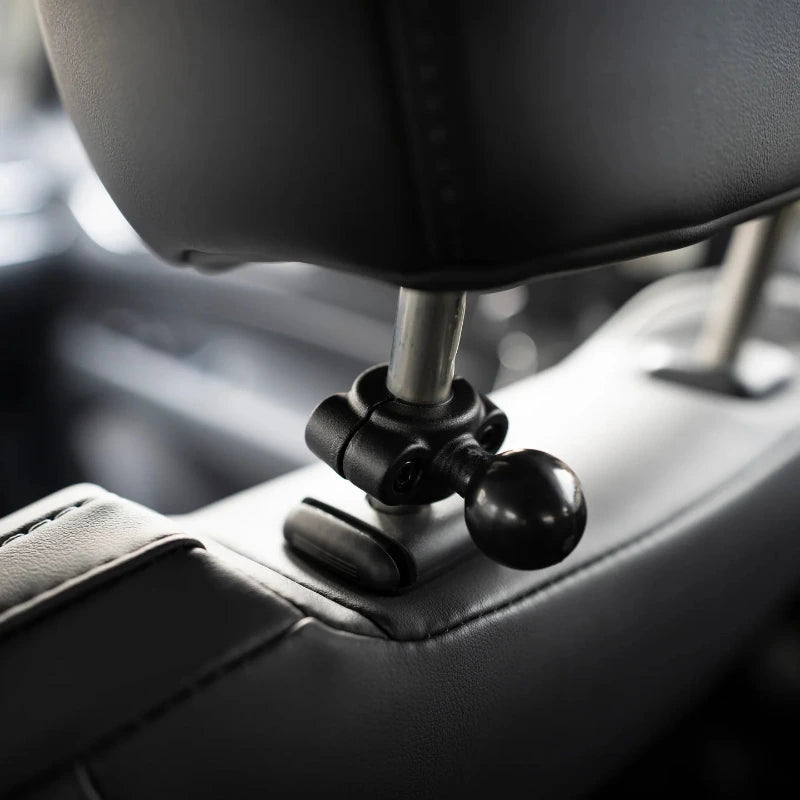

This component allows for mounting to scooter mirror rails as well as vehicle headrests and other round rails 9.5 - 15.5mm diameter.


Rail Mount Dimensions:
Accommodates rails 9.5 - 15.5mm (0.375" to 0.625") in diameter.

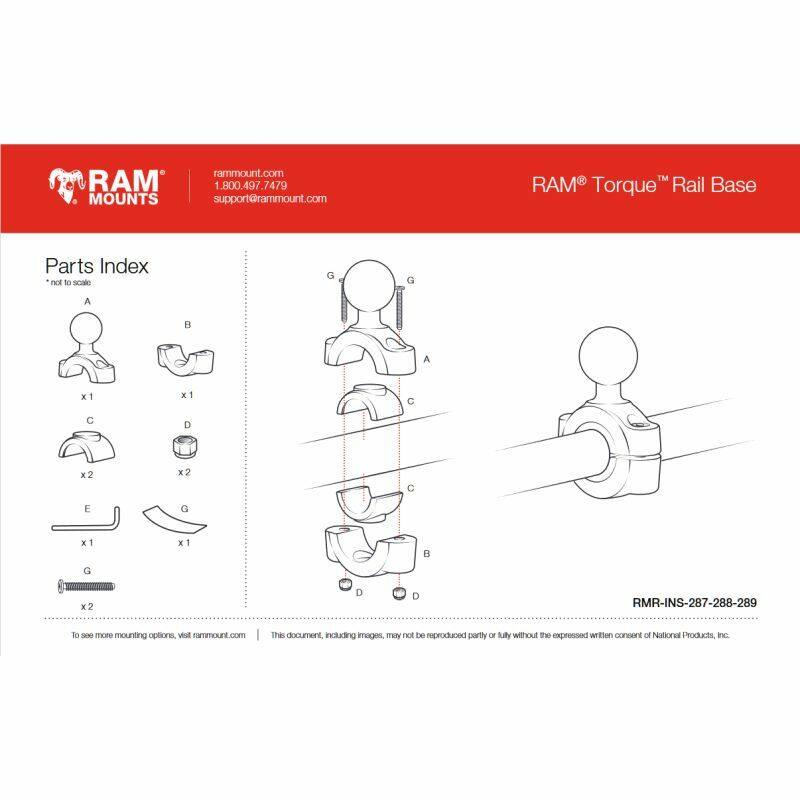

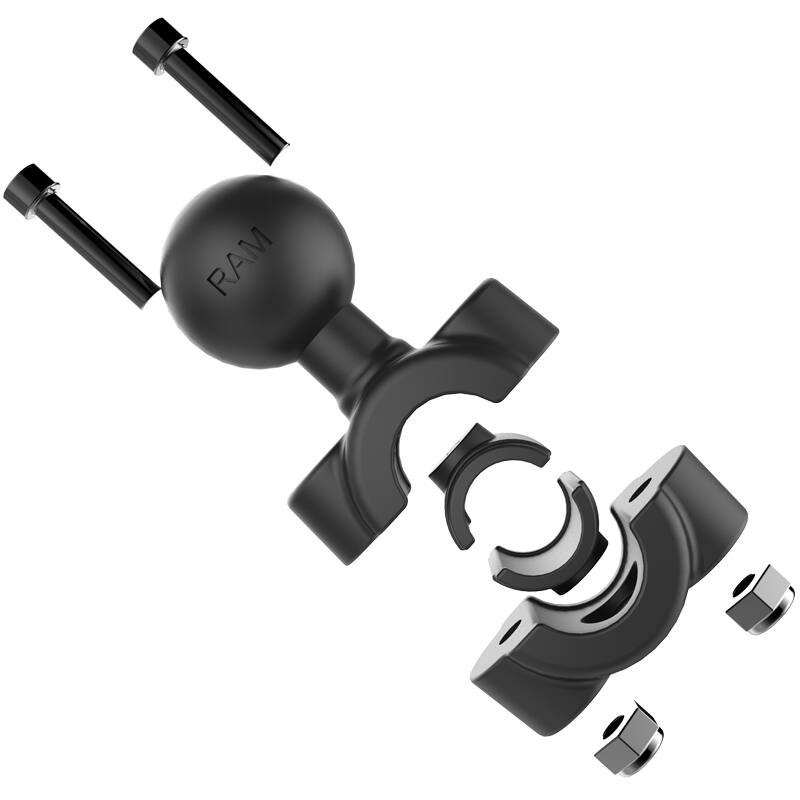

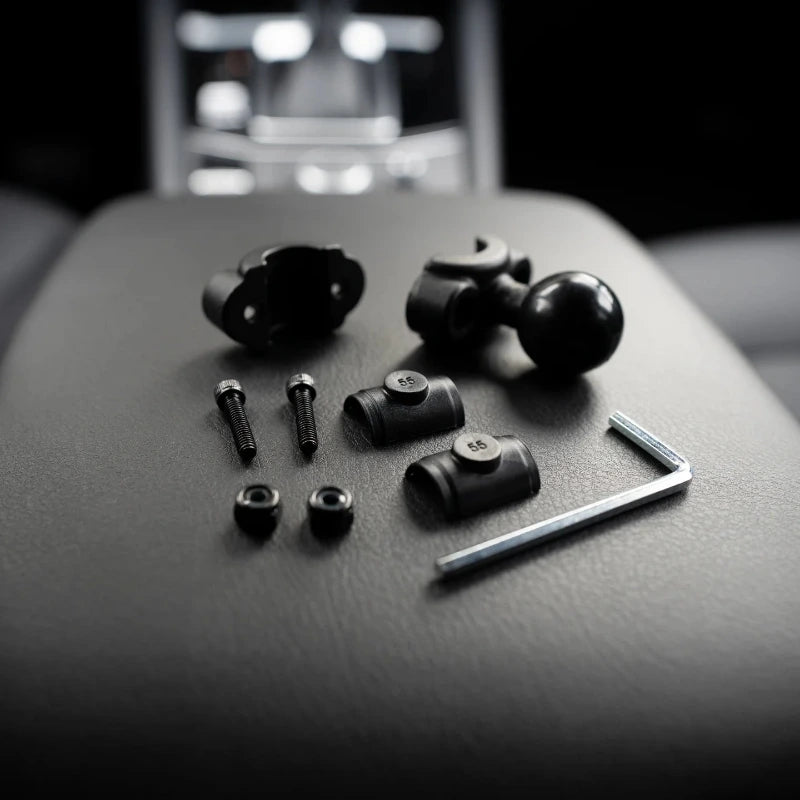

Hardware Included
(2) #8-32 x .75" Socket Head Cap Screws
(2) #8-32 Nylock Nuts
(2) .32" Composite Bushings
(2) .4" Composite Bushings
(2) .47" Composite Bushings
(2) .55" Composite Bushings
(1) 57.2mm Rubber Strip

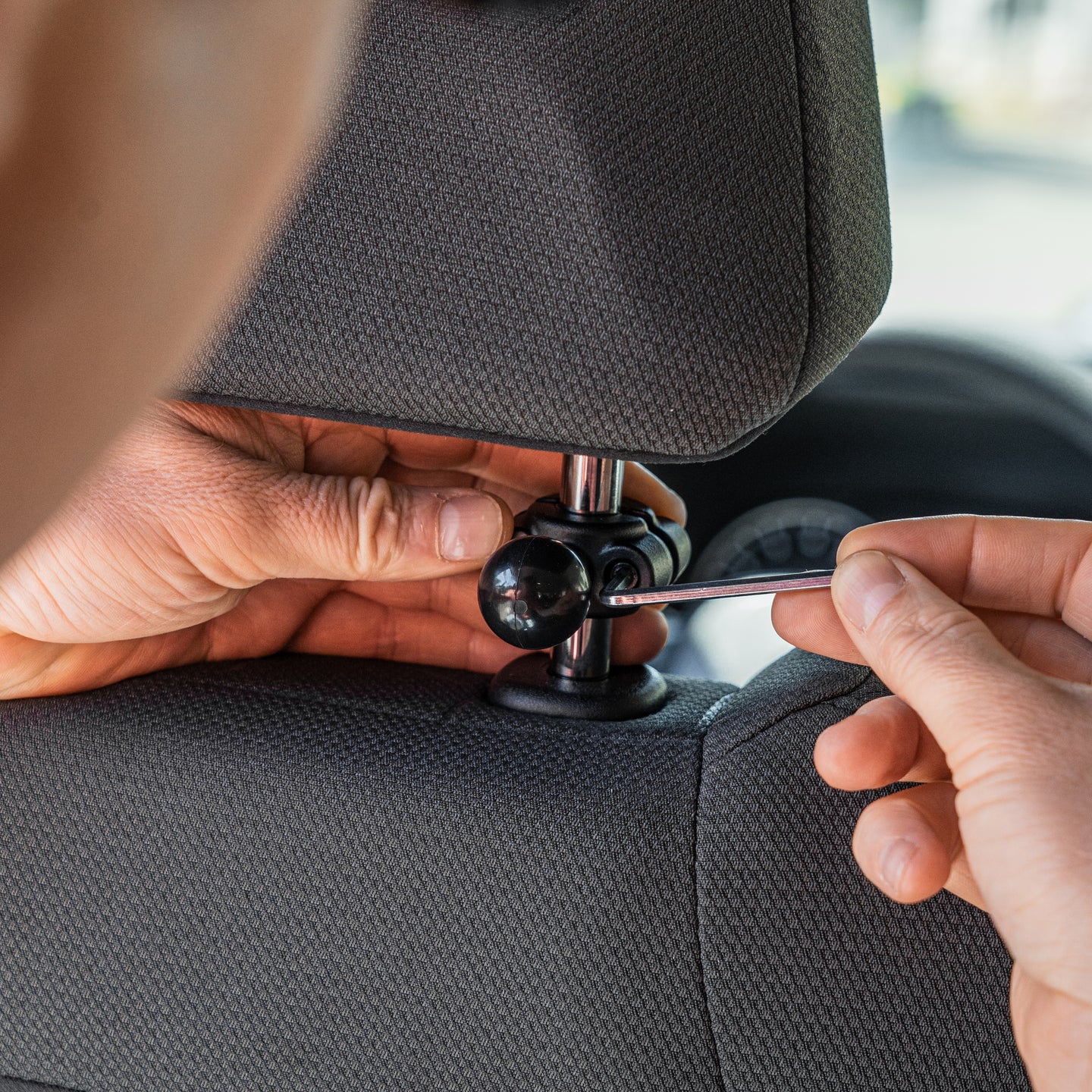

(1) 9/64" Hex Key Wrench

Material:
Powder Coated Marine Grade Aluminium

Ball Size:
1" Rubber Ball "B" Size

Weight:
95 grams (0.21 lbs)

Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
