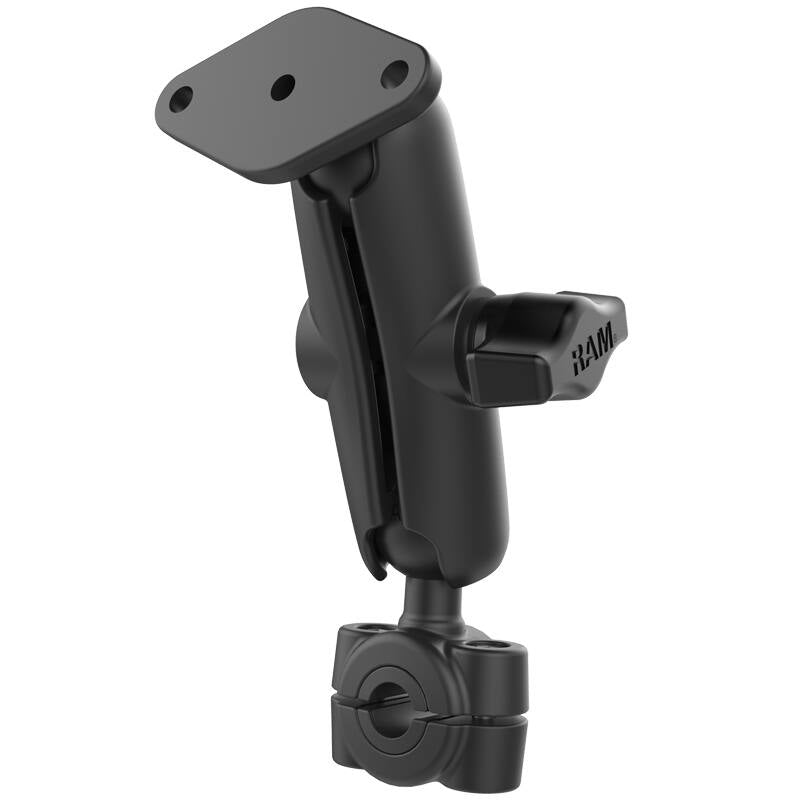

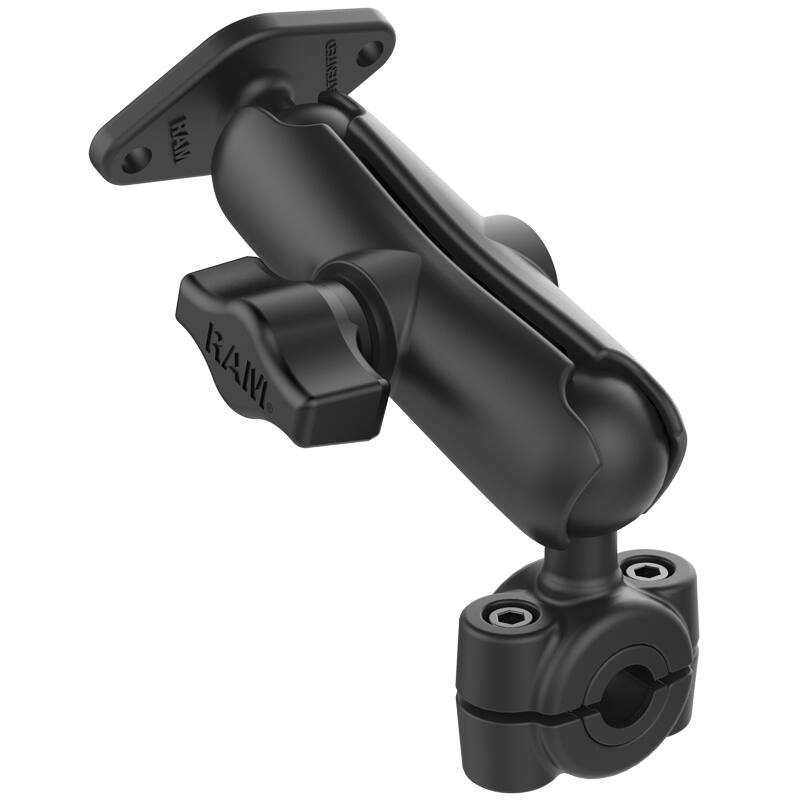

RAM-B-408-37-62-238U RAM® Torque™ Small Rail Base with Diamond Plate
Features
* Handlebar mounting base with B size 1" rubber ball accommodates small rails 9.5- 15.5mm (3/8" - ⅝") in diameter
* Includes double socket arm and diamond plate to allow for almost infinite adjustability

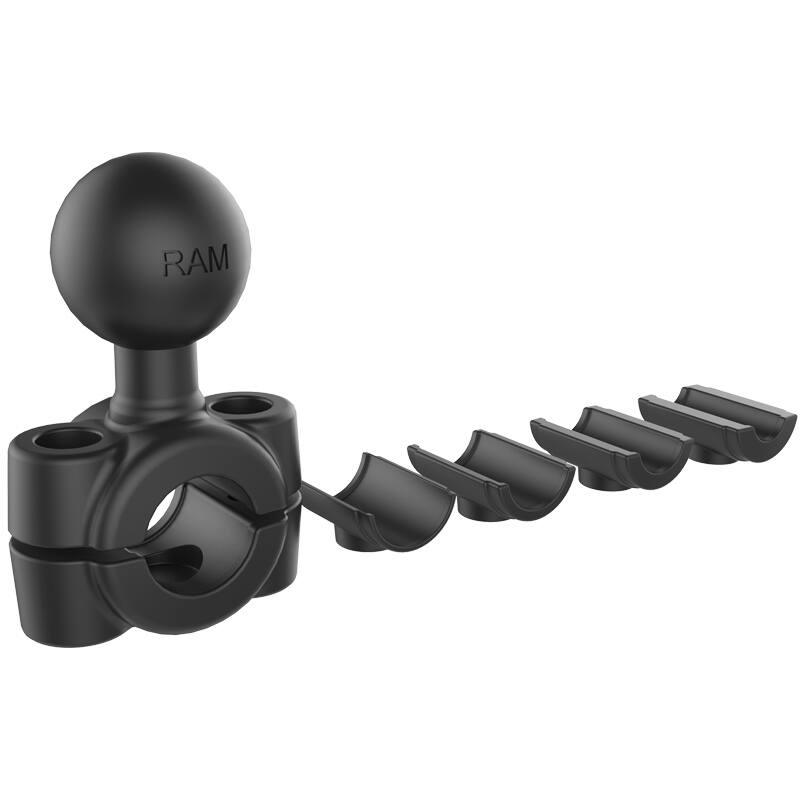

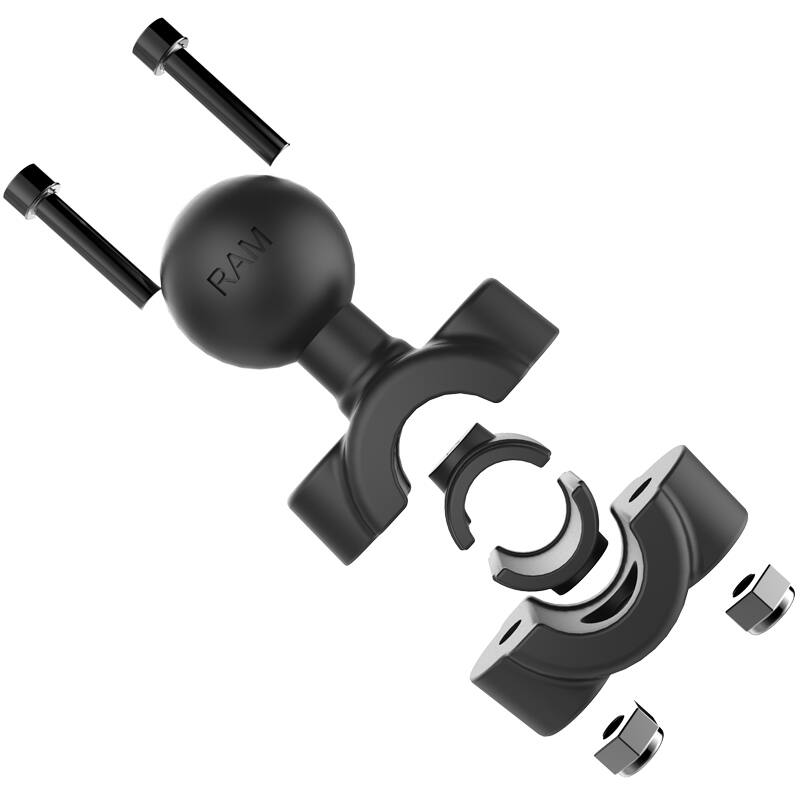

* Includes sizing inserts to provide a tight fit while protecting the mounting surface; mount includes nylon-insert locknuts to prevent loosening
* Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
Take your mobile entertainment on the road with the new RAM® Torque™ handlebar and small rail mounting base. We’ve paired with a B-sized standard length arm and diamond base so that you can connect any of the RAM Mounts cradles or anything else with the AMPS hole pattern. Sizing inserts are included to provide a snug fit and offer additional protection for the rail. The mount utilizes nylon-insert locknuts to prevent loosening in high vibration environments. This low-profile mount is the perfect way to secure your personal electronics and small accessories in any high-vibration environment.

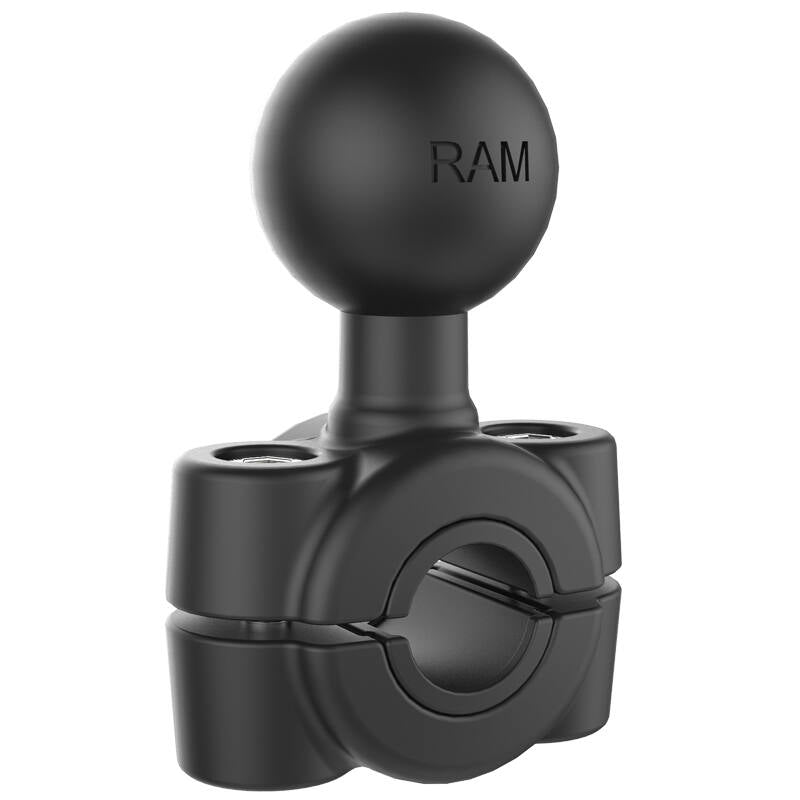

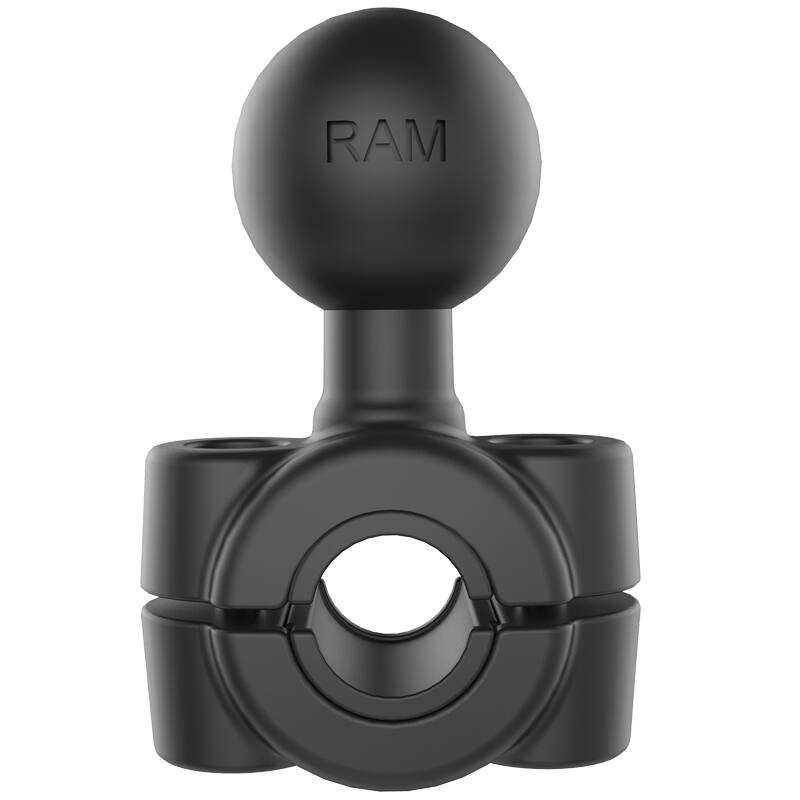

The RAM® Torque™ handlebar and rail mounting base has a 1” rubber ball and accommodates bars 9.5- 15.5mm (3/8" - ⅝") in diameter. Sizing inserts are included to provide a snug fit and protection of the rail. The mount utilizes nylon-insert locknuts to prevent loosening in high vibration environments.

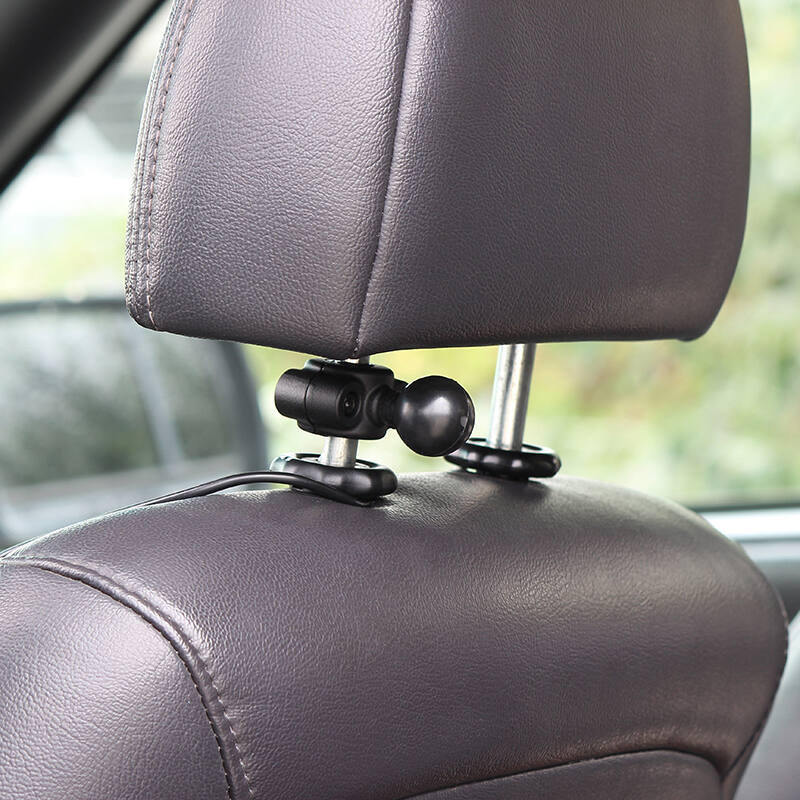

As well as small bars this makes an ideal electronics mounting base for the rails or headrests as well as many other applications.

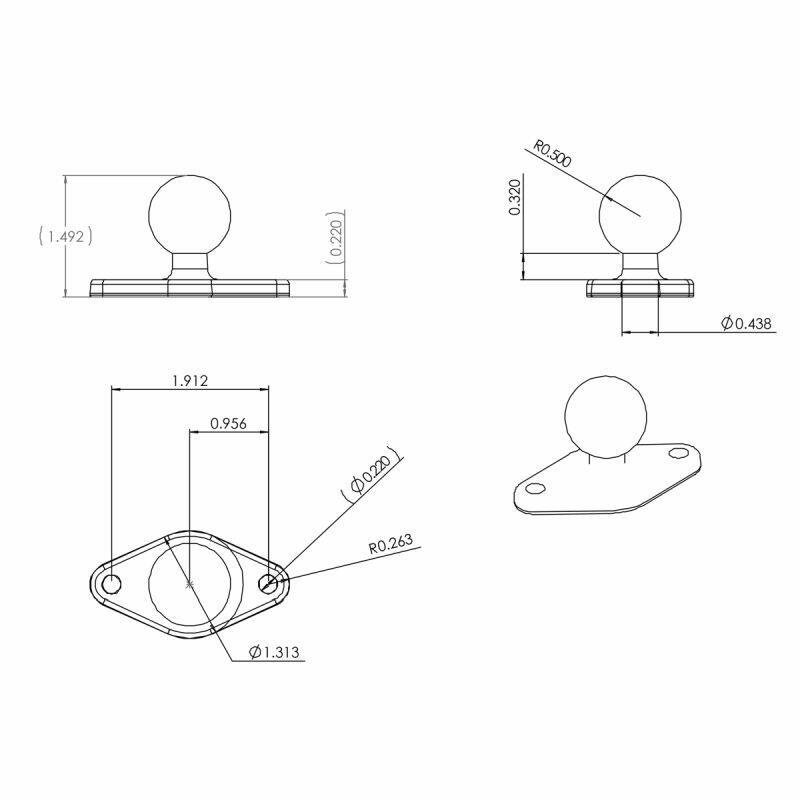

The Diamond Plate measures 61.7mm x 33.3mm (2.43" x 1.31"), includes a B Size 1" Ball base and has two holes48 .5mm from centre to centre. This pattern matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles and is perfect for permanent mounting on boats, cars, trucks, planes etc.
Mounting Base Dimensions:
Accommodates rails 9.5- 15.5mm (3/8" - ⅝") in diameter.
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Components:
RAM-B-408-37-62U - Torque™ 3/8" - 5/8" Diameter Mini Rail Base with 1" Ball
RAM-B-201U - 96mm Double Socket Arm
RAM-B-238U - Diamond base with 1" ball
