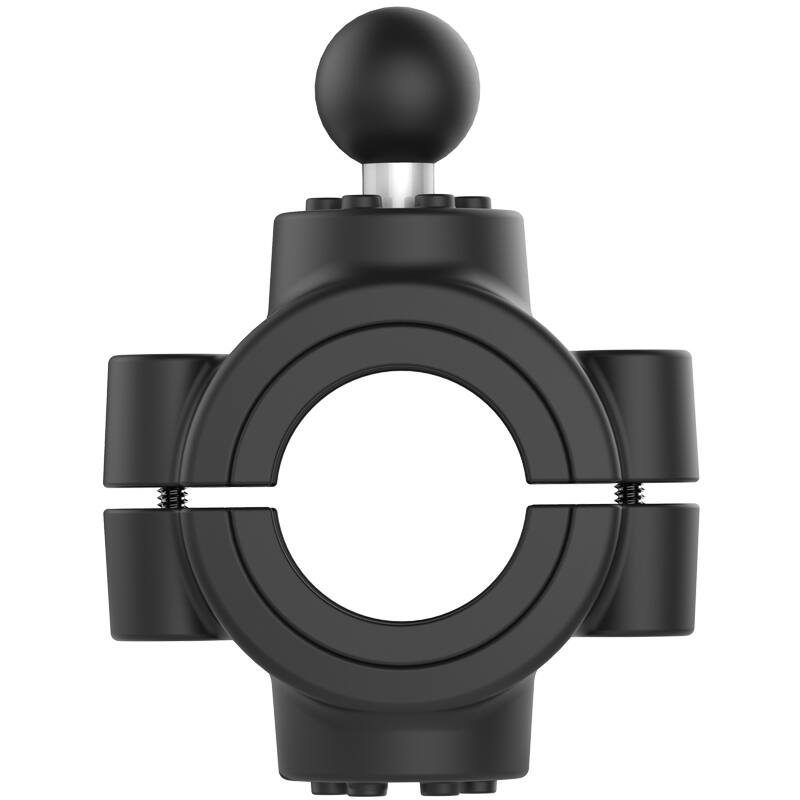

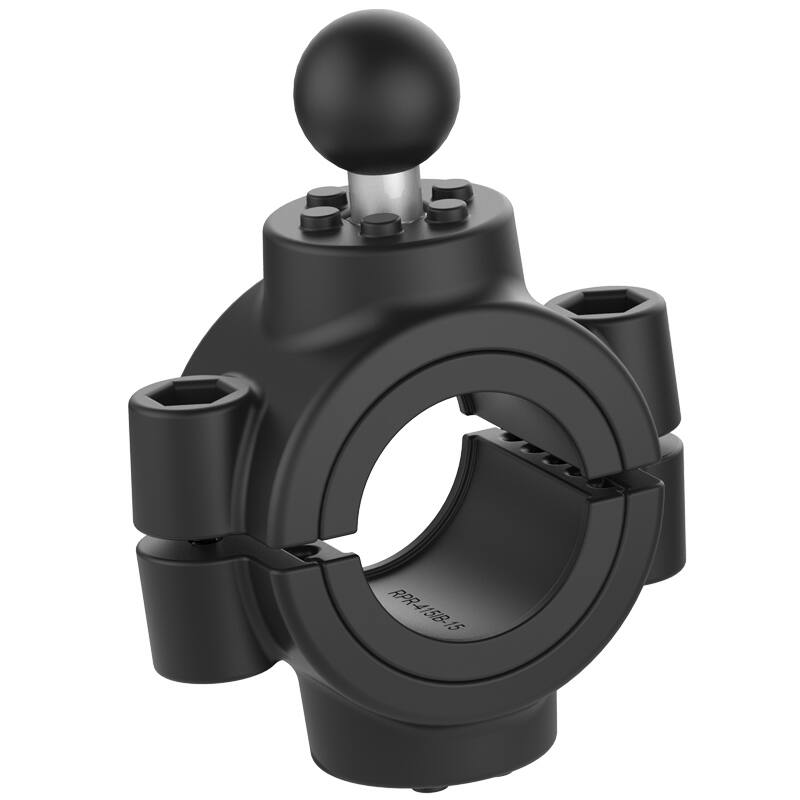

RAM-B-415-15-2U RAM® Torque™ 1 ½" - 2" Diameter Rail Base - B Size Aluminum Ball
Features
* Handlebar mounting base with B size 1" rubber ball accommodates rails 38-50.8mm (1.5" - 2") diameter
* Includes sizing inserts to provide a tight fit while protecting the mounting surface; mount includes nylon-insert locknuts to prevent loosening
* Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
Consider also the RAM-B-351-415-15-2U which uses a composite ball.
The RAM Torque™ Rail Base accommodates rails and bars ranging from 38-51mm (1.5” to 2”) in diameter – the perfect mounting solution for your ATV or UTV. The include B size hex ball adapter can connect to either side of the Torque base, and is suitable for rugged environments for supporting action cameras, spotlights or other devices.

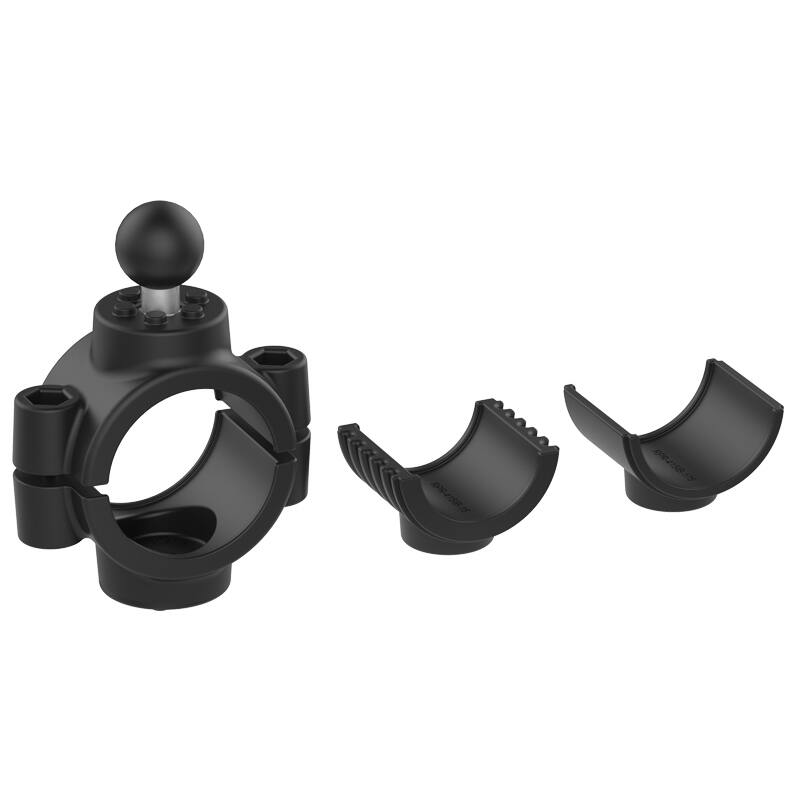

Two sizing inserts – one for attachment to 38mm (1.5”) rails and the other for attachment to 43mm (1.75”) rails – are included to create a tight hold while nylon-insert locknuts prevent loosening in high-vibration environments.

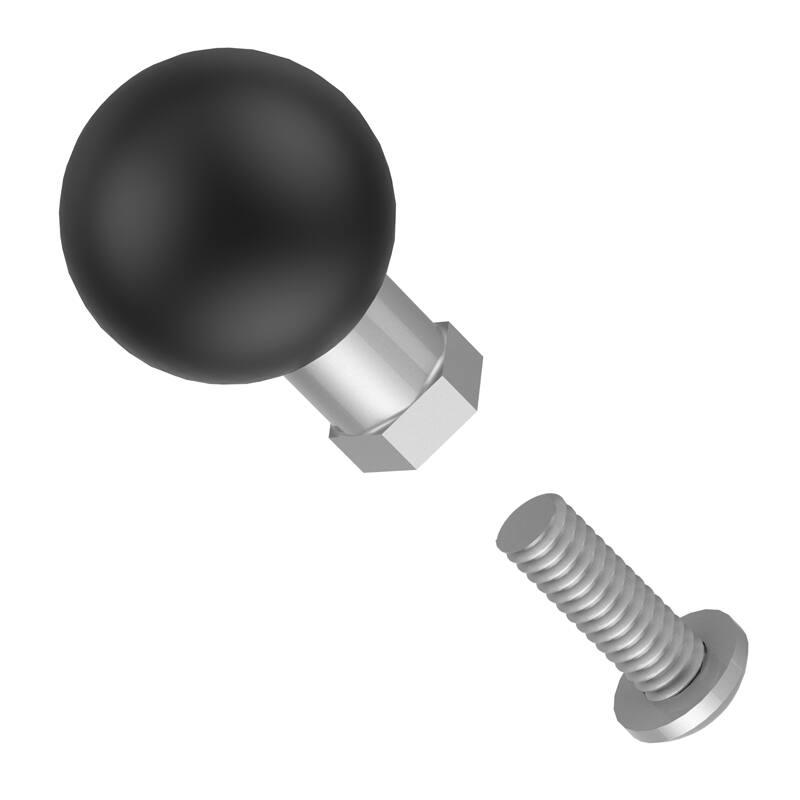

Available separately, the RAM B Size Ball Add-On (RAM-B-337-1U) allows you to attach an additional B Size Ball to the Torque™ Rail Base for mounting multiple devices.
Specs & Features

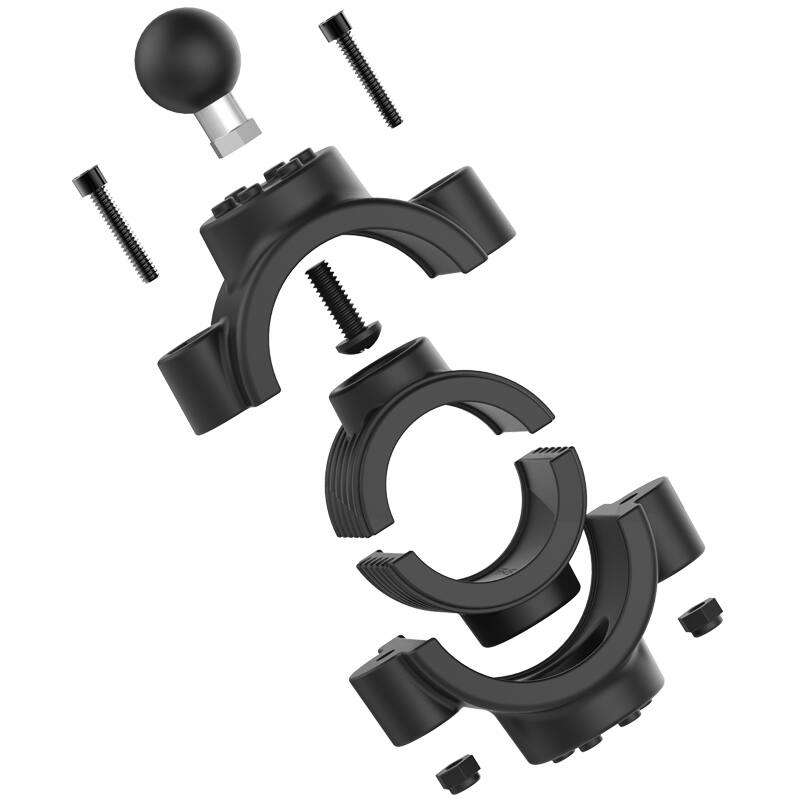

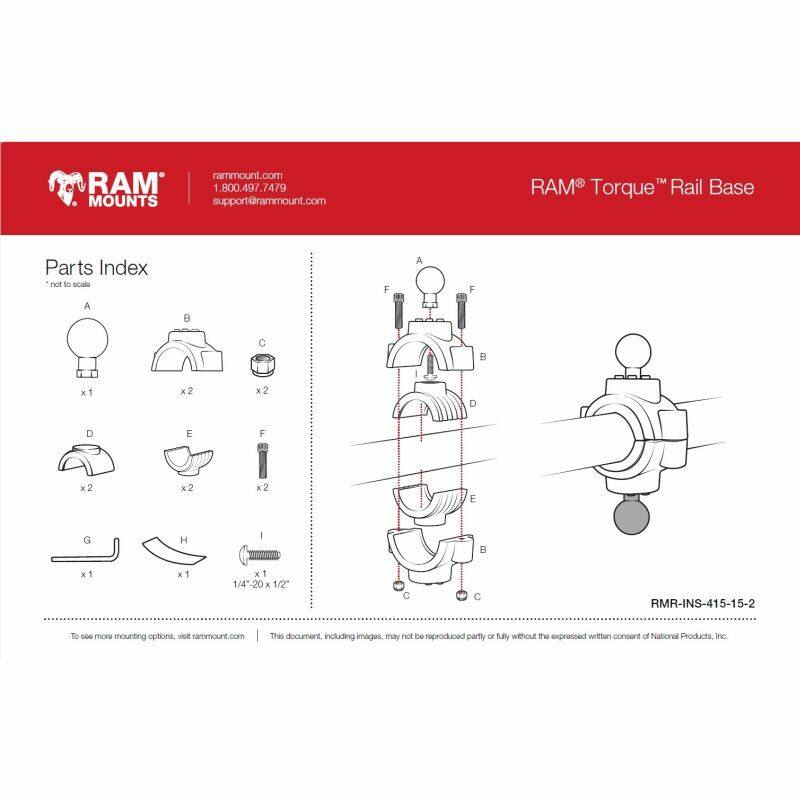

Hardware Included
Assembly Hardware
(2) #10-24 x 1" Socket Head Cap Screws
(2) #10-24 Nylock Nuts
(1) 5/32" Hex Key Wrench
(2) 1.5" Split Reducing Bushings
(2) 1.75" Split Reducing Bushings
(1) 172mm x 38.5mm Rubber Adhesive Strip
Clamp Range
38-50.8mm (1.5" - 2") diameter
Ball/Socket Size
B Size (1")
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
Materials
Marine-grade aluminium

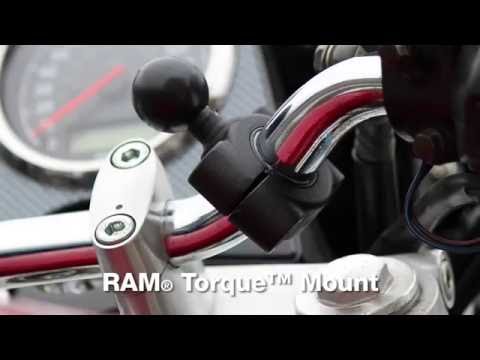

YouTube:
https://www.youtube.com/watch?v=BW-YhYr6xvI&feature=emb_logo
https://www.youtube.com/watch?v=iO9NEqm9MJk
https://www.youtube.com/watch?v=rX36fAdknUY
https://www.youtube.com/watch?v=ixV1xmNkbzU
QUESTIONS & ANSWERS
Q: I have a rail that I would like to mount this base to that is 1 5/8" in diameter. Will this mount work for that size rail?
A: Yes, this base comes with the proper inserts & hardware to mount this base to a 1 5/8" diameter rail.
