RAM Tough Ball - C Series 1.5" - with M10-1.5 x 25mm Threaded Stud

RAP-379U-M101525 – RAM® Tough-Ball™ with M10-1.5 x 25mm Threaded Stud (C Size)

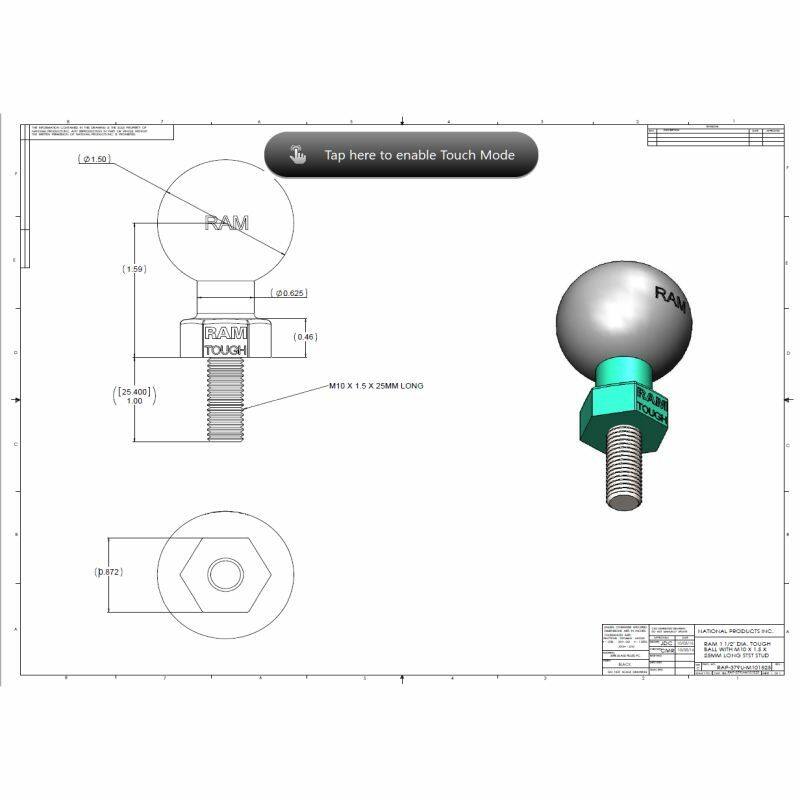

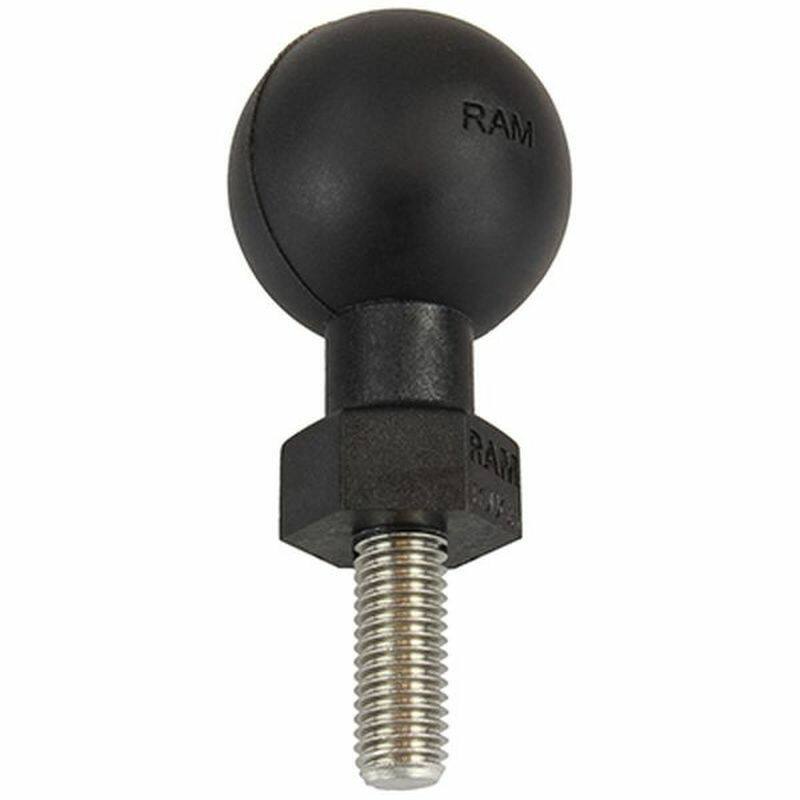

The RAP-379U-M101525 is a RAM® Tough-Ball™ with a 1.5" C-size rubber ball on a long M10-1.5 x 25mm stainless steel stud. The deep M10 thread matches the threaded holes on a range of equipment, including John Deere threaded cabin-post bosses, giving you a C-size ball for any C-size RAM® double socket arm.

Key Features

• M10-1.5 x 25mm male thread for M10 threaded bosses and mounting points
• Suits John Deere threaded cabin posts (M10-1.5, 25mm)
• 1.5" C-size rubber ball fits any C-size RAM® double socket arm for near-infinite adjustment
• Steel-reinforced, high-strength composite body for demanding use
• Backed by RAM Mounts' lifetime warranty

Specifications

• Thread: M10-1.5 x 25mm
• Ball size: 1.5" (C size)
• Material: high-strength composite with stainless steel thread
• Weight: 95 g (0.21 lb)
• Load rating: 1.81 kg (4 lb) standard use, 1.36 kg (3 lb) heavy-duty use

FAQs

Will this fit a John Deere cabin post?

Yes. John Deere threaded cabin-post bosses use an M10-1.5 thread, 25mm long, which is exactly what this stud is.

Which RAM arms does it fit?

The 1.5" ball fits any C-size RAM® double socket arm and any C-size socket base.
