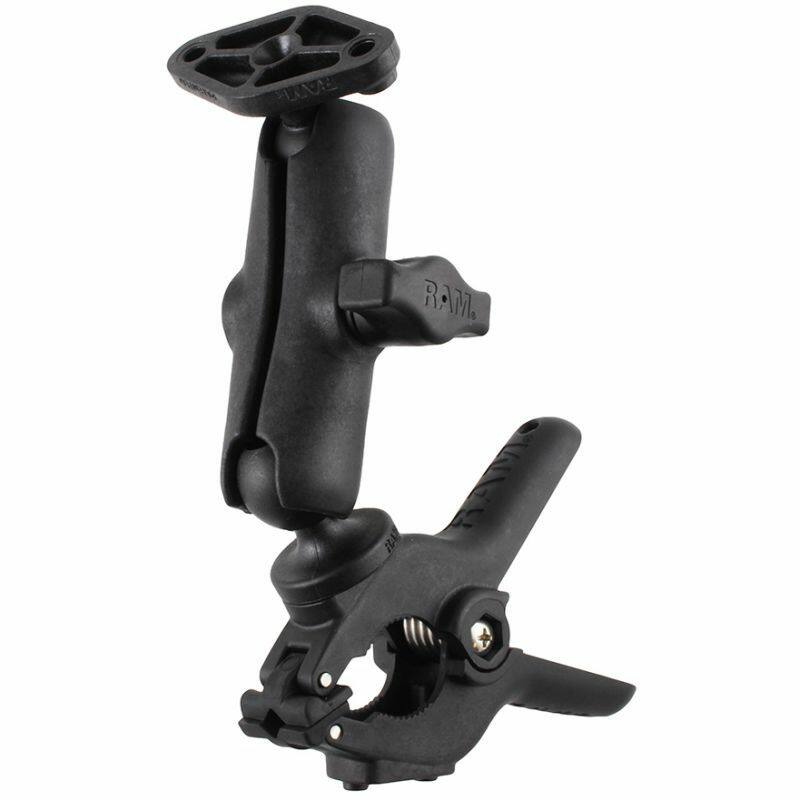

RAP-B-397-2-238U RAM® Tough-Clamp™ Large Double Ball mount with Diamond Plate
Features
* Spring Tough-Clamp™ Large Base with Ball allows for quick engagement and release
* Swivelling jaw-end pads provide stable, even gripping and protection of flat / square surfaces 0 to 44mm or round surfaces 19 to 28mm
* Small, sleek form factor that accommodates for small, tight spaces
* RAM® B size RAM® double socket arm with ball and socket technology allows for near-infinite adjustability
* Diamond plate incorporates the 2 hole AMPs pattern and will attach to most lighter RAM cradles
* Built-in lanyard holes
* Made of high strength glass filled nylon construction with corrosion resistant stainless steel hardware and high-strength composites for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
This consists of the RAM Tough-Clamp™ clamping base, B Series double socket arm and diamond Base. The 1" ball can be used to mount a variety of products utilizing RAM's vast selection of mounting solutions.
This is an ideal solution when you need to mount and then remove a device quickly and without tools. Attach your Action Camera, Smart Phone, Tablet or light weight device on almost any flat surfaces and square rails. The RAM Tough-Clamp can be mounted to any surface on your kayak, boat, motorcycle, aircraft, desk, wheelchair, headrest or any other location where you simply need an extra hand.
Our customers tell us that this is an ideal mount for wheelchairs and other mobility devices. Just place the clamp over the rod/rail
Clamping Dimensions:
Flat surfaces and square rails
0 to 44.5mm (1.75")
Round rails
19 to 28.5mm (0.75 to 1.125")
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
Diamond Plate Hole Pattern:
2-Hole AMPs:
1.912” (48.5mm)
Materials:
High Strength Composite
High strength glass filled nylon construction
Stainless steel hardware
Components:

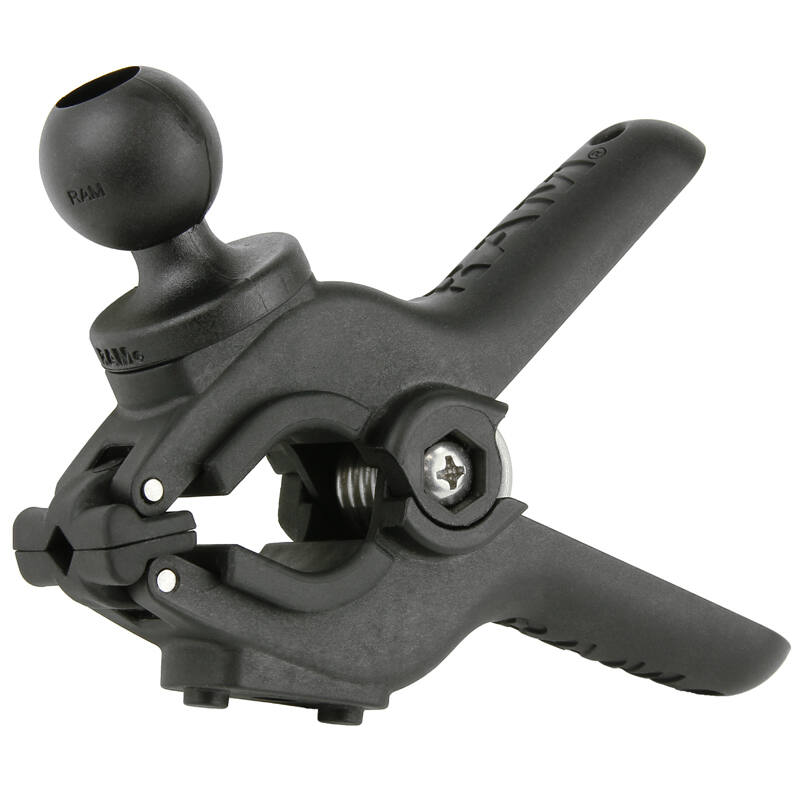

RAP-B-397-2U - Large Tough Clamp with 1" Ball

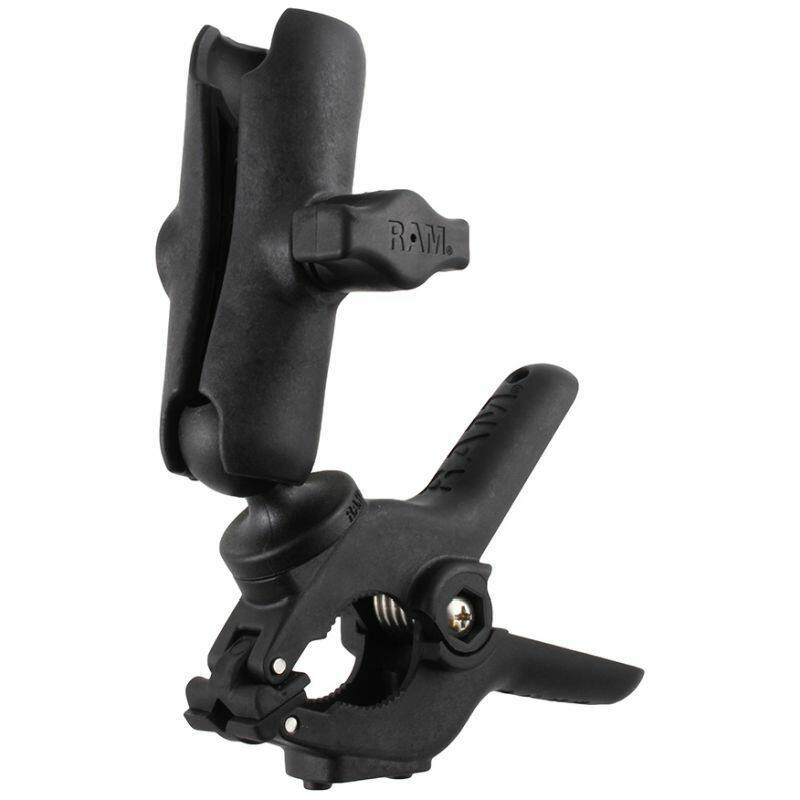

RAP-B-201U - composite double socket arm

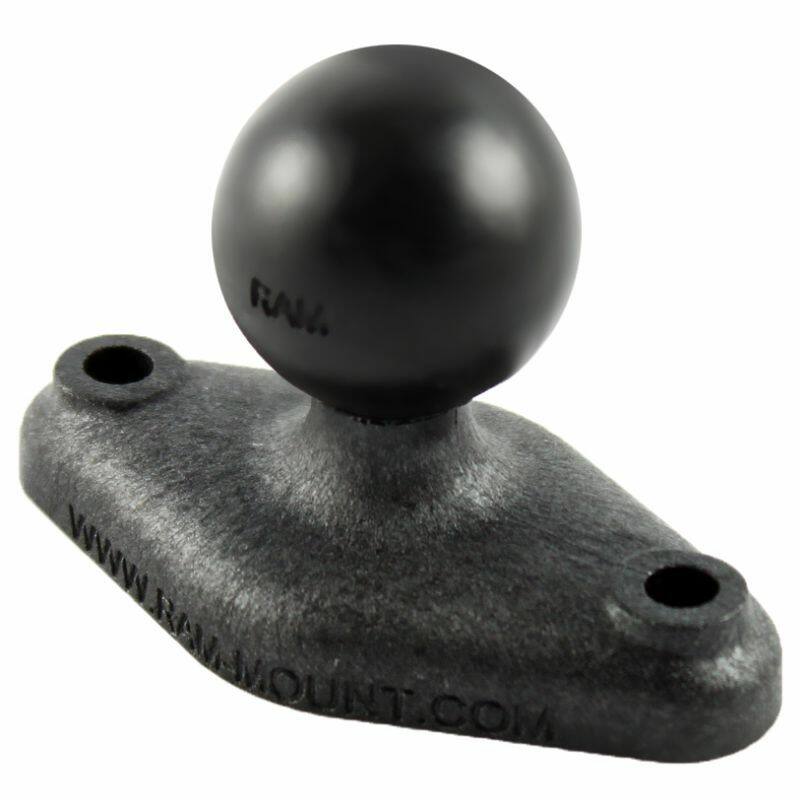

RAP-B-238U - Diamond Base
