RAP-401-202U RAM® Large Tough-Claw™ with Double Ball Mount with Round Plate
Features
* Includes large version of the RAM® Tough-Claw™, medium length C size RAM® double socket arm, and 2.5" round plate compatible with several RAM® device holders and cradles

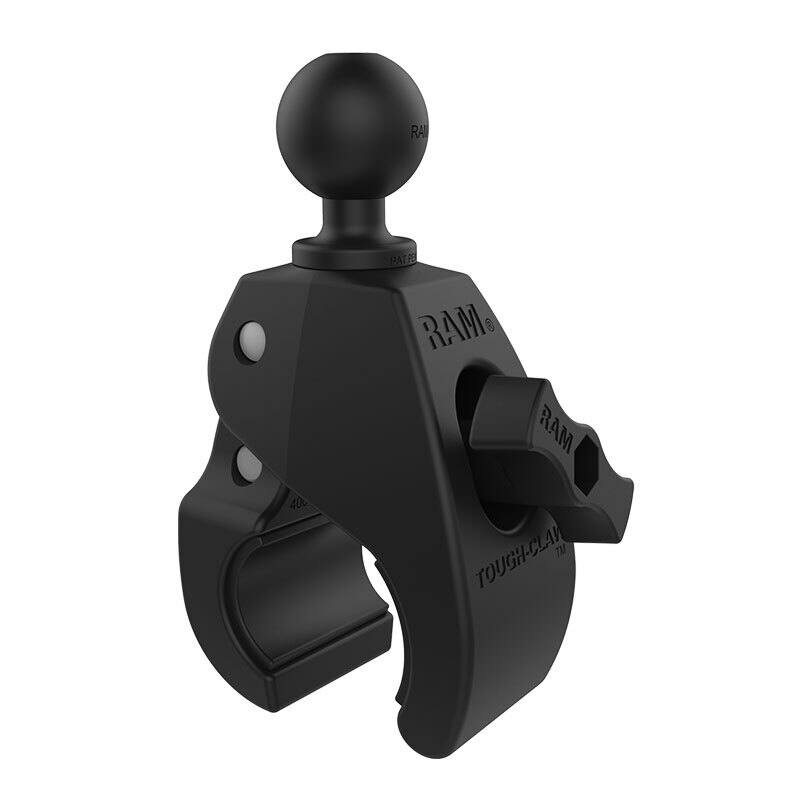

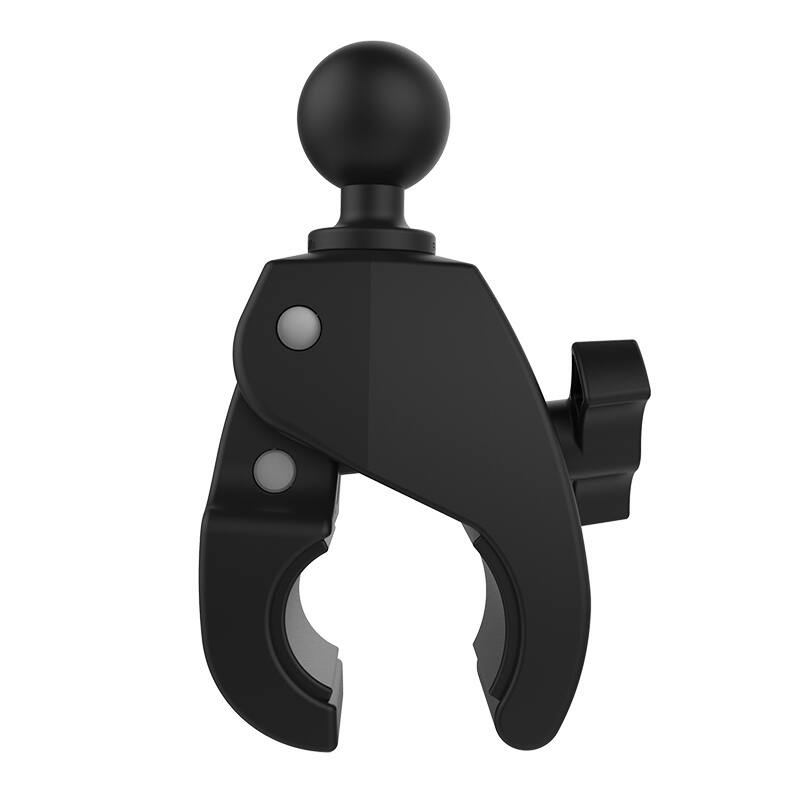

* Large version of the RAM® Tough-Claw™ base is designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 1" to 2.2" in outer diameter; rubber pads provide stable gripping and protection of mounting surface
* Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
The RAP-401-202U consists of the large Tough-Claw™ base, double socket arm and round base adapter. The RAM Tough-Claw™ is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The Tough-Claw™ can be clamped on rails from 25.4mm to 57mm outer diameter.
The round base adapter contains the industry standard universal AMPS hole pattern, which will connect to a large variety of RAM Mount and third party cradles. The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
Tough-Claw Clamping Range
Rails/Tubes:
25.4mm to 56mm (1" to 2.2")
Flat Surfaces:
0mm to 56mm (0" to 2.2")
Physical Dimensions:
H: 166.6mm (6.56")
W: 57mm (2.25")
Arm Dimensions:
Overall: 143mm (5.625")
Socket-To-Socket: 114mm (4.5")
Round Plate Hole Patterns
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812” (46.0mm)
Components:
RAM-201U Double Socket Arm
RAP-401U Large Tough-Claw
RAM-202U 2.5" / 63mm DIA. BASE
