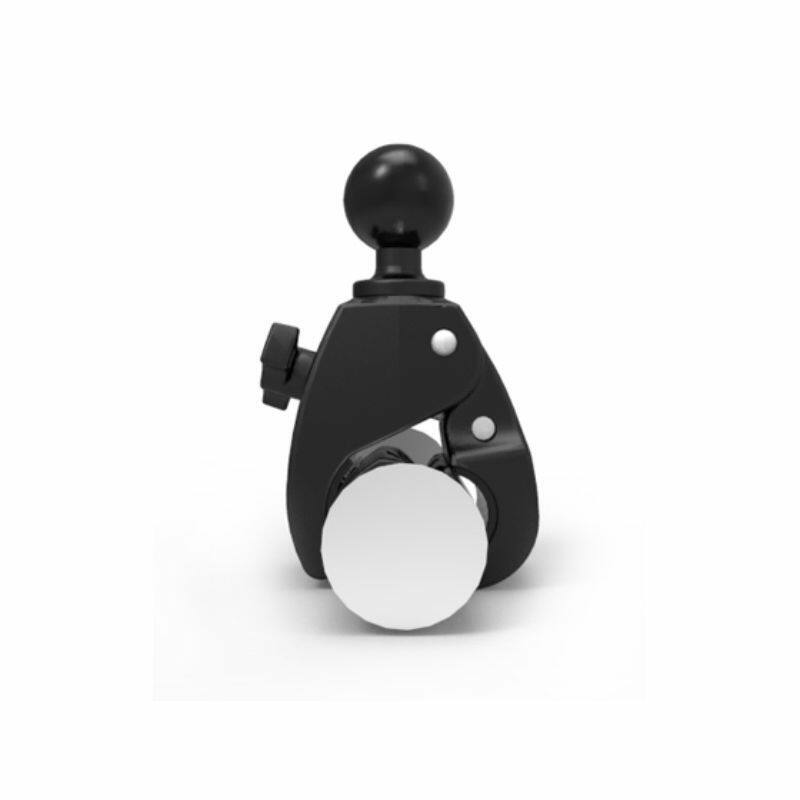

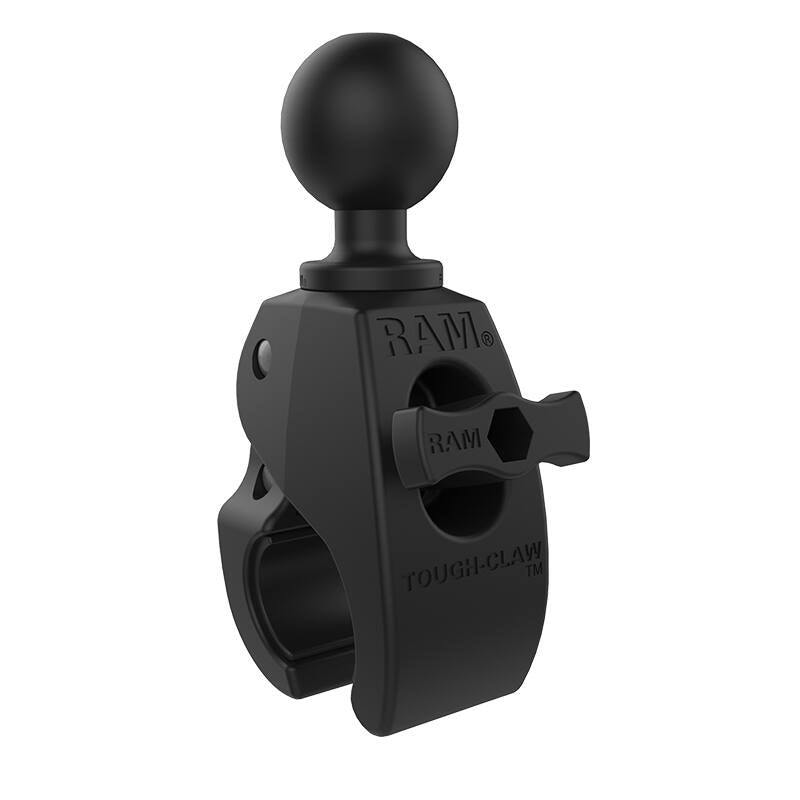

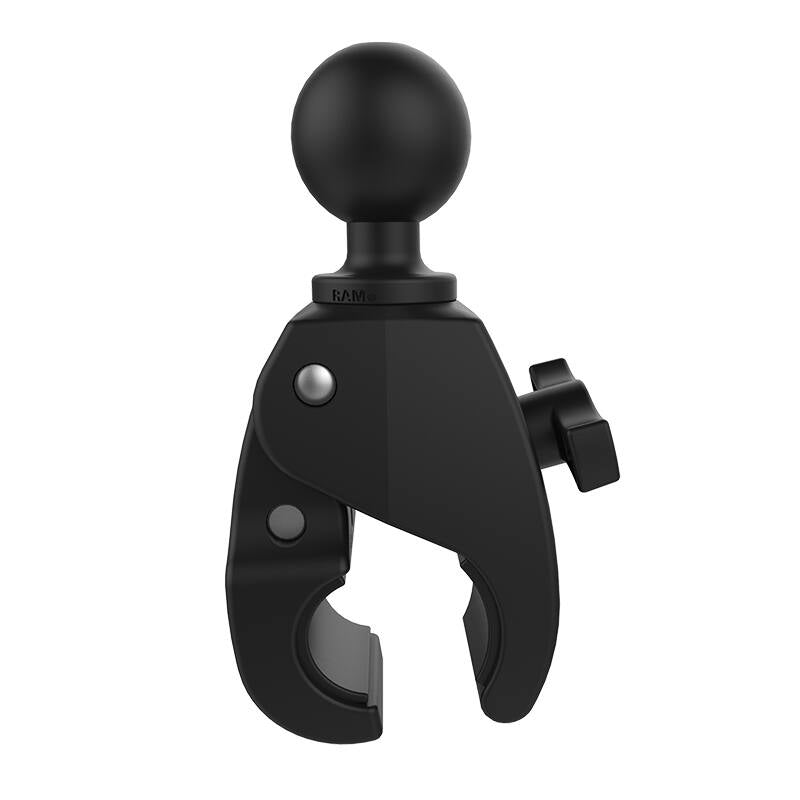

RAP-404U RAM® Tough-Claw™ Medium Clamp Ball Base
Features

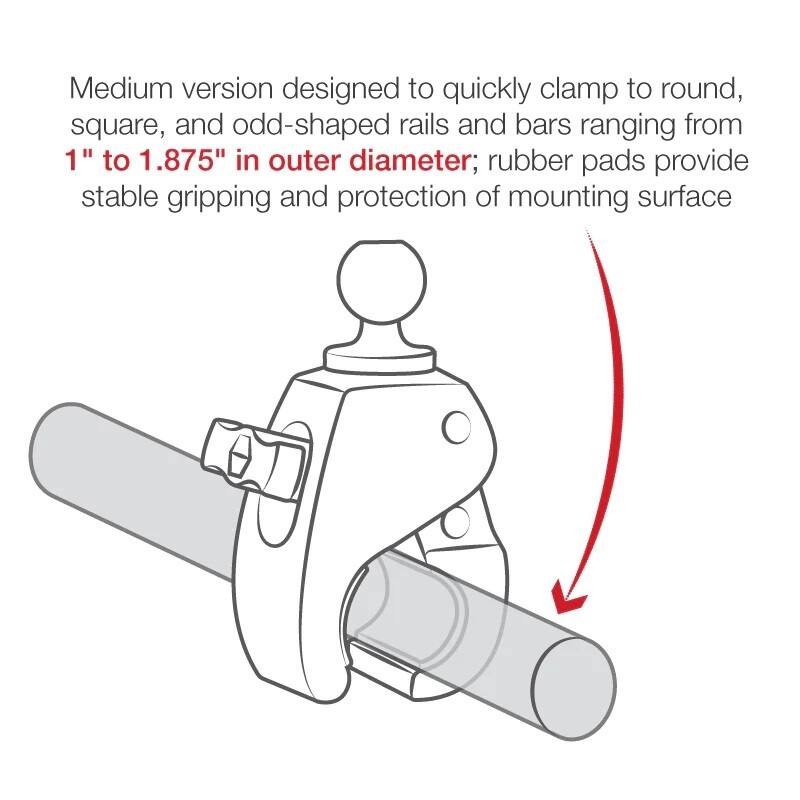

* Medium version designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 25-41mm in outer diameter; rubber pads provide stable gripping and protection of mounting surface
* Ideal mounting base for phones, tablets, cameras, rod holders, and much more; includes 1.5" C size rubber ball for attachment to RAM® double socket arms
* Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
The RAM Tough-Claw is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The Tough-Claw can be clamped on rails from 25 to 41mm outer diameter. Ideal for mounting tablets, action cameras, smartphones, rod holders for rod storage and much more in a wide variety of applications. Perfectly suited for mounting on the yoke of an aircraft, handlebars and seat posts of bicycles, kayak rails, roll bars and much more, the RAM Tough-Claw will soon become another essential RAM component in your collection of mounting options.

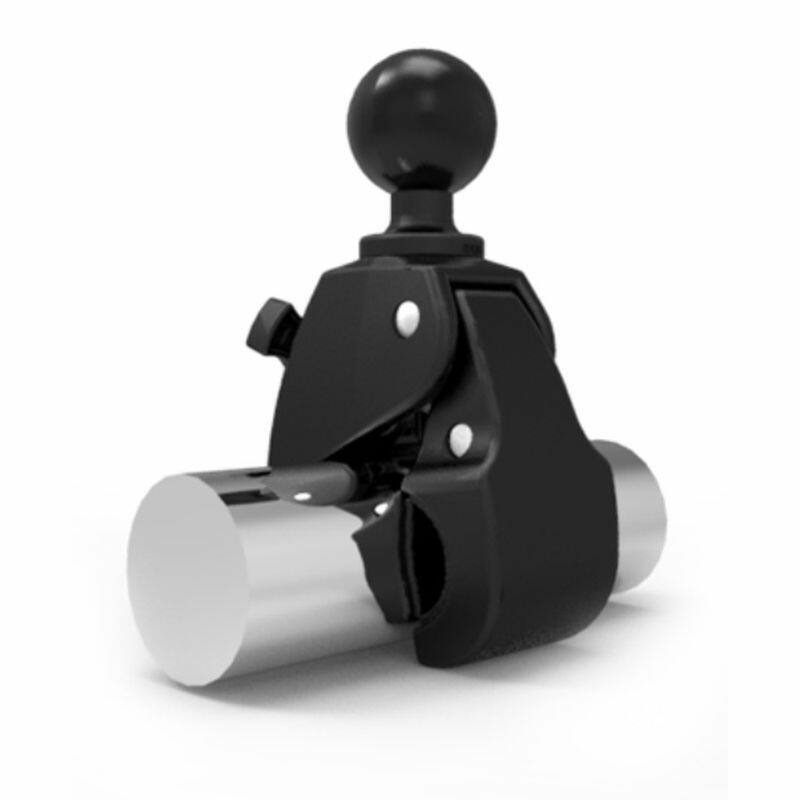

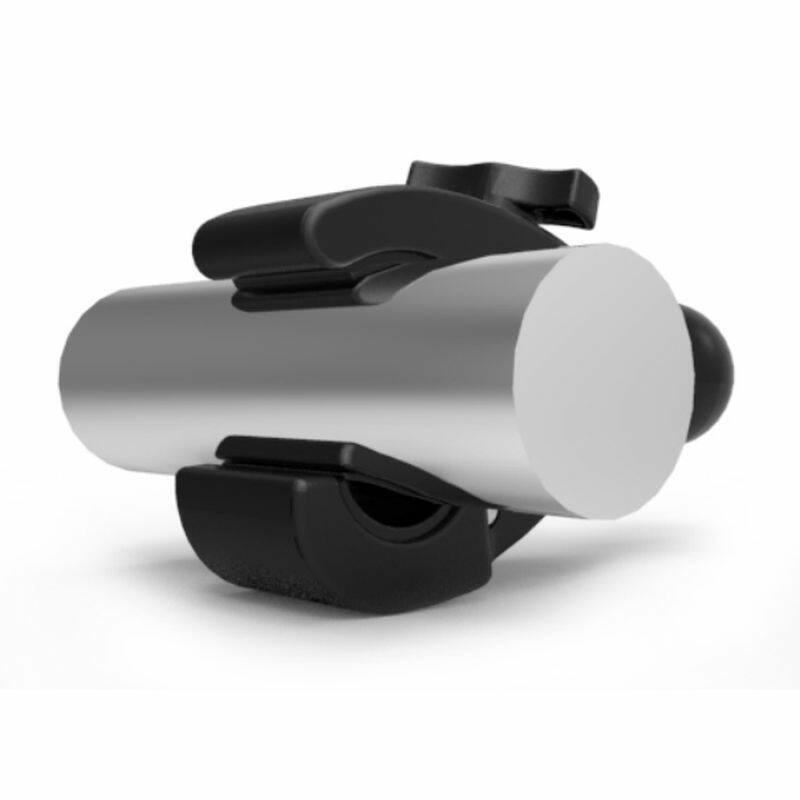

Rubber pads provide stable, even gripping and protection of mounting surface. Just place the clamp over the rod/rail and tighten with the knob - no tools needed!
Our customers tell us that this is an ideal mount for wheelchairs and mobility devices - easy to install and remove when needed.
Specs & Features
Clamping Range
Rails/Tubes:
25.4 to 40.6mm (1" to 1.6")
Flat Surfaces:
0 to 40.6mm (0" to 1.6")
Physical Dimensions:
Height: 133mm / 5.25"
Width: 39.6mm / 1.56"
Material:
High Strength Composite
Stainless Steel Hardware
Ball Size:
1.5" Rubber Ball Size
Weight Capacity
Standard Use: 1.814kg (4 lbs)
Heavy-Duty Use: 1.36kg (3 lbs)
Weight:
295 grams / 0.65 lbs.
