RAP-B-404-238U RAM® Tough-Claw™ Medium Clamp Mount with Diamond Plate (Composite)
Features

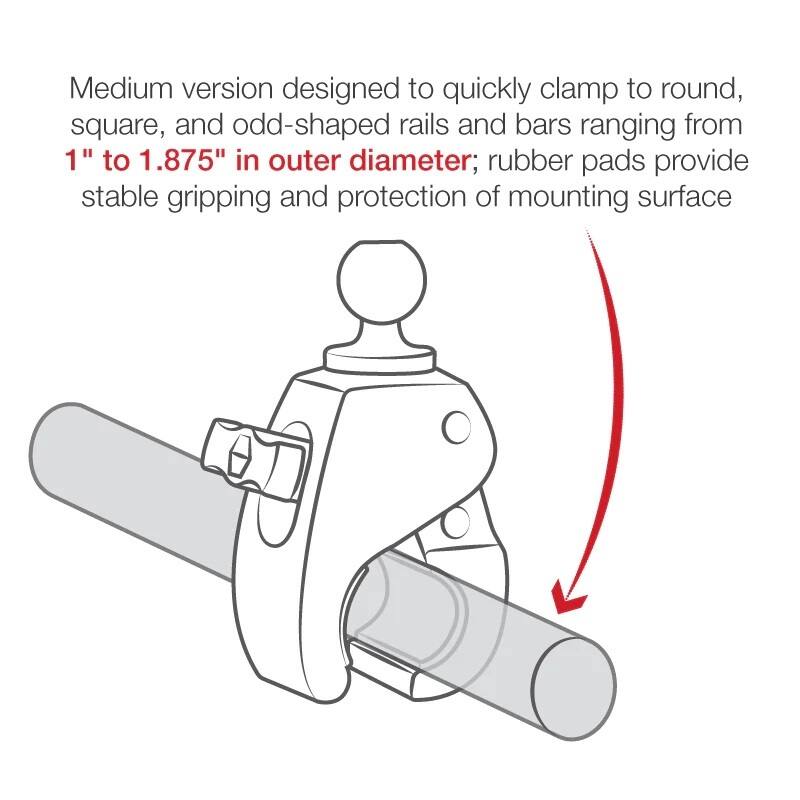

* Medium version designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 25-41mm in outer diameter; rubber pads provide stable gripping and protection of mounting surface
* Composite medium RAM® double socket arm
* Diamond plate with AMP's hole pattern mates to many RAM cradles for smaller devices
* Made of high-strength composite and stainless-steel hardware for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

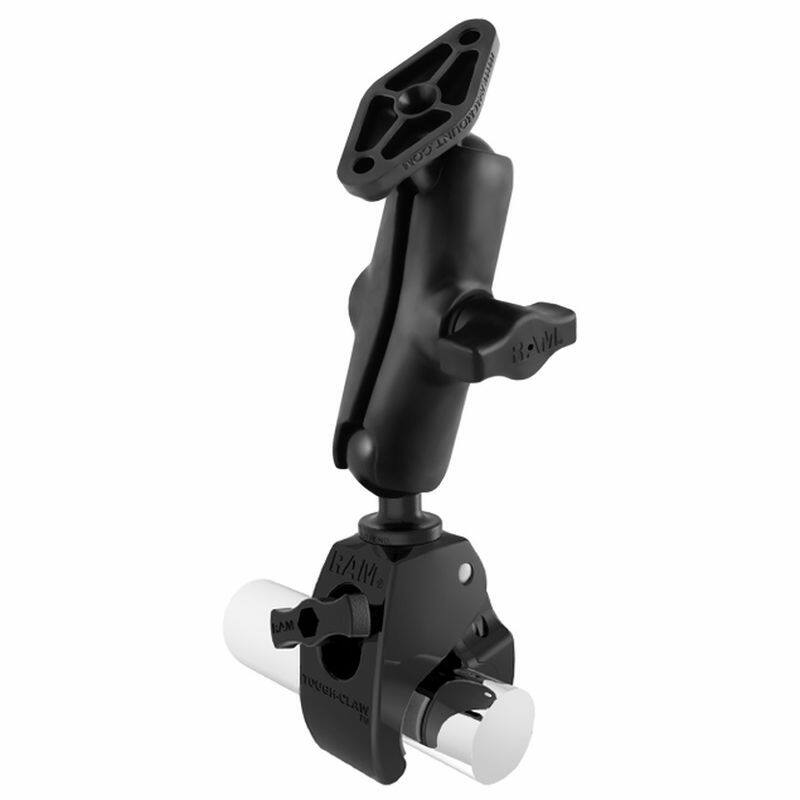

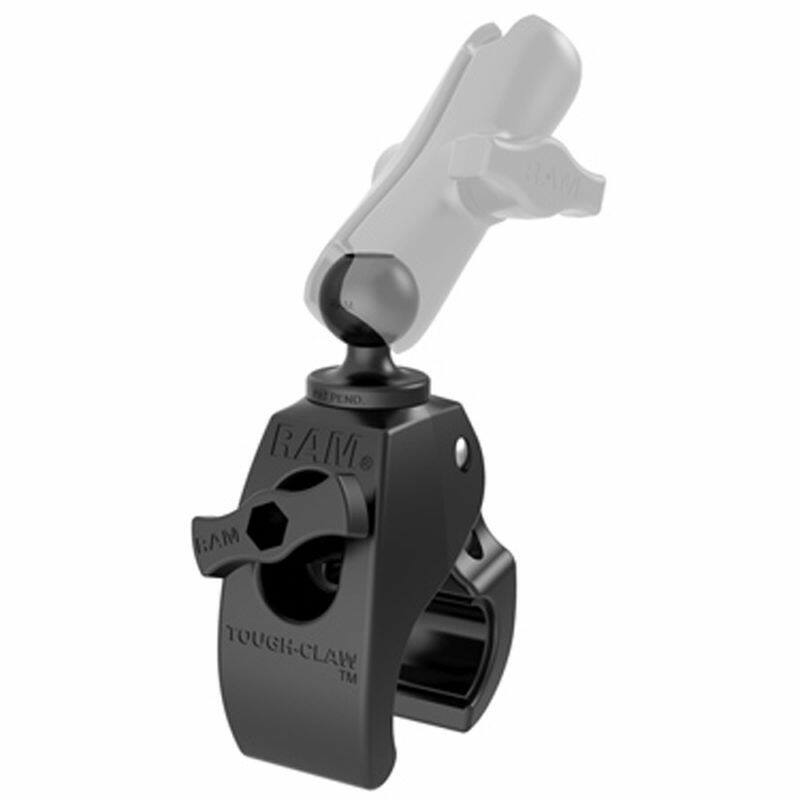

The RAP-B-404-238U consists of the medium Tough-Claw™ base, double socket arm and diamond base adaptor.

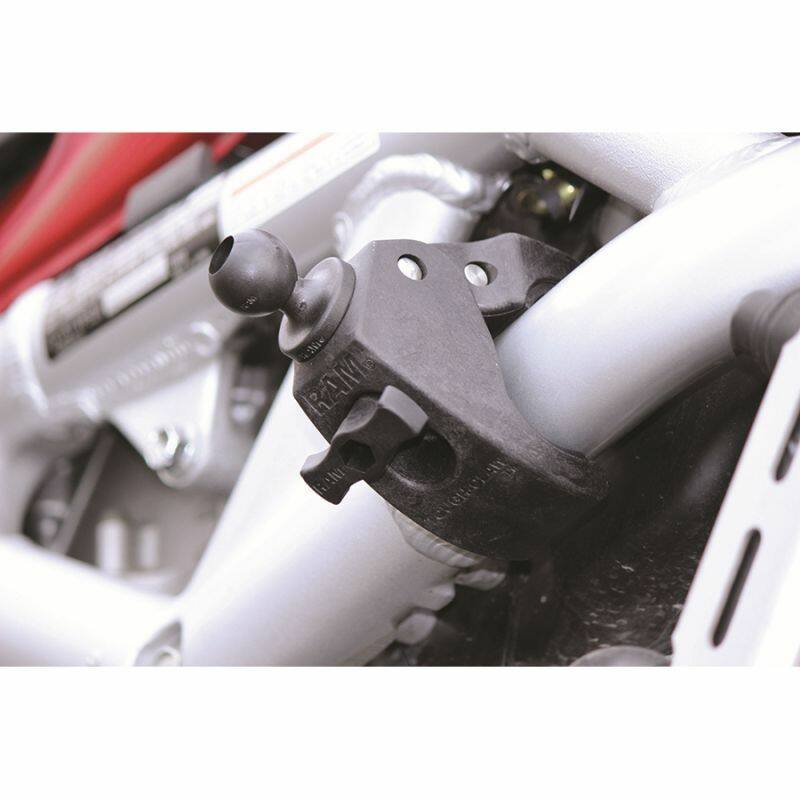

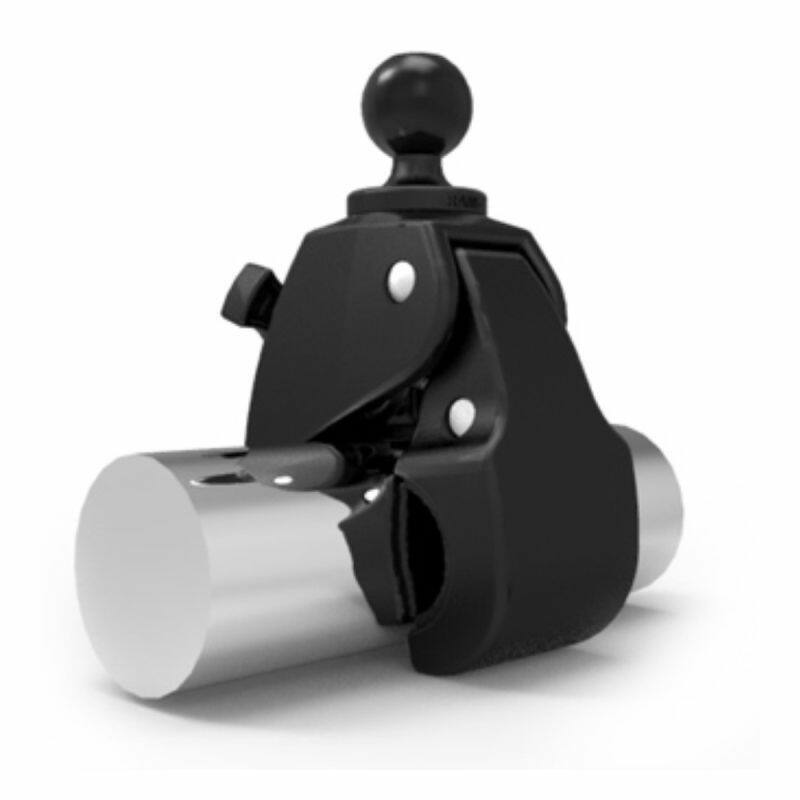

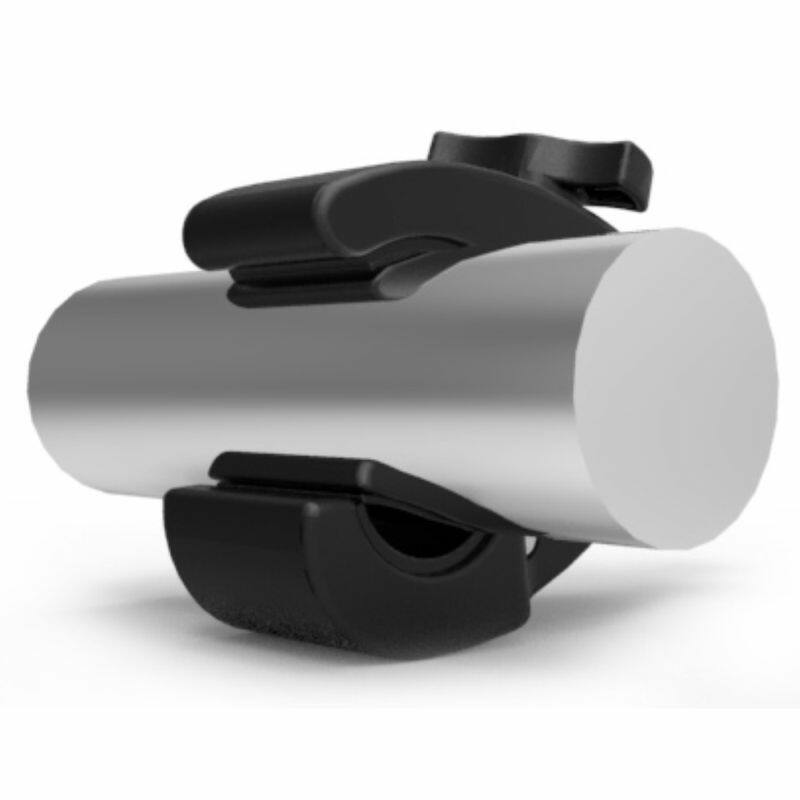

The RAM Tough-Claw™ is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The Tough-Claw™ can be clamped on rails from 25 to 41mm outer diameter. The Tough-Claw™ is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

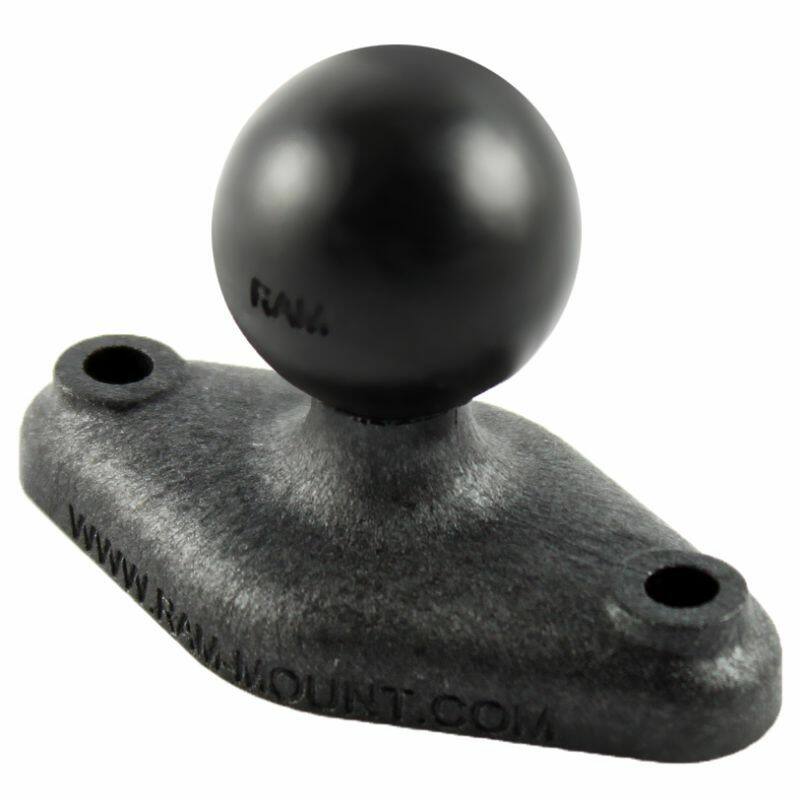

The diamond plate is a 1" diameter rubber ball connected to a 61.7mm x 33.3mm composite diamond base. The base has two holes 48.5mm from centre to centre, matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles.
Clamping Range
Rails/Tubes:
25.4 to 40.6mm (1" to 1.6")
Flat Surfaces:
0 to 40.6mm (0" to 1.6")
Hole Pattern:
2-Hole AMPs:
1.912” (48.5mm)
Arm Dimensions:
Overall Length:
94.7mm (3.73")
Socket-To-Socket Length:
76.2mm (3.0")
Weight Capacity:
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
Material:
High Strength Composite
Ball Size:
25.4mm/1" Rubber Ball "B" Size
Components:

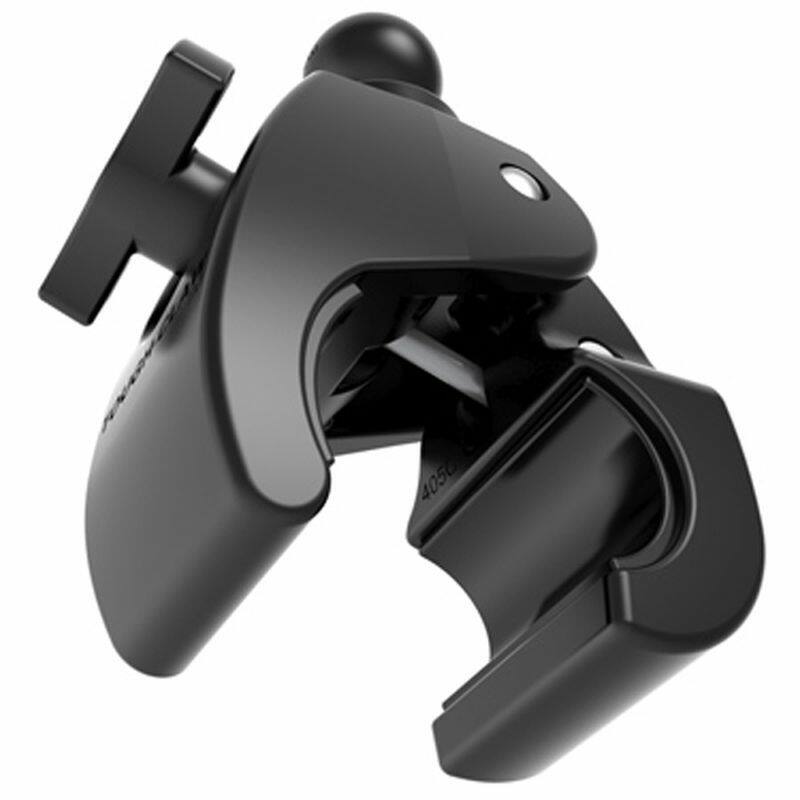

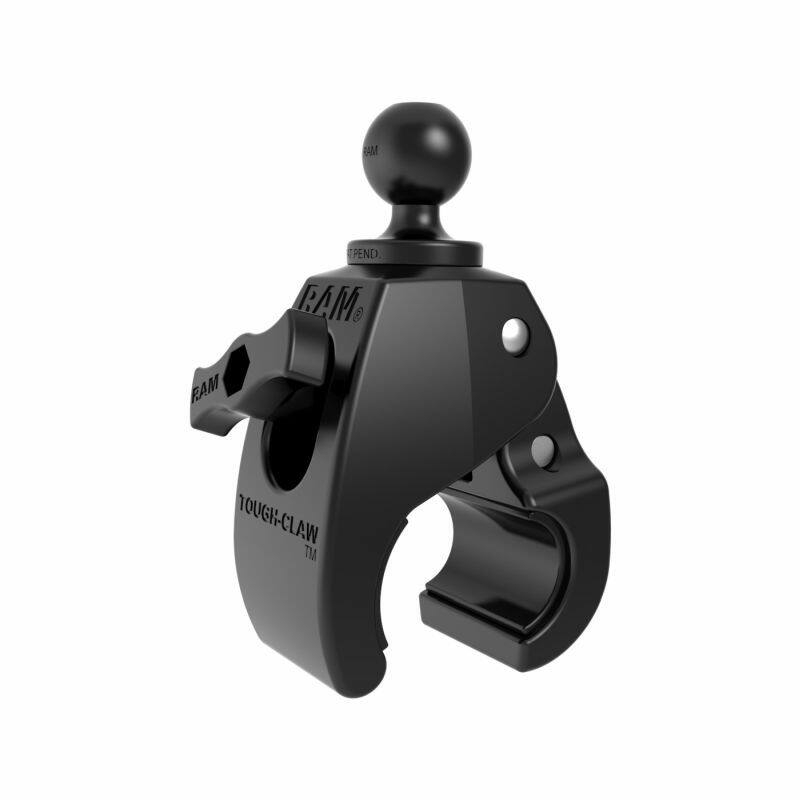

RAP-B-404U - medium tough-claw

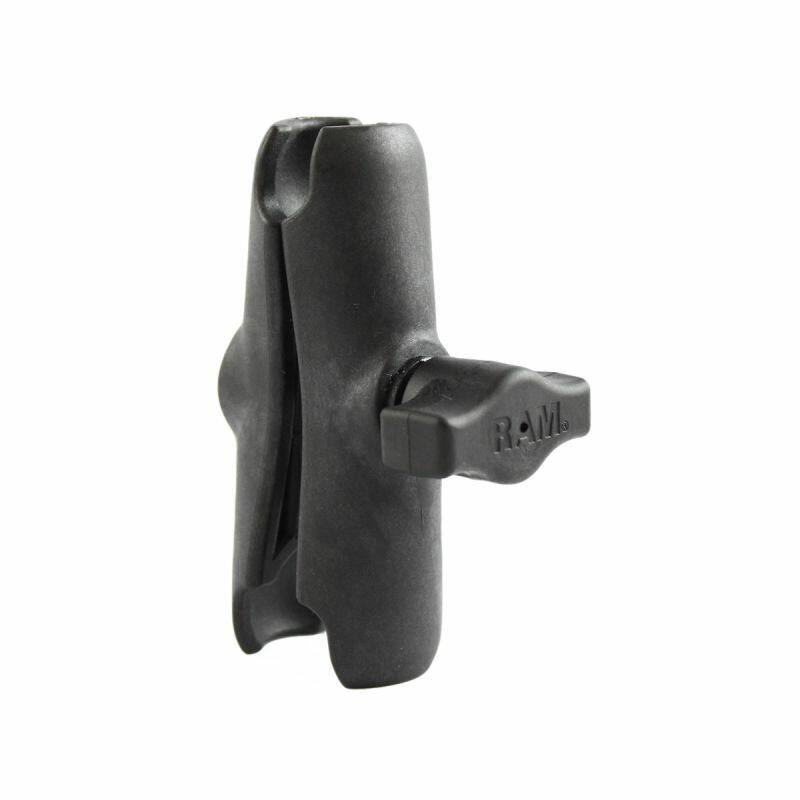

RAP-B-201U - composite 96mm long double socket arm
RAP-B-238u - Diamond Base

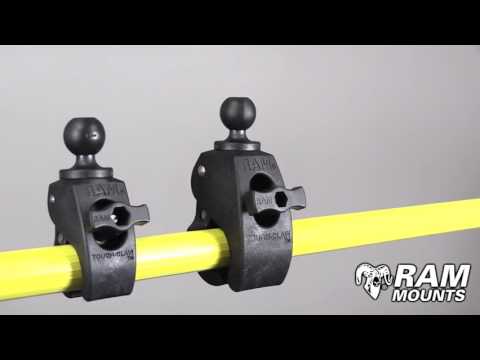

YouTube:
https://www.youtube.com/watch?v=rX36fAdknUY
