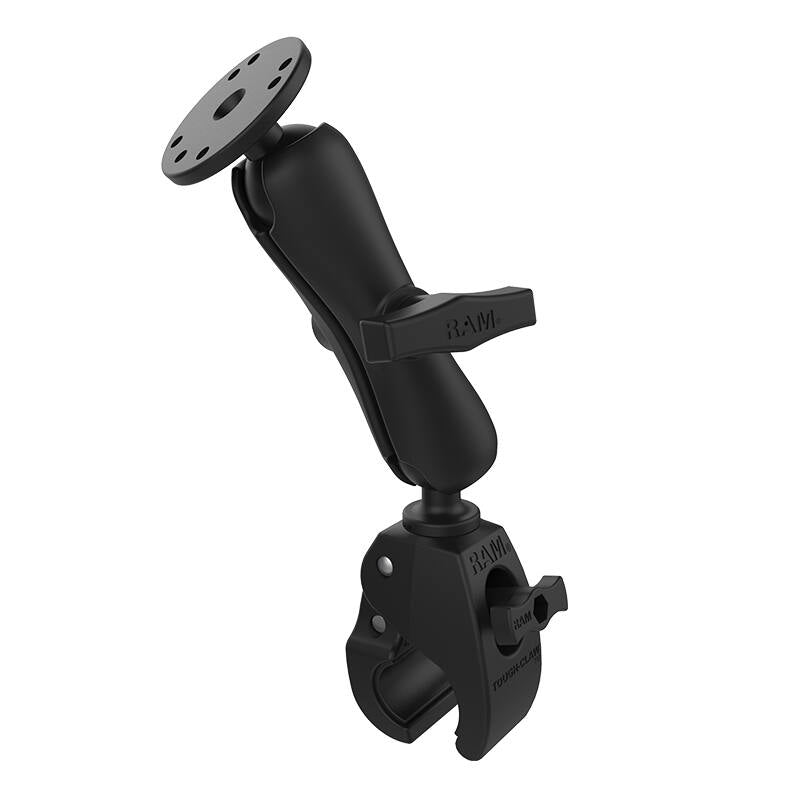

RAP-404-202U RAM® Tough-Claw™ Medium Clamp Double Ball Mount with Round Plate
Features

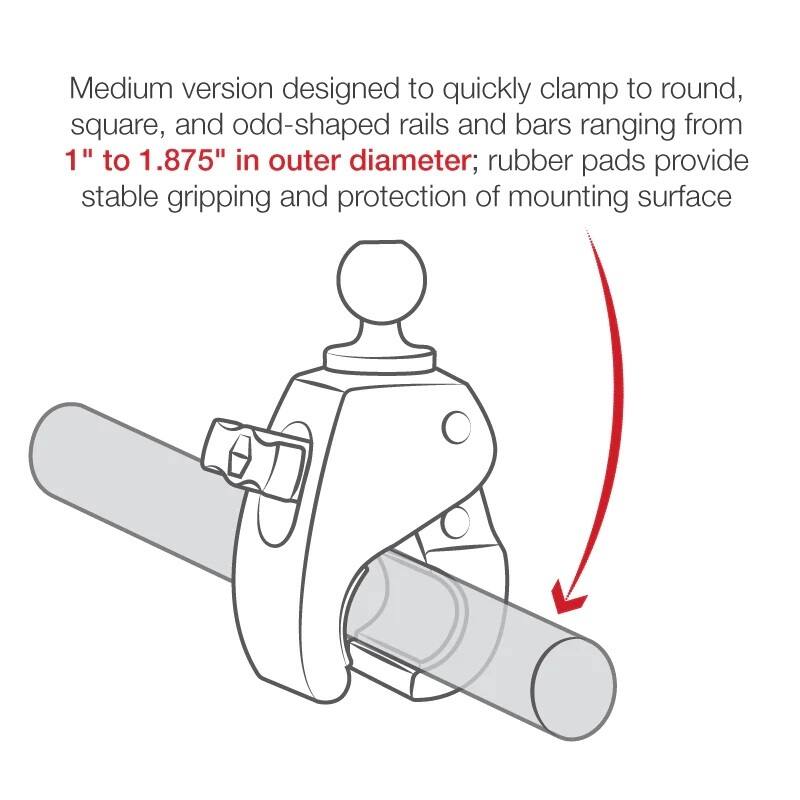

* Medium version designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 25 - 41mm in outer diameter; rubber pads provide stable gripping and protection of mounting surface
* 2.5" round plate connects to RAM® C size device holders containing the universal AMPS hole pattern
* Made of Marine-grade aluminum, high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

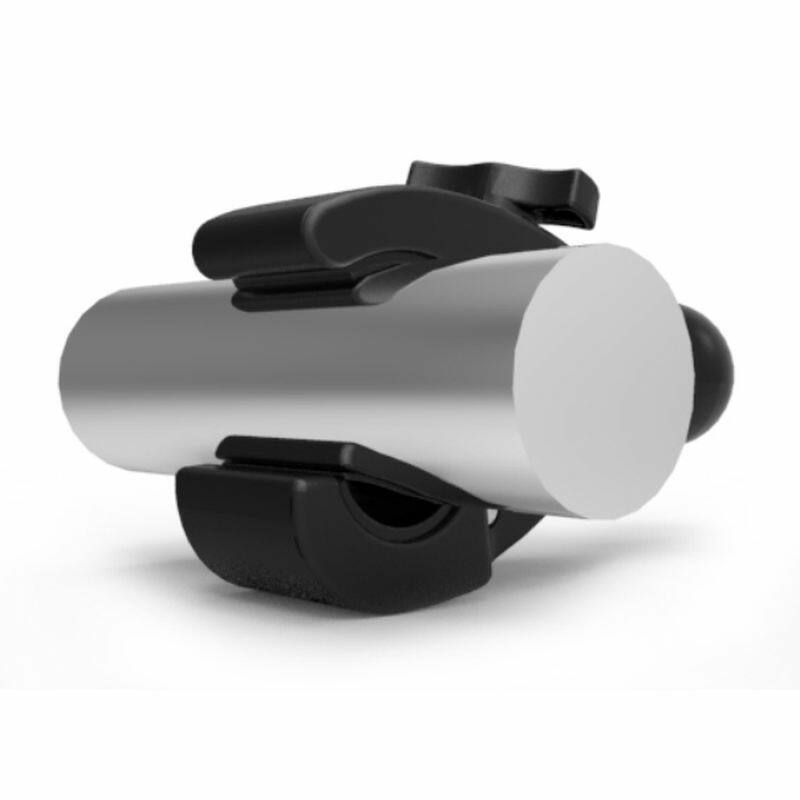

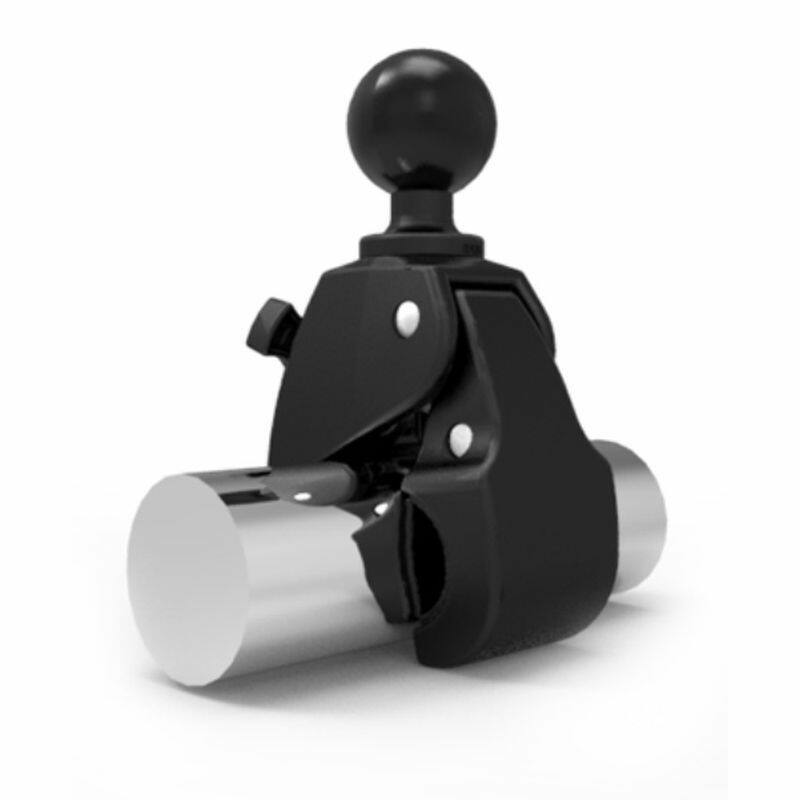

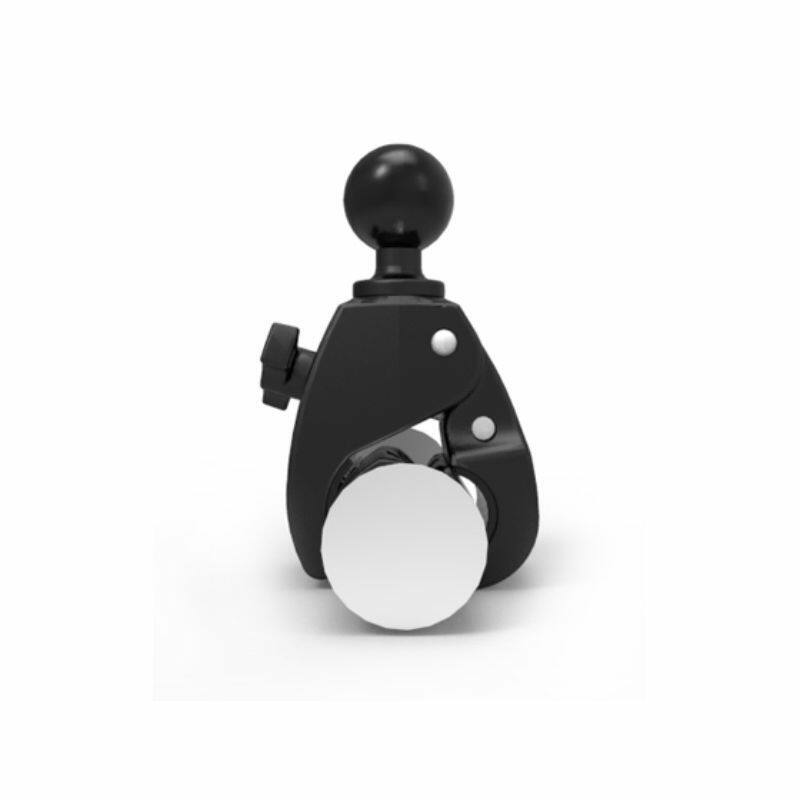

The RAM Tough-Claw is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The Tough-Claw can be clamped on rails from 25 to 41mm outer diameter. Just place the clamp over the rod/rail and tighten with the knob - no tools needed!
Perfectly suited for mounting on the yoke of an aircraft, handlebars, wheelchair, boat rails, kayak rails, roll bars, forklift cages etc. Our customers tell us that this is an ideal mount for wheelchairs and mobility devices - easy to install and remove when needed.
Specs & Features
Clamping Range
Rails/Tubes:
25.4 to 40.6mm (1" to 1.6")
Flat Surfaces:
0 to 40.6mm (0" to 1.6")

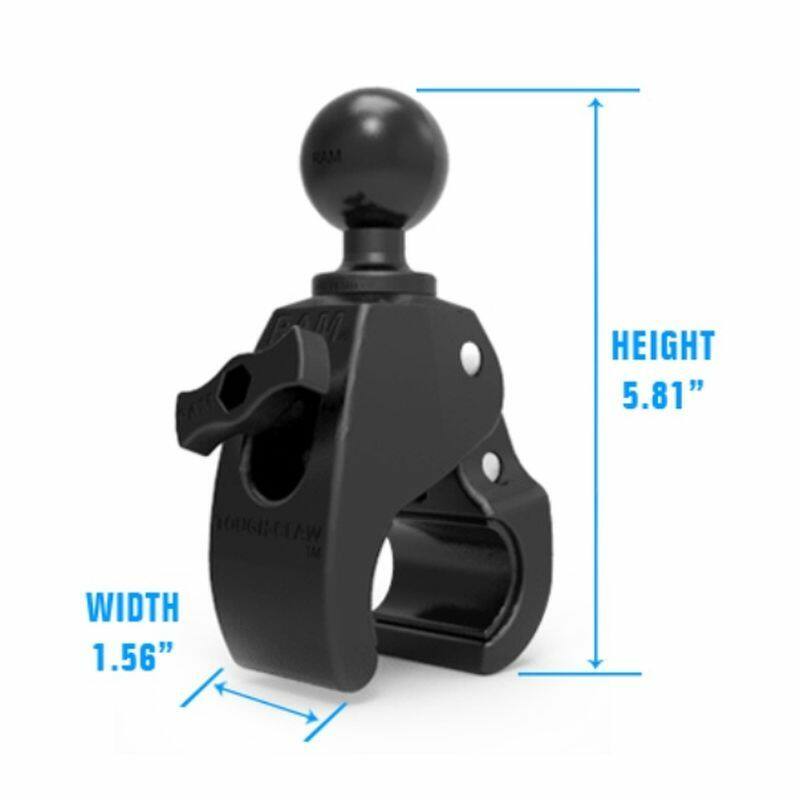

Arm Dimensions
Overall Length: 143mm (5.625")
Socket-To-Socket Length: 114mm (4.5")
Hole Pattern (Round Plate)
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812” (46.0mm)
Ball/Socket Size
C Size (1.5")
Material:
High Strength glass filled nylon
Stainless Steel Hardware
Marine-grade aluminum
High strength composite
Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)
Weight:
295 grams (0.65 lbs.)
Components:

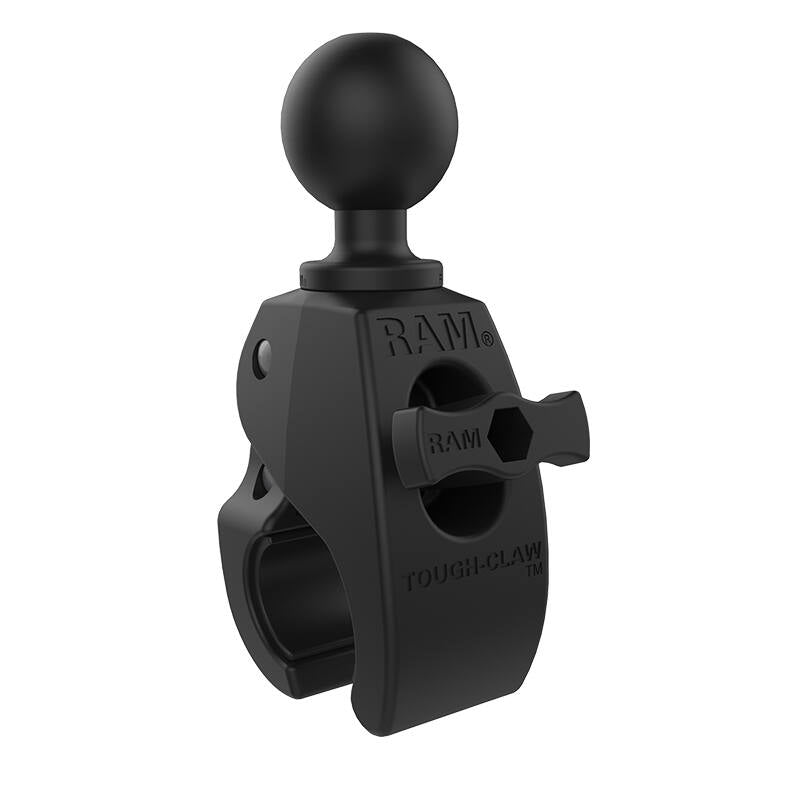

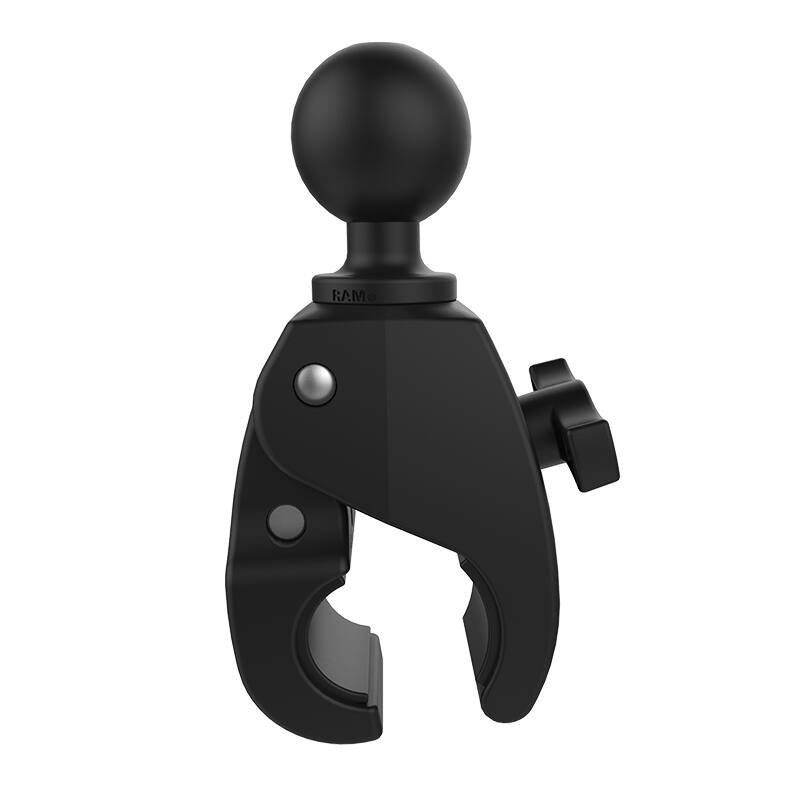

RAP-404U Medium Tough-Claw with 1.5" Diameter Rubber Ball

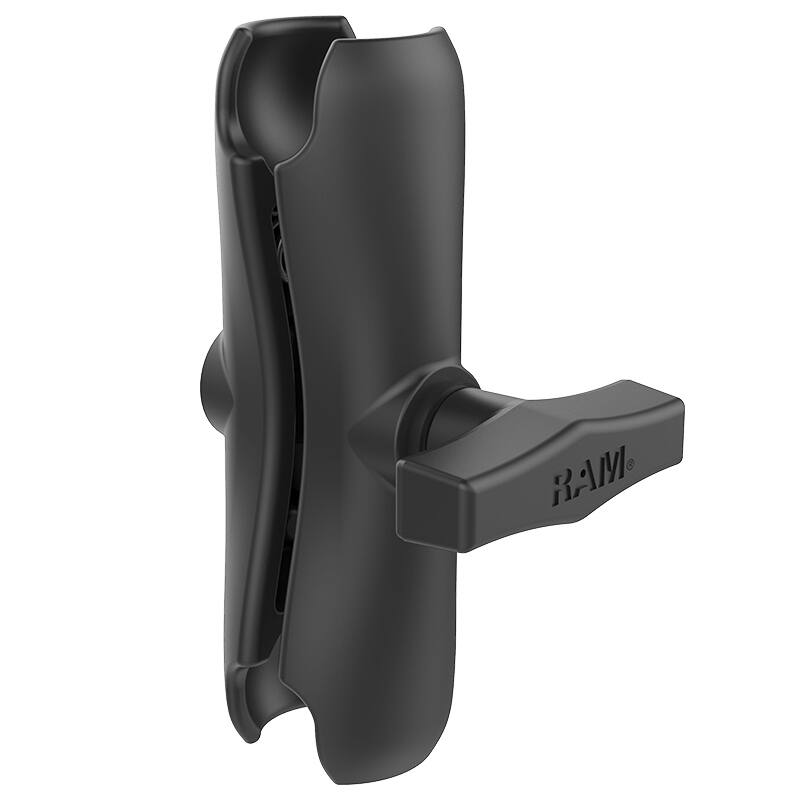

RAM-201U Standard Double Socket Arm for 1.5" Balls
RAM-202U 2.5" / 63mm DIA. BASE 1.5" Ball

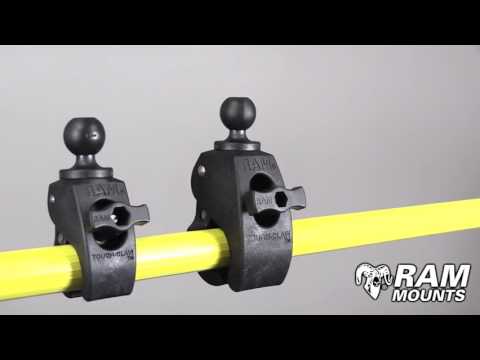

YouTube:
https://www.youtube.com/watch?v=rX36fAdknUY
https://www.youtube.com/watch?v=sihcgjafFI4
