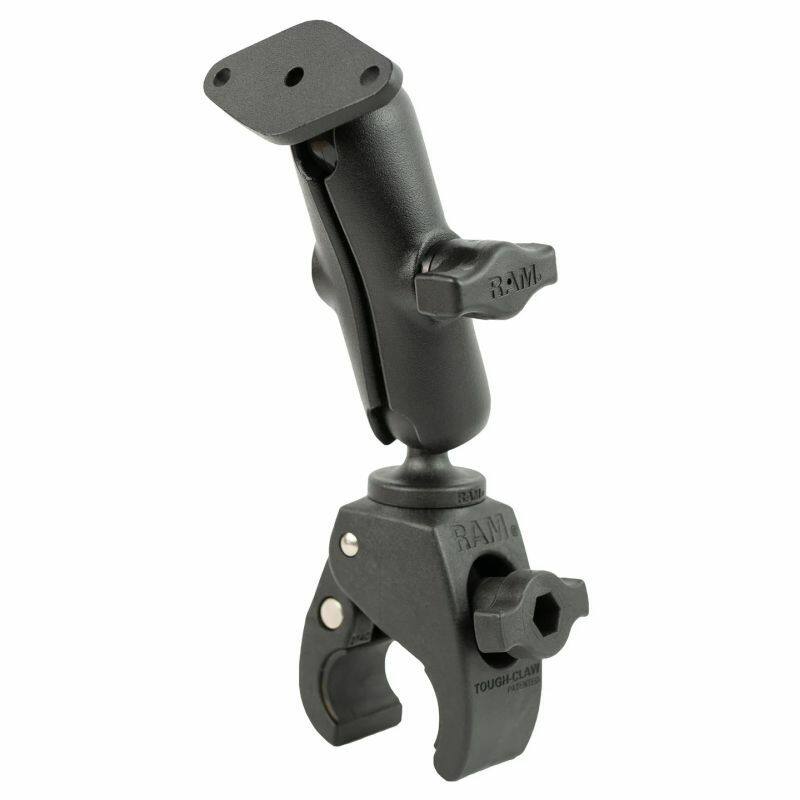

RAM-B-400-238U RAM® Tough-Claw™ Small Clamp Mount with Diamond Plate
Features
* Includes small version of the RAM® Tough-Claw™ and medium length B size RAM® double socket arm with diamond plate
* Diamond plate features industry-standard AMPS pattern and measures 2.43" x 1.31"
* Small version Tough-Claw designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 16-28mm in outer diameter
* Rubber pads provide stable gripping and protection of mounting surface
* Made of marine-grade aluminium, high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

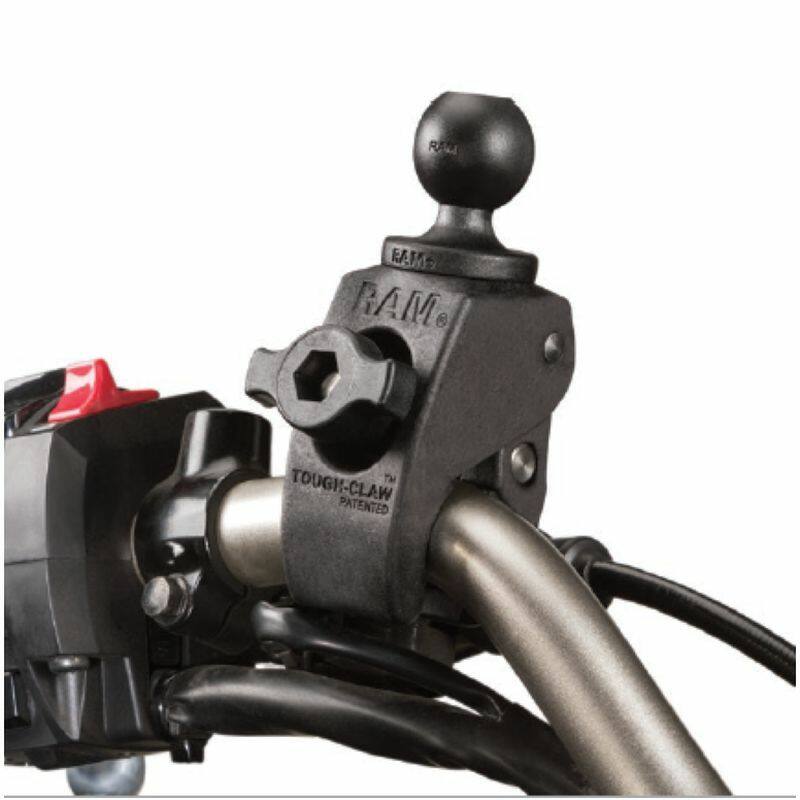

The RAM Tough-Claw is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. Just place the clamp over the rail or post and then tighten with the attached knob - no tools required. Perfectly suited for mounting on the yoke of an aircraft, handlebars and seat posts of bicycles, kayak rails, roll bars etc the Tough-Claw can be clamped on rails from 16mm to 38mm outer diameter.
Our customers have also found this an ideal base for wheelchairs and other mobility devices and it can be quickly installed or moved if required.
The base with 1" diameter rubber ball connected at right angles to a 62 to 33mm (2.476mm x 1.31") diamond base. The base has two holes 48.5mm (1.9305mm)from centre to centre (industry standard AMPS hole pattern) and will connect to a large variety of RAM Mount and third party cradles.

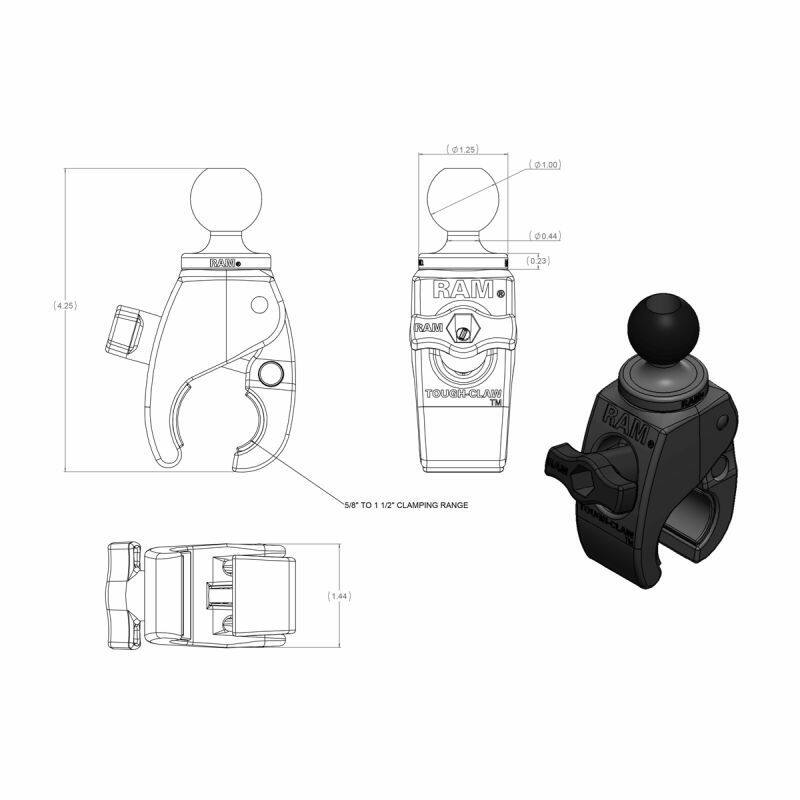

Tough Claw Clamping Range:

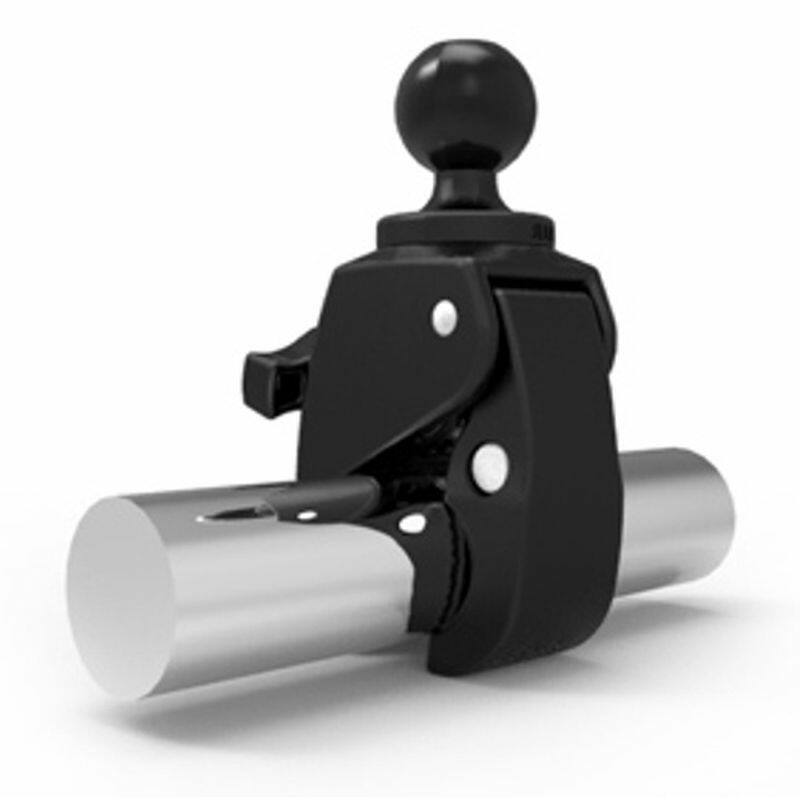

Rail/Tube Surfaces:
16 to 28mm (0.625" to 1.14")
Flat Surfaces:
0 to 29mm (0" to 1.14")
Material:
Marine-grade aluminium
High Strength Composite
Stainless Steel Hardware
Arm Dimensions:
Overall:
94mm (3.69")
Socket-To-Socket:
76mm (3")
Hole Pattern:
2-Hole AMPs:
1.912” (48.5mm)
Weight
907 grams (2 lbs)
Ball Size:
1" Rubber Ball Size
Components:

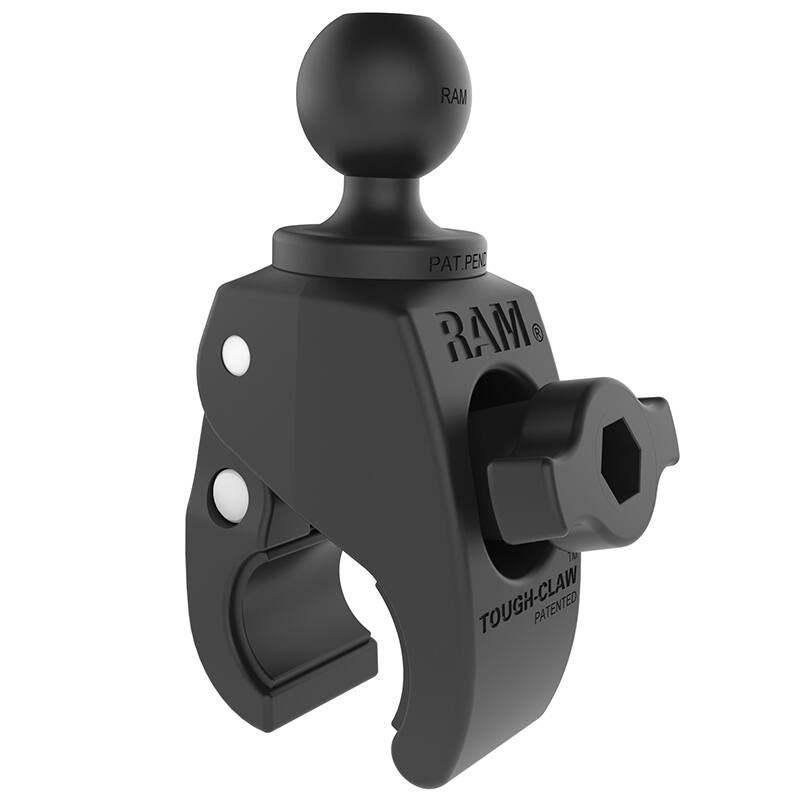

RAP-B-400U SMALL TOUGH CLAW
RAM-B-201U RAM DOUBLE SOCKET ARM FOR 1" BALL
RAM-B-238U RAM 62 X 33mm DIAMOND BASE W/ 1 BALL
