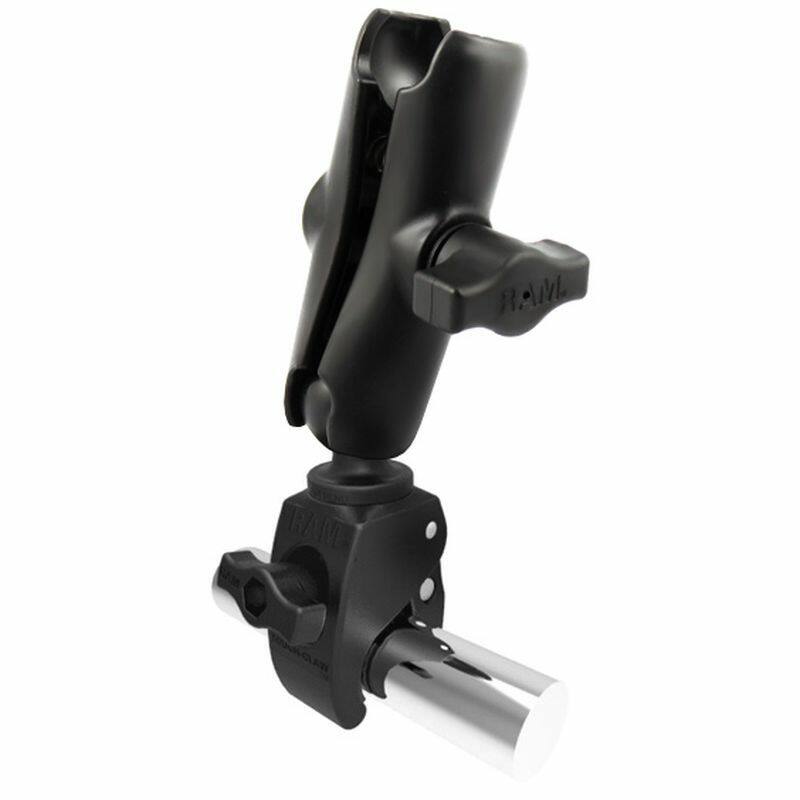

RAP-B-400-201U Small Tough-Claw with 1" ball and Medium Double Socket Arm (Composite)
Features

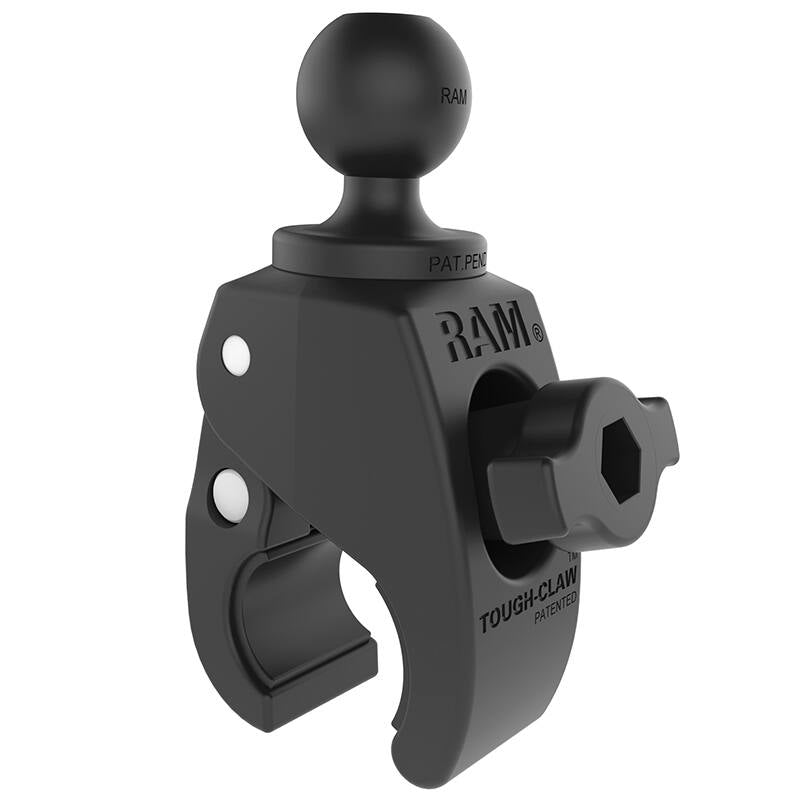

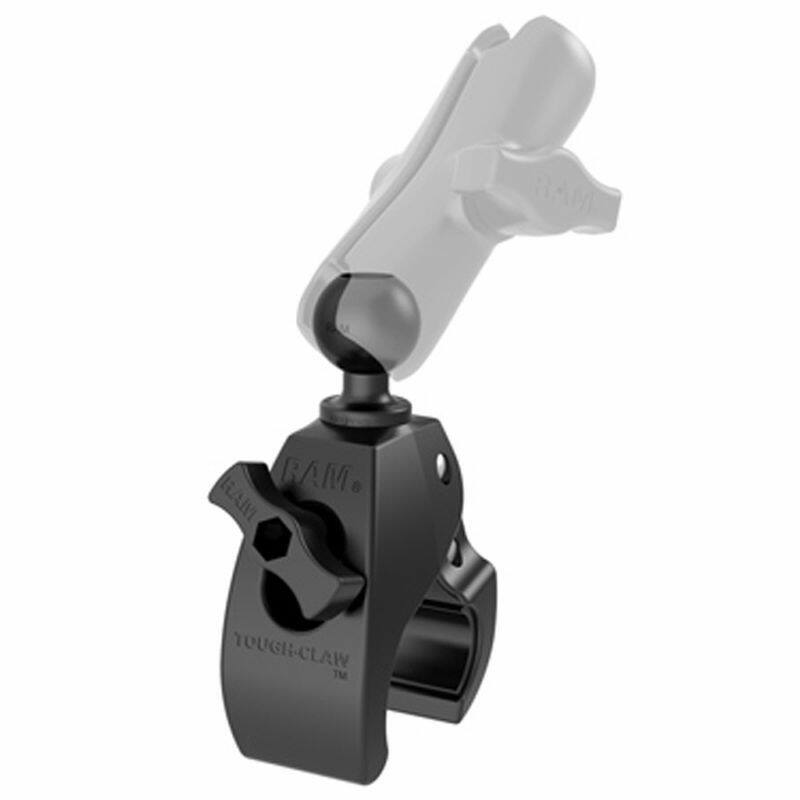

* Includes small version of the RAM® Tough-Claw™ and medium length B size RAM® double socket arm

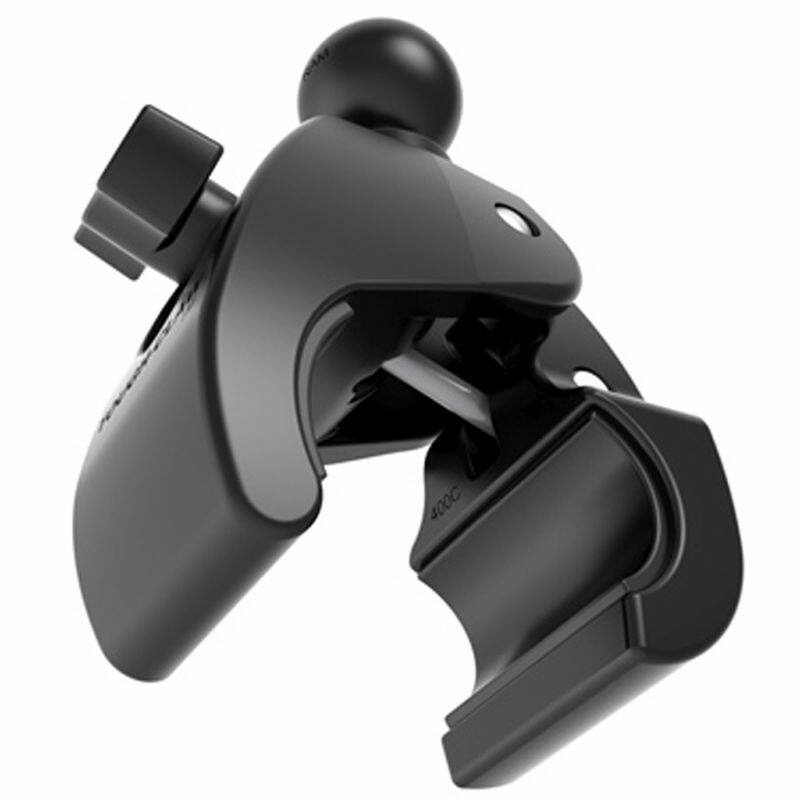

* Small version designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 16-38mm in outer diameter; rubber pads provide stable gripping and protection of mounting surface
* Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
The RAM Tough-Claw is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The Tough-Claw can be clamped on rails from 16mm to 38mm (0.625" to 1.5") outer diameter. Ideal for mounting tablets, action cameras, smart-phones, rod holders for rod storage and much more in a wide variety of applications.

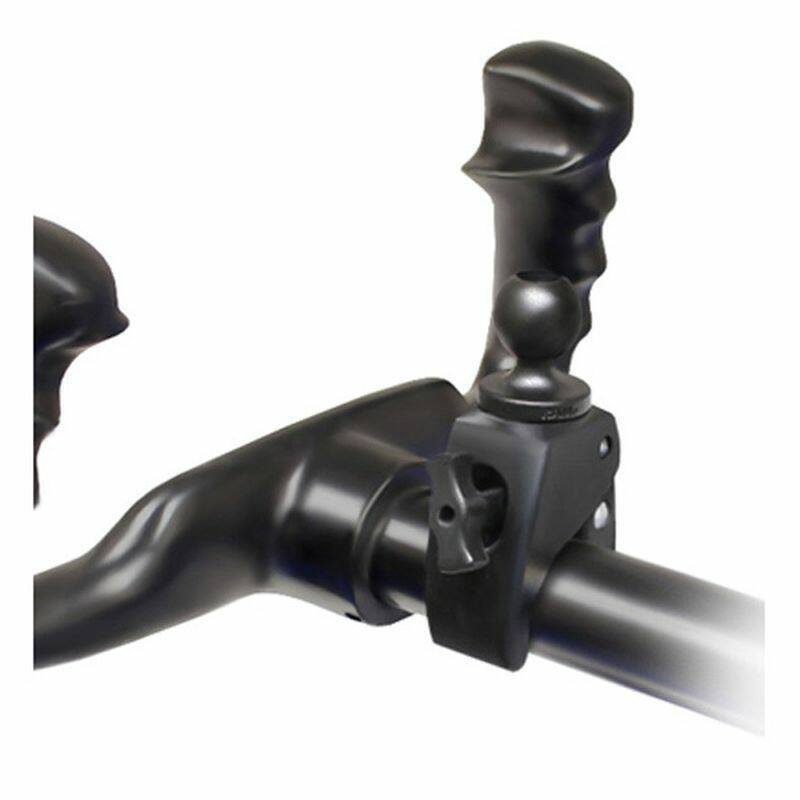

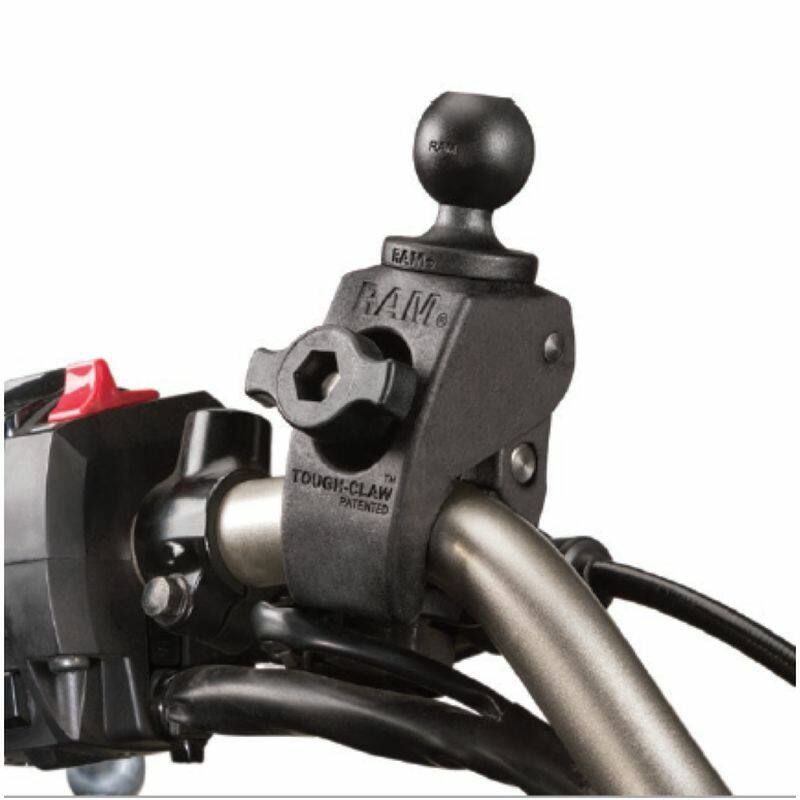

Perfectly suited for mounting on the yoke of an aircraft, handlebars and seat posts of bicycles, kayak rails, roll bars etc, the RAM Tough-Claw will soon become another essential RAM component in your collection of mounting options.

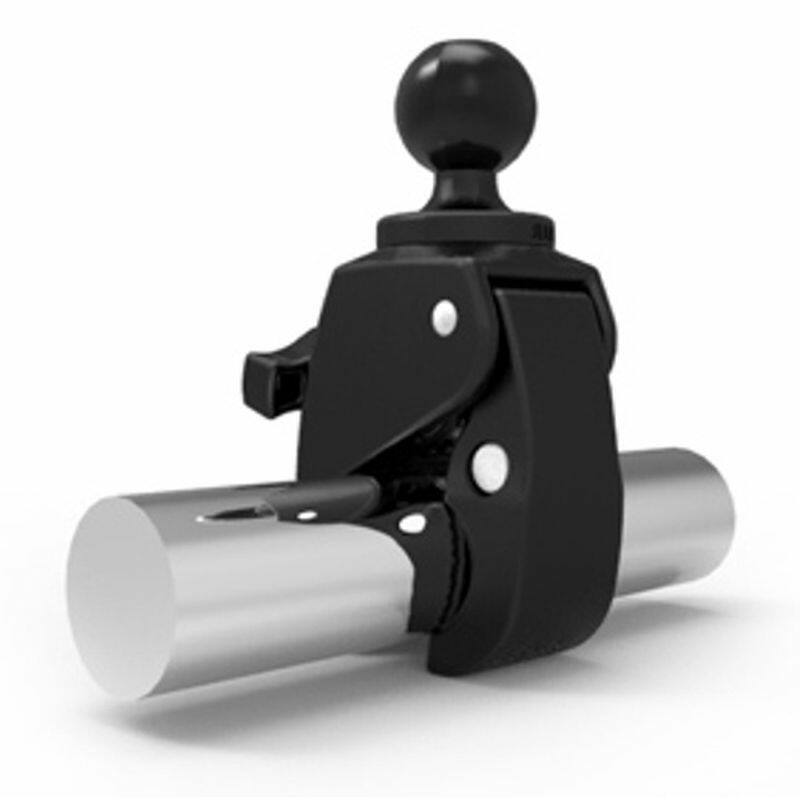

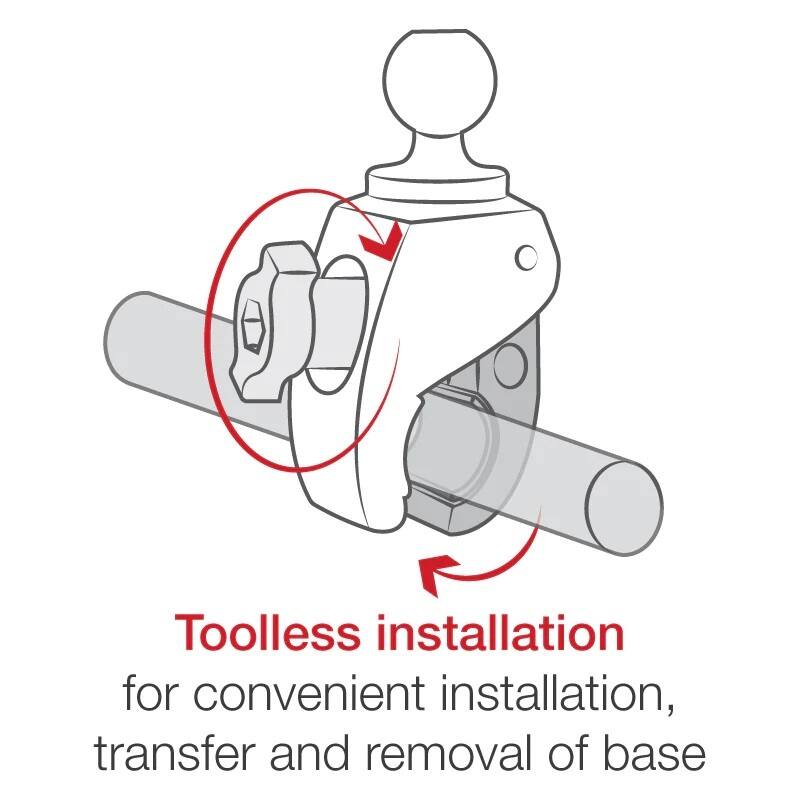

Just place the clamp over the rail or post and then tighten with the attached knob - no tools required.
Our customers have also found this an ideal base for wheelchairs and other mobility devices and it can be quickly installed or moved if required.
Clamping Range (Rail/Tube Surfaces):
16mm to 38mm (0.625" to 1.5")
Clamping Range (Flat Surfaces):
0 to 29mm (1.14")
Tough-Claw Physical Dimensions:
Height: 122mm (4.81")
Width: 30mm (1.18")
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Weight
228 grams (0.5 lbs)
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
Ball Size:
1" Rubber Ball Size
